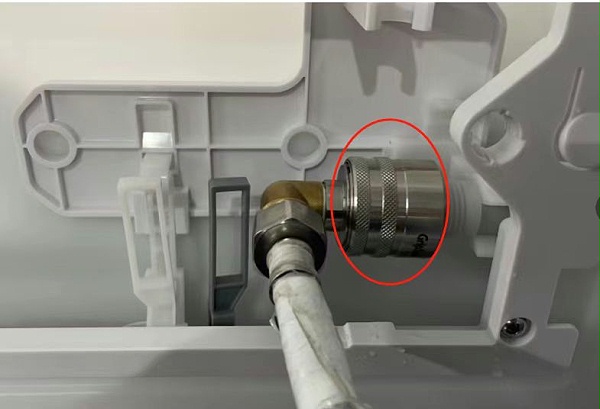

threadQuick connector In the bathroom industry, it is mainly used for water testing and sealing testing, which can quickly seal and connect the product to be tested and the water pipe. Replace the previous way of workers manually screwing the hexagonal nut of the braided pipe, which is convenient and fast, with good sealing and more stable product testing.
Products in the bathroom industry must have good sealing properties to prevent losses and hazards caused by water leakage during actual use. Before the product leaves the factory, it is necessary to conduct water testing and sealing tests to ensure that the pipeline is flooded and drained smoothly, and has good sealing properties to prevent water leakage.
GripSeal through in-depth program communication with many leading companies in the bathroom industry, learned that the usual testing method is: connect the product and water source with woven pipes, and add water pressure8BarLeft and right, control the valve to observe whether the water inlet and drainage are smooth, and at the same time observe whether the valve and other positions of the product are leaking. The current difficulties are focused on how to quickly, effectively and stably seal the product with the water source. The method of hand screwing the hexagonal nut is inefficient, it is difficult for workers to operate, and it is prone to loose sealing at the connection. Especially in some places with small space or uneasy operation, it is time-consuming and laborious.

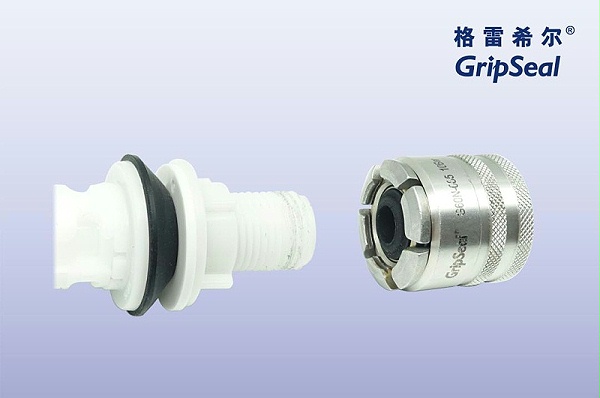

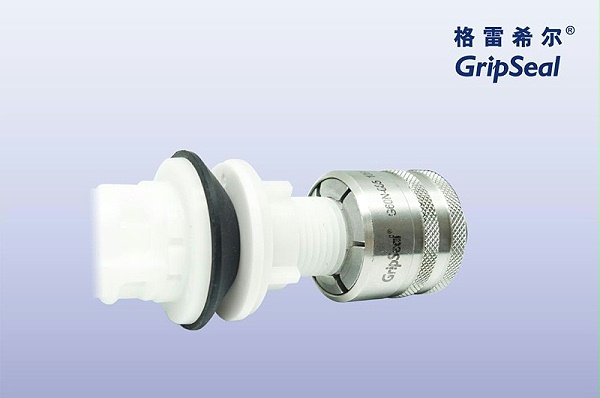

GripSealThreaded quick connectorG60N-085Series, commonly used in the bathroom industryG1/2External thread design, quick plug operation mode, no need to screw by hand. Align the thread port and insert it to mechanically seal connection, using316Stainless steel main body, with good corrosion resistance, not easy to rust, etc. Durable, no special maintenance required, no indentation, scratches, etc. on the screw teeth of plastic parts. There is also a bright spot to solve the industry painpoints,G60N-085The series is compact in appearance, with a total length of only38mmLeft and right, outer diameter35mmLeft and right, it can be used in most small space environments.
GripSeal G60N-085A series of threaded quick connectors, using sliding sleeve operation, can automatically lock and seal the connection with a light push, straight-through design, smoother water flow, etc., and more able to simulate actual application scenarios. Meet test requirements, improve sealing connection efficiency, thereby increasing output and reducing costs.
