Wire harness airtightness test is a necessary test process in the production process of new energy vehicles, including routine cable test, electrical connector test, terminal test, etc. The correspondingQuick connector To seal one end of the wiring harness, inflate or block, and connect the leak detector and other related equipment to check the waterproof qualification of the product seal.

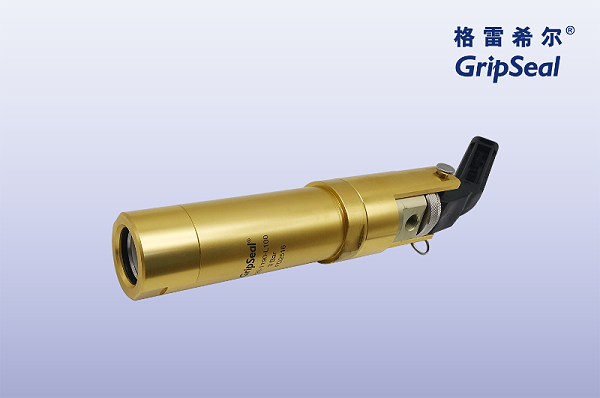

According to different wiring harness and connector testing requirements, GripSealProvide the corresponding quick sealing connection solution. Such as the sealing connection of ordinary wiring harness section, the other end is blocked or the other end is an electrical connector, terminal block, etc. We recommend manual solution for this.G20Series or pneumatic solutionG10Series, as depicted in the diagram below.G20The outer sealing method is adopted. When using, only one end of the cable needs to be disassembled into the connector cavity, and then the handle is bent to achieve a quick sealing connection. It can be used for ventilation or plugging. After the test is completed, the pressure must be relieved first, and then the handle can be straightened and pulled out of the connector. The operation is light and fast, and it will not damage the appearance of the wiring harness.

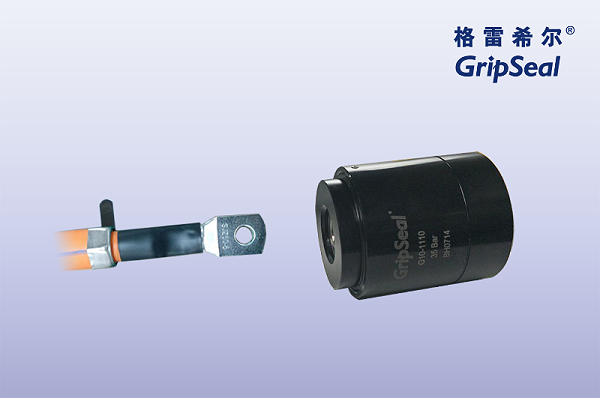

G10The pneumatic sealing scheme has the same sealing principle. It uses air pressure to drive the seal, without bending the handle, with solenoid valves, etc. It can be operated manually or used for automated sealing connections, which is more efficient and more convenient in certain application environments and testing requirements.

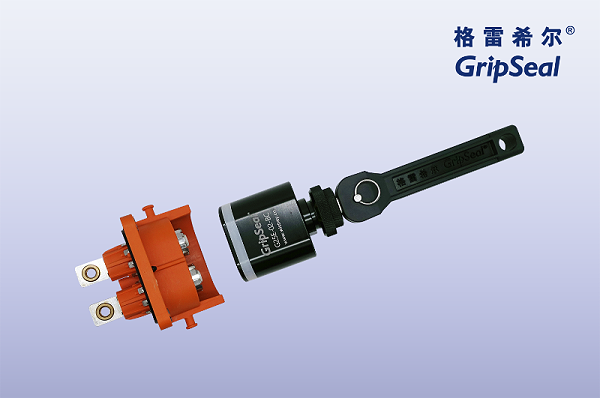

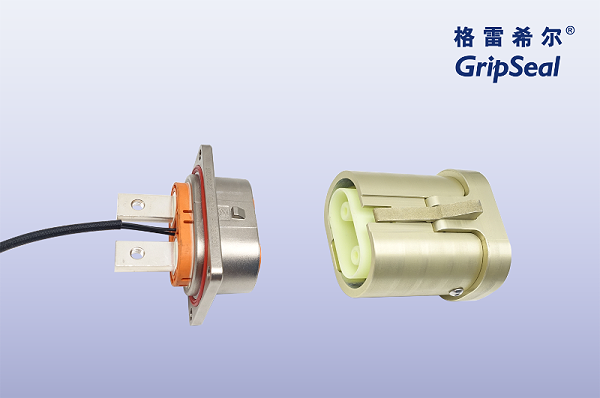

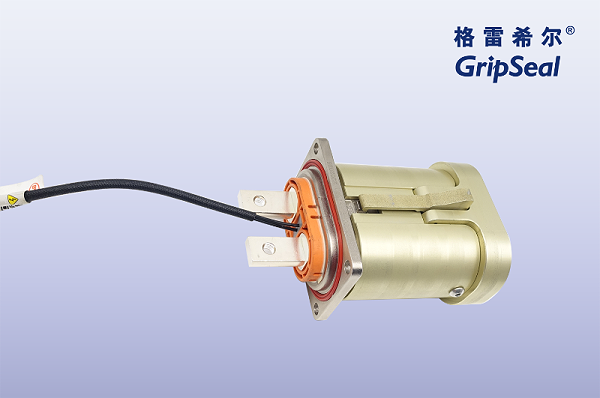

There are also electrical connectors or charging interfaces that have been connected to the wiring harness, and GripSeal also has corresponding quick connector solutions. There are many shapes of electrical connectors, which are briefly shown in pictures below.
Quick sealing connection for different connectors and cable harnesses airtightness testing, GripSealIn-depth research, development and design of various specifications and models of electrical connector sealing connection solutions. There are also corresponding high-voltage electrical testing and weak current testing corresponding fast connector applications to solve the problems of inconvenient operation of sealed connections, low test efficiency and high false detection rate in the new energy industry. For more quick connector solutions for testing in the new energy industry, please contactGripSealEngineers provide you with a safe and convenient connection solution.
