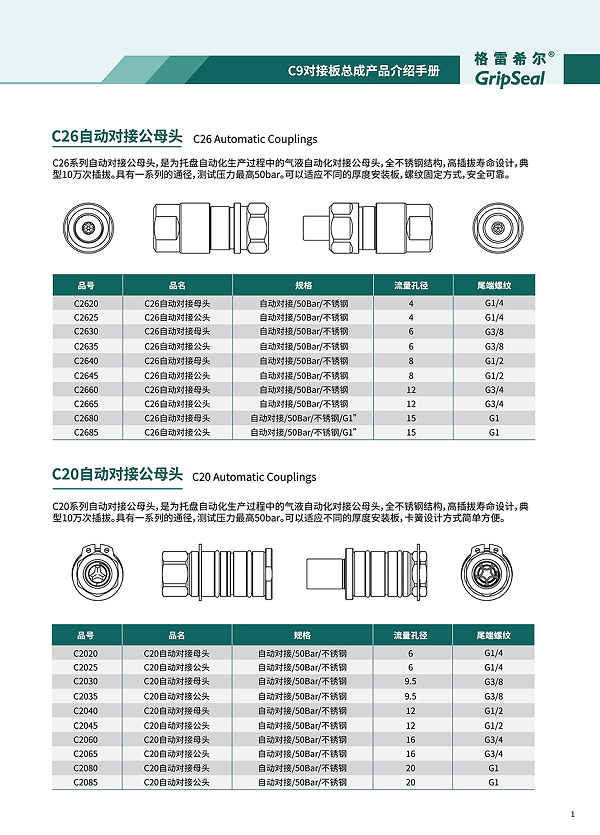

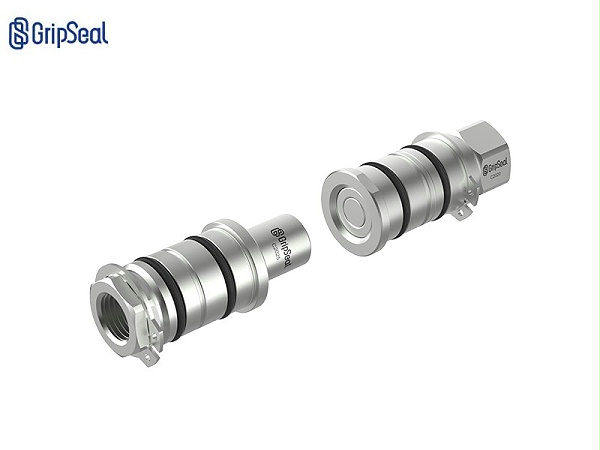

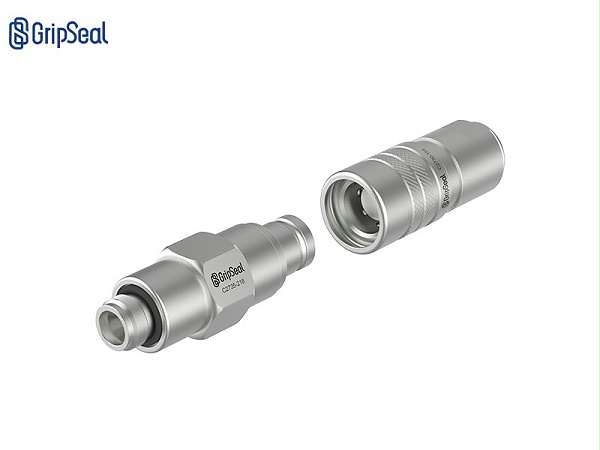

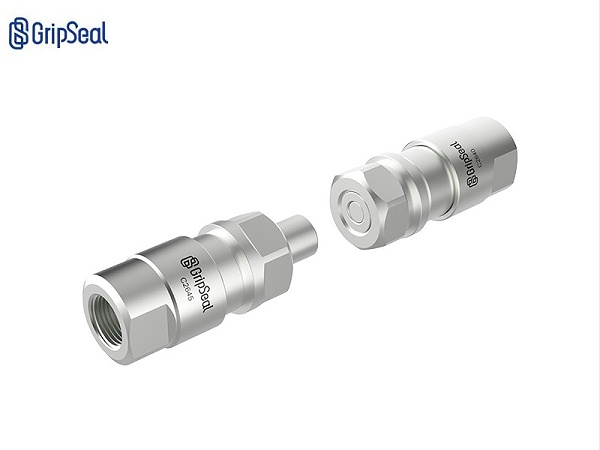

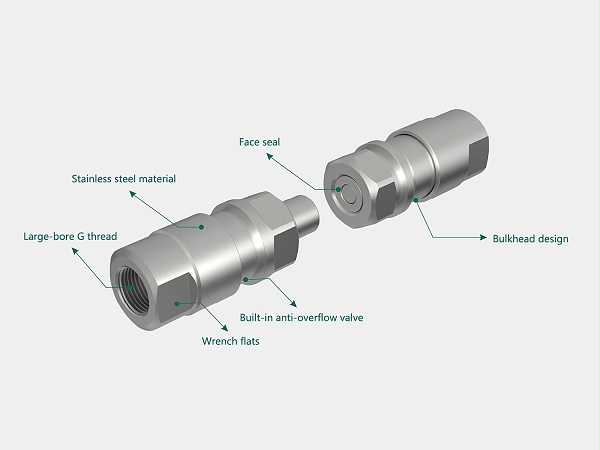

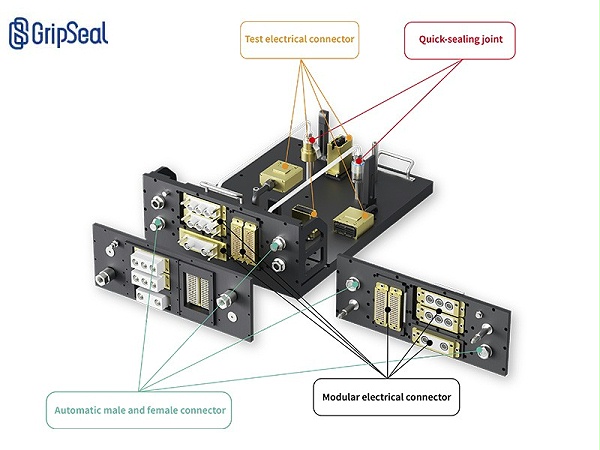

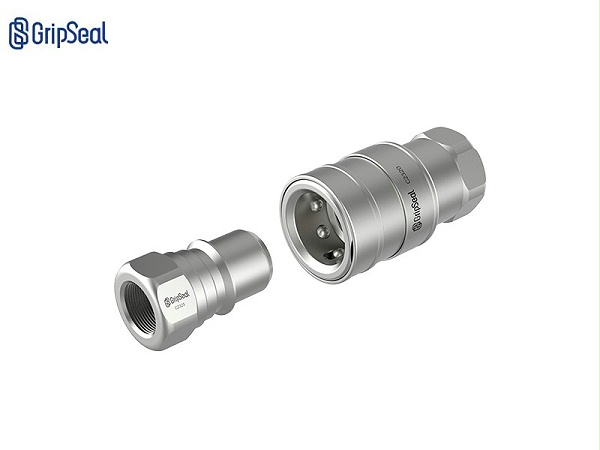

For electrical connectors, GripSeal has developed a series of automatic docking male and female connectors, includingC26/C20Series is the most commonly used. Automatic docking male and female heads are made of stainless steel structure to meet50barThe following gas-liquid quick connection is designed without drip. Plugging and unplugging life is our core parameter. Under laboratory conditions, the plugging and unplugging life exceeds1010,000 times. The following specifications are some of our standard specifications. We also provide custom-developed automatic male and female connectors for higher test pressures or larger flow apertures.

C26andC20The application scenarios are similar, the main difference is the installation method.C26The threaded fixing method is used, and only one thickness of the fixing plate can be applied, whileC20It is designed for a spring and can be applied to two fixed plates of different thicknesses. The flow aperture is slightly different. Under the same thread,C20The aperture is slightly larger.
