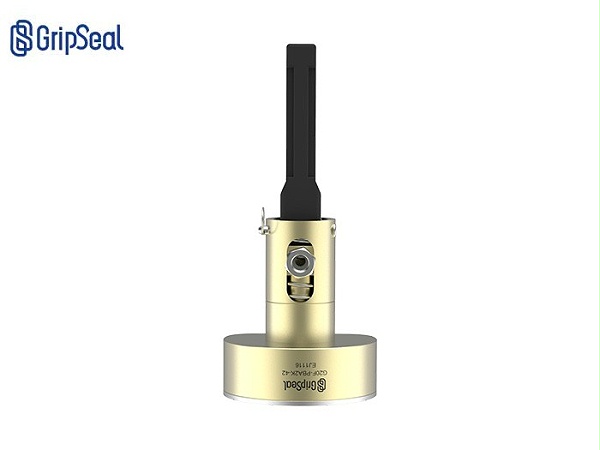

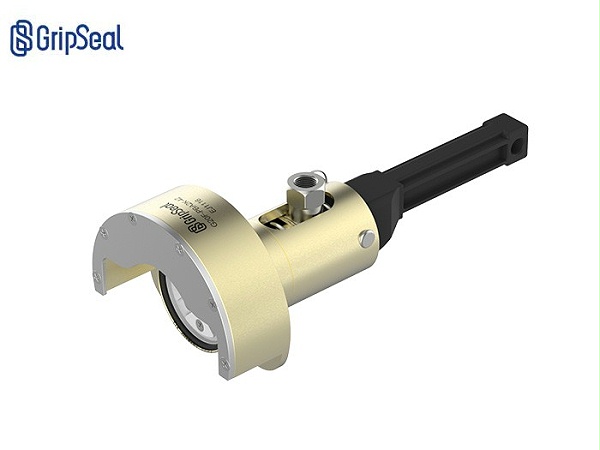

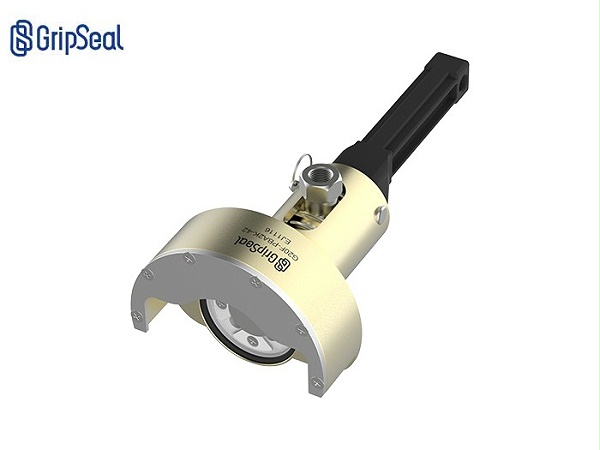

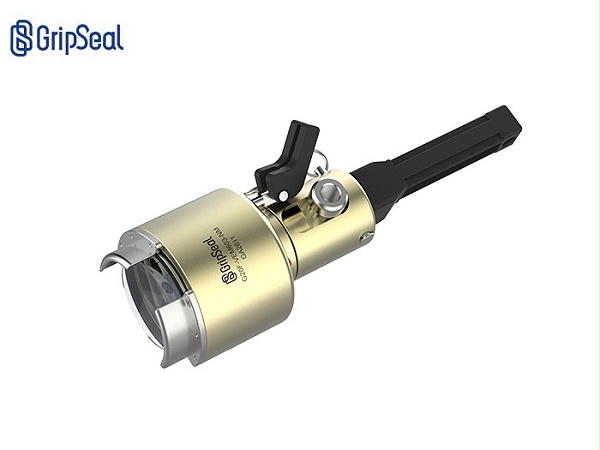

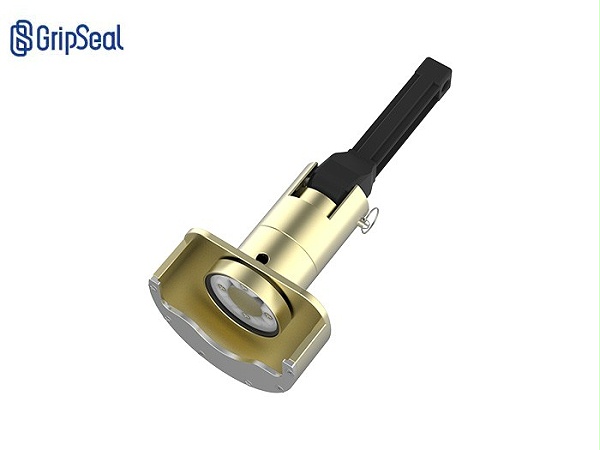

G20F Series is a special connector for explosion-proof valves, widely used in various battery packs. The method of use is simple, align the bayonet of the explosion-proof valve and fold the handle to complete the connection.
EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to50kpa |
| Sealing range | Customized according to explosion-proof valve |
| traffic interface | G1/8Threaded hole |
| main material | aluminum alloy |
| Main sealing ring | neoprene |
| Valve opening method | magnet/Suction cup |
| operating temperature | -20℃-120℃ |
Product video
G20Fregular quick connector-Operation tutorial

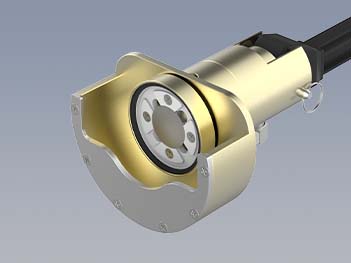

Product parameters

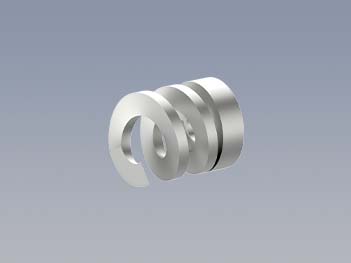

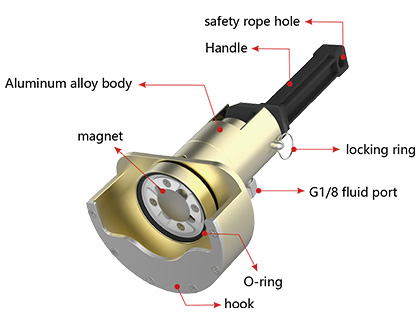

Self-adjusting spring: automatically adjusts the sealing pressure according to the aperture, prolonging the service life
magnetic attraction/Suction cup design: open the explosion-proof valve for easy ventilation

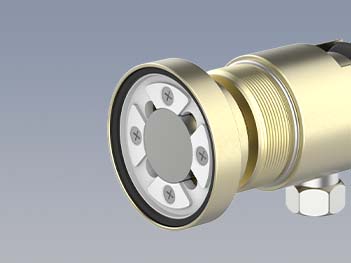

End face seal: reliable seal, easy to replace sealing ring, easy to maintain

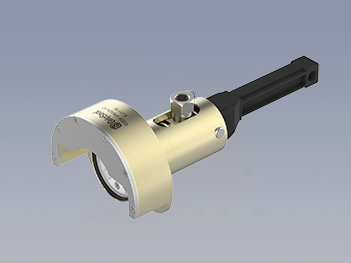

Aluminum alloy body: light and durable, reducing the operating burden

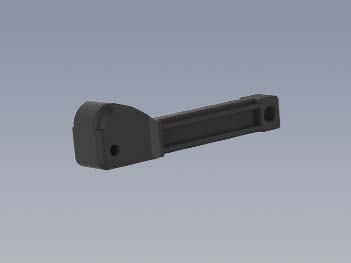

Handle operation: use the handle to operate, simple and labor-saving
Operation method

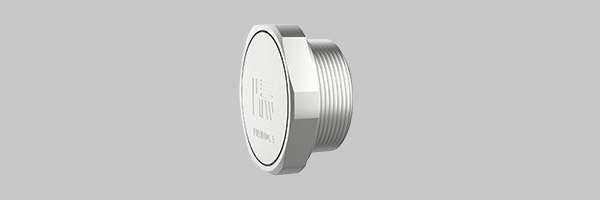

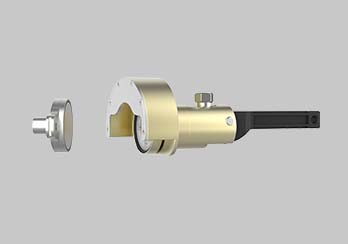

Sleeve the front end of the connector into the explosion-proof valve to be sealed.

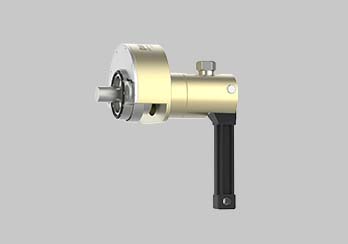

Fold the handle to form a seal.
Batterypackpackage testing

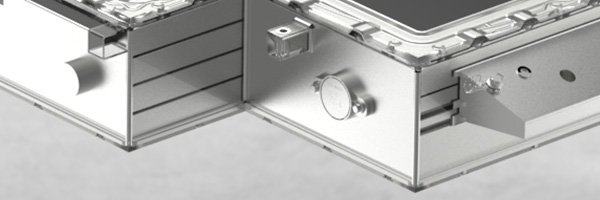

Explosion-proof valve test1
