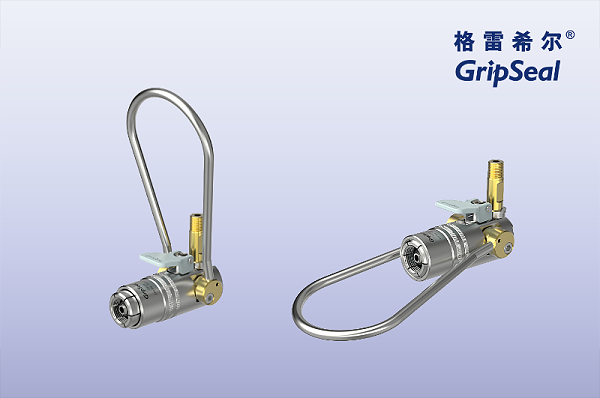

CZ105seriesIntroduction of gas cylinder filling connector:

CZ105For connectionG5/8Externally threaded cylinder valve for fast filling of compressed gas. There are various versions according to actual cylinder valve requirements. Maximum operating pressure240barCan satisfy ordinary compressed gases, such as nitrogen, oxygen, air, etc CZFilling connector There are other series to meet a wide range of cylinder valve interface requirements.

Before operating the quick connector for cylinder filling, please read this instruction for use in detail to understand all matters.

●CZ105Filling joints are only suitable for meeting the national standardG5/8For the gas cylinder valve with external thread standard, before use, please confirm that the gas cylinder valve interface meets the national standard. Do not use it on non-designated interfaces, which will cause damage to the filling joint or an important safety hazard. And you need to confirm whether there is a thimble in it, etc. For other types of interfaces, you can provide drawings or samples, and contact the sales for selection.

●CZ105There are dual safety guards equipped with safety lock ring and safety replacement, but there is a high pressure during the filling process. There are still a small number of severely worn joints or other accidents that are not connected correctly. Measures such as additional safety barriers or protective ropes on site are required to protect the operator and on-site equipment.

●CZ105The maximum working pressure is240barDo not exceed the maximum working pressure!

●Handle with care! Connectors are precision machinery products.

●CZ105The filling connector is designed for non-corrosive media. If your filling medium is corrosive gas, such as liquid chlorine, ammonia and other potentially corrosive gases, contact sales for selection.

●CZ105Filling connectors are not designed for high-purity industrial gases, but for the general gas filling market with a larger user base. Do not use for high-purity industrial gas filling.

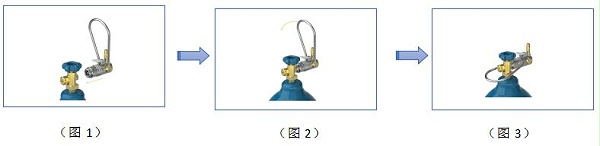

Quick Use Guide:

1Confirm that the main filling valve is closed, open each cylinder valve, and pull upCZ105Lift ring, align filling connector to cylinder valve interfaceG5/8External thread.

2) willCZ105Push the ring forward until it covers the cylinder valve. At this time, the safety button should lock the filling connector and the ring cannot be lifted.

3) and so onCZ105After all the filling joints are connected, open the filling main valve for filling.

4After filling, close the cylinder valve, close the main valve, and remove the air pressure in the filling pipeline to a lower pressure, such as0.2barWithin.

Attention: Lifting the lifting ring before pressure relief may result in a safety accident or damage to the connector.

5Press the safety lock and lift the ring to a near vertical position to loosen the connection.

Routine maintenance and upkeep:

1Replacement of the main sealing ring: After long-term use, the main sealing ring may be worn, and there may be slight leakage or failure to seal, which is a normal situation and needs to be replaced to solve the problem.

2Metal minions replacement: Metal minions are under pressure for a long time, and their lifespan is not predictable. Regular inspection systems are more important. Timely replacement of some severely worn minions.

3After long-term use in batches, the connector may become stuck, requiring deep maintenance and lubrication, and even replacing the internal sealing ring.

4Under normal circumstancesCZ105It should be in a suspended state or placed in a fixed position to avoid direct bumping and deformation. The interior is a precision structural part, and deformation may lead to functional failure or connection failure. And there may be more costs.

Notes:

1) install/removeCZ105Before, ensure the safety of filling joints and pipeline pressure relief.

2) High inflatable air pressure safety protection: Make sure that there are additional safety measures to protect the operator during the filling process. Including but not limited to metal safety doors, safety ropes, etc.

3To prevent falling: Filling the connector, there is a certain weight, and the production site needs to have certain measures to prevent the connector from rolling off, such as safety ropes, fixing/Limit the connector position.

4）CZ105It is aimed at the filling of ordinary gas purity and non-corrosive gas, and is not suitable for the filling of high-purity gas and corrosive gas.

Warning:

Users must adoptGripSeal Repair and update the sealing ring or accessories of, otherwise the filling connector may not operate normally, and even cause personal injury or equipment damage due to connection failure. Please contact GripSealOr the designated agent to obtain repair instructions and purchase sealing rings or related accessories.
