In industrial production, for some widely used gases, in order to further improve the convenience and efficiency of gas applications, compressed gas bottles are used to handle gas transportation. During the production and transportation of compressed gas, it is also necessary to address the growing demand for compressed gas in social and economic development, and further improve the convenience of using compressed gas in production applications. In the supply of gas by compressed gas production enterprises, high-pressure gas cylinders are generally used to supply gas.
The process and flow of compressed gas cylinder filling have a huge impact on the safe storage and transportation of compressed gas. At the same time, in the development of the compressed gas filling industry, the process of compressed gas filling is the most important part of the industry's development technology requirements. In the process of compressed gas filling, how to quickly connect the gas source with the gas cylinder for filling is a problem.GripSeal The produced cylinder filling connector can solve the problem of quick connection.

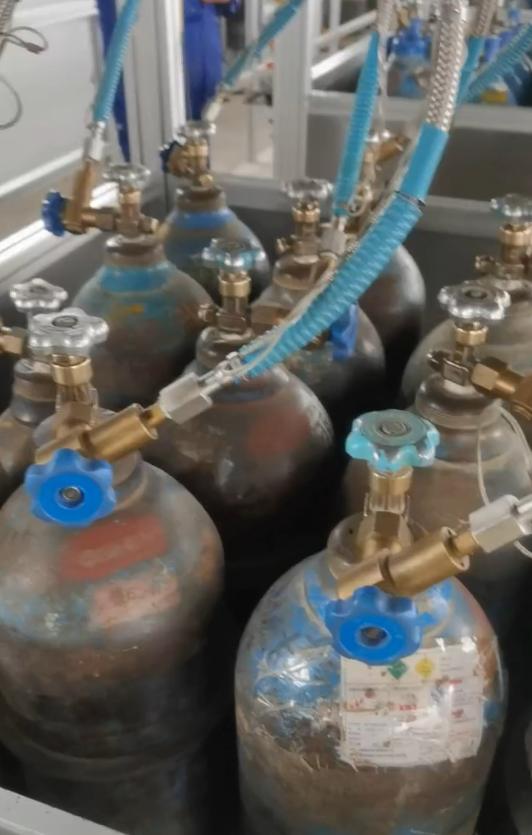

The traditional way is to tighten the internal thread port of the inflatable pipe and the external thread of the gas cylinder with a wrench. Under skilled circumstances, a gas cylinder is connected to the air source for filling1-2Minutes, if the thread is carried up hard, it will also damage the threads of the cylinder valve port, sometimes leading to poor connection and air leakage. Not only does the connection take a long time and the efficiency is low, but also there will be air leakage problems.
<="">

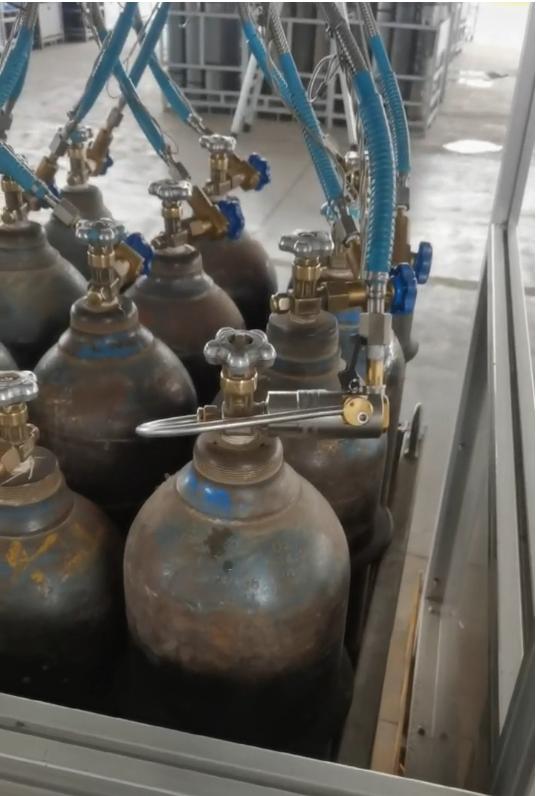

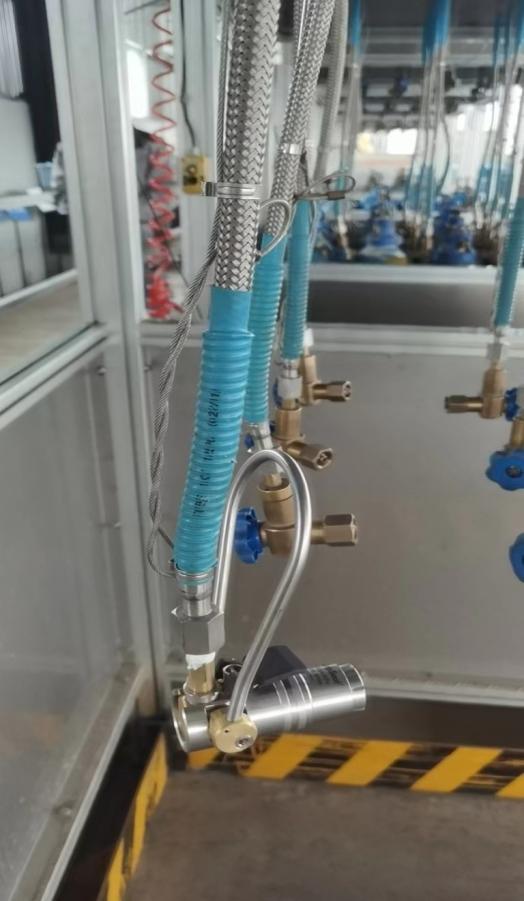

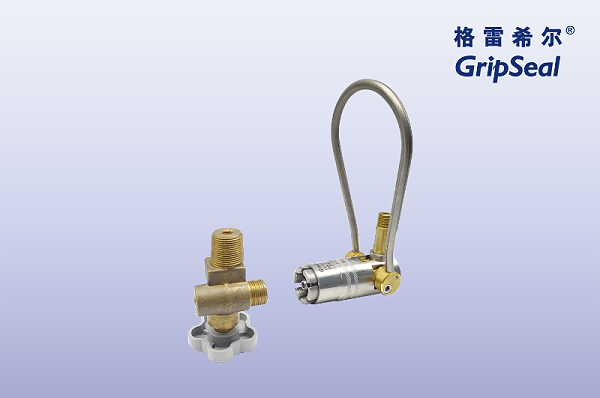

CZSeries gas cylinder special connectors can easily solve the traditional filling pain points.CZThe series is used for the filling of compressed gas. The product connection is simple. Pick up the lifting ring and connect it with the nozzle of the gas cylinder, and put down the lifting ring to connect the inflation. The whole process takes time5In about a second, the connection efficiency is greatly improved. When inflating, the anti-off pin will pop up the locked connection to prevent accidental collision from causing the joint to be disconnected, ensuring the reliability and convenience of inflation.
<="">
<="">
CZseriesQuick connector characteristics
1, Carry ring handle Simple operation, when locking, cover the valve port to avoid falling off and protect the operator
2Locking pin When the gas cylinder is inflated, the pin pops up and locks the rebound switch to prevent the connector from flying out when inflated.
3Compact structure Small size, light weight, reducing the operator's work intensity
4A variety of specifications Standardized products with diverse specifications, covering common gas cylinder valve interfaces
5Good sealing Multiple internal sealing rings ensure the airtightness of the connection and improve operating efficiency
<="">
