Case name
Helium Leak Test Quick Seal Coupling
customer demand
An industrial equipment customer is a manufacturer of airtight testing equipment and non-standard customized equipment. Its cooperative customers cover automotive parts, air conditioning and refrigeration manufacturers, and they all provide customized services for various industrial testing equipment. From bubble leak detection, air pressure leak detection to helium leak detection, among which the condenser helium detection equipment customized for refrigeration parts factories involves the problem of pipe sealing connection, which needs to be usedQuick seal joint。
Program introduction

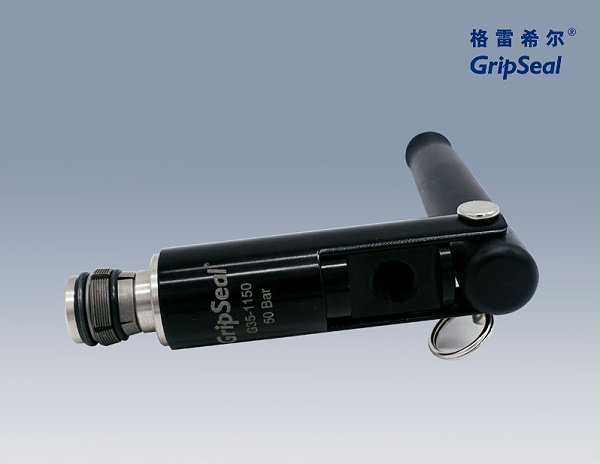

According to the specific needs of the equipment manufacturer, we quickly provided the relevantGripSealSeal joint scheme. chooseG30/G35Series of quick connectors,G30It is a high-pressure application connector, which is an outer diameter joint for sealing various copper pipes, steel pipes and aluminum pipes. Handle fast drive design, with threaded test holes, high-pressure wild card connection, pressure aided design, can increase with the test pressure, the sealing force will also increase.G35It is a self-locking high-voltage inner diameter connector. According to the different positions of the sealing pipe holes,G30、G35The helium test of each nozzle sealing is realized separately.
<="">
Program advantage
Realize fast sealing connection, select materials, safe and reliable, meet high pressure, high and low temperature requirements, complete connector models, simple operation, and improve overall testing efficiency.
Customer feedback
useGripSeal Quick connectors are used for testing connections for helium leak detection, which can improve the overall equipment customization efficiency, seal reliably and durably, connect in one second, and seal instantaneously. We are very satisfied with GripSeal product quality and service.
application development
GripSealQuick seal joint can also be applied to other items of industrial leak detection, batch industrial leak detection is inseparable from the connection, such as bubble test, air pressure leak detector, helium leak detector, water pressure testing device, oil pressure testing device and other pressure levels of leak testing.
related products
G30Series Quick Seal Coupling、G35Series Quick Seal Coupling
