EMAIL:info@gripseal.comProduct parameters

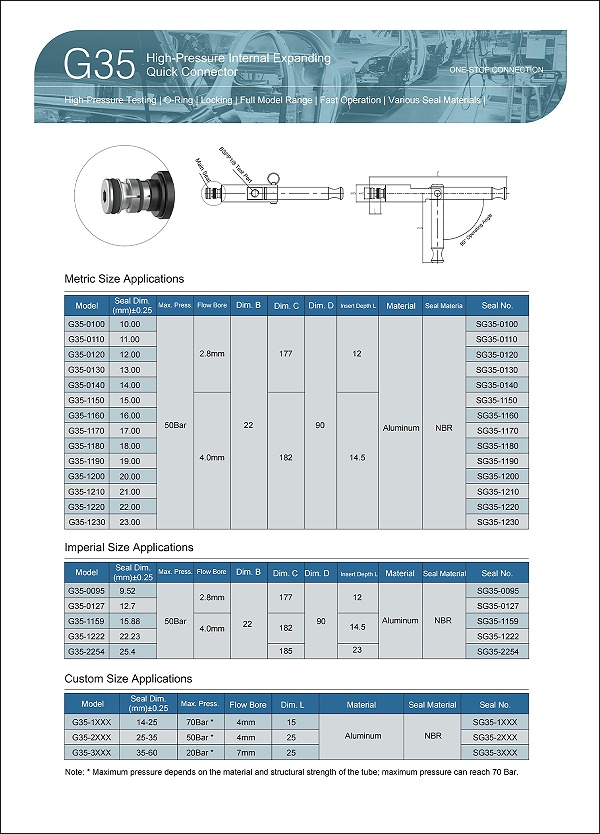

| Maximum operating pressure | From vacuum to50Baror70Bbar |
| Sealing range | 8mm-100mm |
| minimum insertion depth | 0,1No. Body:12mm，2No. Body:23mm |
| traffic interface | G1/8Threaded hole orZG1/8Threaded hole |
| main material | Aluminum alloy, stainless steel, nylon |
| Main sealing ring material | Nitrile rubber |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video

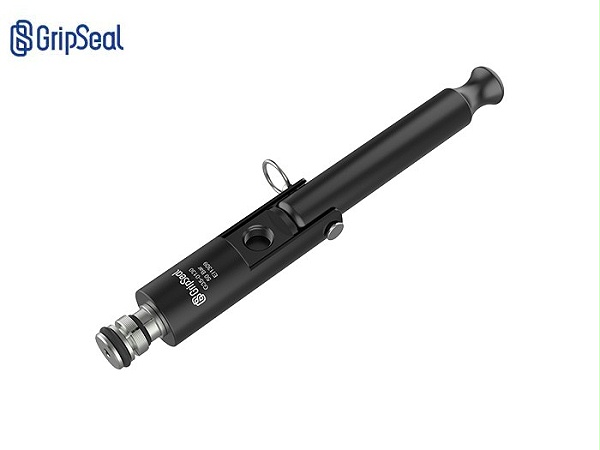

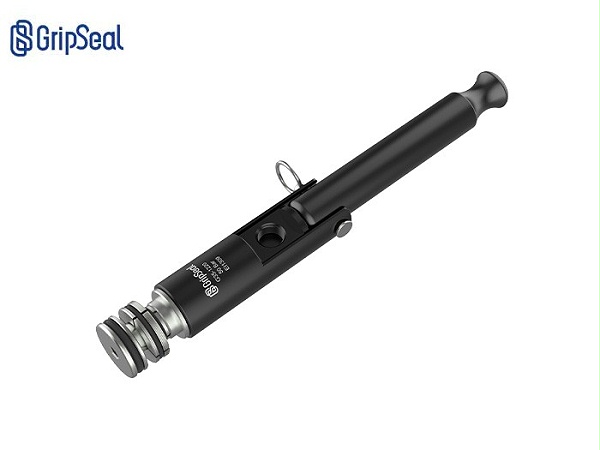

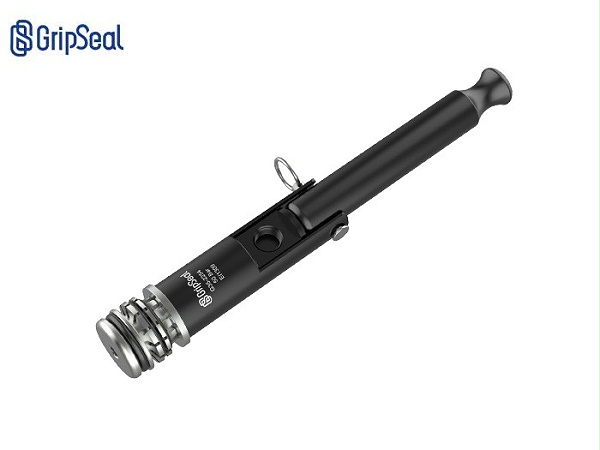

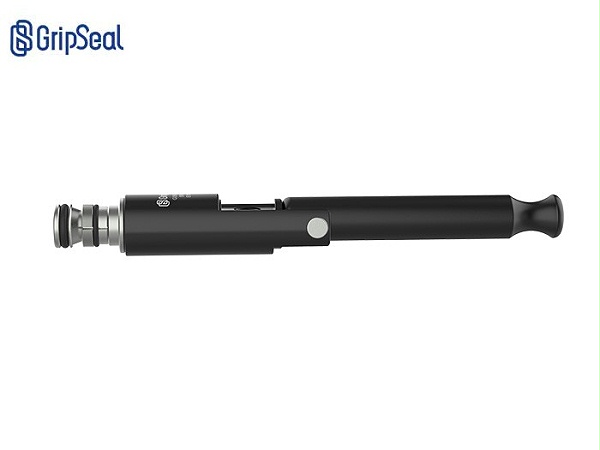

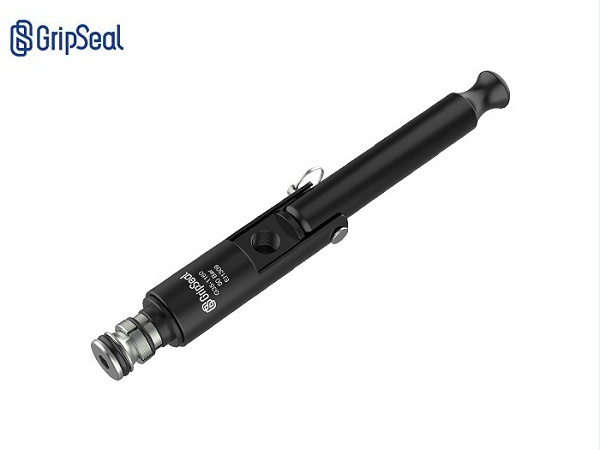

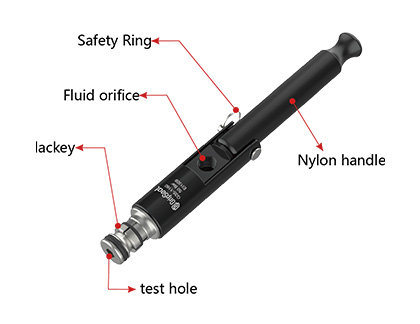

G35Operation video of series high pressure pipe inner diameter sealing connector
Product parameters

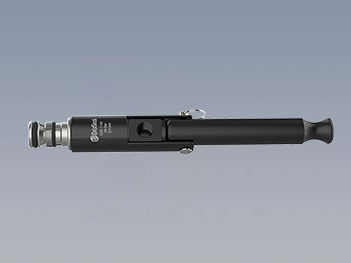

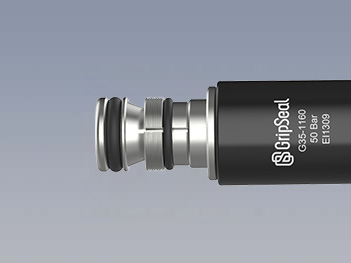

Locking minions: with locking minions, which can firmly grasp the inner wall of the pipe fittings and improve the upper limit of pressure resistance

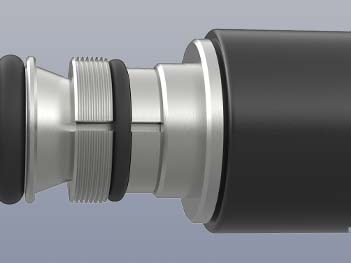

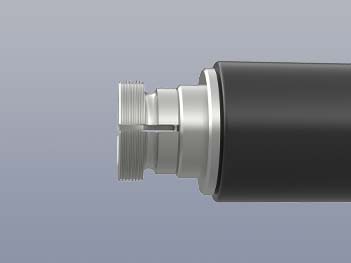

Horizontal characteristics: There are fine horizontal lines on the locking claws, which can increase the force area and provide a firmer grip.＊only1,2No. The main body has
Multi-point seal: Special minion shape, multi-point contact provides more grip while reducing inner wall scratches

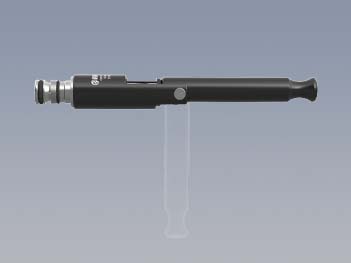

Aviation aluminum, nylon handle: easy to operate, reducing the labor intensity of the operator
Pipe thread fluid hole: in line with international standards, commonly used in China, related accessories are easy to obtain
Operation method

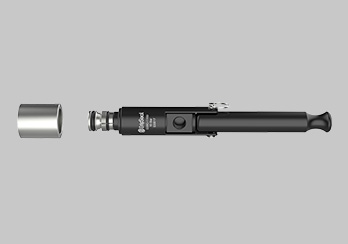

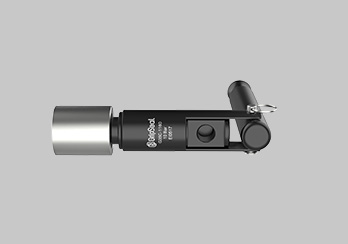

Align the connector inside the fitting

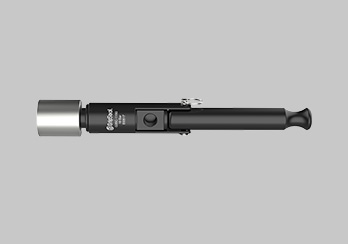

Insert the connector into the fitting
Pull the handle, at this time the test piece is locked by the connector pawn, and the seal is completed.
