EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to35Bar |
| minimum insertion depth | 1,2No. Body:15mm,3,4No. Body:30mm |
| traffic interface | G1/8;G1/4;G1/2Threaded hole |
| main material | Aluminum alloy or stainless steel |
| Main sealing ring material | neoprene/silicone rubber |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video
G10Tube outer diameter quick connector operation video
Product parameters

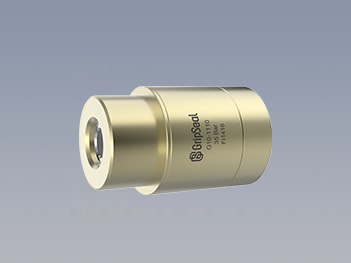

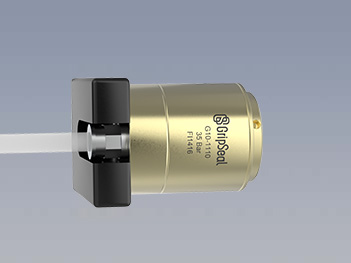

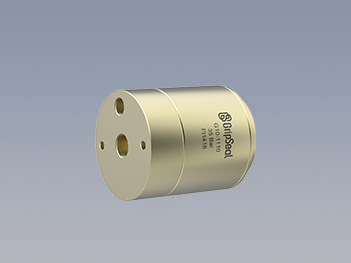

Inner screw pneumatic drive: reliable sealing and stable operation
Flexible customization: extend joint parts to avoid volume interference

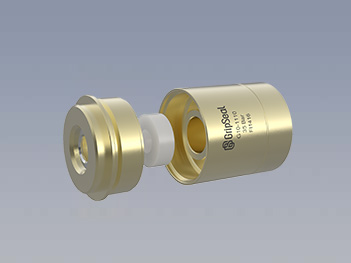

Quick replacement of sealing rings: simple maintenance and extended service life

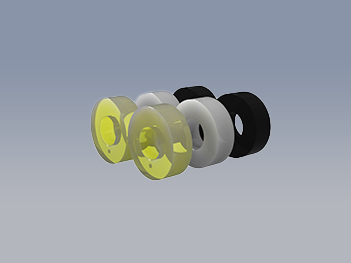

Sealing ring material: material is optional to meet customer specific needs
Automated operation: more efficient, more stable test results
Operation method

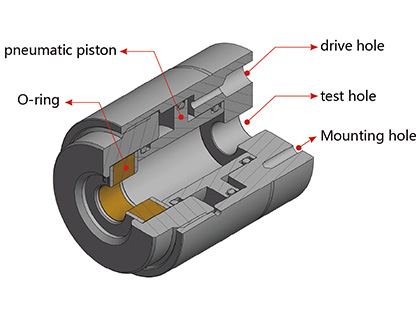

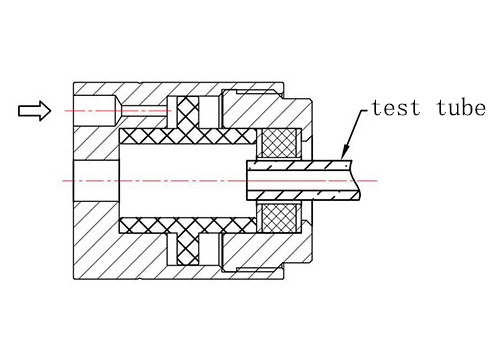

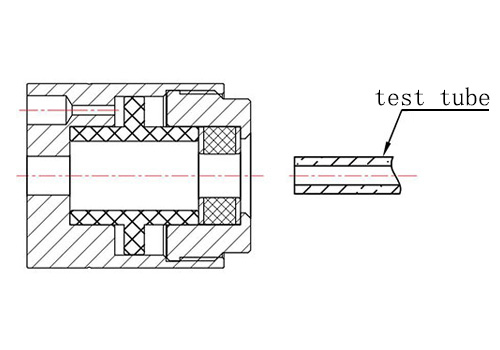

Place the test tubeG10Series, front-end test port

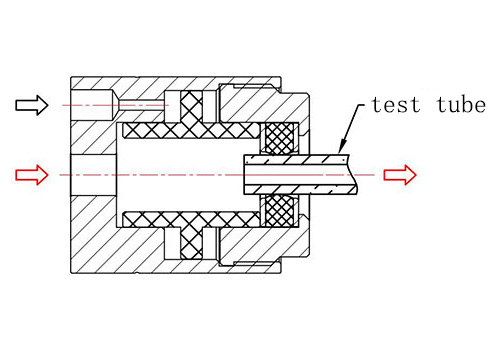

The air is fed from the driving hole. At this time, the sealing ring is squeezed, resulting in expansion, and then it is close to the outer wall of the test tube to form a seal.
When the seal is formed, the test medium (e.g. compressed air, test liquid, etc.) is filled into the test hole at this time.
