| Maximum operating pressure | From vacuum to8Bar |
| Sealing range | 8.5mm-44mm |
| minimum insertion depth | 1,2No. Body:15mm，3,4No. Body:30mm |
| traffic interface | G1/8,G3/8 |
| main material | Aluminum alloy or stainless steel |
| Main sealing ring material | neoprene/silicone rubber |
| Internal sealing ring material | Nitrile rubber |
| driving pressure | 4-6 Bar |
| operating temperature | -20℃-120℃ |
Product video
G15Series Pneumatic Internal Expansion Quick Seal Connector Operation Video
Product parameters

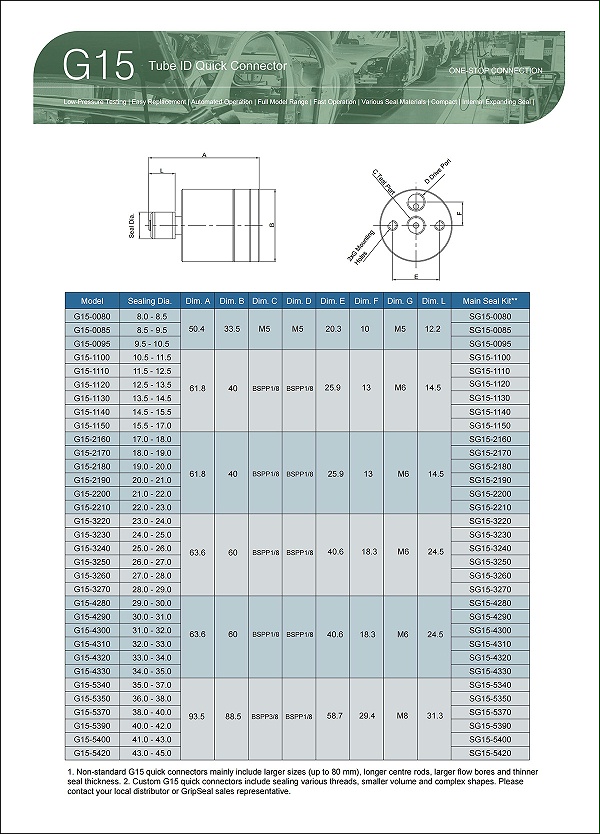

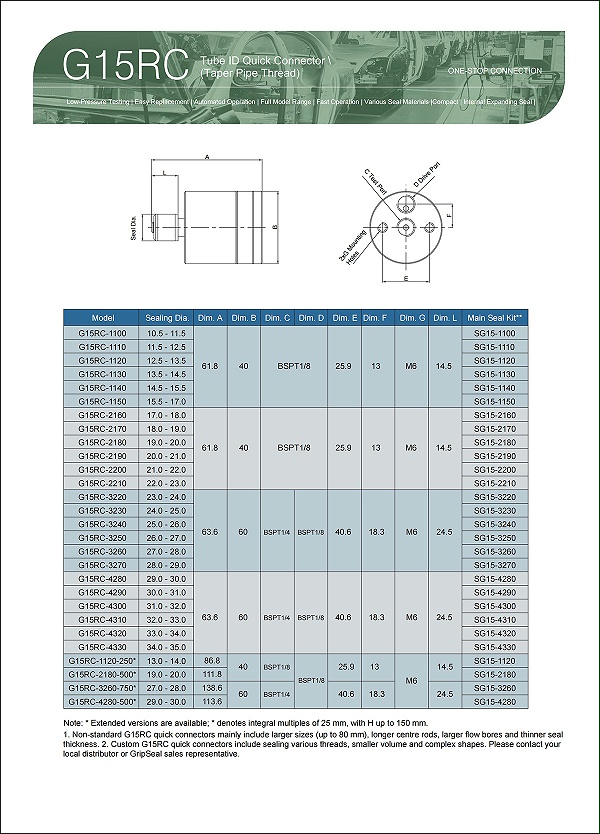

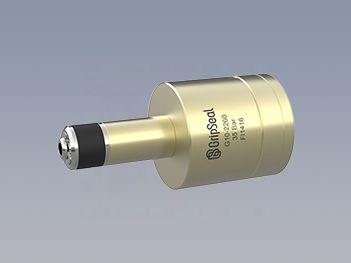

pneumatic drive:Good sealing and easy operation

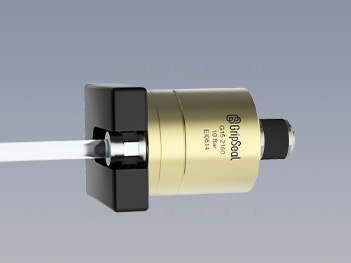

Flexible customization: make the clamping position more flexible and avoid interference

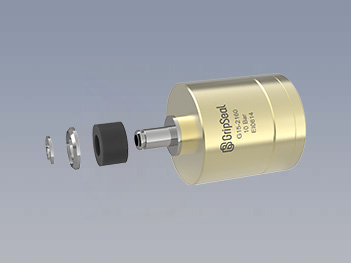

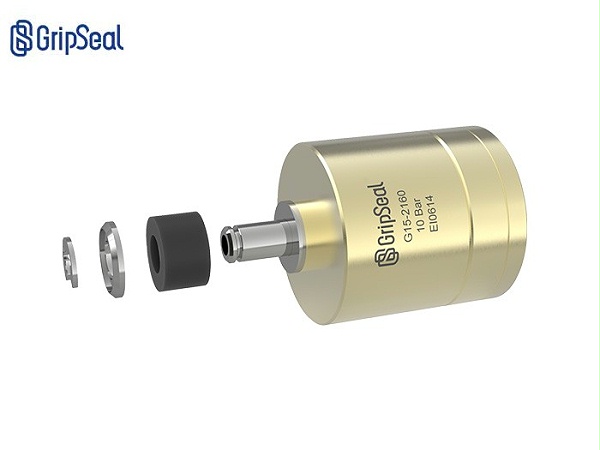

Quick replacement of sealing rings: simple maintenance, extended connector life

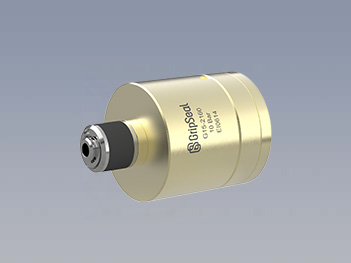

Compact size: does not take up operating space and can be placed anywhere on the fixture
Automated operation: more efficient, more stable test results

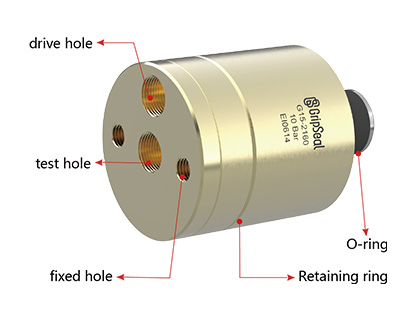

Operation method

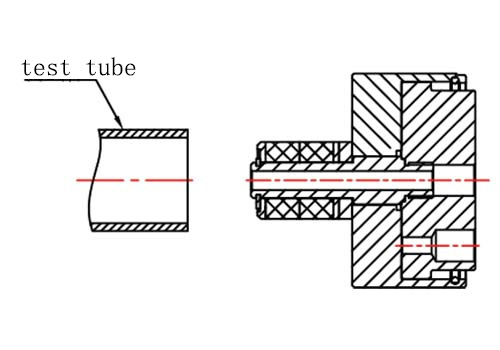

Place the test tubeG15Series, front-end test port

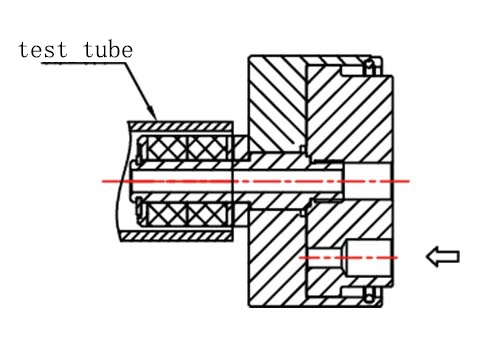

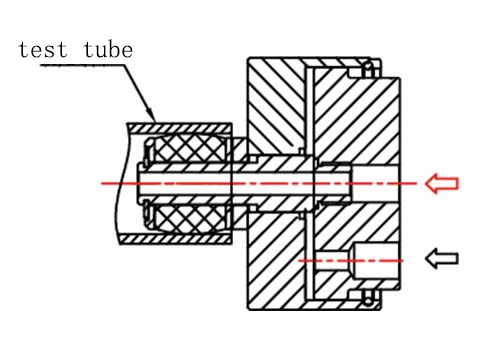

The air is fed from the driving hole. At this time, the sealing ring is squeezed, resulting in expansion, and then it is close to the inner wall of the test tube to form a seal.
a, When the seal is formed, the test medium (e.g. compressed air, test liquid, etc.) is filled into the test hole at this time. b, After the test is completed, the test medium is evacuated, and the test pressure is returned to normal pressure. At this time, the driving air pressure is evacuated, the sealing ring is no longer under pressure, the sealing connection is disconnected, and the joint can be removed.

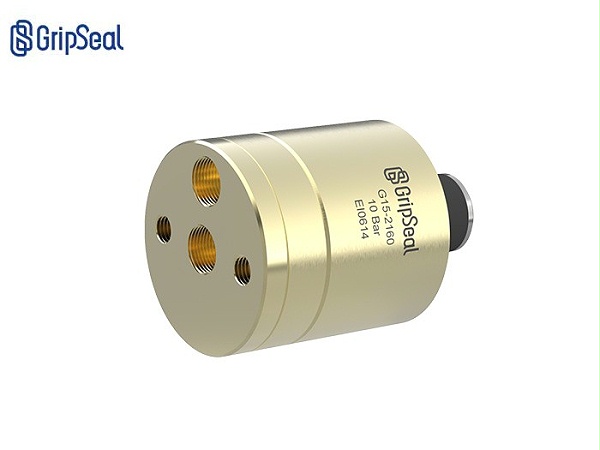

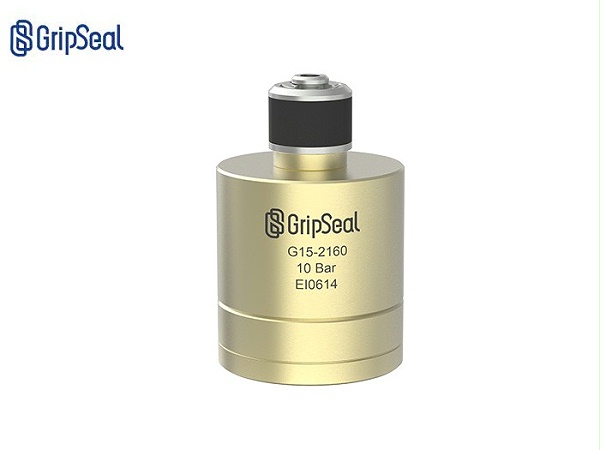

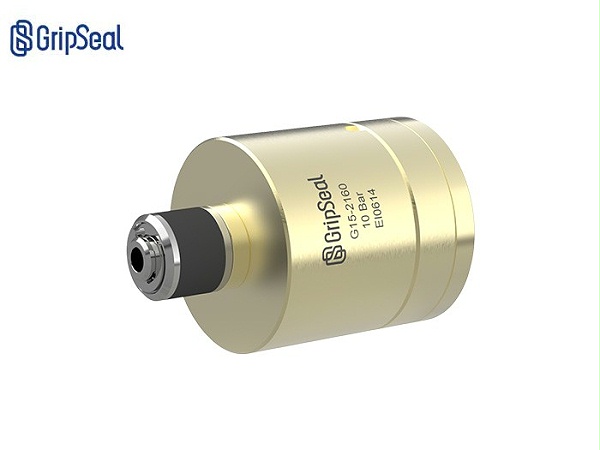

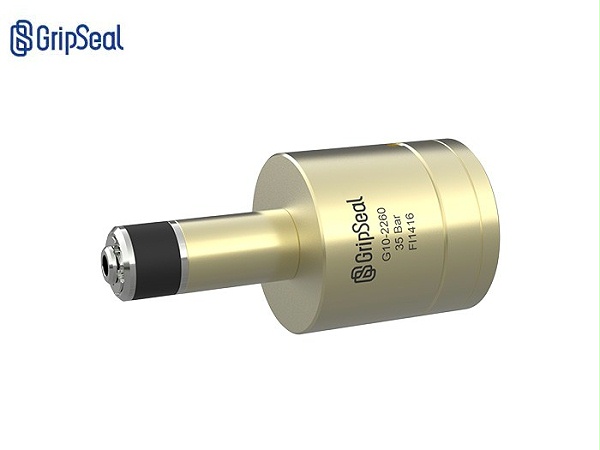

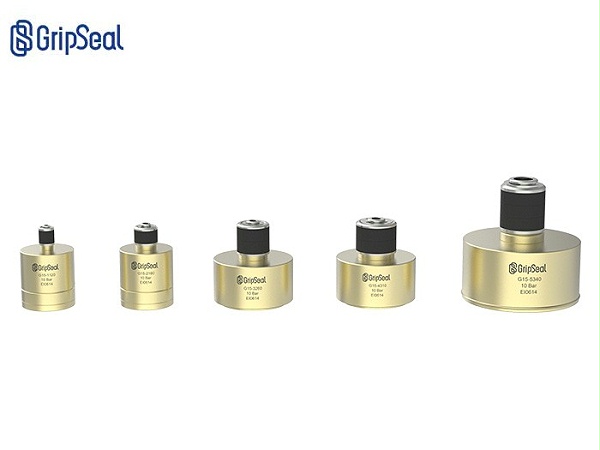

G15 series automatic pipe inner diameter sealing connector
