Air tightness test of bathroom toilet tankQuick seal joint

<="">

Product Overview

Threaded quick connector In the bathroom industry, it is mainly used for water testing and sealing testing. It can quickly seal and connect the product to be tested and the water pipe. It is convenient and fast, with good sealing performance and more stable product testing. Therefore, it has gradually replaced the previous method of hand-screwing the hexagonal nut of the braided pipe.

<="">

Customer request

Products in the bathroom industry must have good sealing properties to prevent losses and hazards caused by water leakage during actual use. Before the product leaves the factory, it is necessary to conduct water testing and sealing tests to ensure that the pipeline is flooded and drained smoothly, and has good sealing properties to prevent water leakage.

<="">

test puzzle

GripSealThrough in-depth program communication with many leading companies in the bathroom industry, we learned that the usual testing method is to connect the product and water source with woven pipes, and add water pressure8BarLeft and right, control the valve to observe whether the water inlet and drainage are smooth, and at the same time observe whether the valve and other positions of the product are leaking. The current difficulties are focused on how to quickly, effectively and stably connect the product to the water source. The method of hand screwing the hexagonal nut is inefficient, difficult for workers to operate, and prone to loose sealing at the connection, especially in some places where the space is small or not easy to operate, which is time-consuming and laborious.

<="">

Scheme design

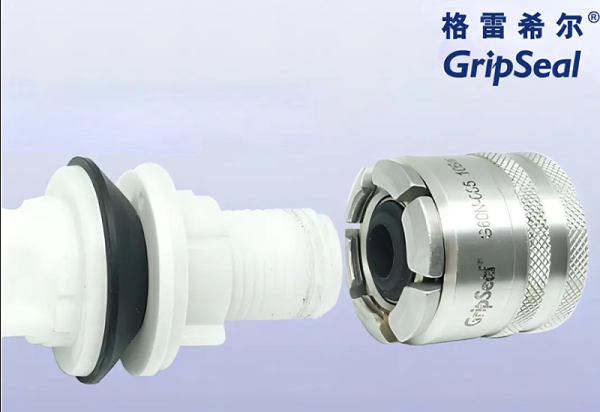

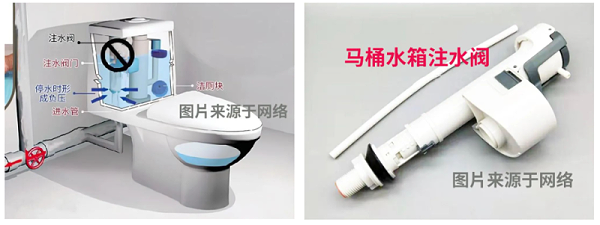

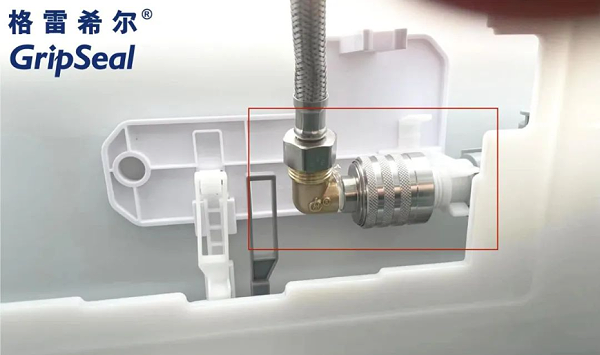

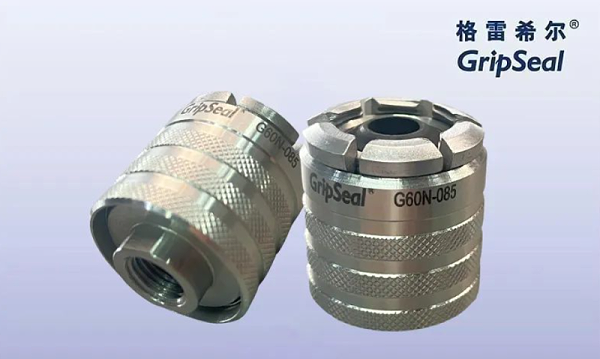

GripSeal As a research and development type quick connector manufacturer, it is commonly used for water tank water injection valves in the bathroom industryG1/2Externally threaded plastic parts, designedG60N-085The series is suitable for quick connectors for toilet tank testing, with a small shape and a total length of only38mmLeft and right, outer diameter35mmLeft and right, it can be operated without pressure in the small space environment of the toilet tank.

<="">

Program advantage

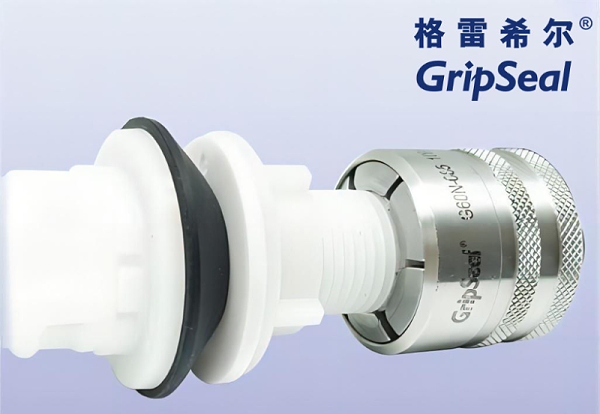

GracieG60N-085Series quick connectorThe quick-plug operation is simple and convenient, no need to screw by hand, and it can be mechanically sealed and connected by aligning with the thread port and inserting it.316The stainless steel main body is sturdy and wear-resistant, with strong corrosion resistance, and will not cause indentation or scratches on the threads of plastic parts.

The high-flow straight-through design makes it smoother during water testing, more capable of simulating actual application scenarios, meeting test requirements, improving the efficiency of sealed connections, thereby increasing output and reducing costs.
