Case name

 Gas stove narrow operating space quick connection problem application case

  customer demand

  The procurement of the well-known domestic brand Wanjiale recently contacted us to purchase quick connectors for its newly developed gas stove to meet the needs of operation testing, air tightness testing, stress testing, etc.

<="">

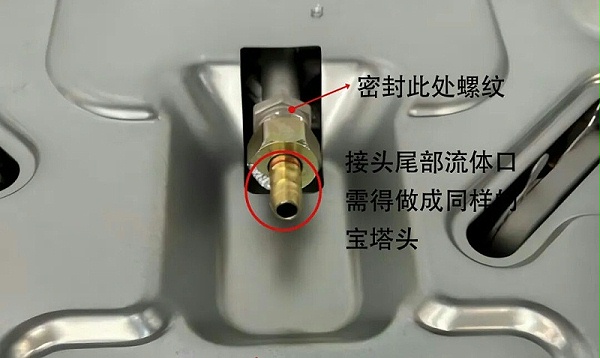

According to the photos provided by the customer (shown in the picture above), the customer's product seals the test interface with a hand-screwed nut, which is very inefficient, and the operation space is also very narrow. The length is only60-65mmThe width is only 50mm。

Customer's clear requirements: the joint needs to be straight-through type; the length is controlled in50mmThe outer diameter does not exceed35mmThe tail fluid port adopts outer diameter11.4mmArc pagoda head design, easy to connect the gas pipe.
According to the thread size provided by the customer, our regular standardG60-085The connector can be matched, but the length of this connector is80mmThe diameter is40mmObviously, it cannot be adapted to the operating space.

<="">

 Solution

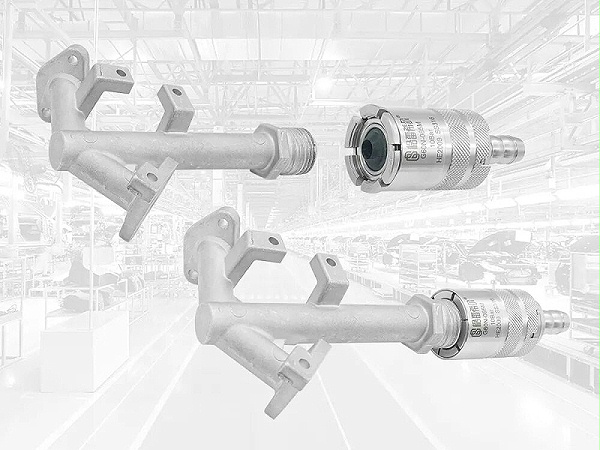

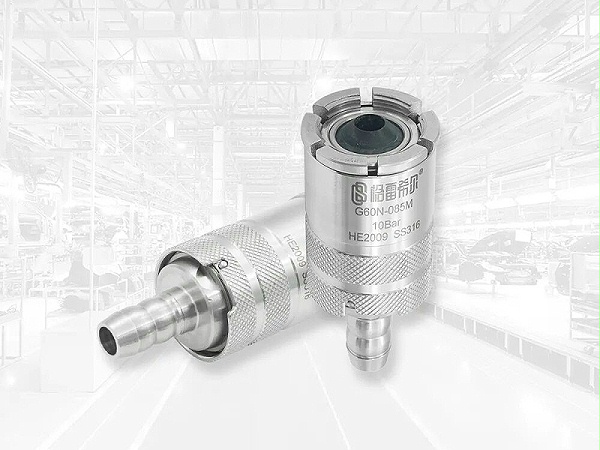

 GripSeal sales team and engineering team worked hand in hand with Wanjiale customers to conduct multiple rounds of in-depth communication and continuously optimize the plan. In the end, we successfully customized and developed an extremely small and pagoda head G60N-085M Connector. This connector is currently the smallest outer diameter.G1/2Externally threaded connector, designed for the harsh spaces of the gas stove industry. This custom connector will be used for quick connection of gas ports during gas tightness testing and operation testing of gas stoves. The arc pagoda head at the tail can be directly connected to the gas pipe to efficiently complete the operation test and air tightness test of gas stoves.

<="">

   test feedback

   After installing this customizedG60N-085MAfter the connector, the running test and leak detection test of the Wanjiale gas stove were carried out very smoothly. The connector is compact and compact, making it easy to complete a quick connection in a small operating space. The arc pagoda head at the tail perfectly connects the gas pipe, ensuring the accuracy and efficiency of the test. The customer is very satisfied with this cooperation and intends to reach a long-term cooperative relationship with us.
