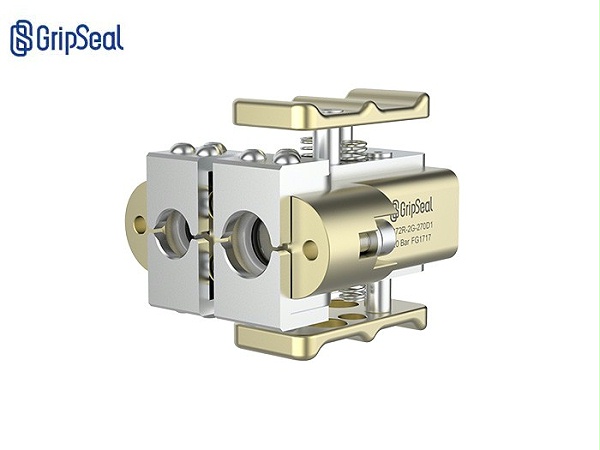

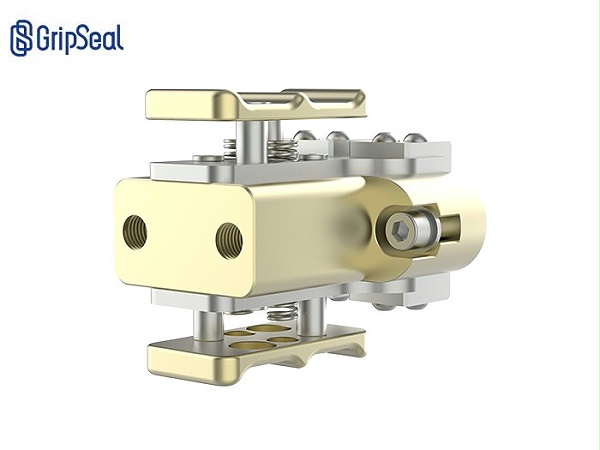

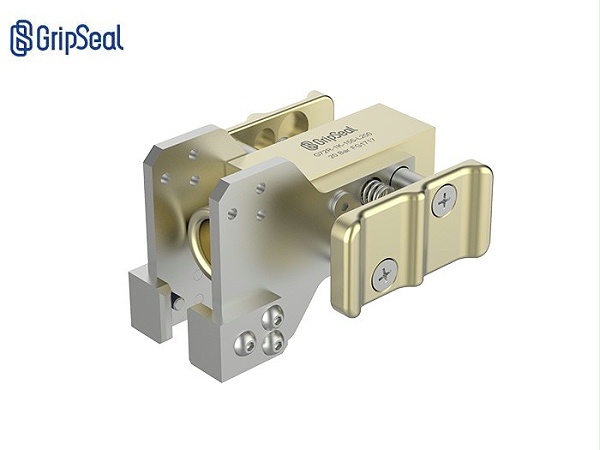

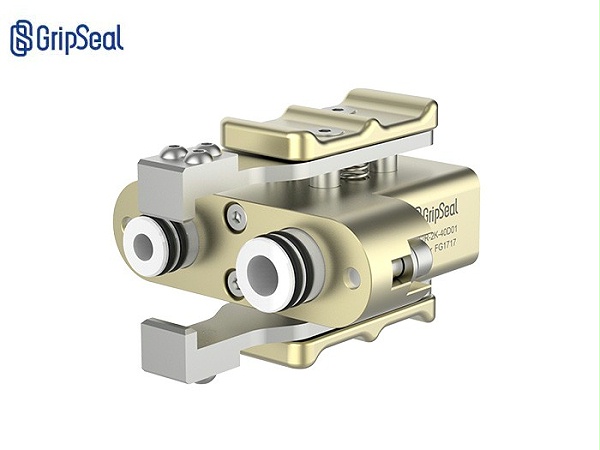

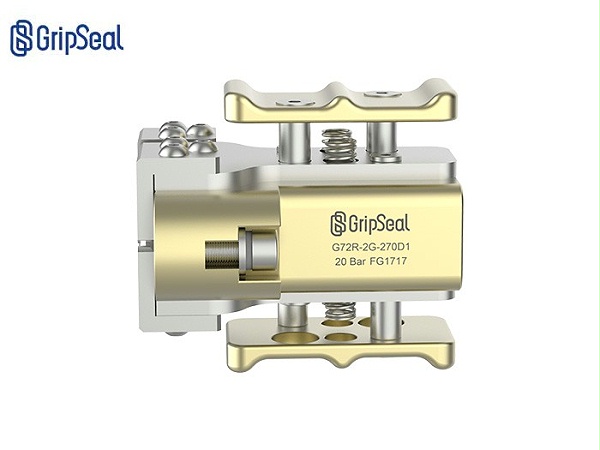

G72R special-shaped nozzle quick connector

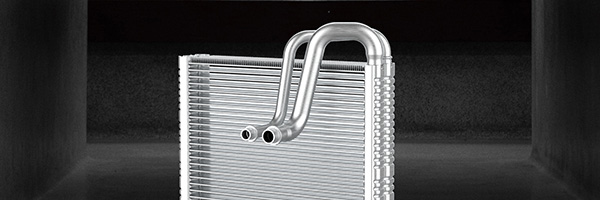

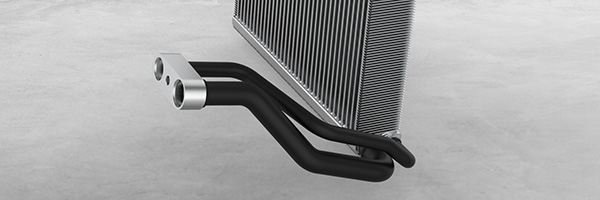

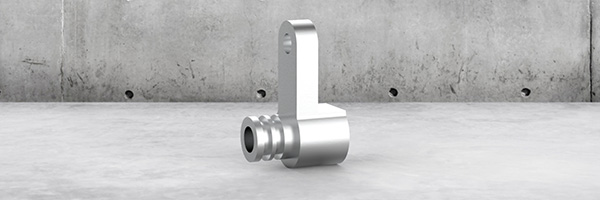

G72R series connector is a special connector for radiator special-shaped nozzles, which can seal 2 dense nozzles at the same time to solve the sealing problem of narrow space; manual operation, simple and easy to use, special aviation aluminum alloy body not only ensures firmness, but also ensures the lightness of the connector, greatly reducing the labor intensity of the operator. Complete product models, can adapt to various sizes of flange tube sealing applications. Straight-through design, to ensure high flow performance of the product, whether it is gas test or liquid test, can adapt.

EMAILEMAIL:info@gripseal.com

product parameters

Product parameters

Maximum operating pressure From vacuum to50Bar
Sealing range Customized according to pipe fittings
traffic interface G1/8、G1/4Threaded hole
main material aluminum alloy
Main sealing ring material Nitrile rubber
operating temperature -20℃-120℃

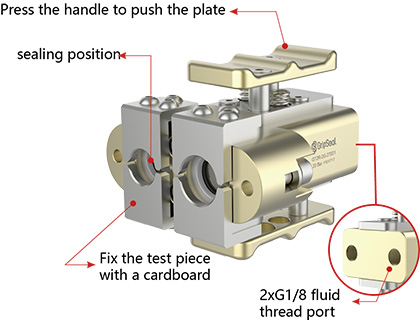

G72R Specification parameter diagram

Product video

Product video

G72RQuick Seal Connector-animation operation

Product features

Product parameters

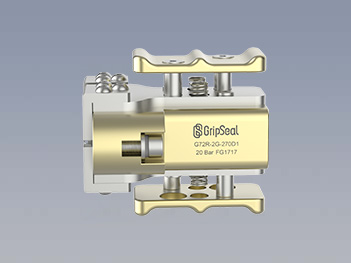

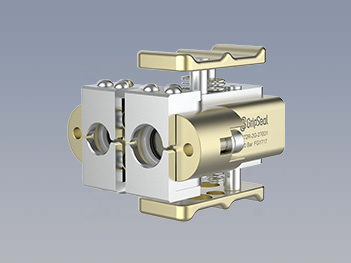

G72R feature

Handle press drive: handle operation, simple and fast, high operation efficiency

G72R feature

Aluminum alloy body: lightweight and durable, with low operating strength

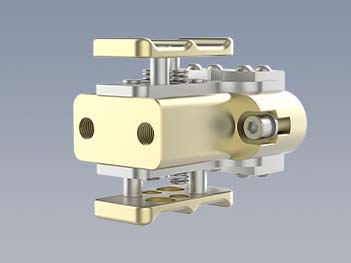

G72Rfeature

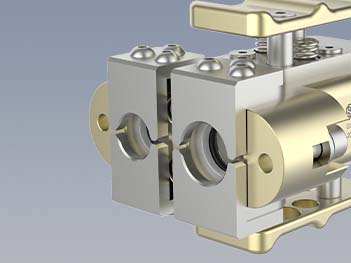

Stainless steel jaw: to ensure sufficient strength while taking into account anti-corrosion, the highest pressure50Bar

G72Rfeature

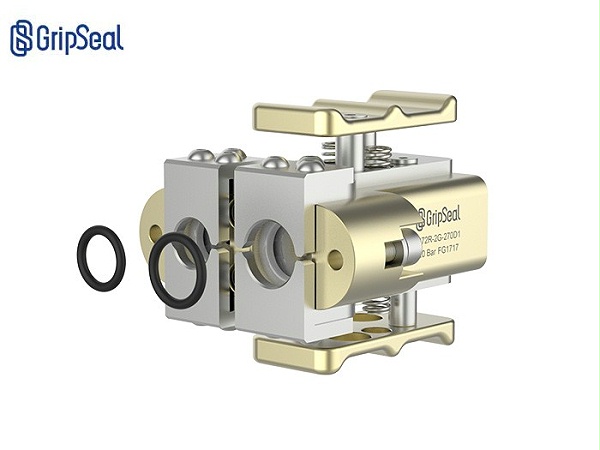

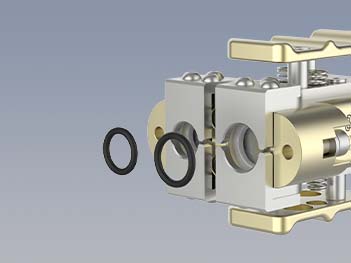

Quick replacement of sealing rings: simple maintenance and extended service life

G72Rfeature

Test Hole: Tail AdoptedGThreaded test holes, customizable threaded holes

operation method

Operation method

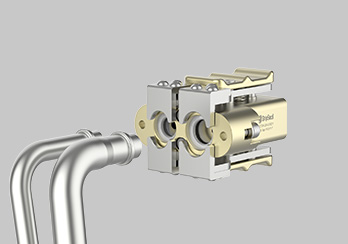

Step one.

Step one.

Press the handle, open the claws, and place the test piece.G72RSeries front-end test port

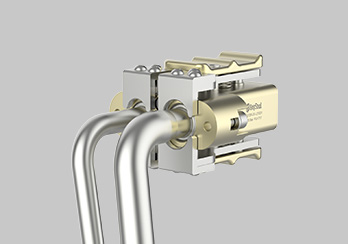

second step

second step

Access test piece

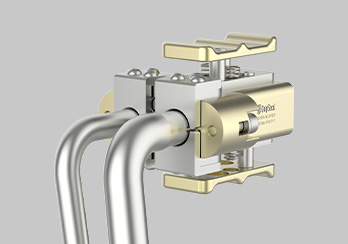

Step three

Step three

Release the handle, the claws will be automatically tightened, and the gas test will be carried out after the connection is completed.

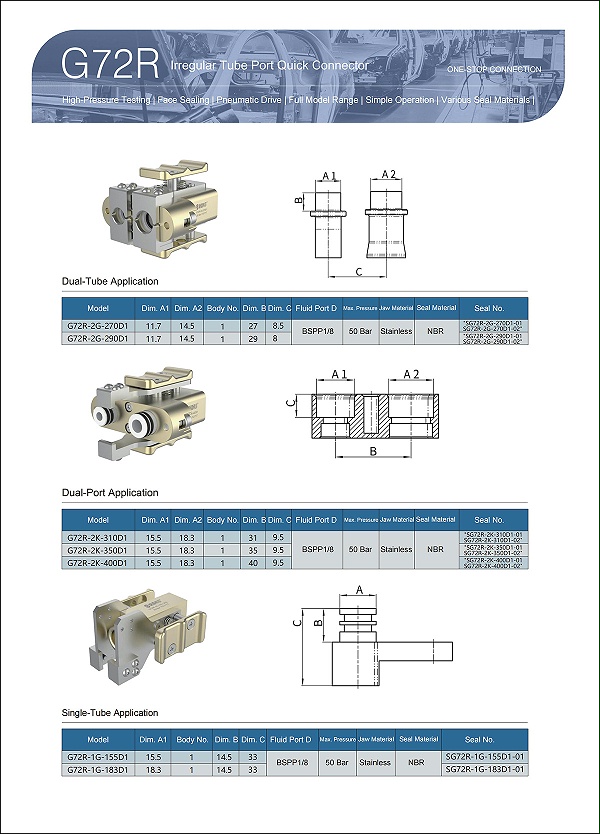

G72R Parameter selection table
