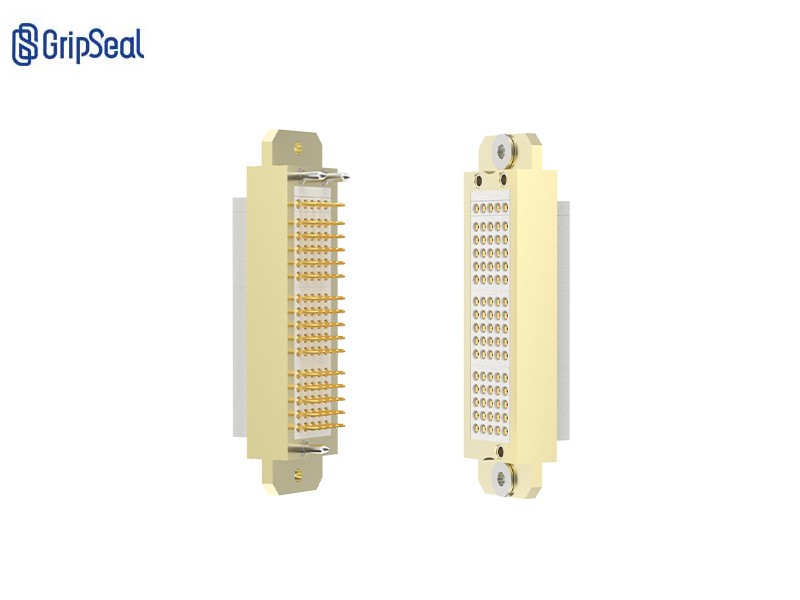

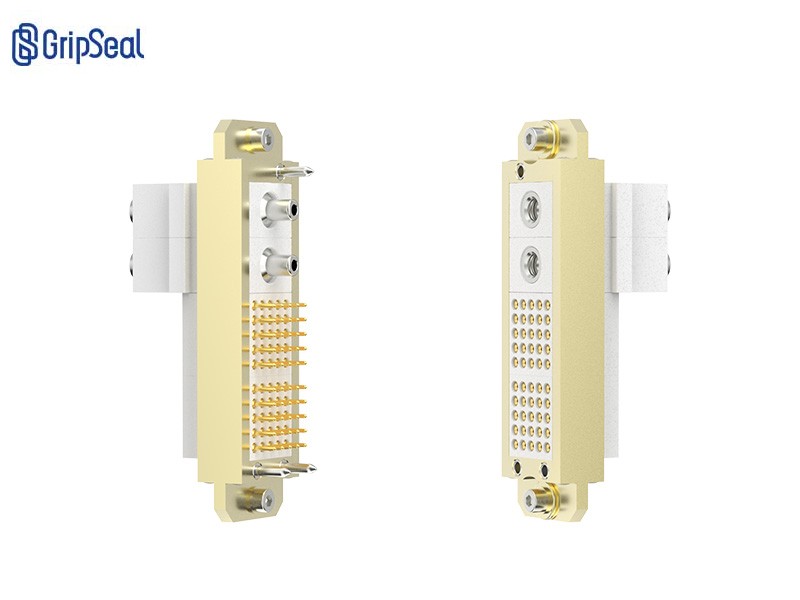

Modular electrical connector

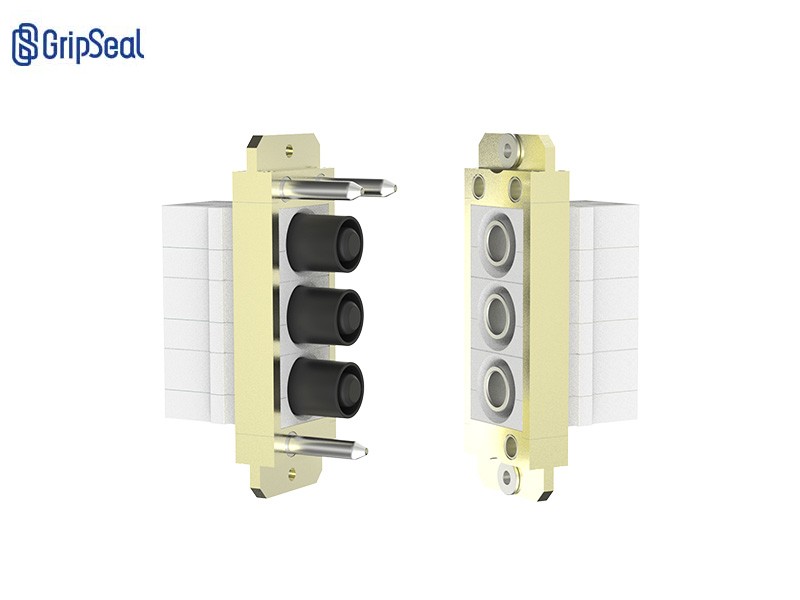

Modular electrical connectors refer to components that contain a C9F male and female frame, one or more different C9X sub-modules, and related pins or jacks. They are divided into C9MP docking module male and C9MS docking module female. Modular electrical connectors provide automatic connection and long-life plugging and unplugging services such as high current, high voltage, and signal electricity, and are the core components of a gas-electro-hydraulic docking system. Most modular electrical connectors are customized according to customer needs. GripSeal also provides a wealth of modular electrical connectors to meet some of the fast selection, delivery, etc., including some UVW high current, drive high current, and some multi-pin signal modules. We will continue to update our modular electrical connector standard docking module product library according to market conditions to meet more and more similar needs, and quickly optimize the performance, delivery, and cost of modular electrical connectors standard docking modules.

Service Hotline: 0755-86215125

Product details
Product selection table

Product video

PRODUCT VIDEO

Schematic structure of modular electrical connector docking module

tructure Diagram of C9M Docking Module

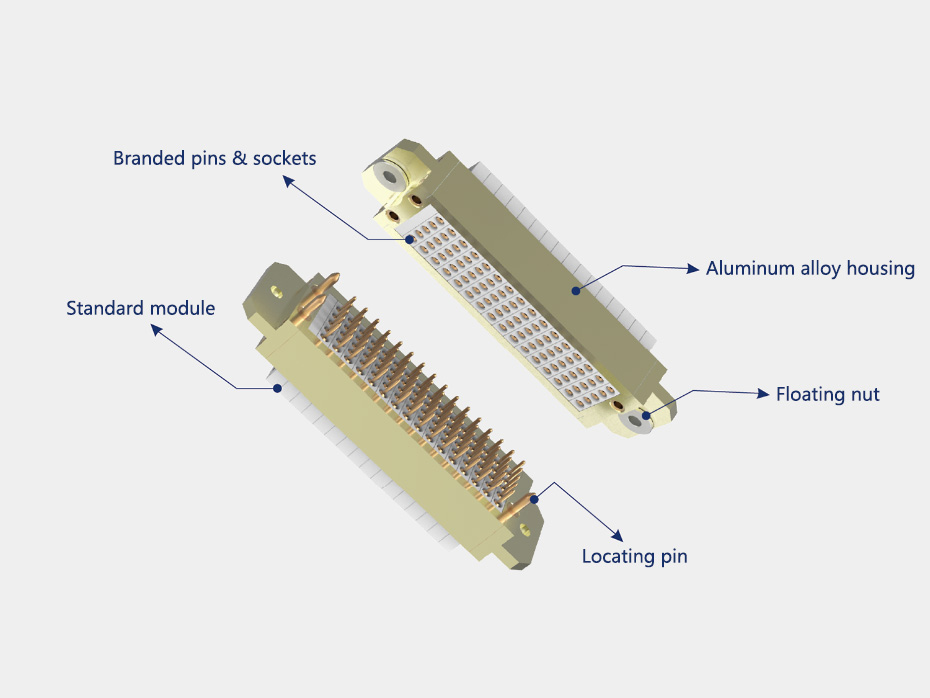

C9M Schematic diagram of docking module structure

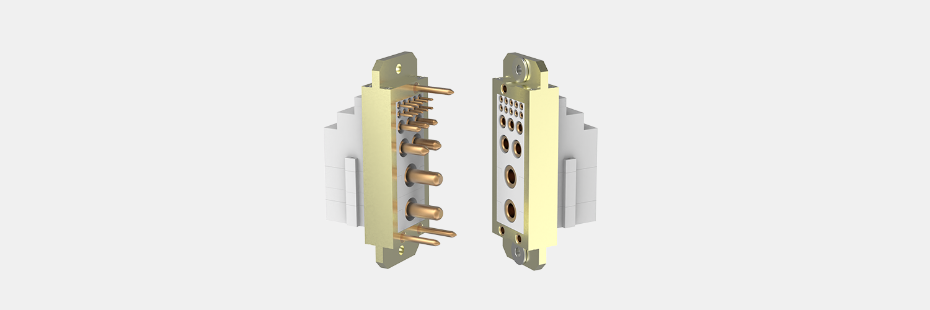

Modular electrical connector custom docking module

C9M Custom Docking ModulE

resource/images/2a7a8e76cf034e03aa46cfaccf8c0ab4_116.jpg

How to customize your modular electrical connectors?

How to Customize your C9M Module?

untitled-3

: Step one.

Demand analysis: first determine the required electrical connector and specifications. (The same interface, different rated currents need to be separated)

: second step

Preliminary plan: According to the type of electrical interface, determineC9XThe number and submodules of

: Step three

Customized plan: select the corresponding module according to the number of modulesC9FBorder, and reasonable layout, and finally determine the configuration and quantity of the corresponding modular electrical connector custom module

Get the application solution now

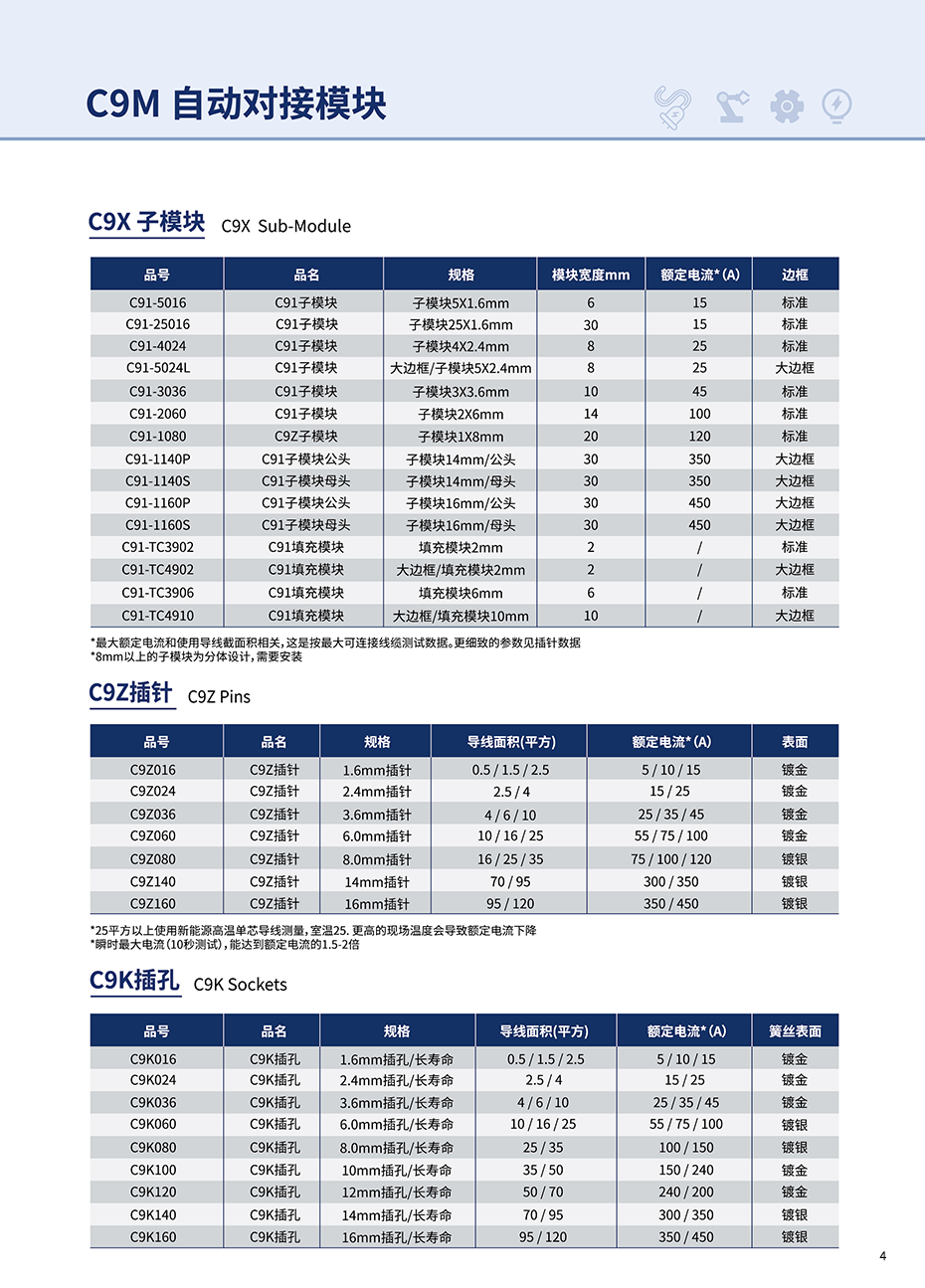

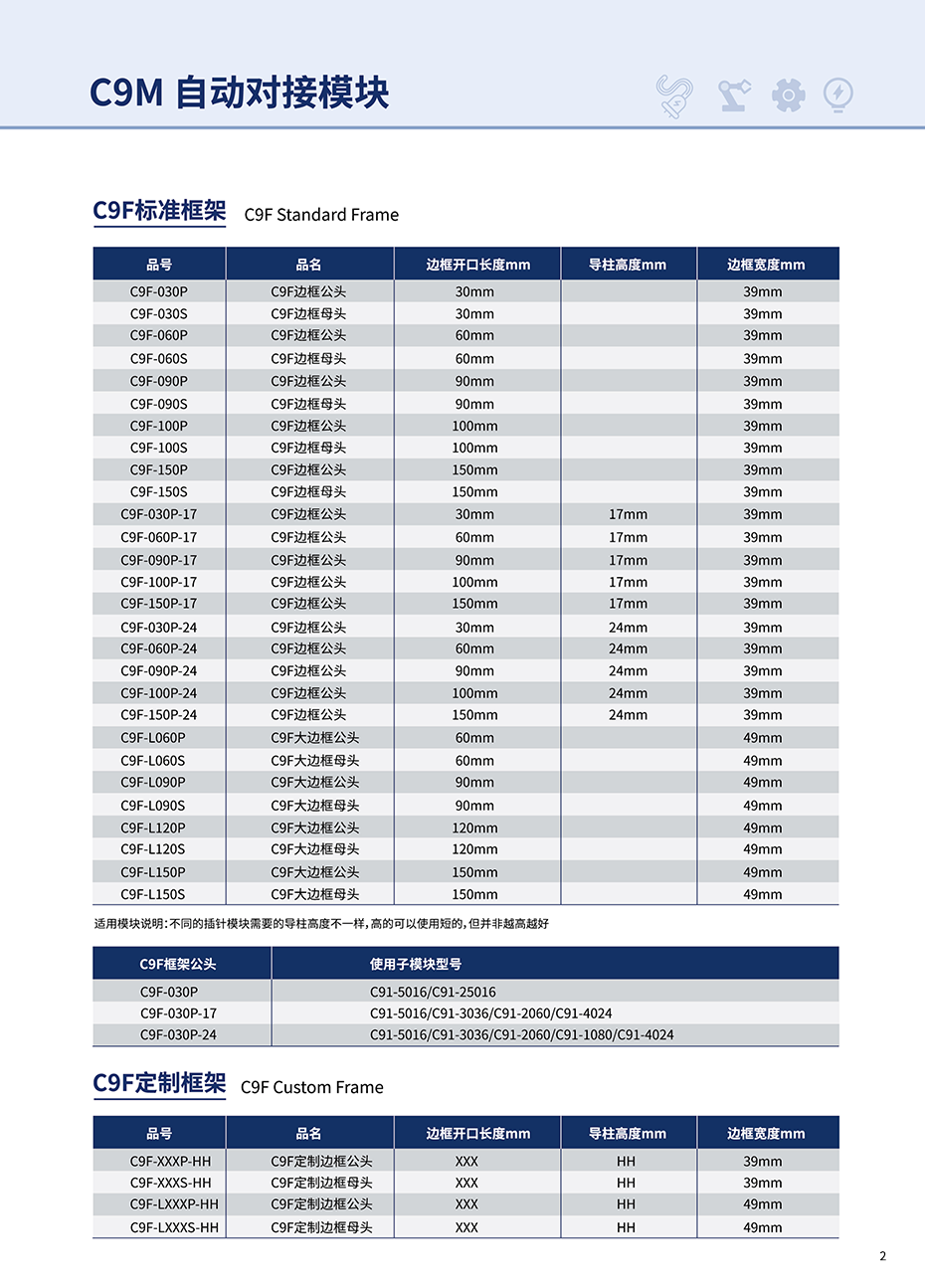

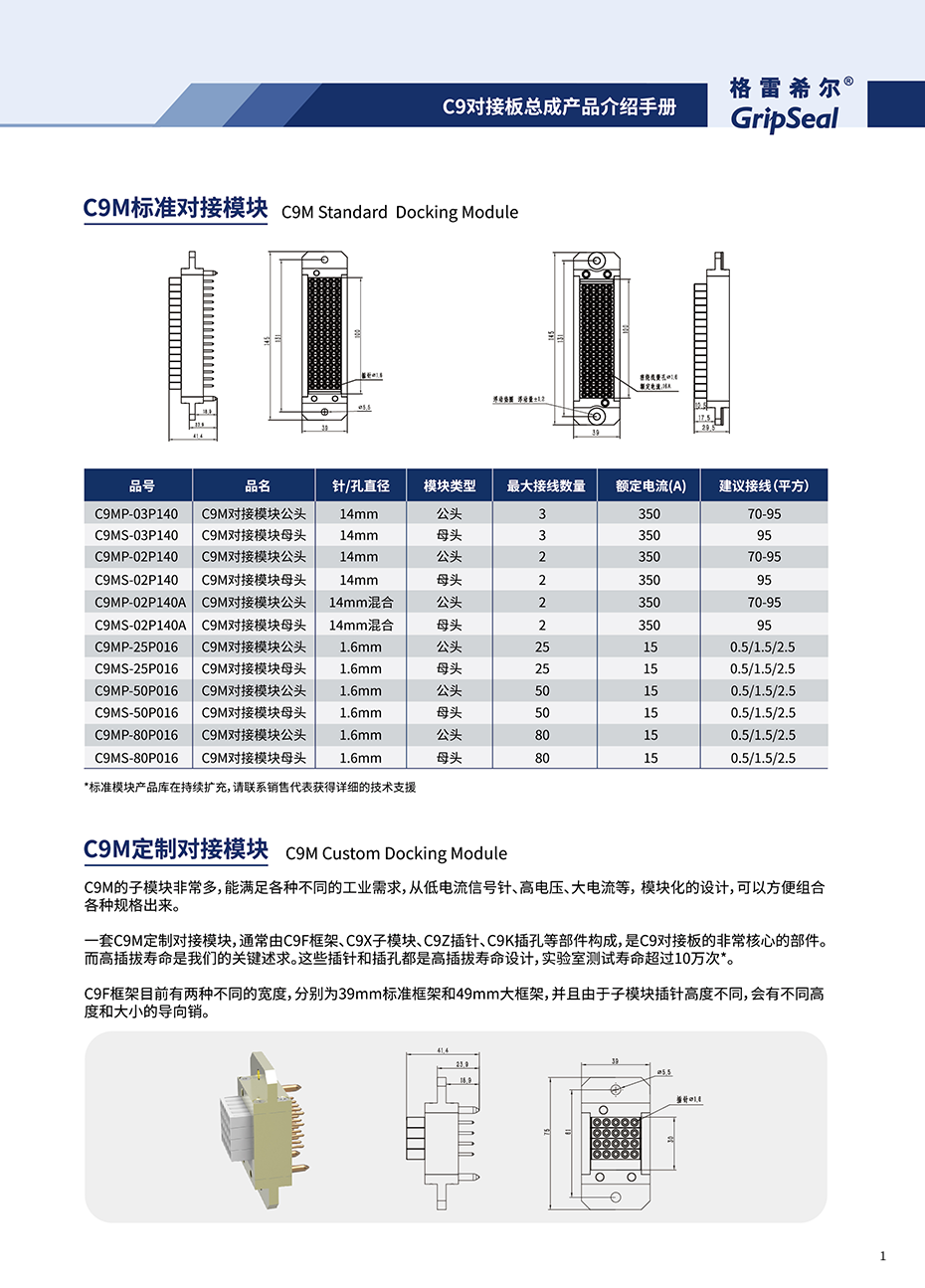

C9MSelection table

Keywords: Modular electrical connector electrical connector modular electrical connector custom docking module
