CZ Series Cylinder Filling Fittings

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Pipe Type » Cylinder filling connector » CZ series cylinder filling connector

prve

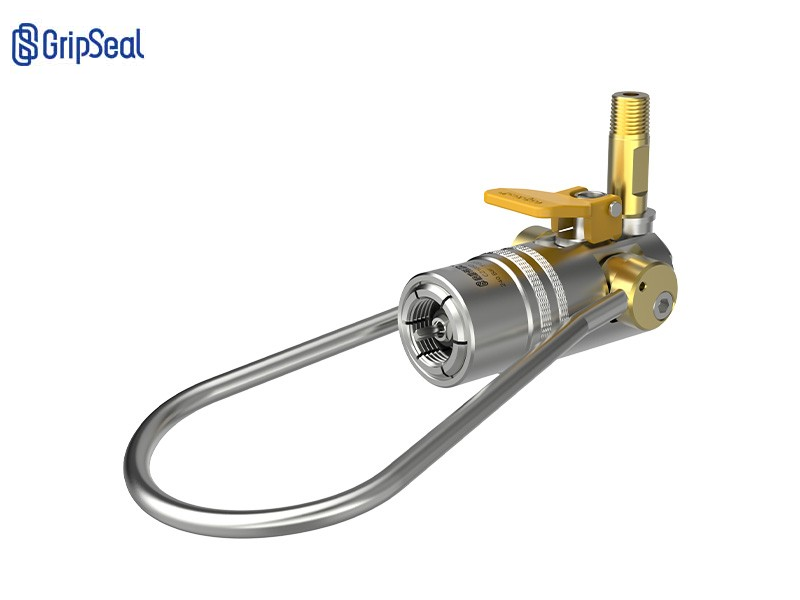

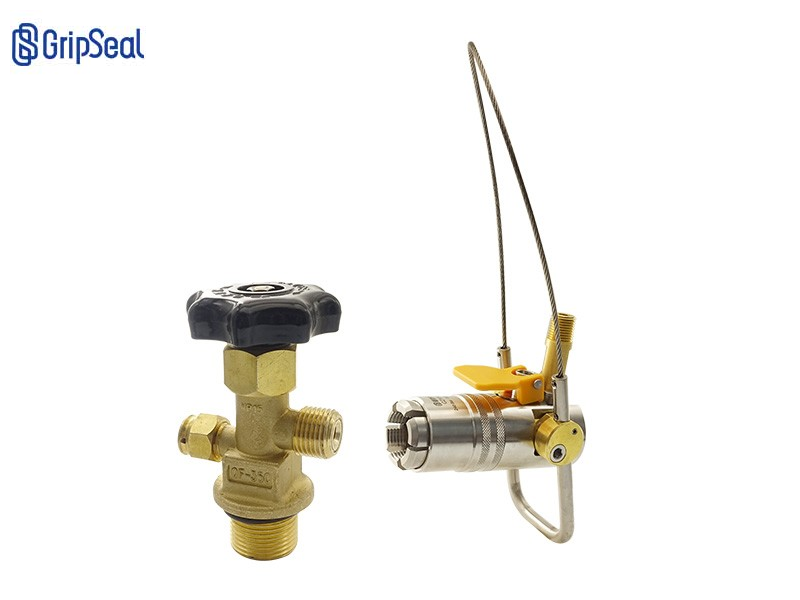

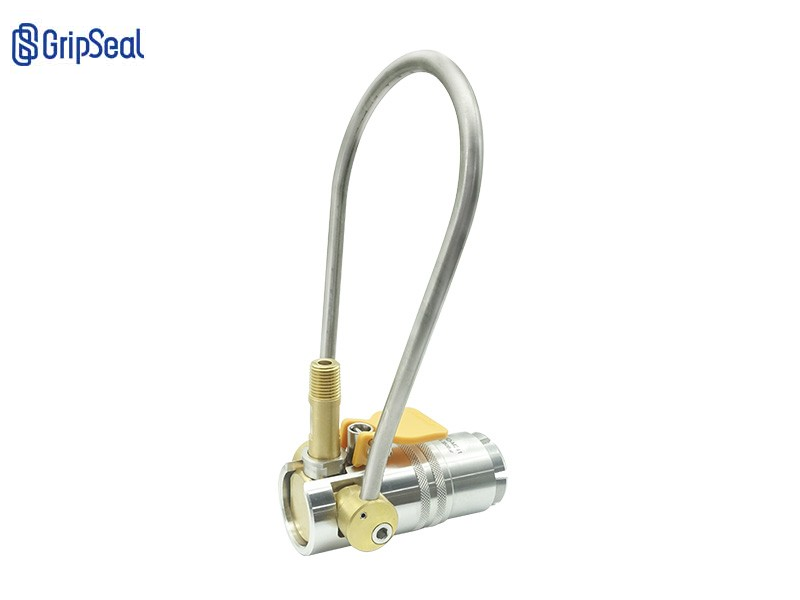

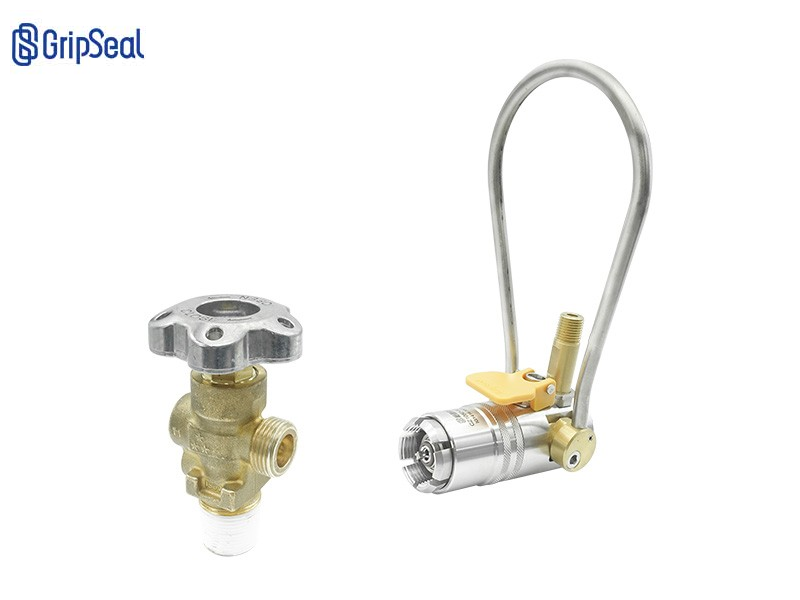

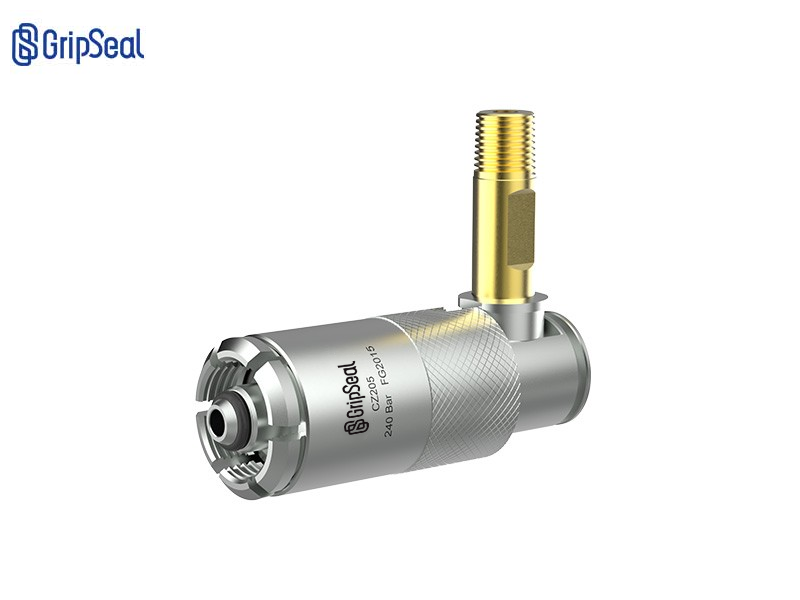

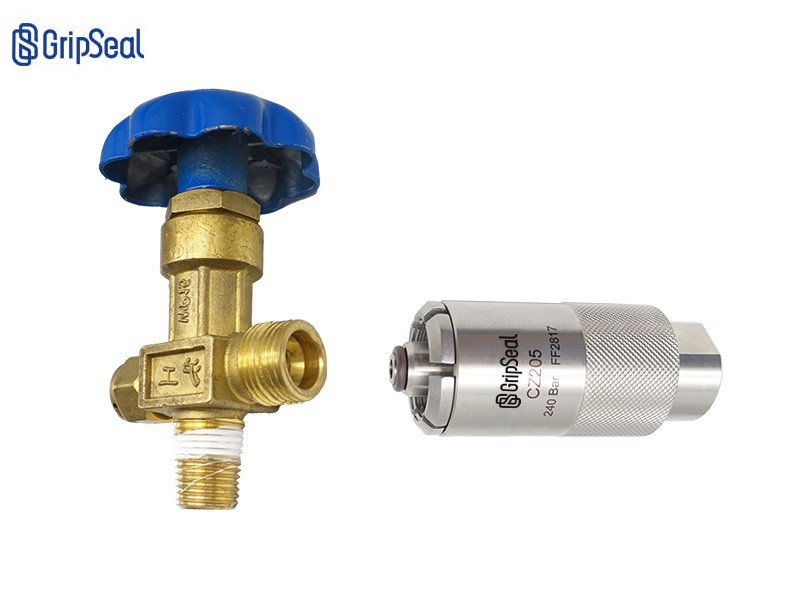

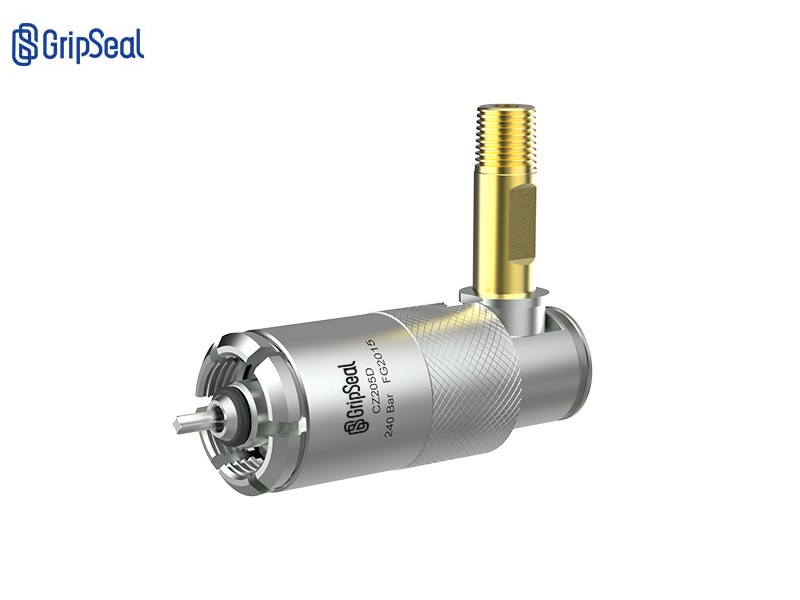

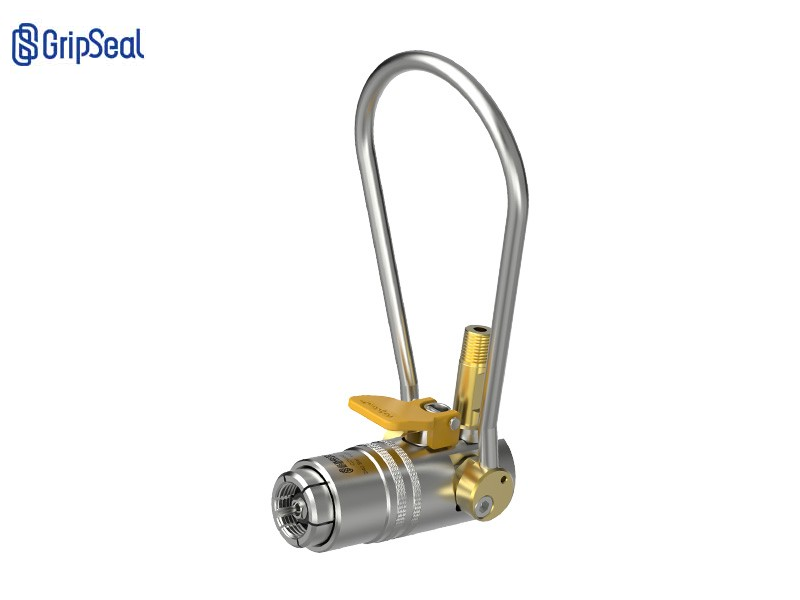

CZ series cylinder filling connector

CZ series gas cylinder special connector is mainly used for the filling of compressed gas cylinders, and is widely used for the filling of helium, nitrogen and other inert gases or medical oxygen and other gases in industrial gas stations. The product connection is simple, and the anti-off pin will pop up the locked connection when inflating, preventing the joint from being disconnected due to accidental collision, ensuring the reliability and convenience of inflation.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to 240 Bar
Sealing range	Refer to the selection table
traffic interface	NPT1/4wait
traffic interface	M5,G1/8
main material	Stainless steel, brass, etc
Main sealing ring material	Fluororubber, etc
Applicable gas	Compressed air, nitrogen, oxygen and other non-corrosive industrial gases, not high-purity gases
operating temperature	-20℃-120℃

Product video

CZSeries gas cylinder filling connector video demonstration

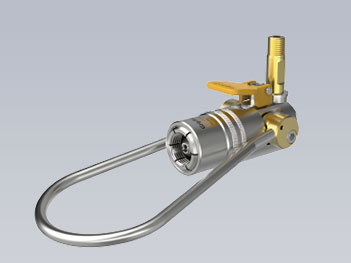

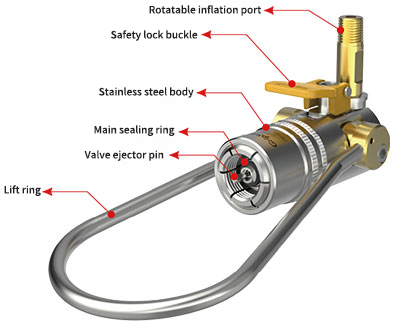

Product features

Product parameters

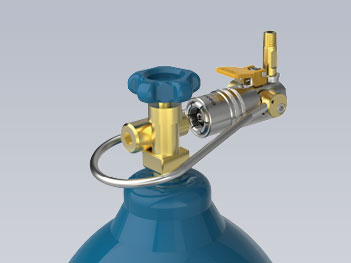

: Carry ring handle: Cover the valve port, it is safer to inflate

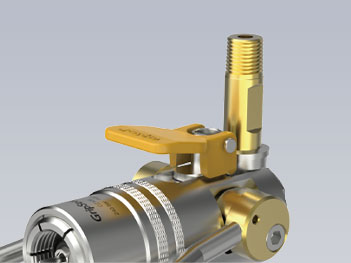

: Safety lock: Release the carrying ring, and the safety lock will automatically lock. After filling, press to unlock.

: Stainless steel body:Durable, long life

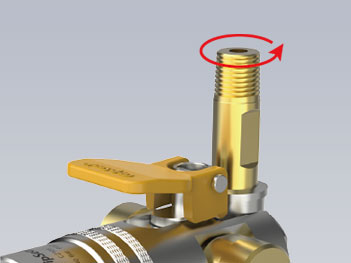

: Rotatable inflatable port: Rotate at any angle, adapt to the random angle of the gas cylinder inflation port, and facilitate connection

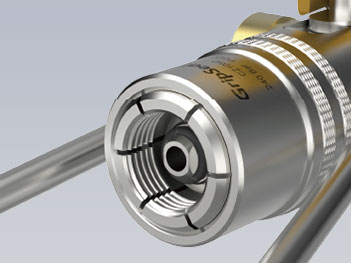

: OType sealing ring: Material selection, simple replacement, easy maintenance

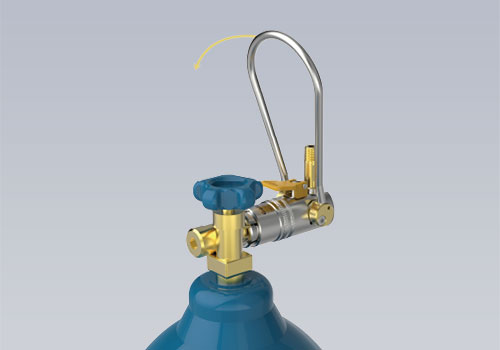

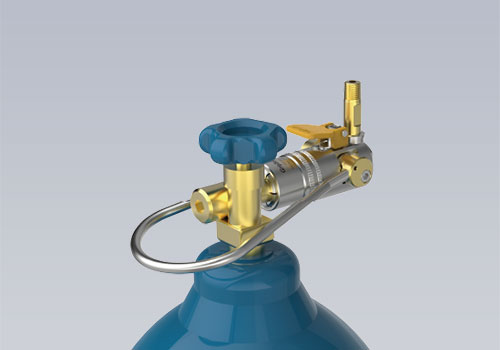

operation method

OPERATION METHOD

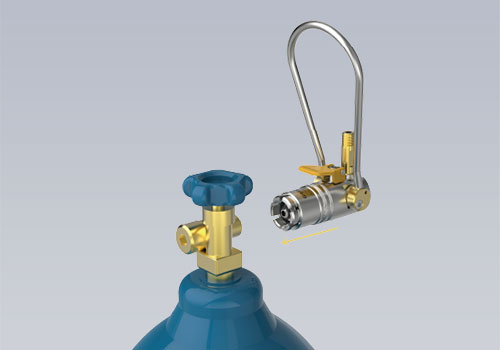

: Step one.

Pull up the ring and align it with the valve port

: second step

Access valve port

: Step three

Release the ring and lock the valve port

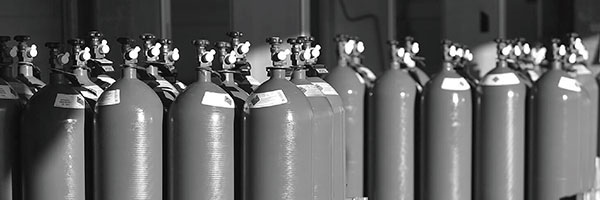

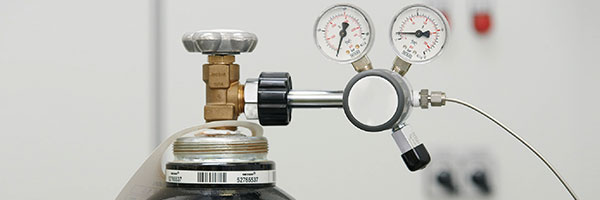

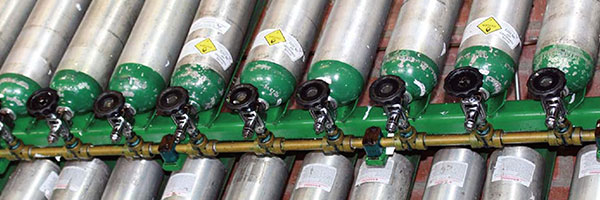

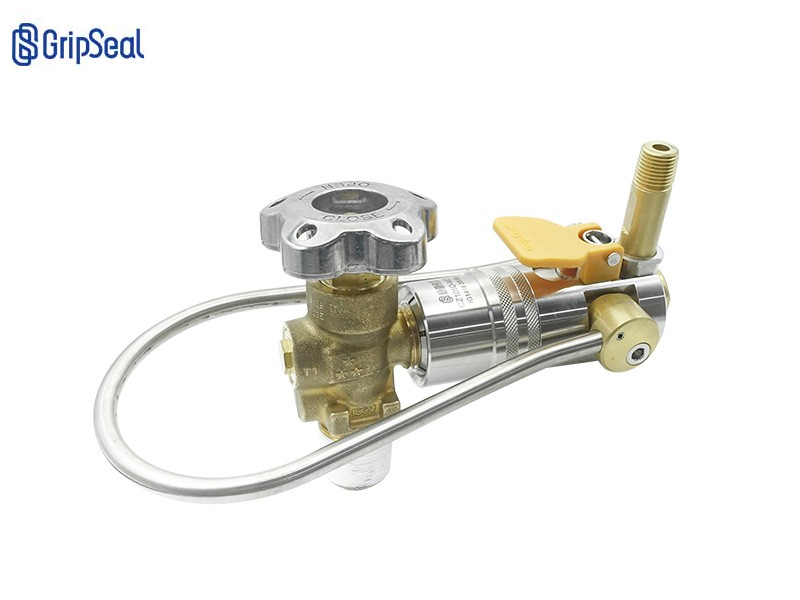

Application case

Application cases

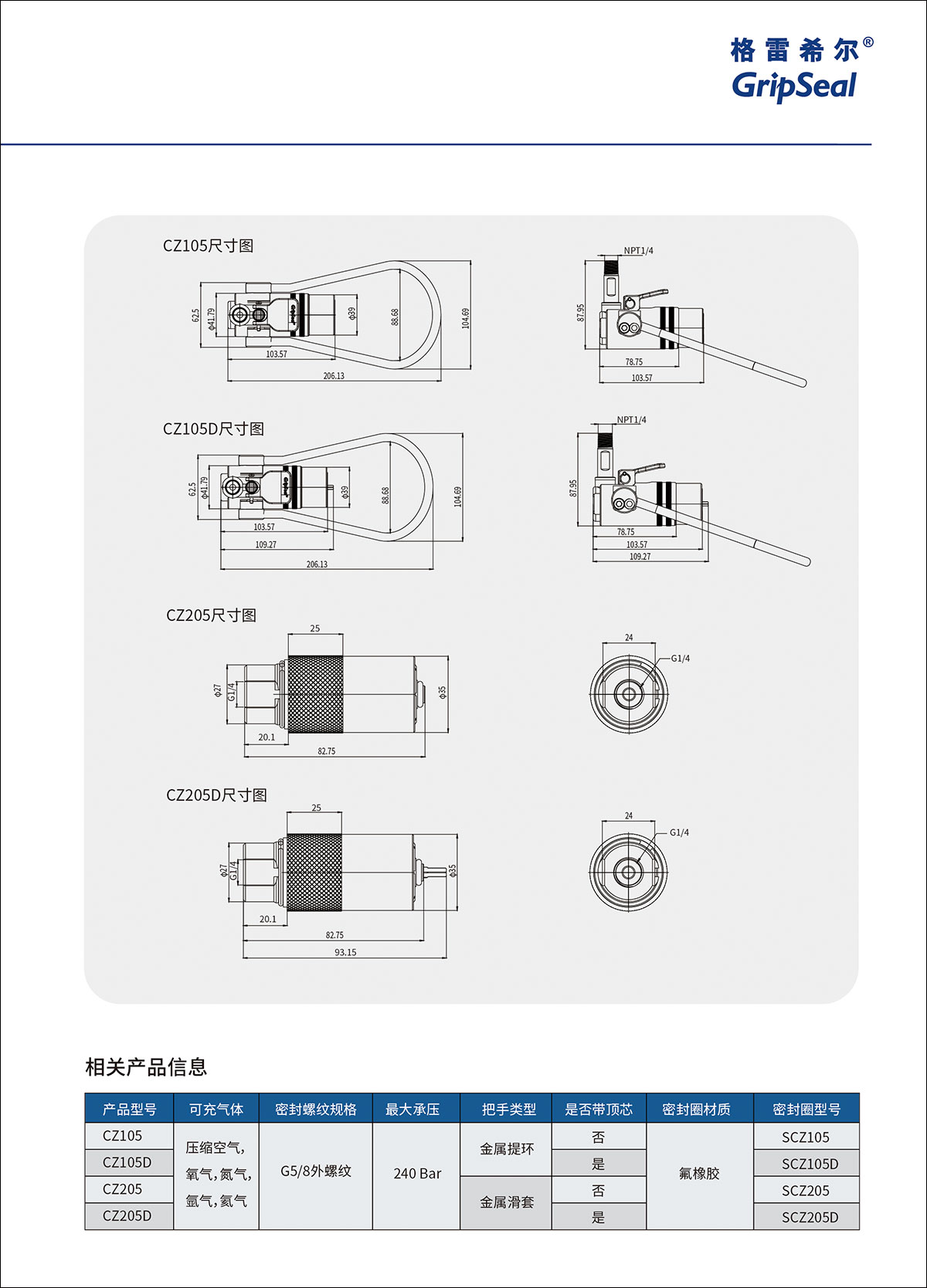

G15KSelection table

Keywords: Connectors for gas cylinders CZ GripSeal compressed gas cylinders gas cylinder filling connectors
