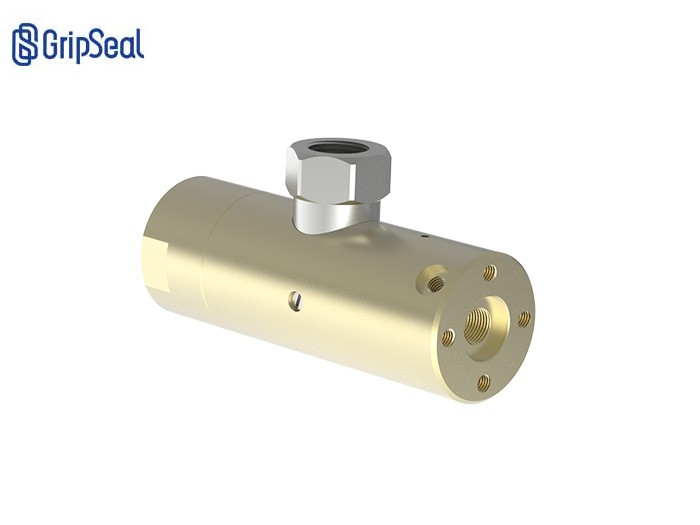

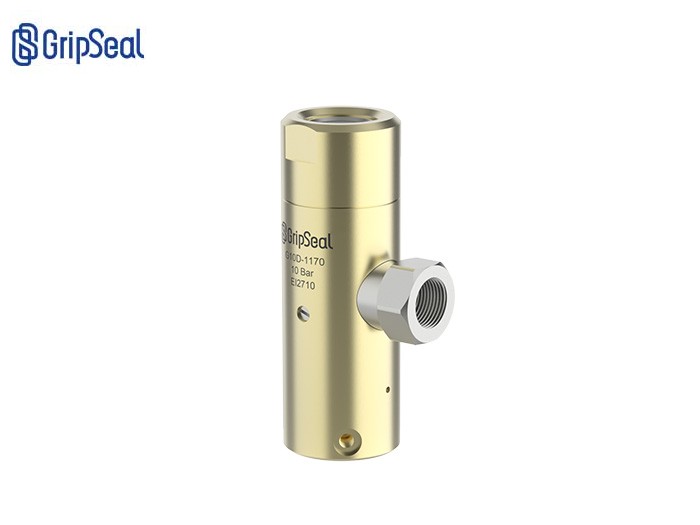

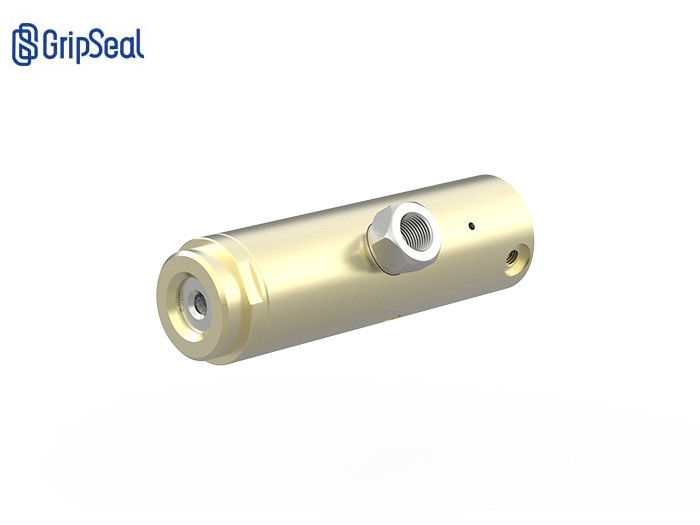

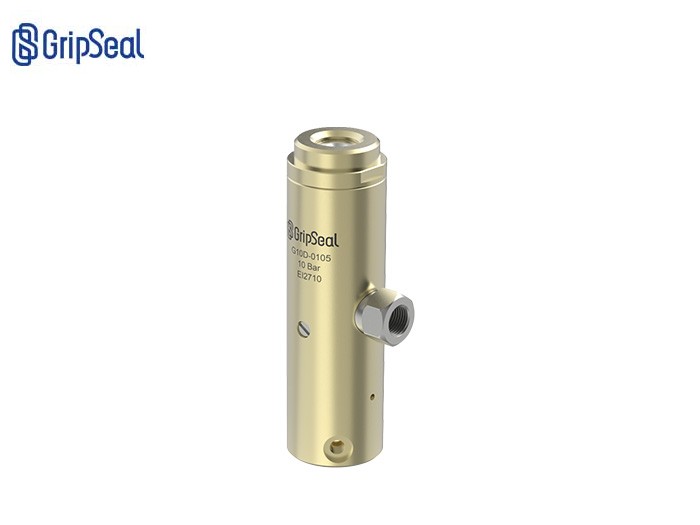

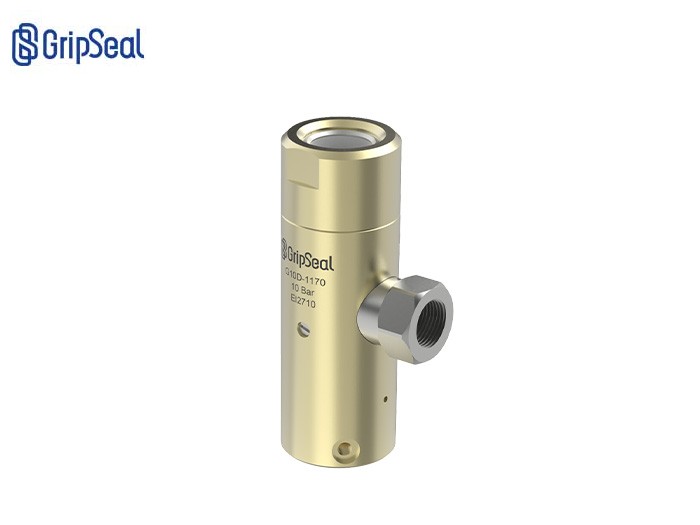

G10D series external quick connector

The G10D series pneumatic quick connectors push the internal piston to squeeze the sealing ring to form a seal by driving air pressure. Compared with the standard G10 series, the G10D series connectors have a smaller outer diameter and are more suitable for scenarios with limited space. Innovative use of "double thrust technology" allows the G10D to maintain stable thrust even with a small outer diameter.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to10Bar
minimum insertion depth	0,1,2No. Body:15mm
traffic interface	G1/8，G3/8，G1/2Threaded hole
main material	aluminum alloy
Main sealing ring material	neoprene/Medical silicone
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

Product video

G10Dseries-Automatic double force cylinder design operation video

Product features

Product parameters

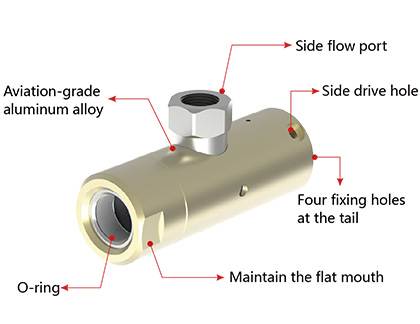

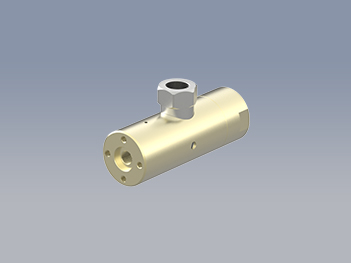

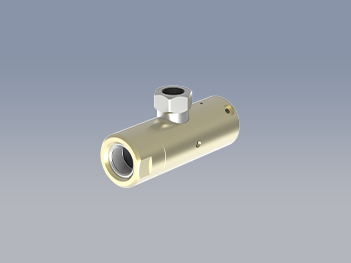

: Side fluid hole: convenient for on-site wiring.

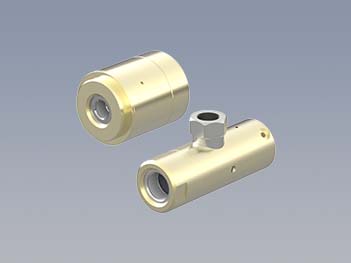

: Smaller outer diameter:G10DMore slender, suitable for scenes with limited space.

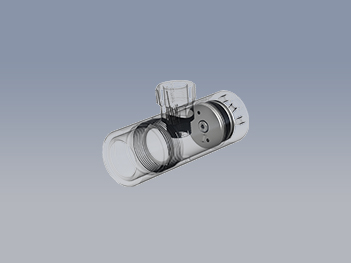

: Double thrust: stable seal extrusion pressure to maintain the stability of test results.

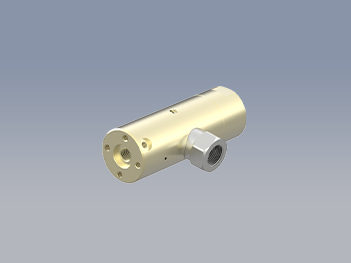

: Multiple drive holes: Configure side and bottom drive holes at the same time, and choose flexibly according to the actual situation.

: Maintenance flat mouth: easy to disassemble the connector, easy to maintain and replace the sealing ring.

operation method

Operation method

: Step one.

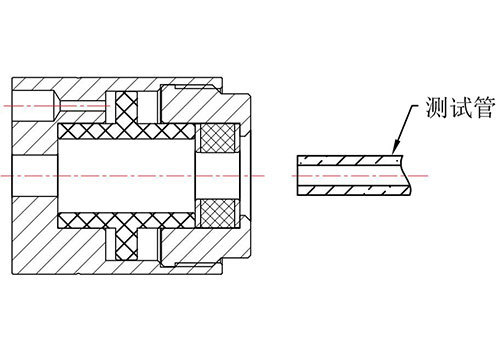

Place the test tubeG10Series, front-end test port

: second step

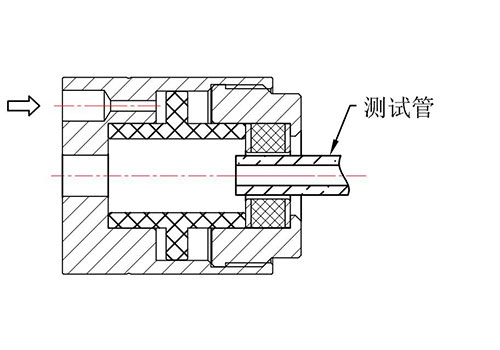

The air is fed from the driving hole. At this time, the sealing ring is squeezed, resulting in expansion, and then it is close to the outer wall of the test tube to form a seal.

: Step three

When the seal is formed, the test medium (e.g. compressed air, test liquid, etc.) is filled into the test hole at this time.

Application case

Application cases

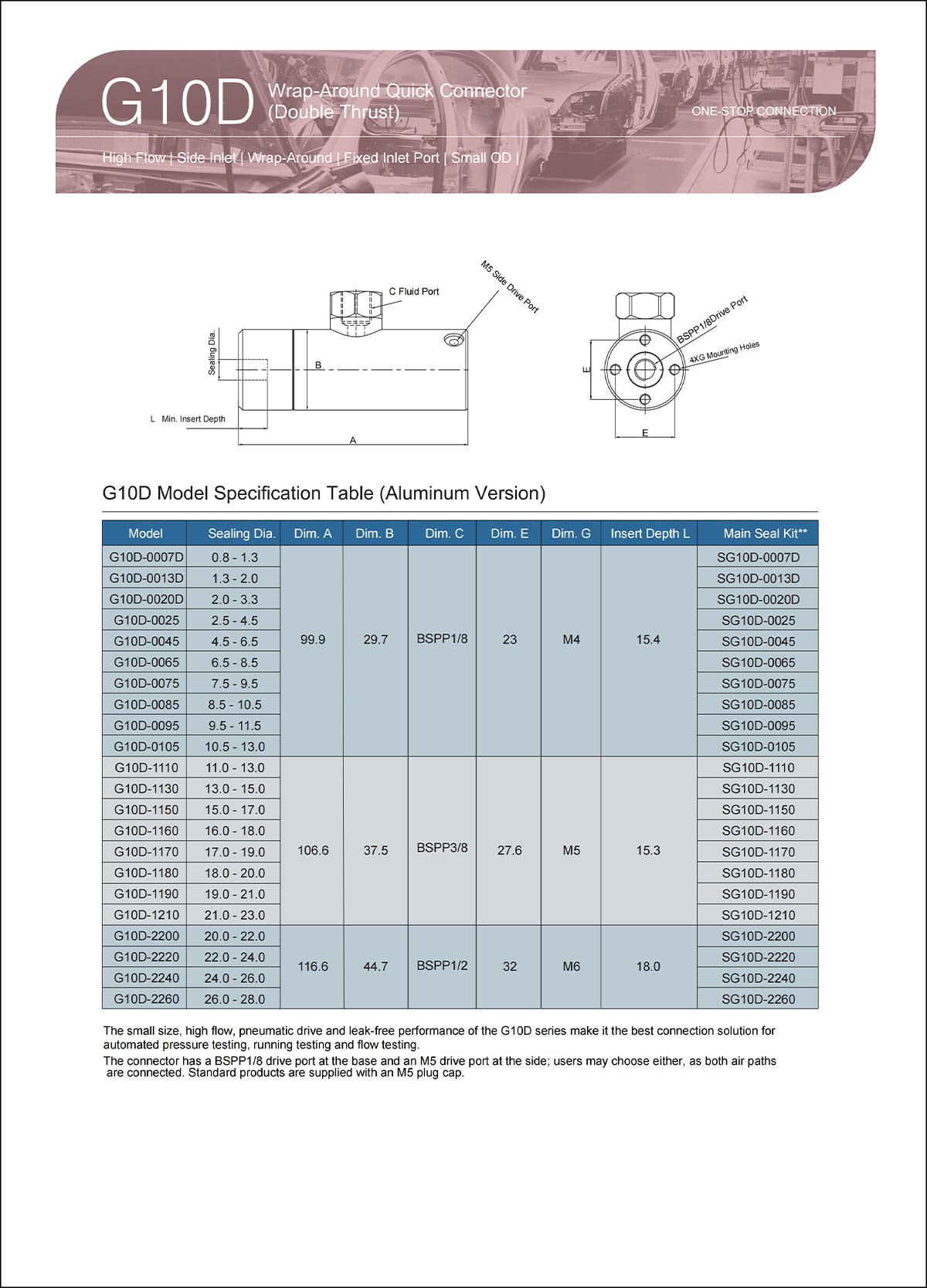

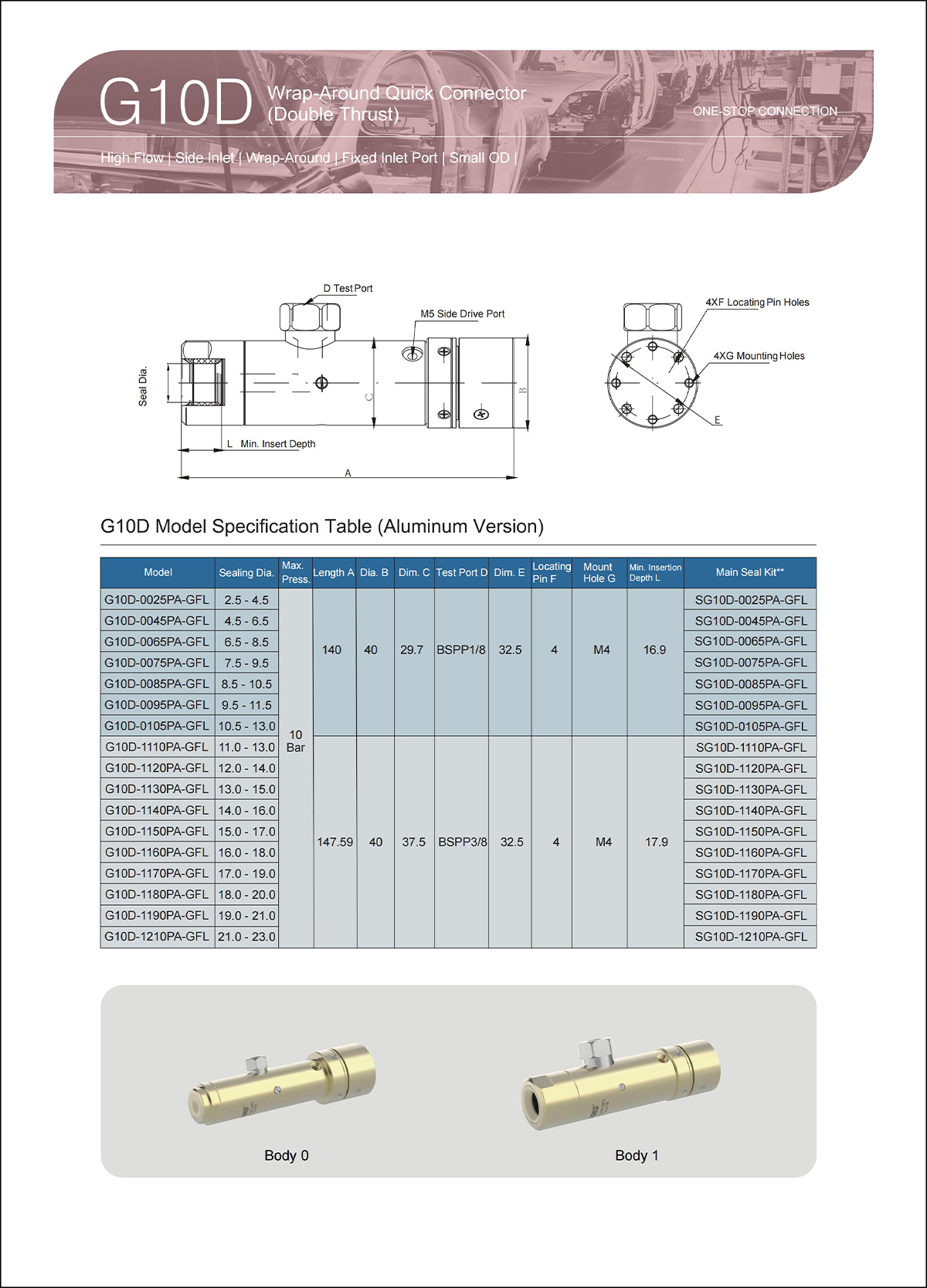

G10D Selection Table1

G10D Selection Table2

Keywords: Automatic Quick Seal Coupling Outer Diameter Seal Outward Coupling Straight Pipe Leak Detection Coupling G10
