G10 Tube Outer Diameter Quick Connector

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Pipe Type » Straight Pipe Seal Connectors » G10 series pipe outer diameter quick connector

prve

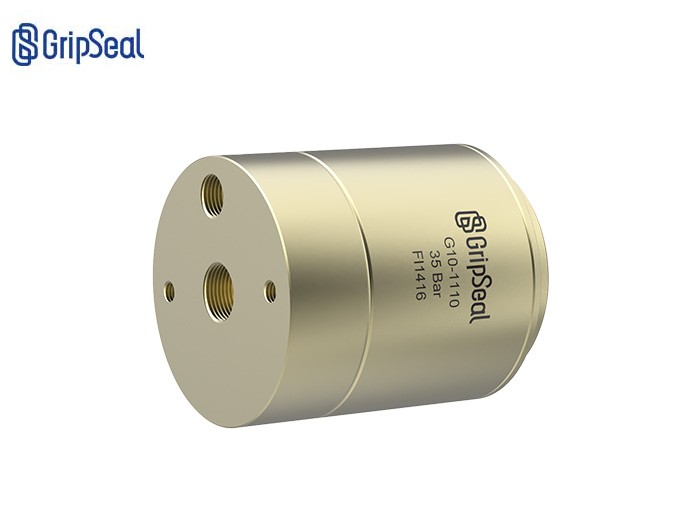

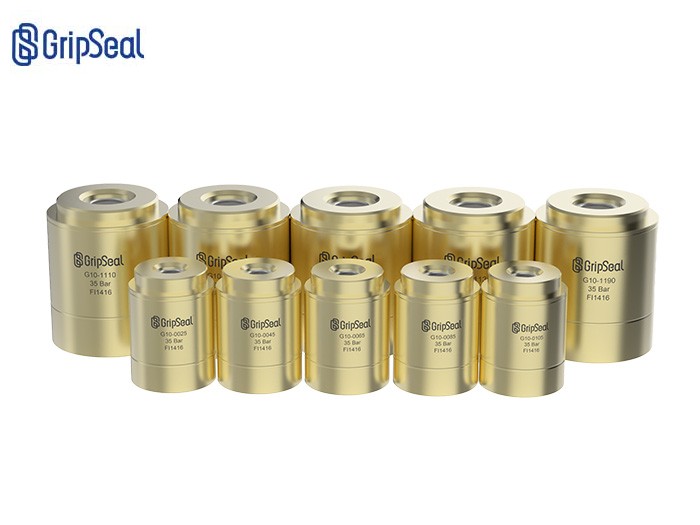

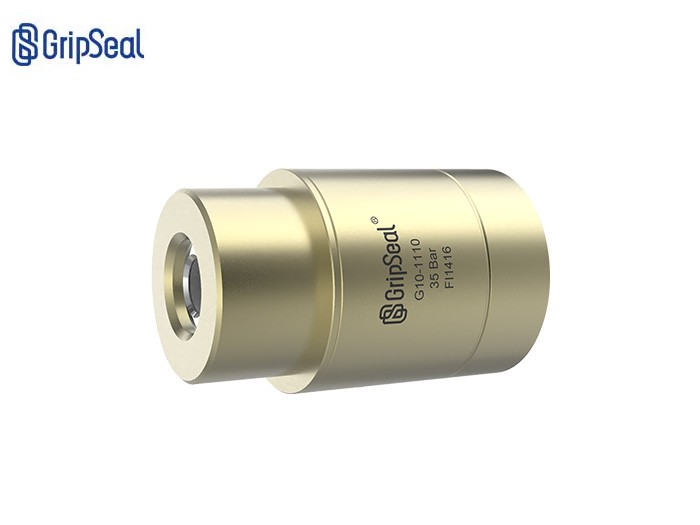

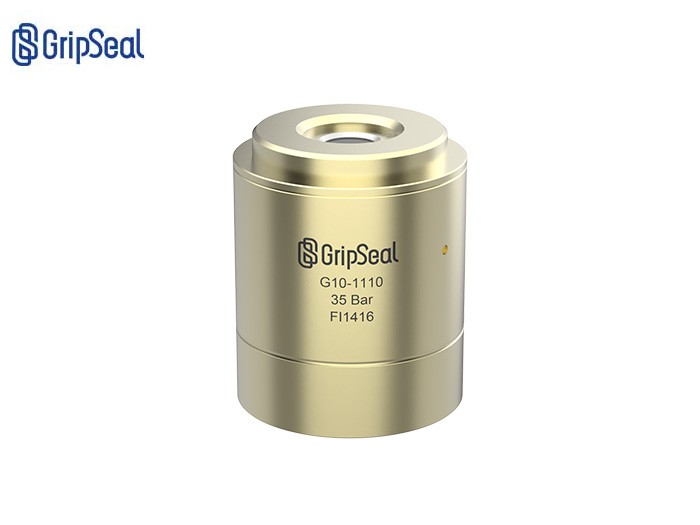

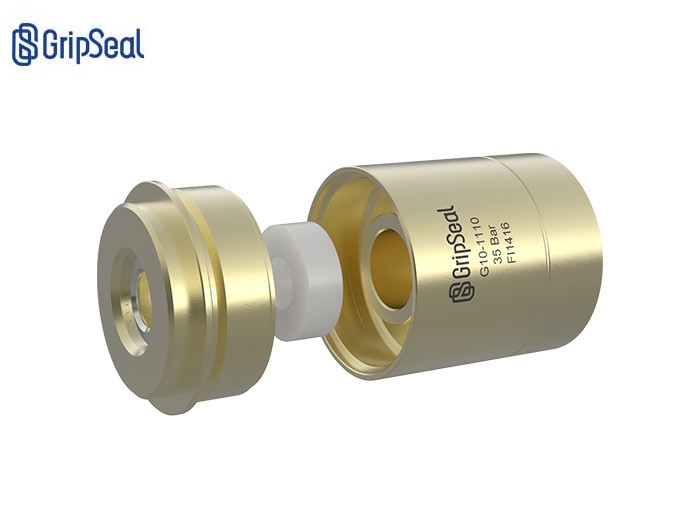

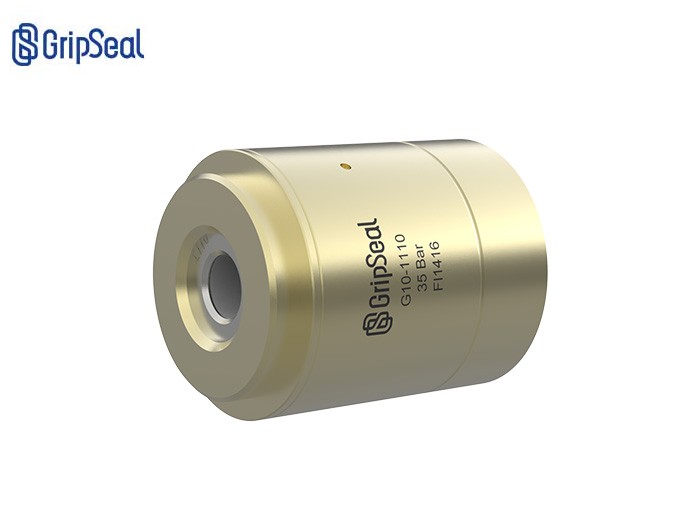

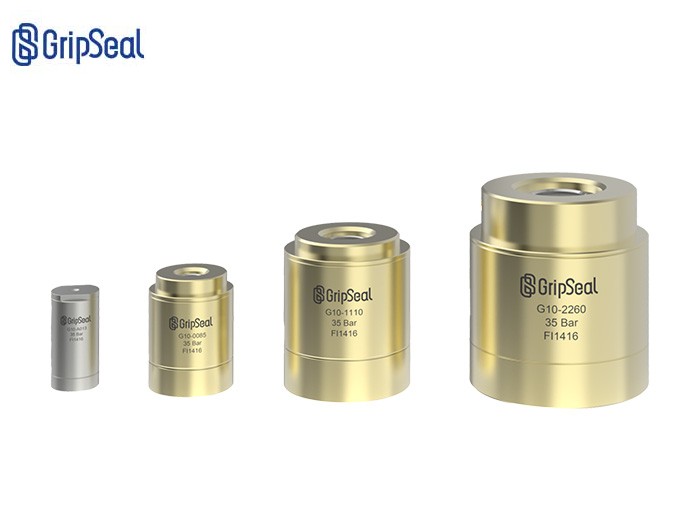

G10 series pipe outer diameter quick connector

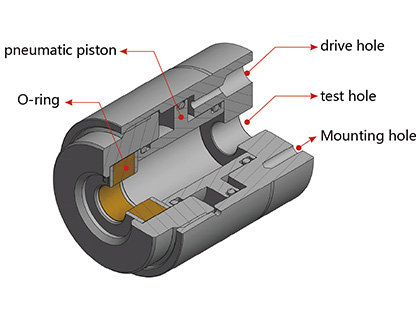

The G10 series pneumatic quick-sealing connectors use air pressure to expand the sealing ring and establish an internal airtight connection with any type of connector, making them ideal for high-volume automated production testing.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to35Bar
minimum insertion depth	1,2No. Body:15mm,3,4No. Body:30mm
traffic interface	G1/8;G1/4;G1/2Threaded hole
main material	Aluminum alloy or stainless steel
Main sealing ring material	neoprene/silicone rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

Product video

G10Tube outer diameter quick connector operation video

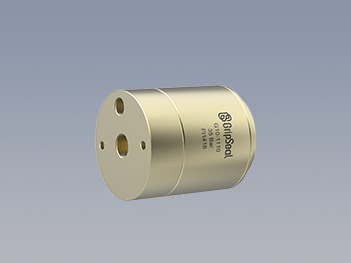

Product features

Product parameters

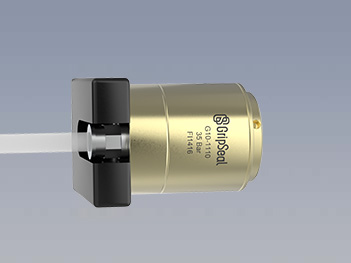

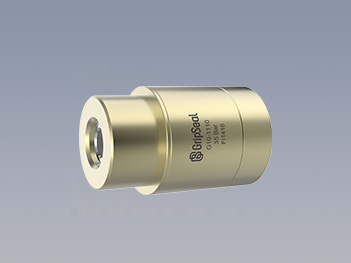

: Inner screw pneumatic drive: reliable sealing and stable operation

: Flexible customization: extend joint parts to avoid volume interference

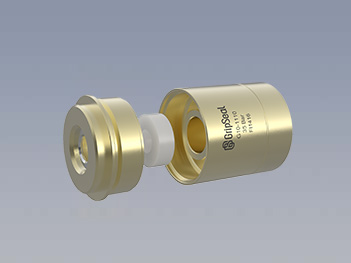

: Quick replacement of sealing rings: simple maintenance and extended service life

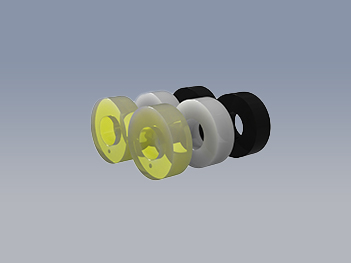

: Sealing ring material: material is optional to meet customer specific needs

: Automated operation: more efficient, more stable test results

operation method

Operation method

: Step one.

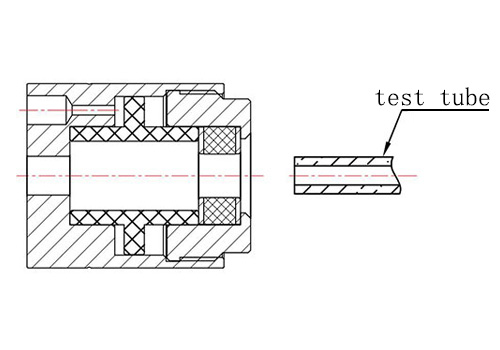

Place the test tubeG10Series, front-end test port

: second step

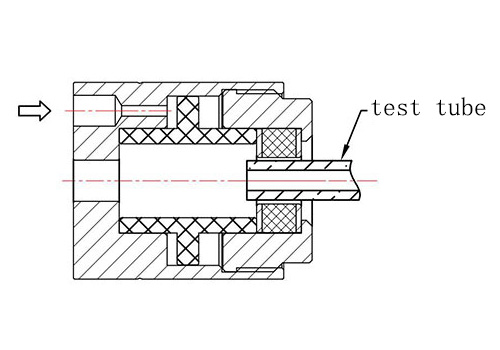

The air is fed from the driving hole. At this time, the sealing ring is squeezed, resulting in expansion, and then it is close to the outer wall of the test tube to form a seal.

: Step three

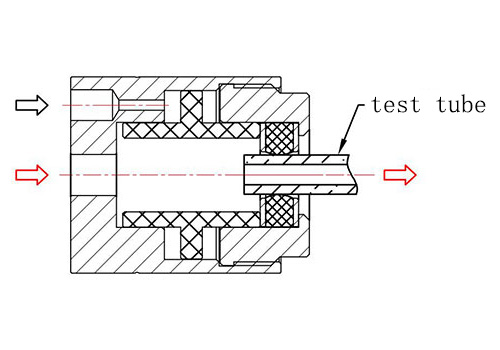

When the seal is formed, the test medium (e.g. compressed air, test liquid, etc.) is filled into the test hole at this time.

Application case

Application cases

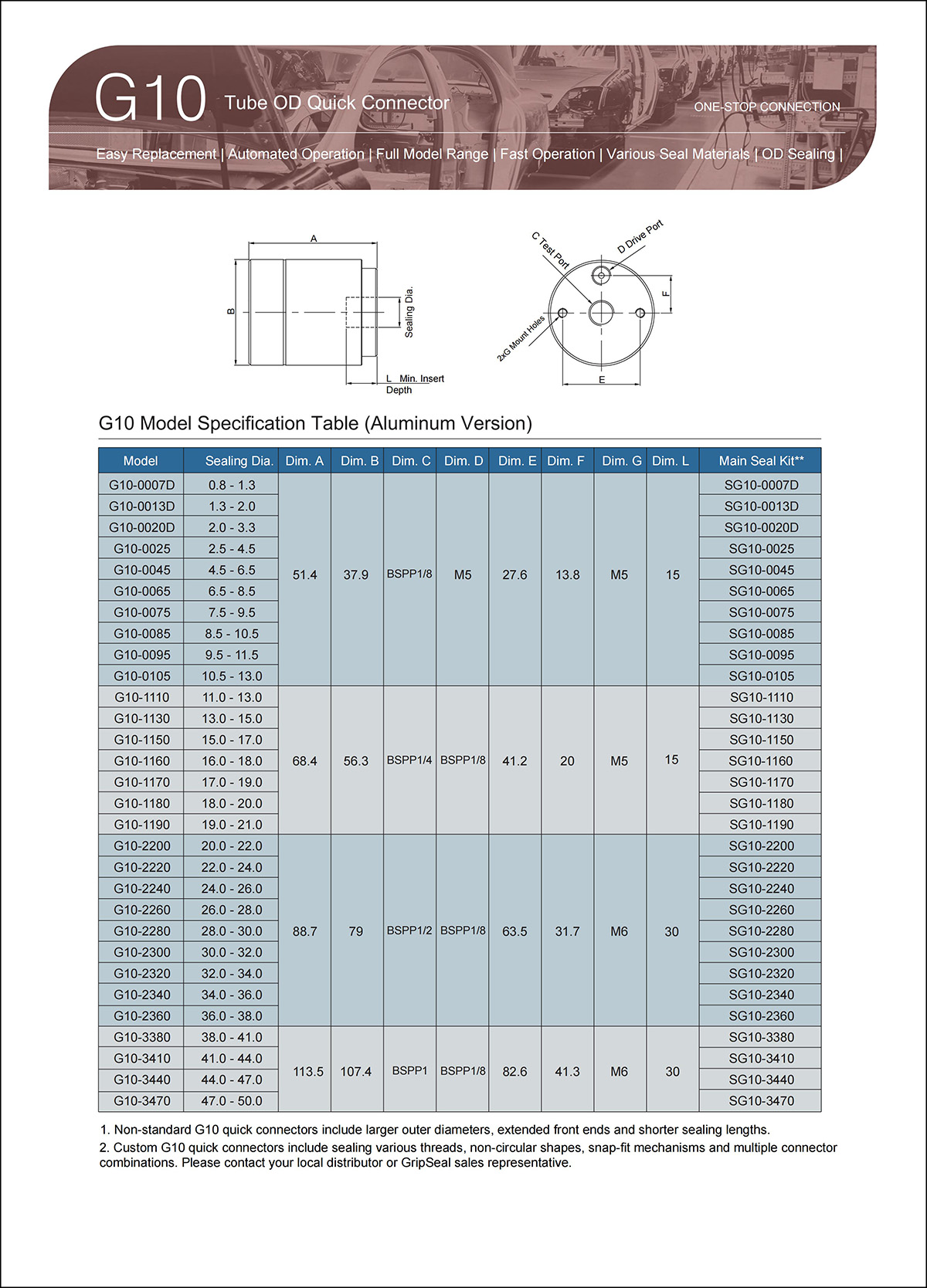

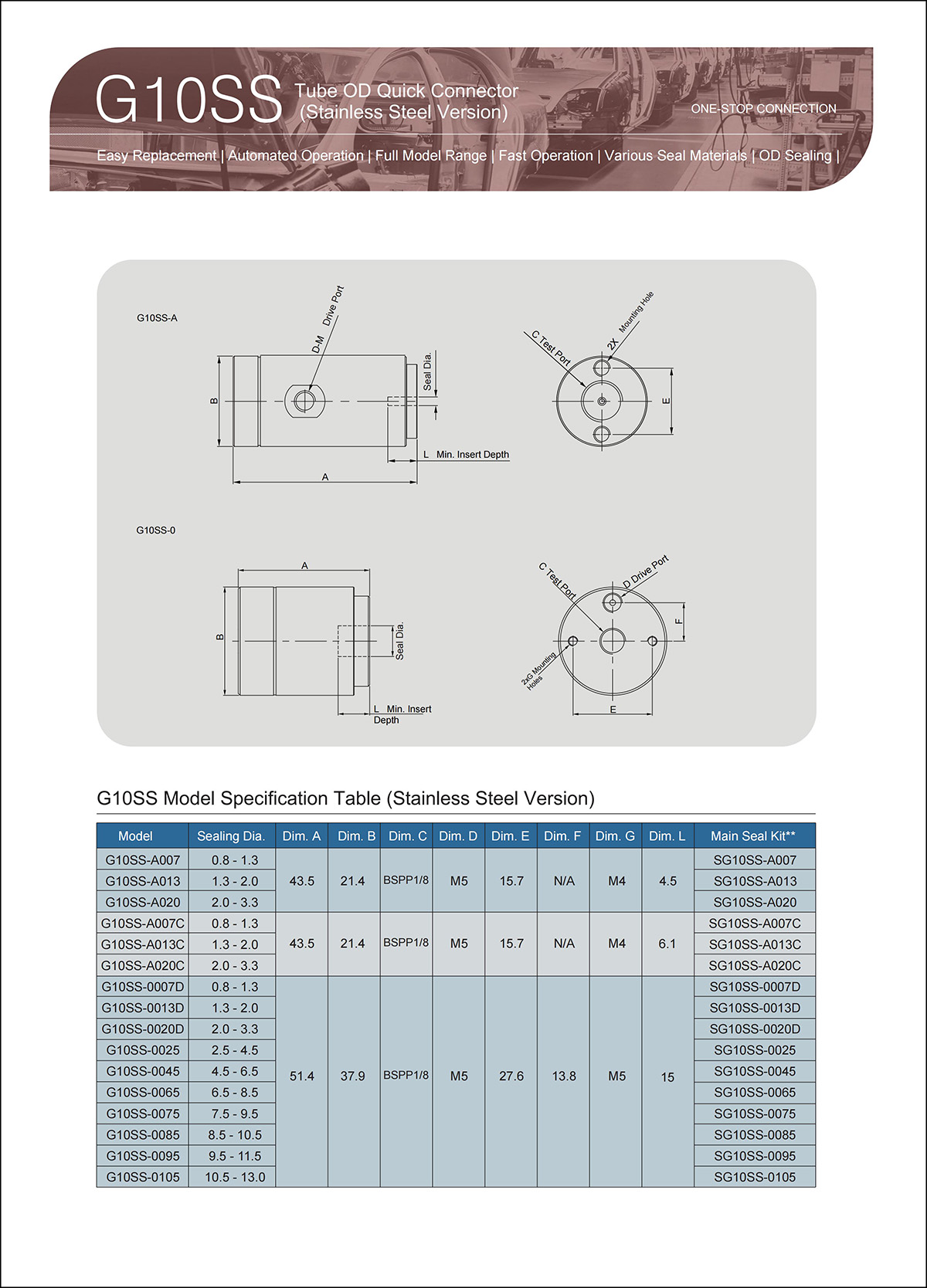

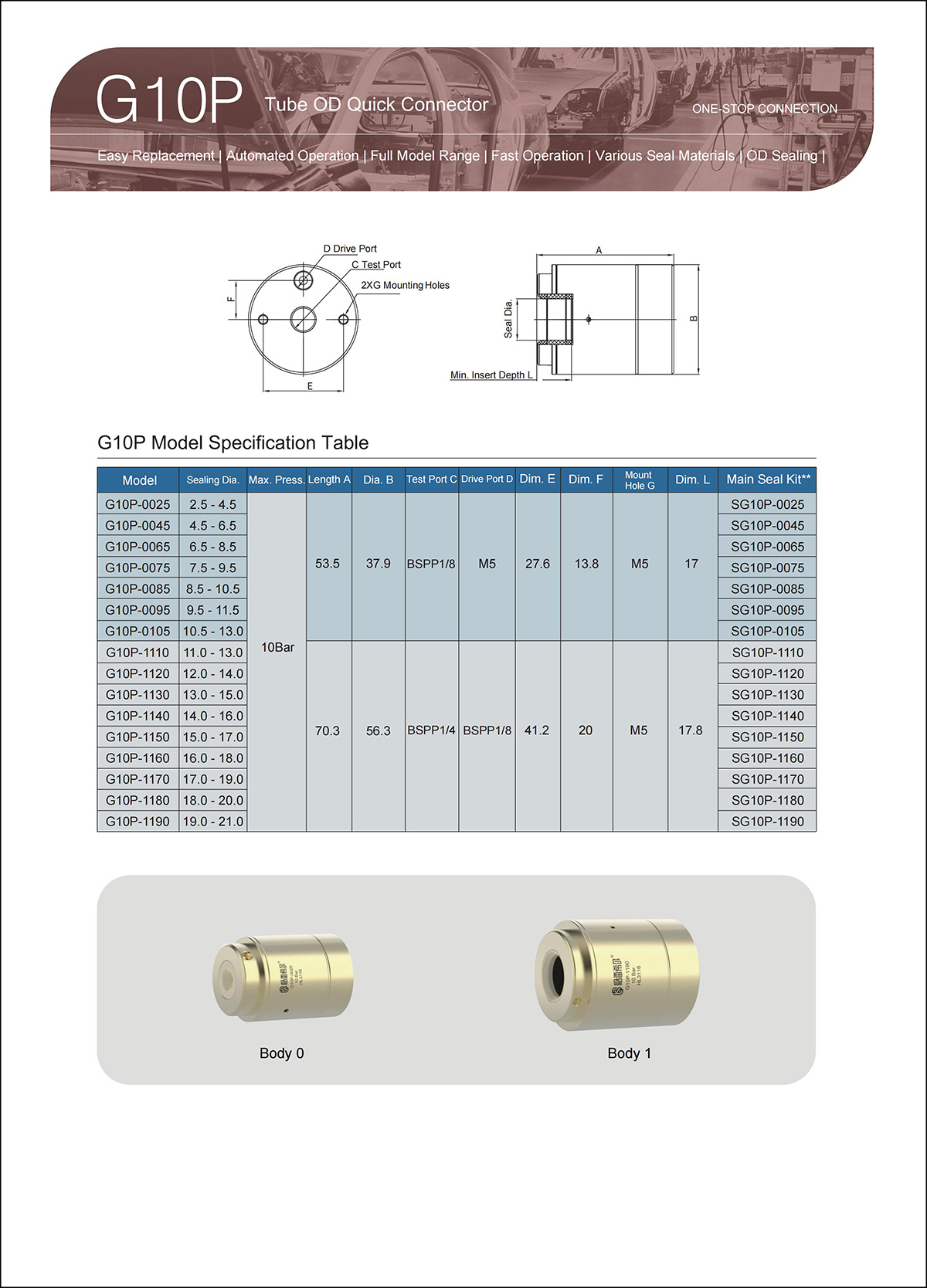

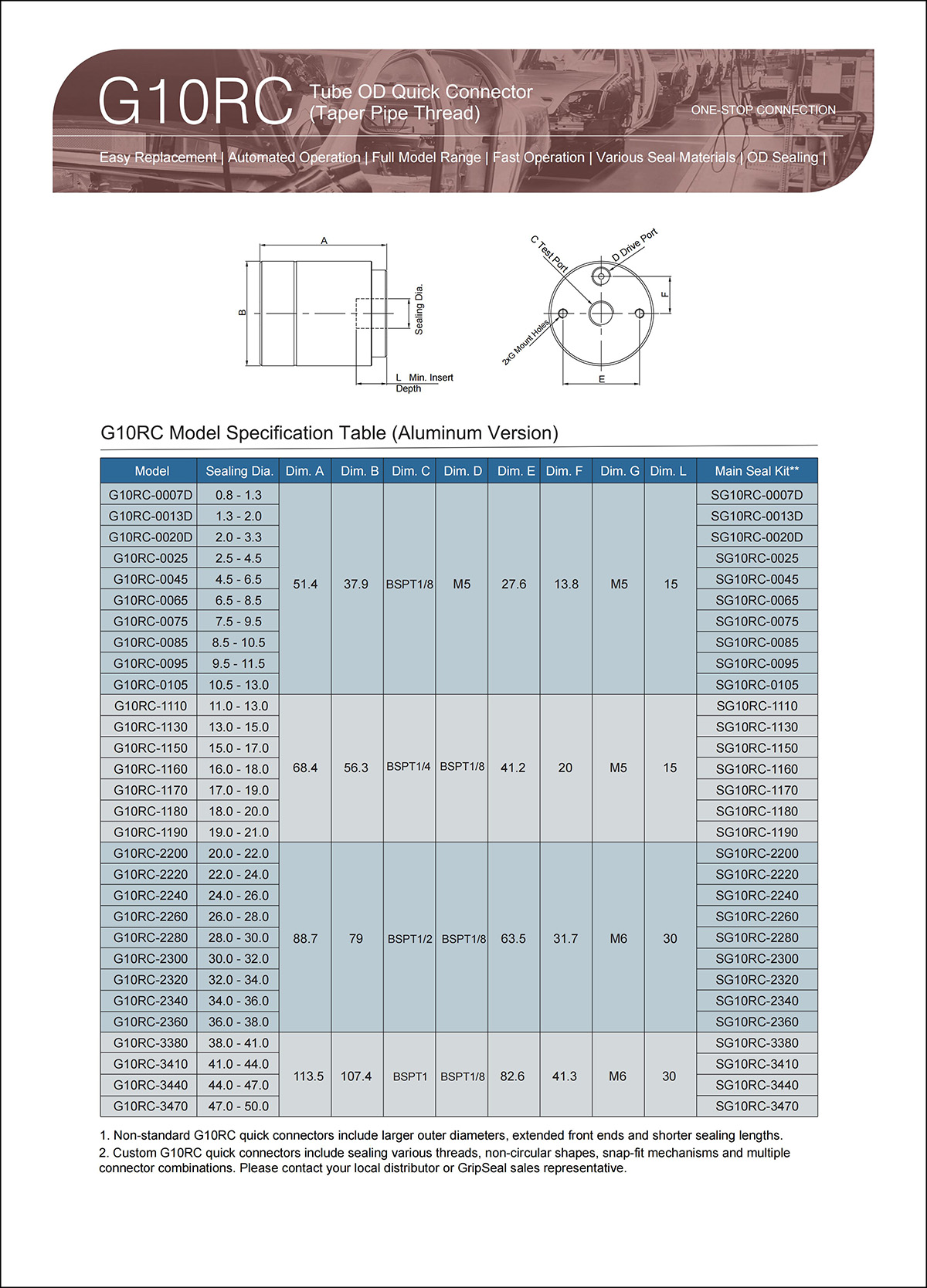

G10 Selection Table
