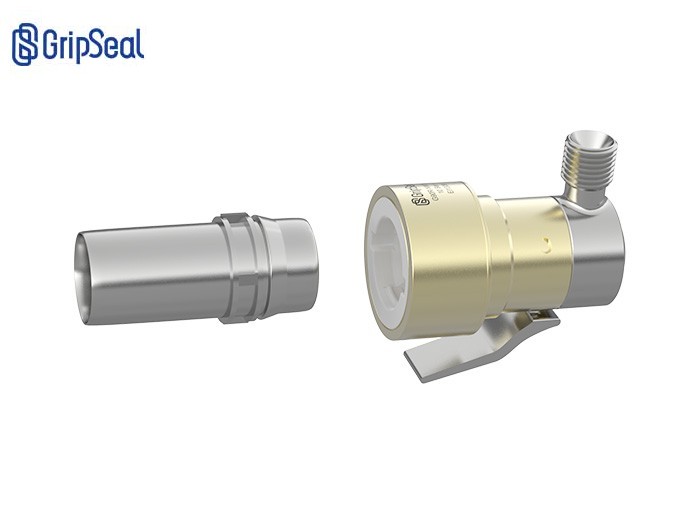

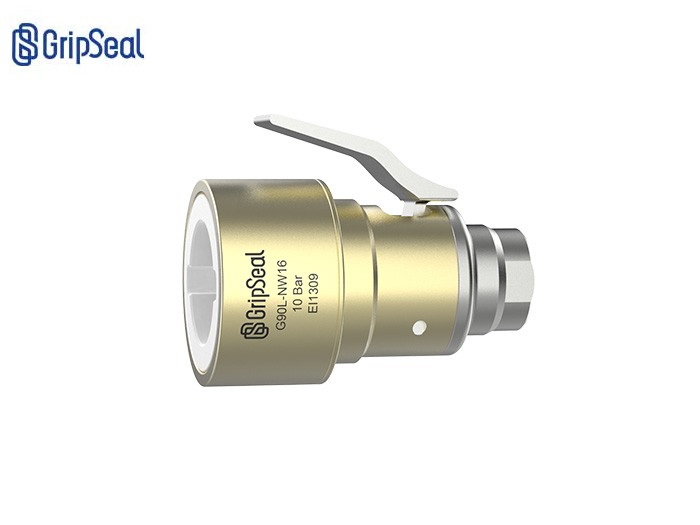

G90 series pressure bar connector

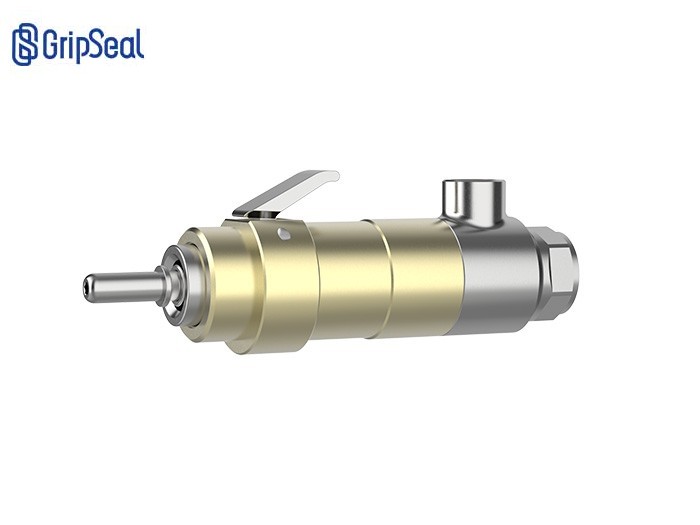

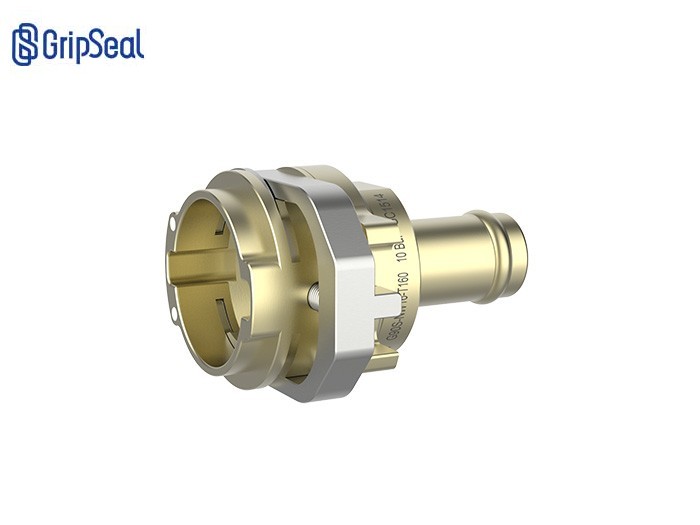

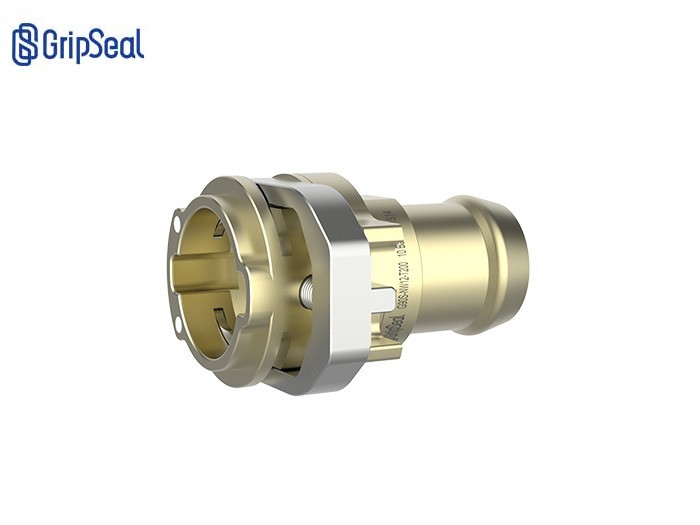

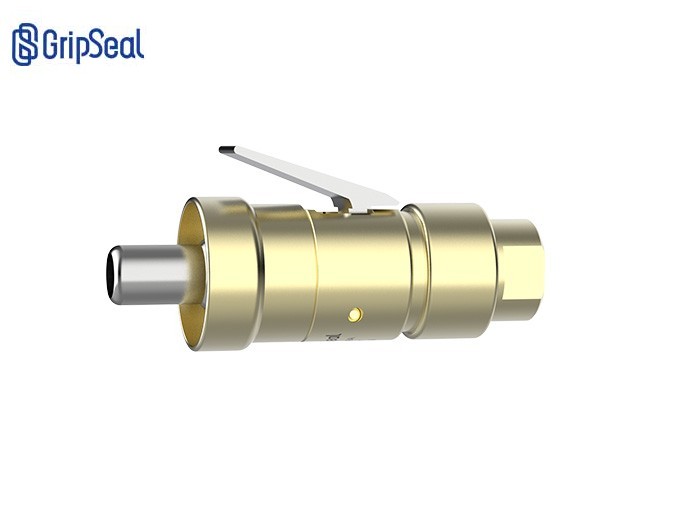

The G90 series connector is a pressure bar type manual connector. The main body is made of aluminum alloy, which reduces the operating strength while ensuring the strength of the connector. The internal structure is designed with a special structure, which will not damage the surface of the customer's product and ensure the integrity of the customer's appearance. It is widely used in engine fuel rails and new energy cooling nozzles.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to10Bar
minimum insertion depth	10mm-56mm
traffic interface	G1/8，G1/4，G3/8，G1/2
main material	Aluminum alloy, stainless steel, nylon
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

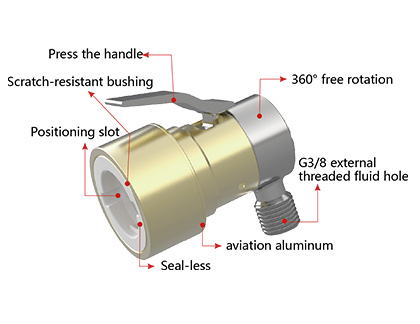

G90 Quick connector specifications and parameters

Product video

G90series-1Second implementationVDANozzle connection video demonstration

Product features

Product parameters

: Two operation methods: handle operation or button operation

: Optional orientation: Through and side air intakes are optional, flexibly configured according to the on-site environment

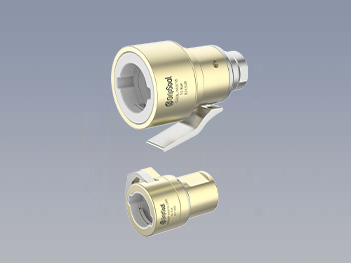

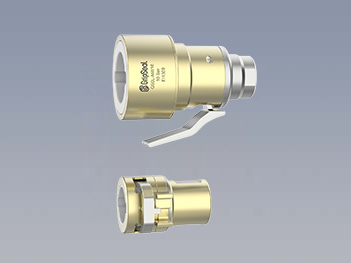

: Lossless connection: usePEEKInsert design, and polymer piston nesting, for aluminum alloy or plasticVDAStructural connection without damage

: Mini subjects: Mini subjects are suitable for scenarios with positional interference and have a wide range of adaptability

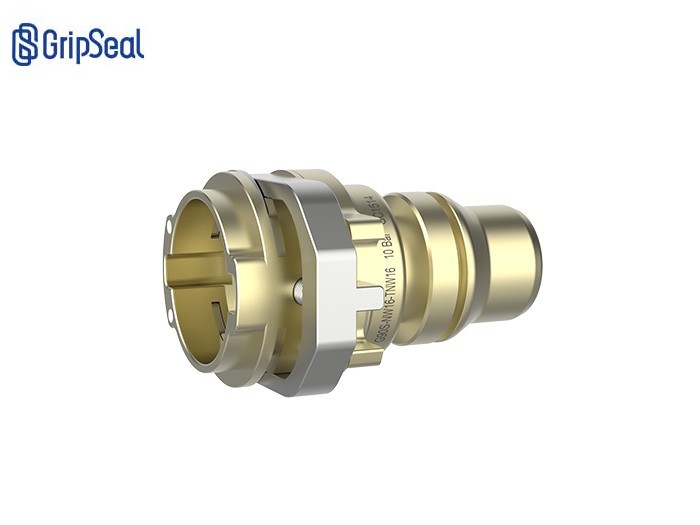

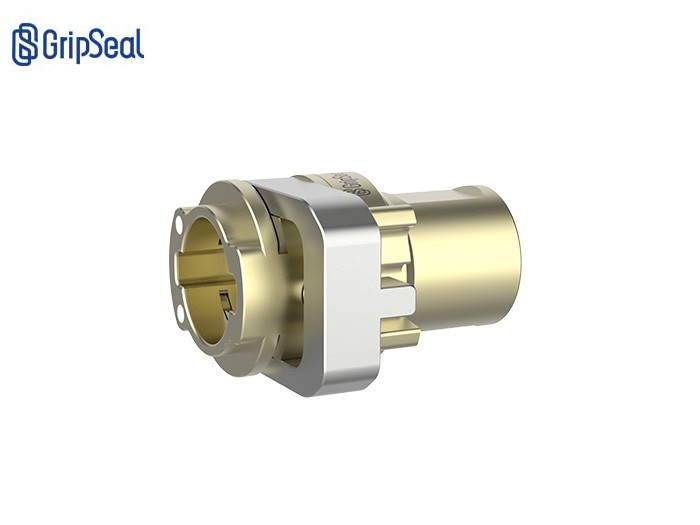

: Adapter function:G90SP/G90SPRProvide a variety of through or side-out adaptations for other forms of pipe fittings,Including flanged tubes,J2044Even threaded joints, etc

operation method

Operation method

: Step one.

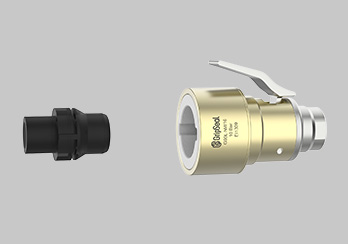

Align the quick connector with the female head.

: second step

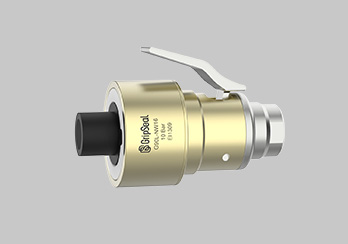

Insert to form a seal

: Step three

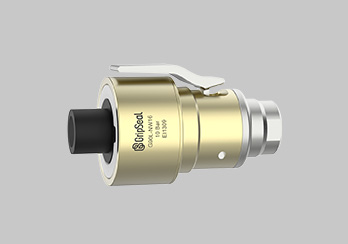

Press and hold the side handle to easily pull it out

Application case

Application cases

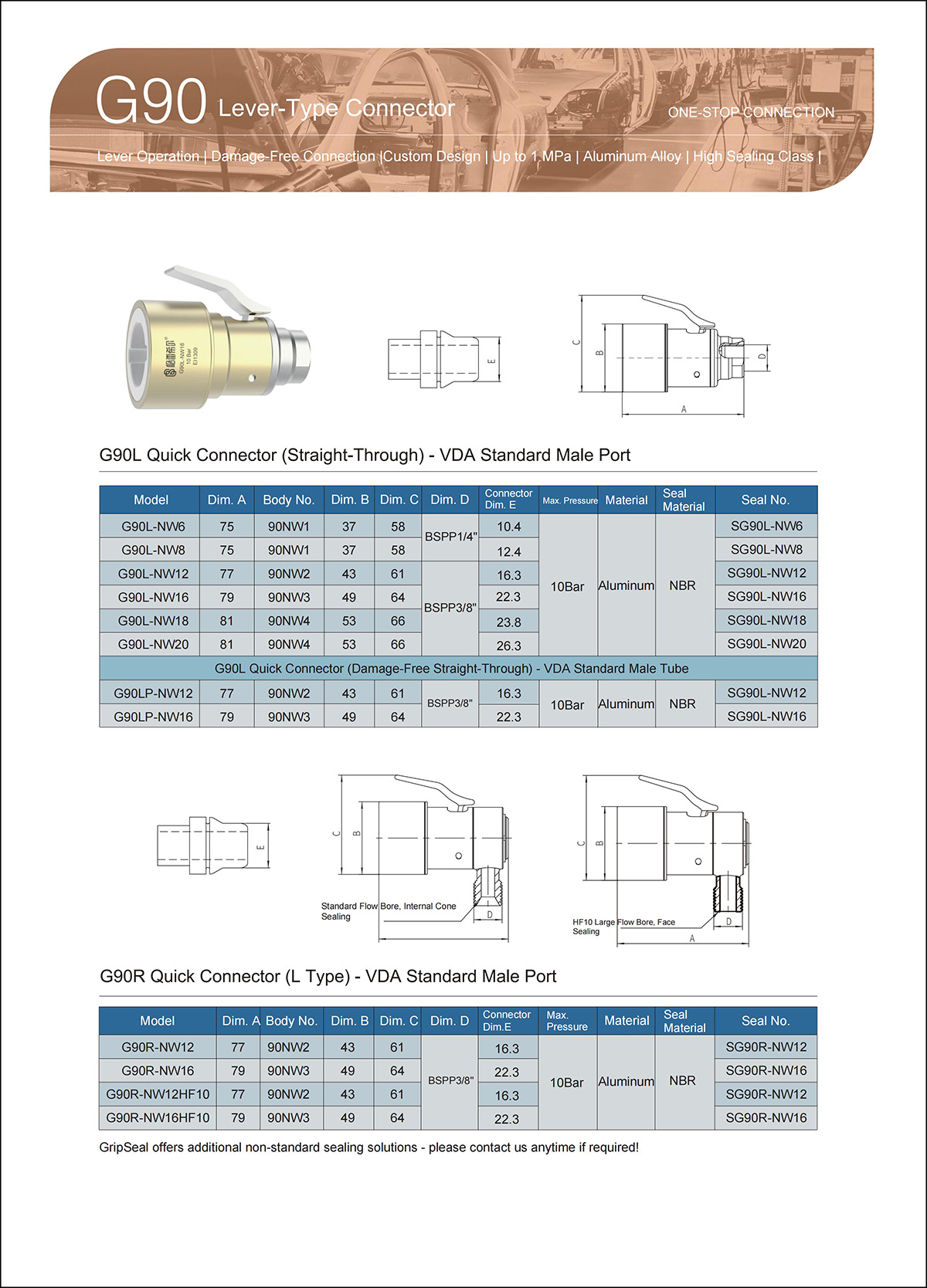

Step three

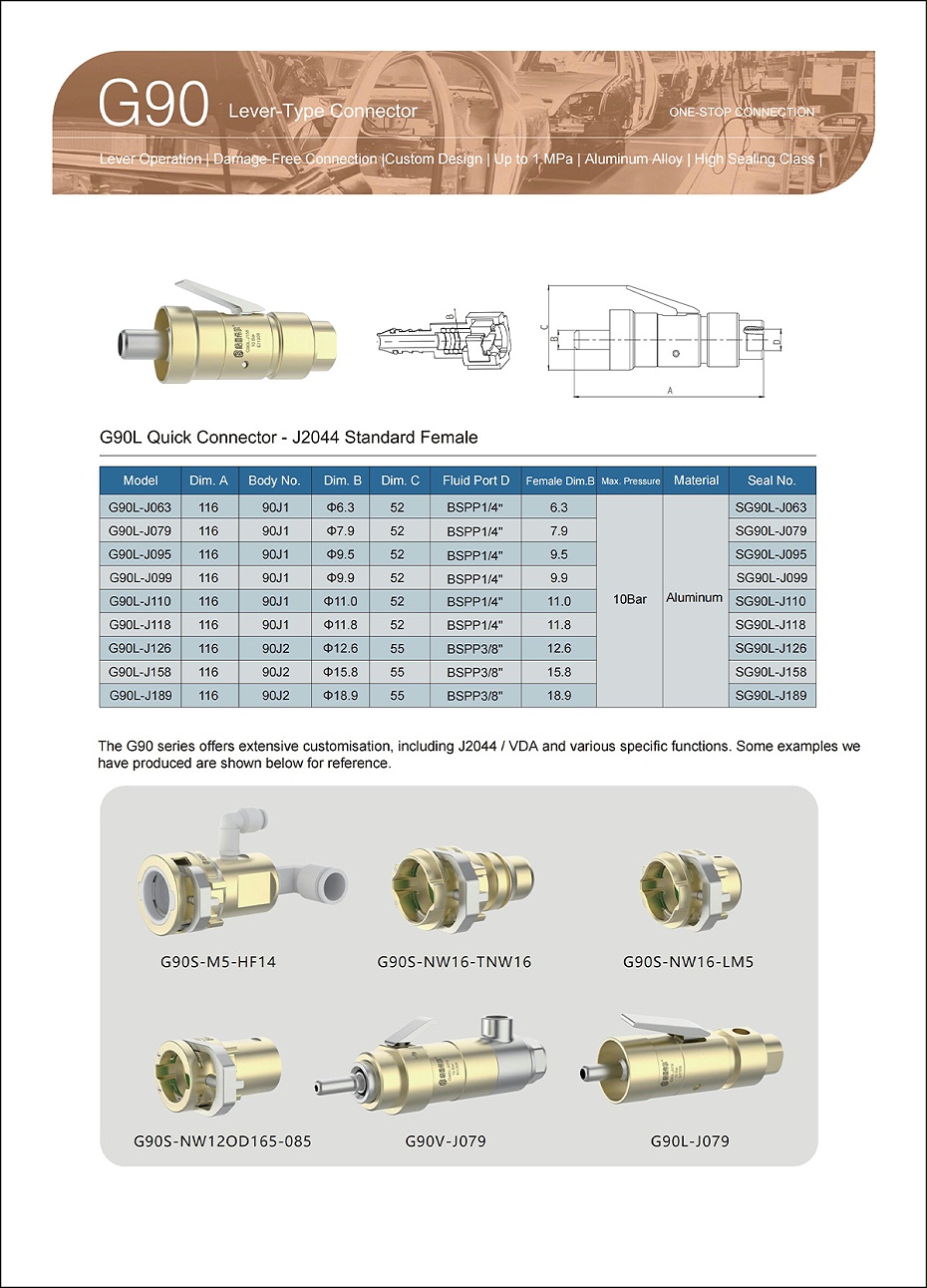

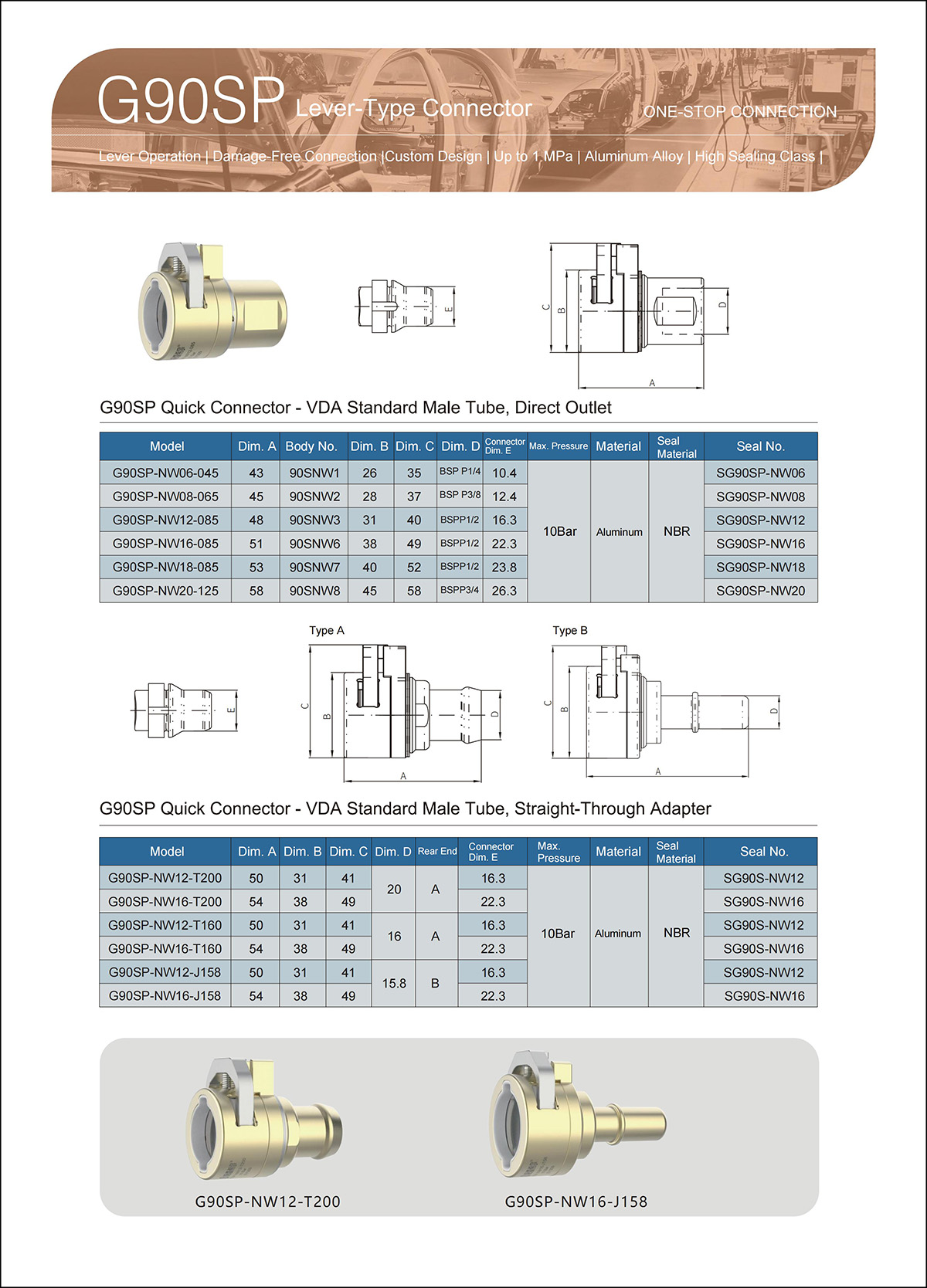

G90 Selection Table2

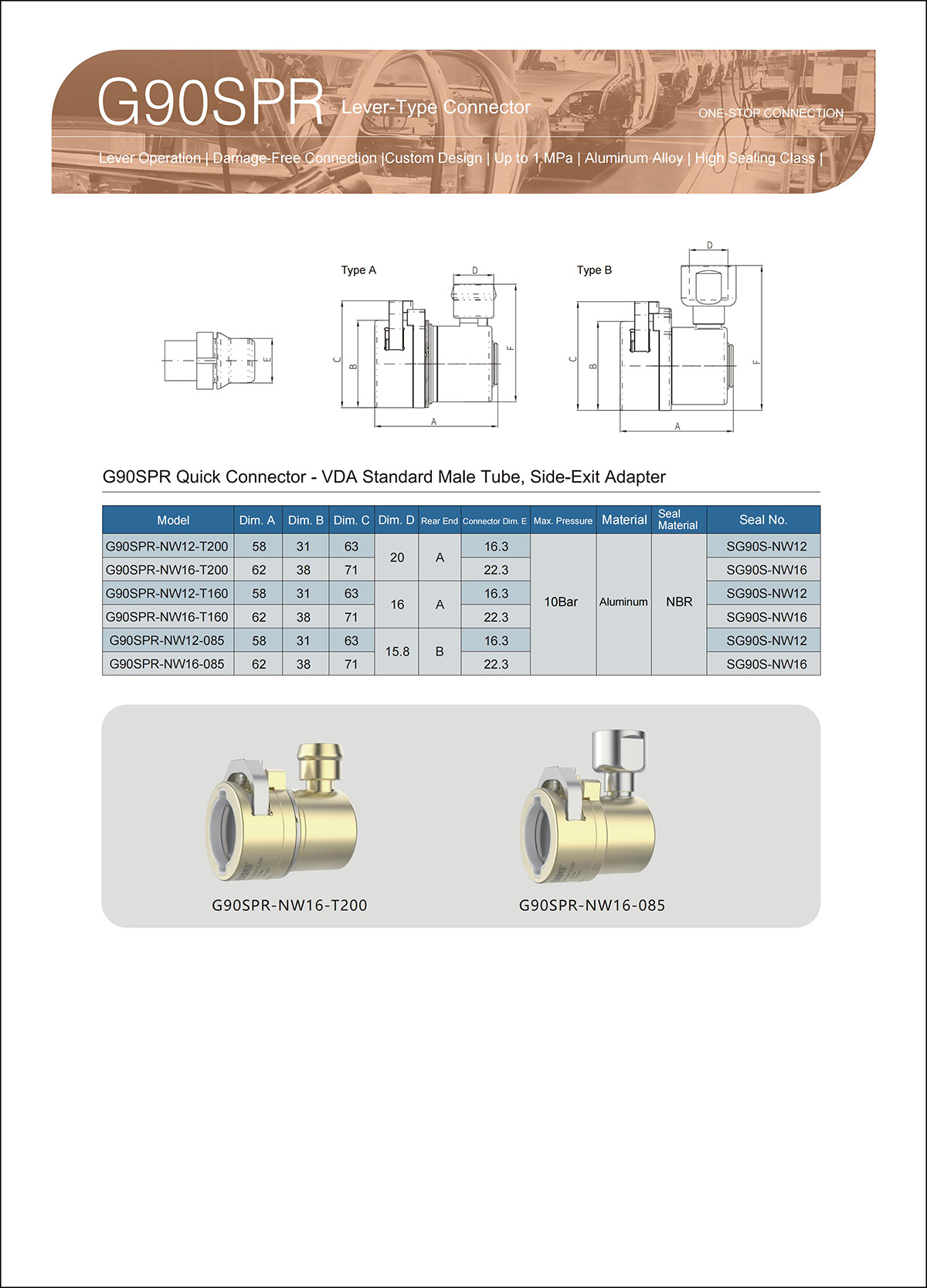

G90 Selection Table3

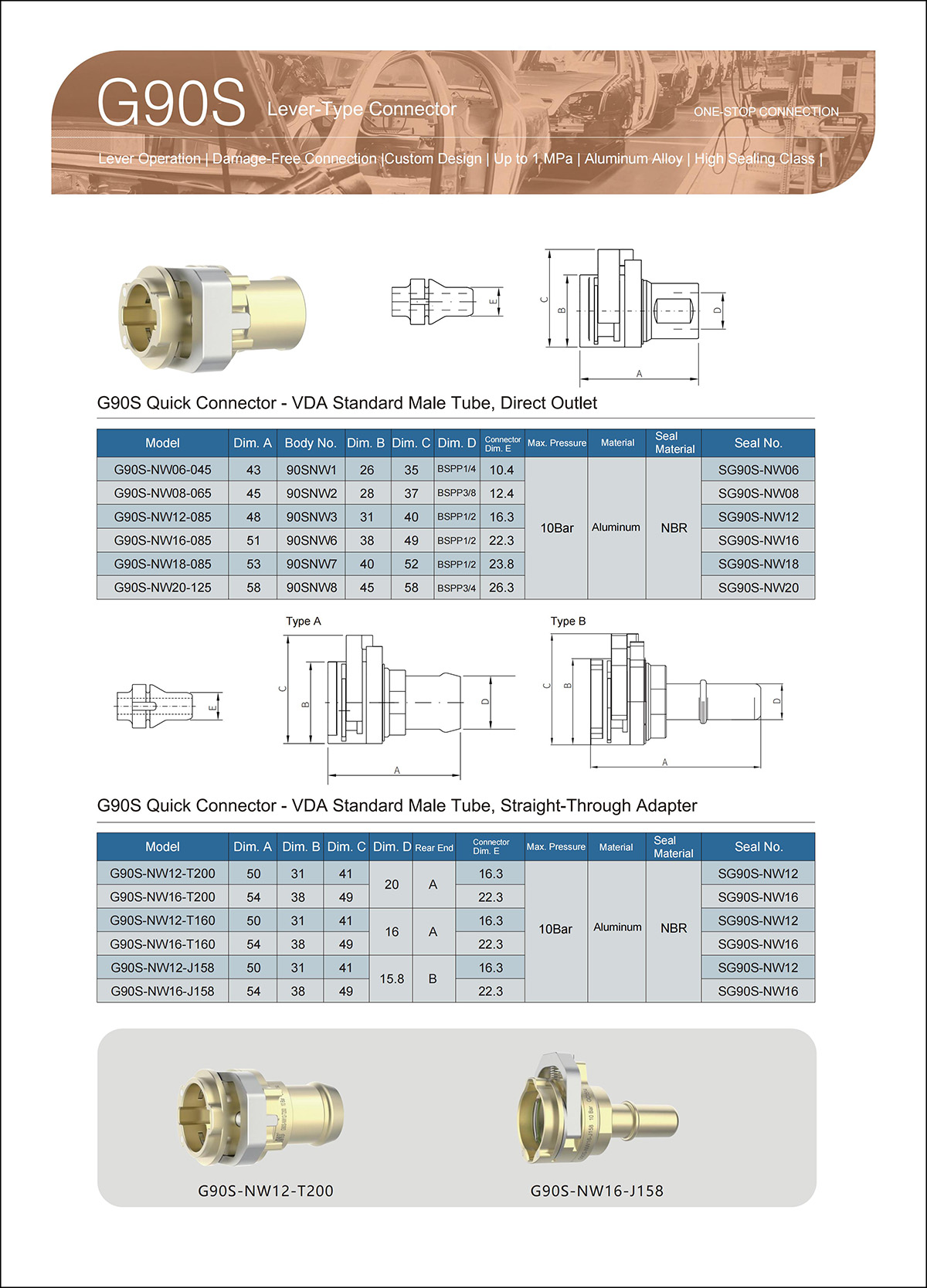

G90 Selection Table4

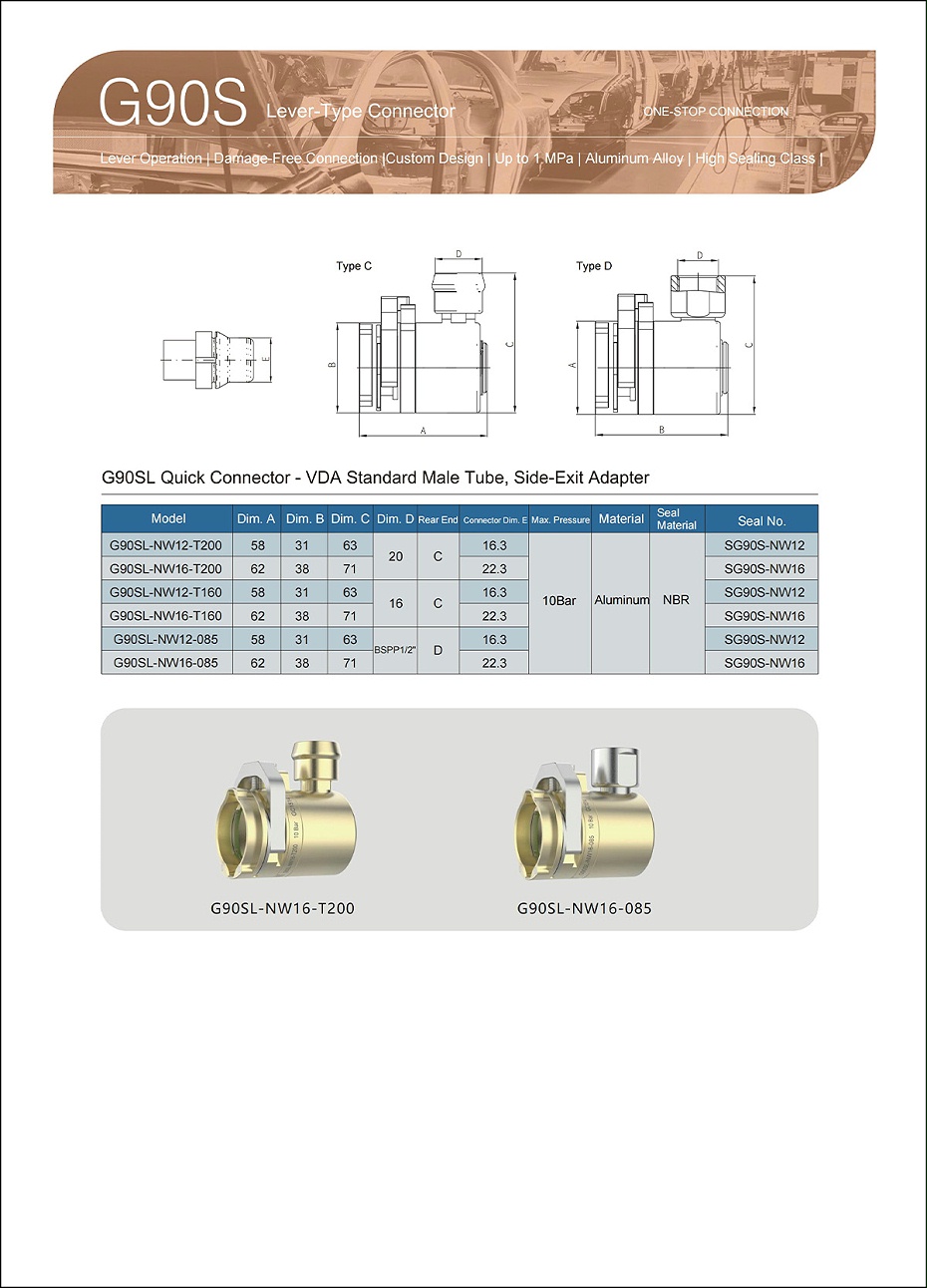

G90 Selection Table5
