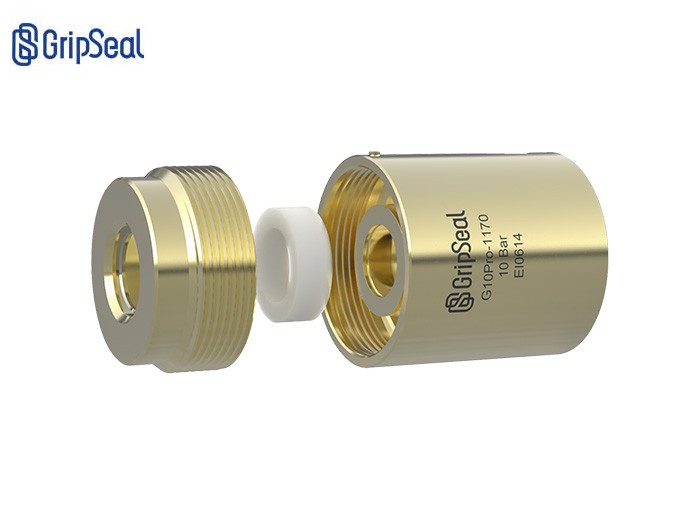

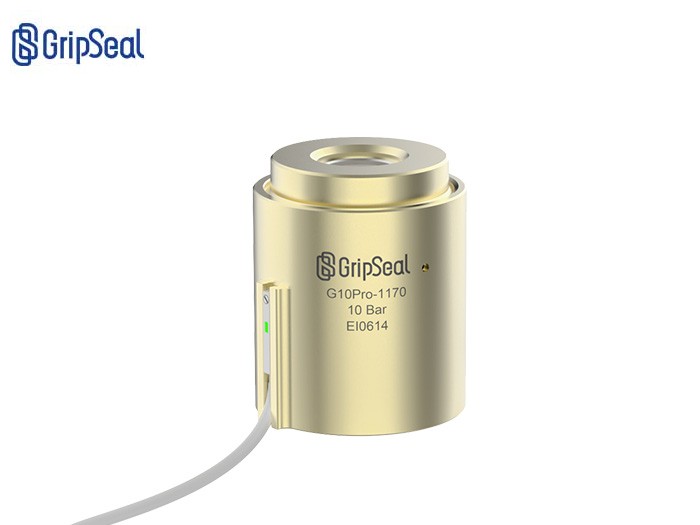

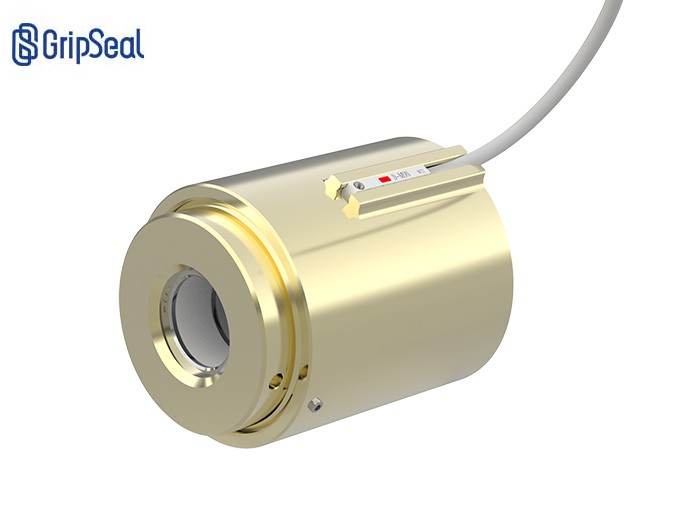

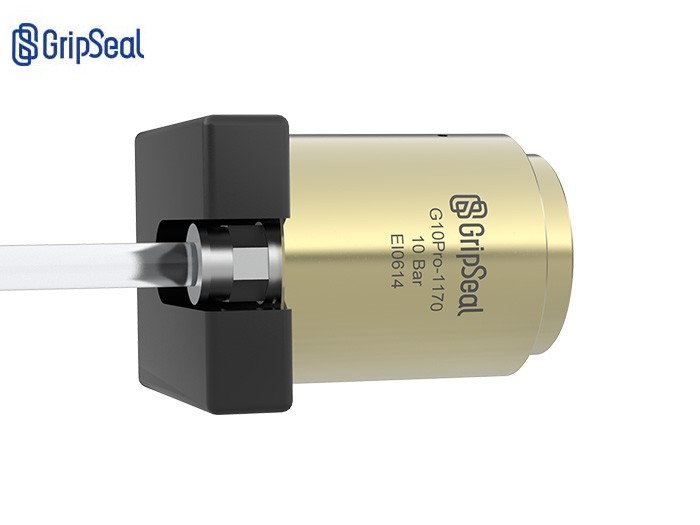

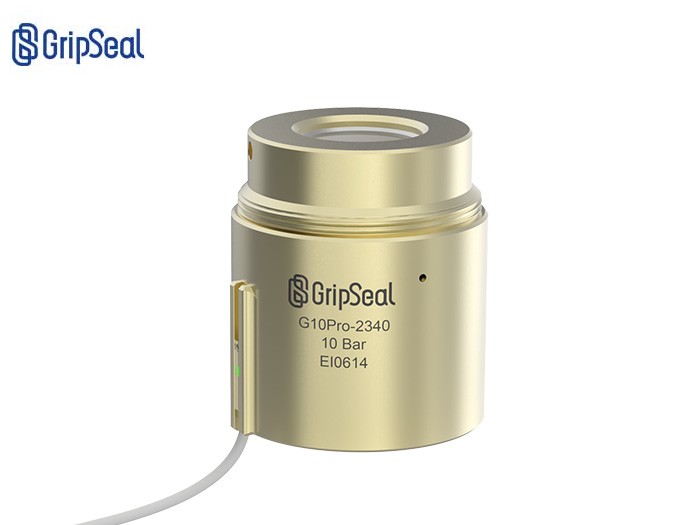

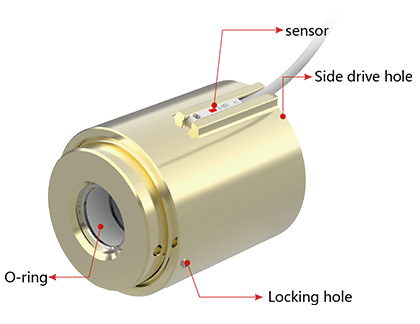

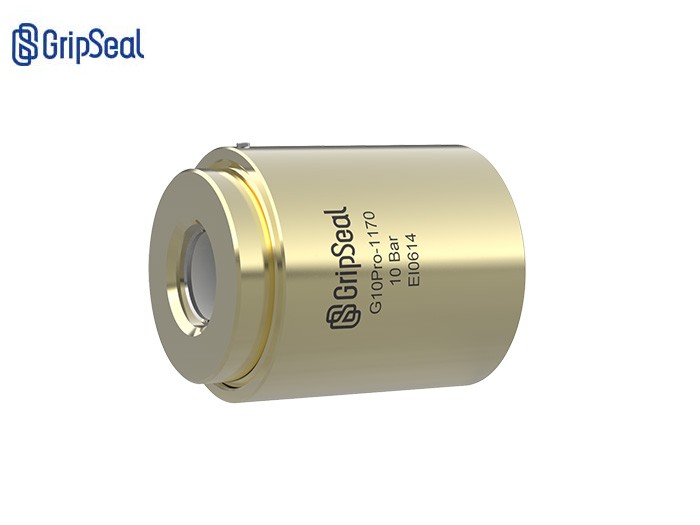

G10Pro series pipe outer diameter intelligent connector

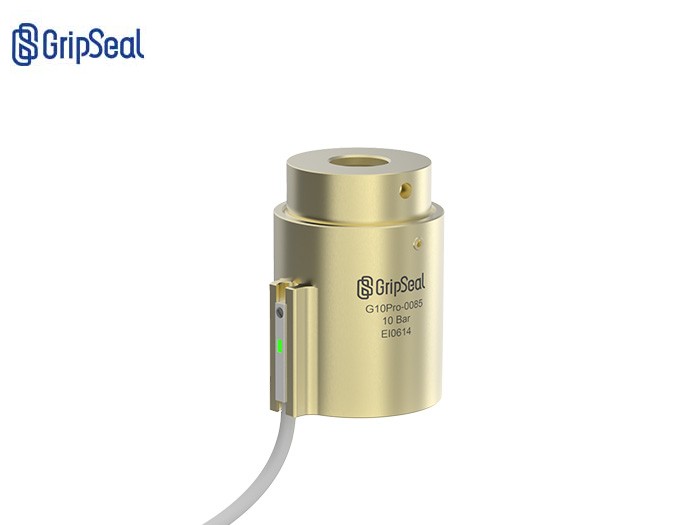

Compared with the traditional G10 series connector, the G10 Pro series can mount a magnetic sensor externally, which can more accurately track the driving condition of the connector and the expansion of the sealing ring, eliminate the wrong connection caused by the poor sealing, and improve the efficiency of automatic detection.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to35Bar
Sealing range	2.5mm-38mm
minimum insertion depth	1,2No. Body:15mm，3,4No. Body:30mm
traffic interface	G1/8;G1/4;G1/2Threaded hole
main material	Aluminum alloy, stainless steel
Main sealing ring material	Neoprene, silicone rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

G10Pro Series pipe outer diameter intelligent connector

Product video

G10ProSeries tube outer diameter intelligent connector video

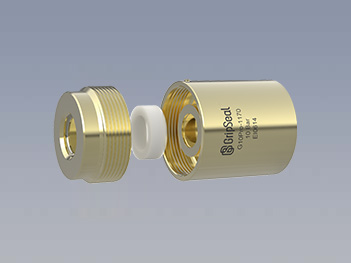

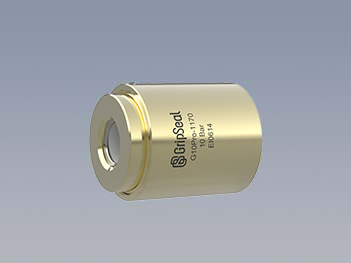

Product features

Product parameters

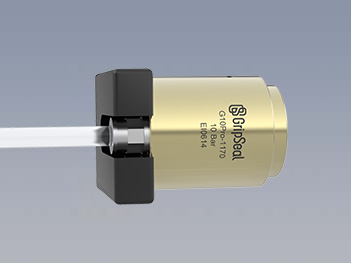

: Damage-free sealed connection, no damage to the appearance of the product

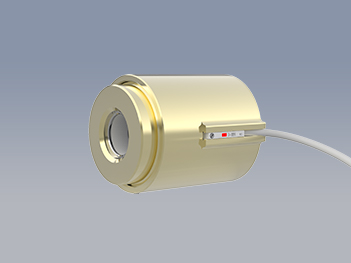

: Position sensor, real-time feedback on whether the internal piston is moving

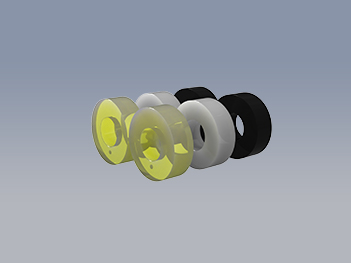

: Quick replacement of sealing ring: simple dimension, extended service life

: Sealing ring material: material optional to meet different needs of customers

: Automated operation: more efficient, more stable test results

operation method

Operation method

: Step one.

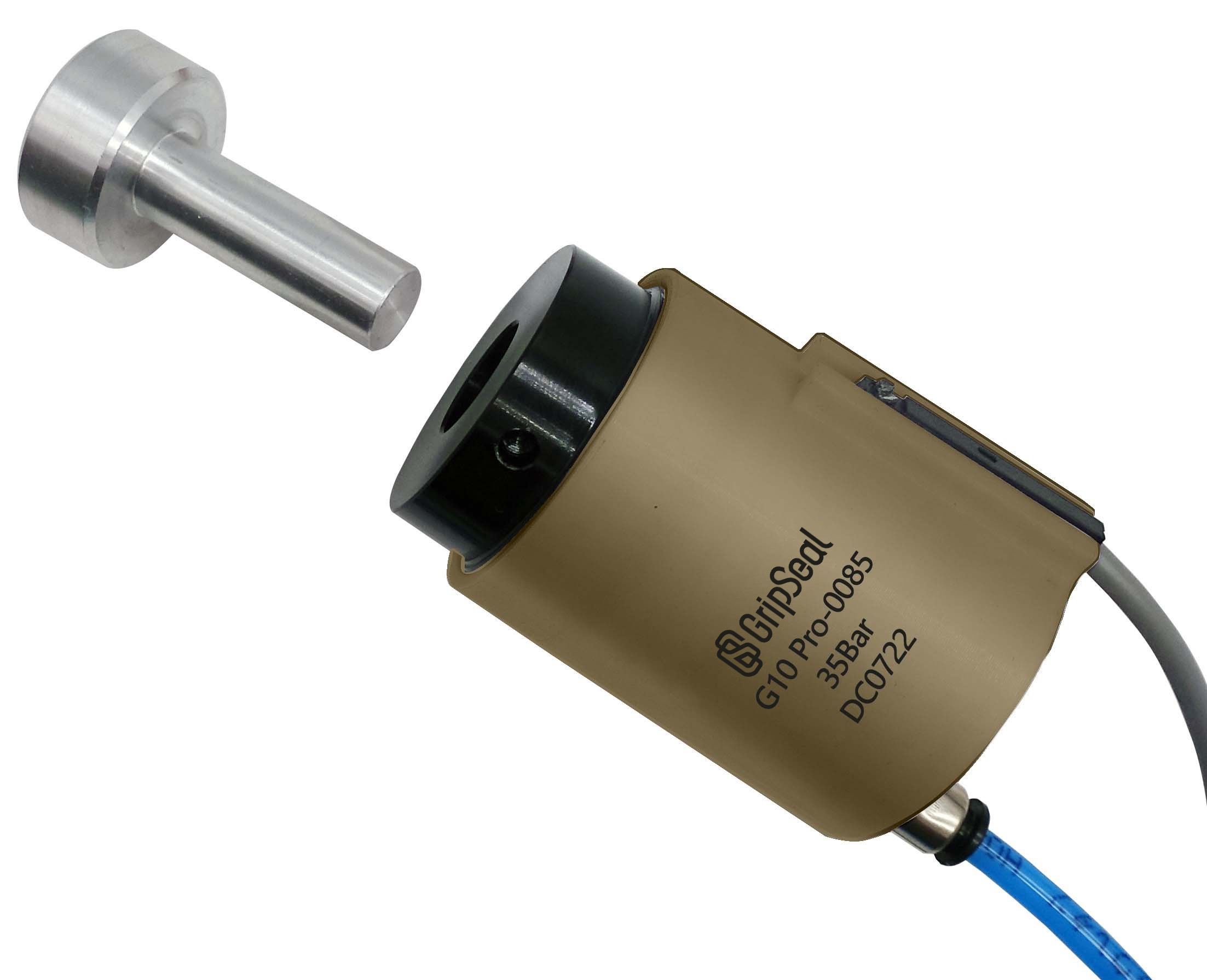

fixedG10ProTo the cylinder fixture and connect the drive interface (4-6bar) and test the interface, and set the fixed sensor according to the sensor.

: second step

a,Cylinder pushG10ProConnect to the sealing position to ensure that the main sealing ring is within the outer diameter of the product under test.

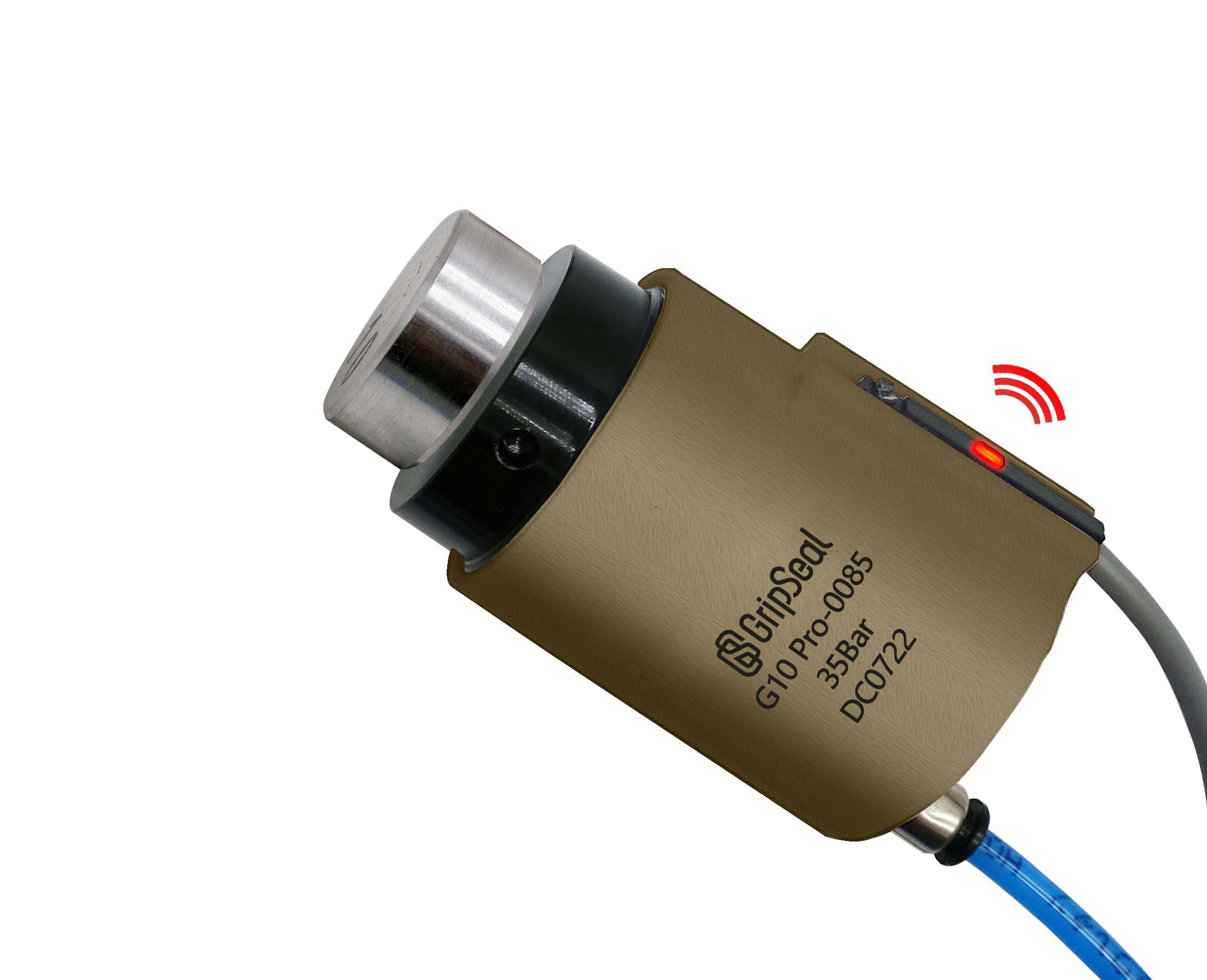

b,Pressurize the drive interface, the main seal will inward expand to seal the outer diameter of the product under test, and the sensor light will be on.
c,Test interface through the test gas or other media, start the test until the completion of the test pressure relief.

: Step three

Pressure relief to the drive interface, sensor light off, stay0.5-1second,6Cylinder returnG10ProConnector to the initial position, press2-6Prepare for the next test.

Application case

Application cases

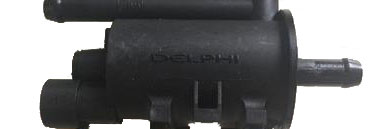

Carbon can

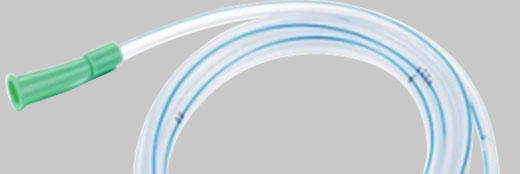

Medical catheter

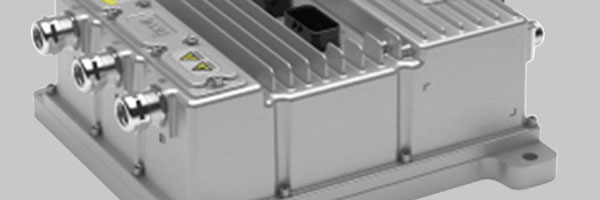

Motor control box

Get the application solution now

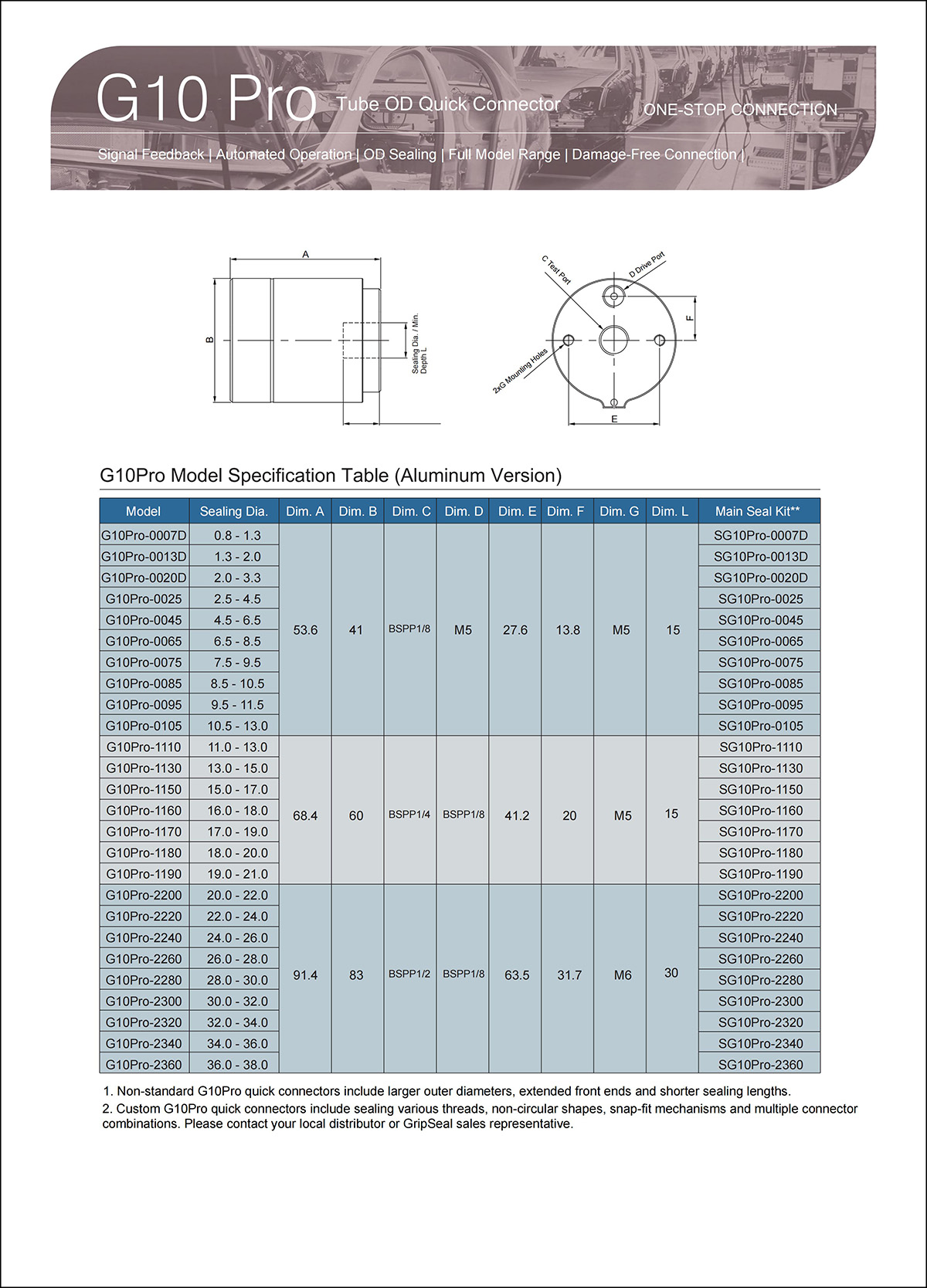

G10PRO Selection Table
