G15 Series Automatic Tube Inner Diameter Seal Connectors

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Pipe Type » Straight Pipe Seal Connectors » G15K series pneumatic internal expansion quick connector

prve

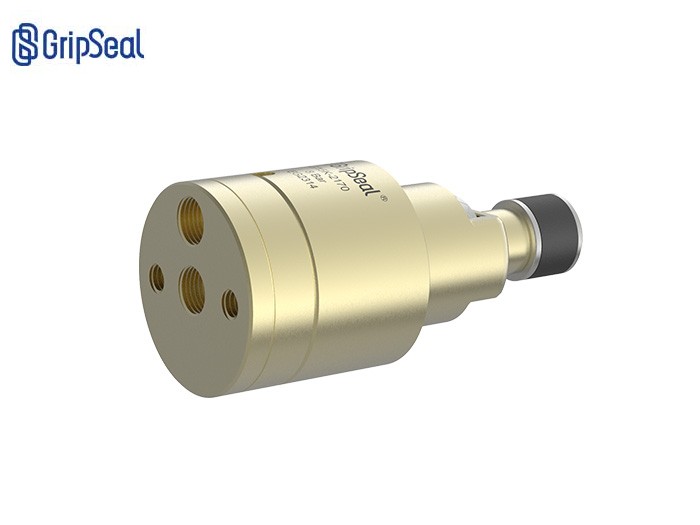

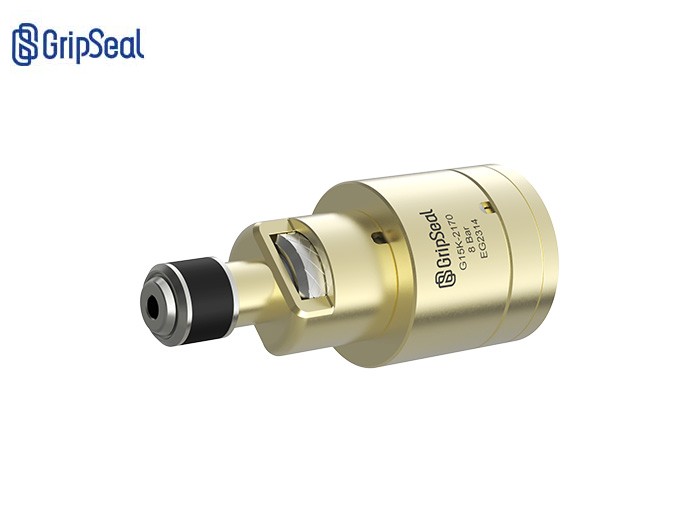

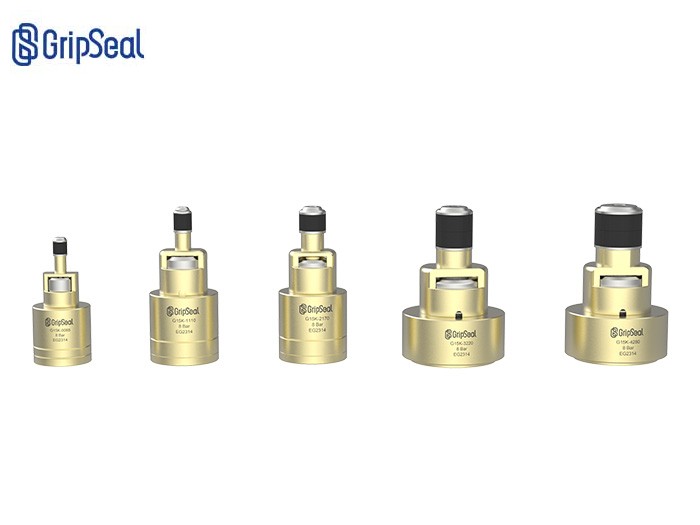

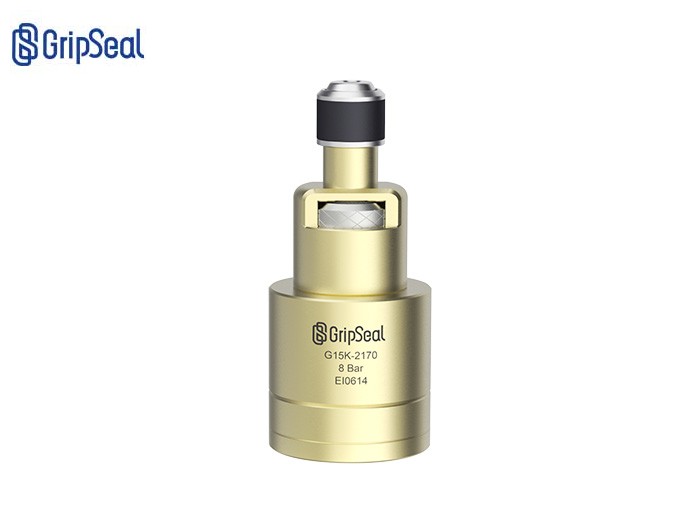

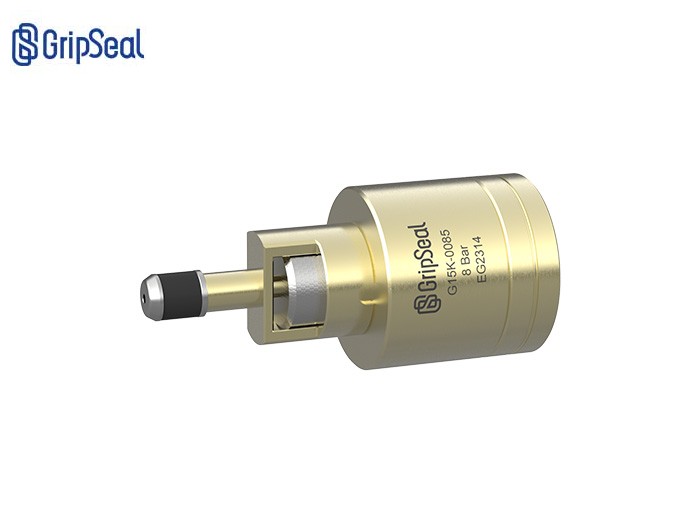

G15K series pneumatic internal expansion quick connector

G15K series pneumatic quick-sealing connectors use air pressure to expand the sealing ring and establish an internal airtight connection with almost any type of connection port. They are very suitable for high-output automated production testing. Innovative use of "quick maintenance technology" allows the sealing ring to be replaced without disassembling the joint. The maintenance time of the joint is greatly shortened.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to8Bar
Sealing range	8.5mm-35mm
minimum insertion depth	1,2No. Body:15mm，3,4No. Body:25mm
traffic interface	M5,G1/8
main material	aluminum alloy
Main sealing ring material	neoprene/polyurethane/silicone rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

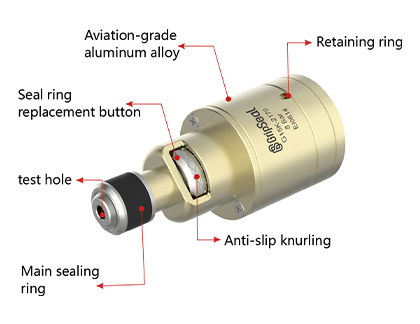

G15k Automatic tube inner diameter sealing connector

Product video

G15K series-Sealing ring replacement operation video in seconds

Product features

Product parameters

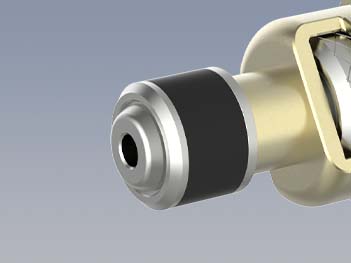

: Internal expansion seal: the seal ring expands to form a seal

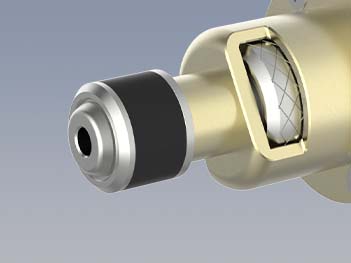

: Quick replacement: quick replacement of sealing rings, reducing maintenance time and cost

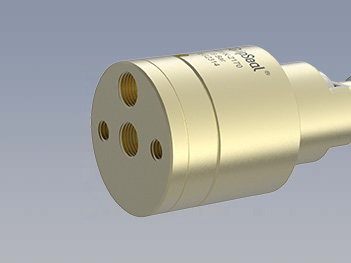

: Standard threaded holes: drive holes, test holes, and fixed holes are all standard threaded, which is easy to purchase accessories

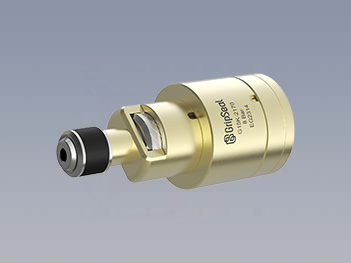

: Compact size: compact internal structure, compact appearance, wide range of applications

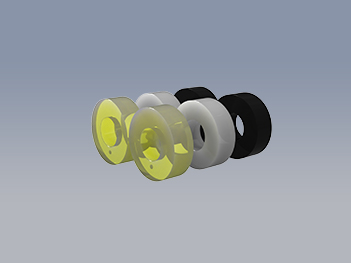

: A variety of materials: sealing ring materials are diverse to meet the needs of different test scenarios

Sealing ring replacement steps

How to replace seal

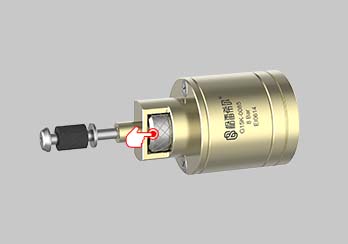

: Step one.

Press the silver button to automatically pop up the front end (it is recommended to cover the front end with the palm of your hand to prevent the components from popping up and falling), and pull out the old sealing ring component.

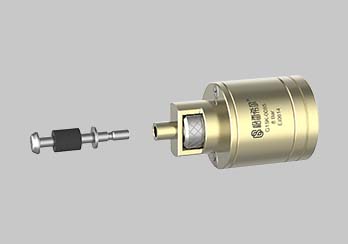

: second step

Replace the new sealing ring set with a new one.

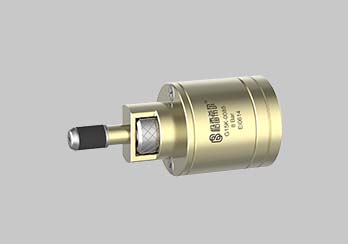

: Step three

Press in the replacement sealing assembly, hear the sound, and it is installed.

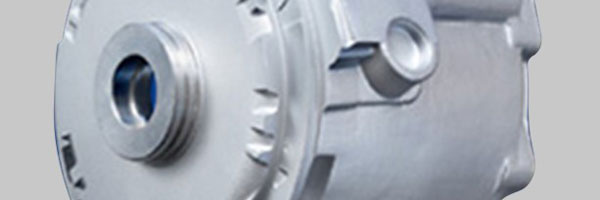

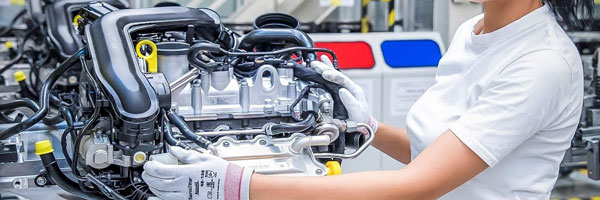

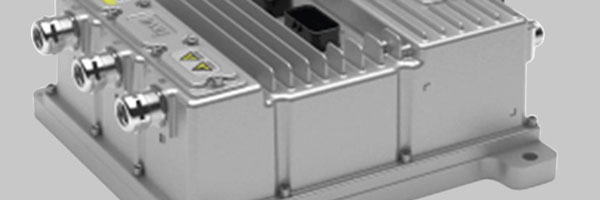

Application case

Application cases

Get the application solution now

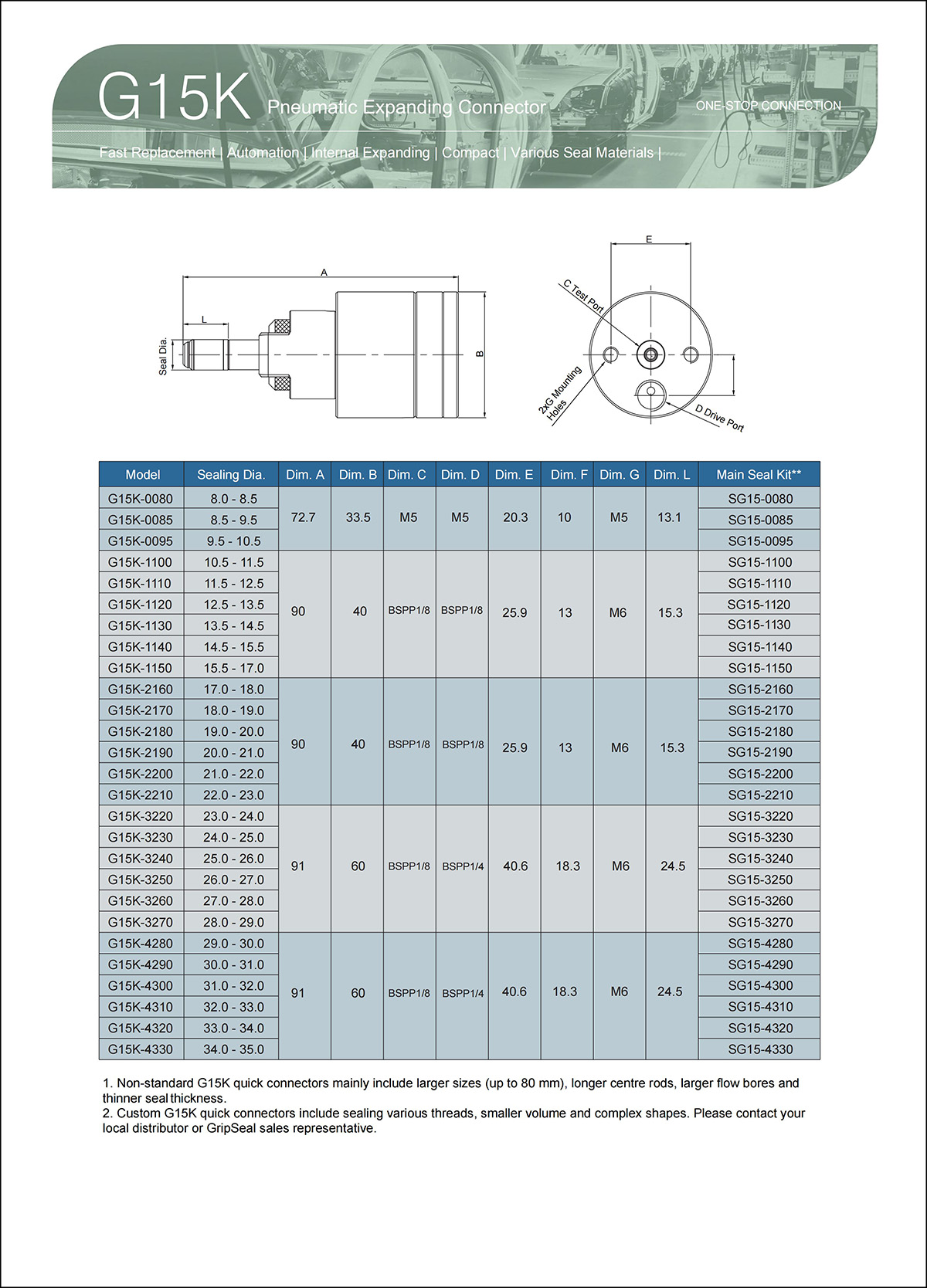

G15K Selection Table

Keywords: Automatic quick seal connector inner diameter seal inner expansion connector straight pipe leak detection plug G15
