G15Pro Series Tube Inner Diameter Smart Connectors

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Pipe Type » Straight Pipe Seal Connectors » G15Pro series tube inner diameter intelligent connector

prve

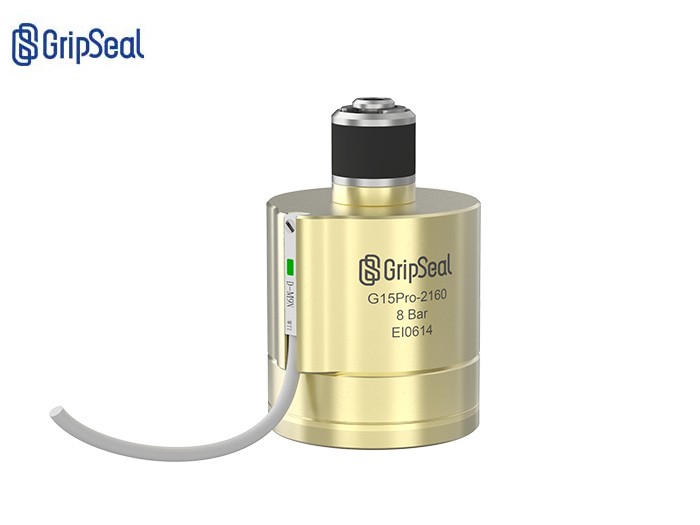

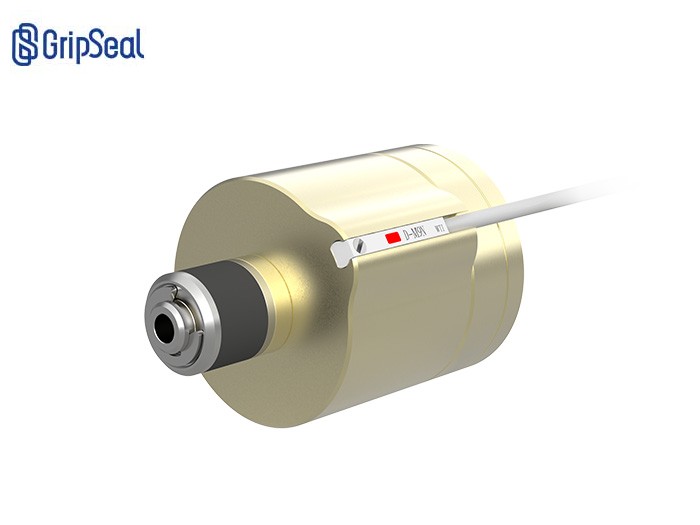

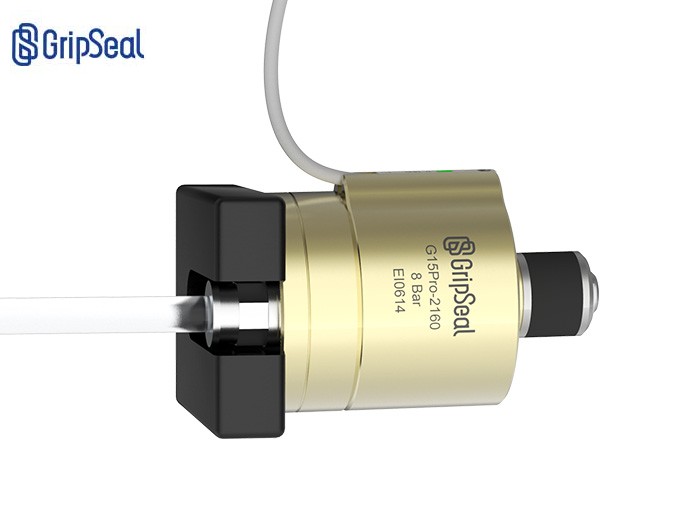

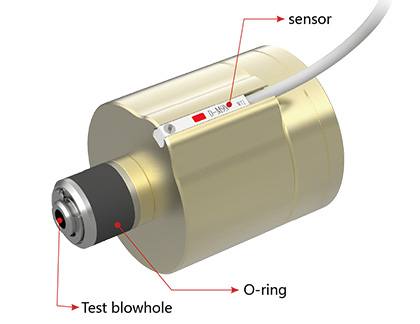

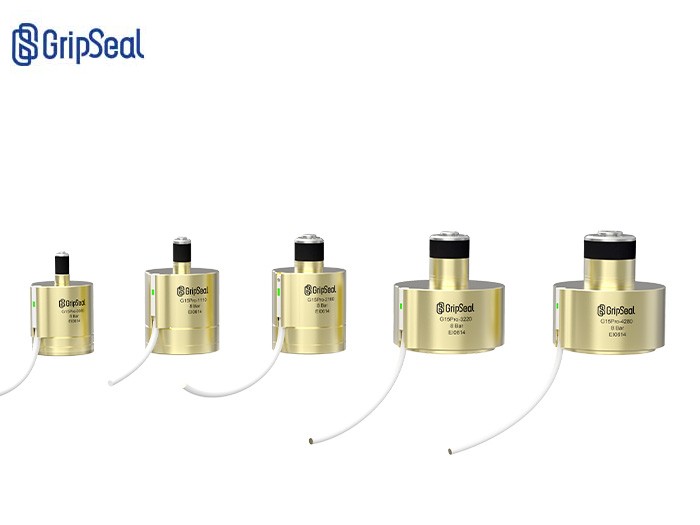

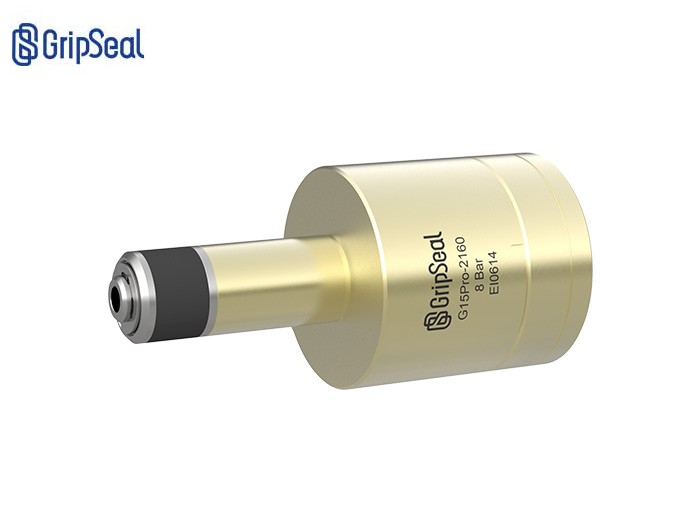

G15Pro series tube inner diameter intelligent connector

Compared with the traditional G15 series connector, the G15 Pro series is externally mounted with a magnetic sensor, which can more accurately track the driving condition of the connector and the expansion of the sealing ring, eliminate the wrong connection caused by the improper sealing, and improve the efficiency of automatic detection.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to8Bar
Sealing range	8.5mm-35mm
minimum insertion depth	1,2No. Body:15mm，3,4No. Body:25mm
traffic interface	G1/8
main material	Aluminum alloy, stainless steel
Main sealing ring material	Neoprene, silicone rubber
Internal sealing ring material	Nitrile rubber
driving pressure	4-6 Bar
operating temperature	-20℃-120℃

G15Pro Series pipe inner diameter intelligent connector

Product video

G15ProOperation video of series tube inner diameter intelligent connector

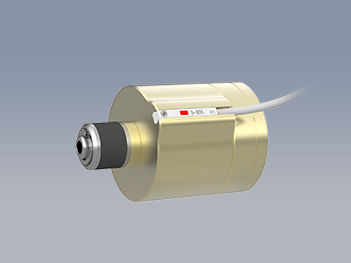

Product features

Product parameters

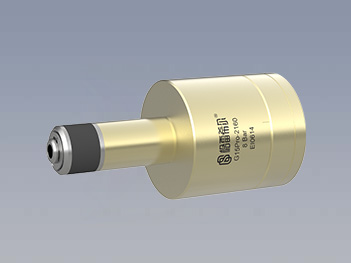

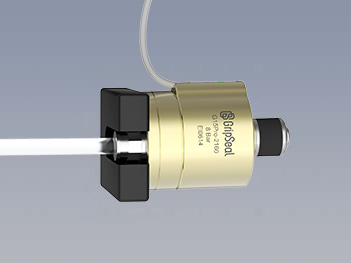

: Flexible customization to avoid volume interference

: Position sensor, real-time feedback on whether the internal piston is moving

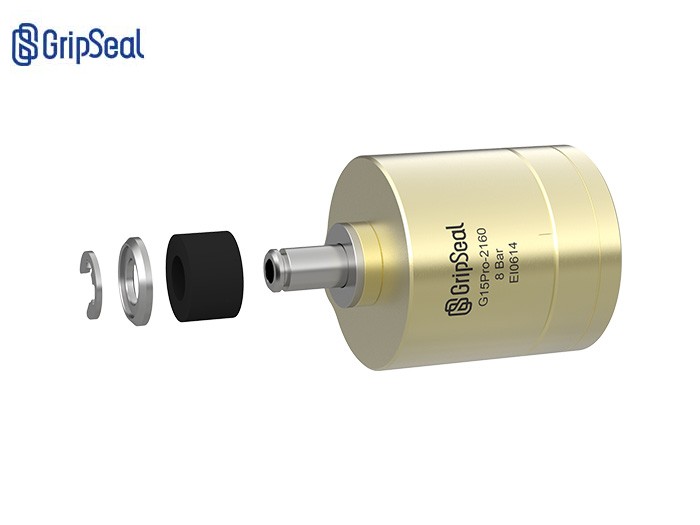

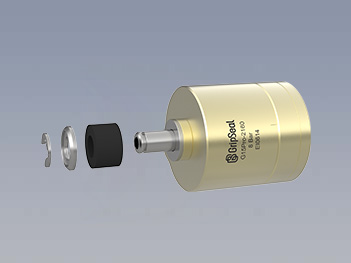

: Quick replacement of sealing ring:Simple maintenance, extended service life

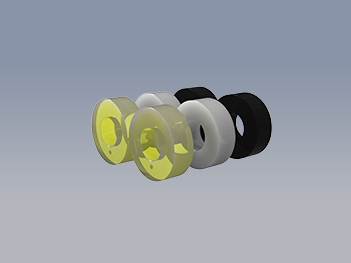

: Sealing ring material: material optional to meet different customer requirements

: Automated operation: more efficient, more stable test results

operation method

Operation method

: Step one.

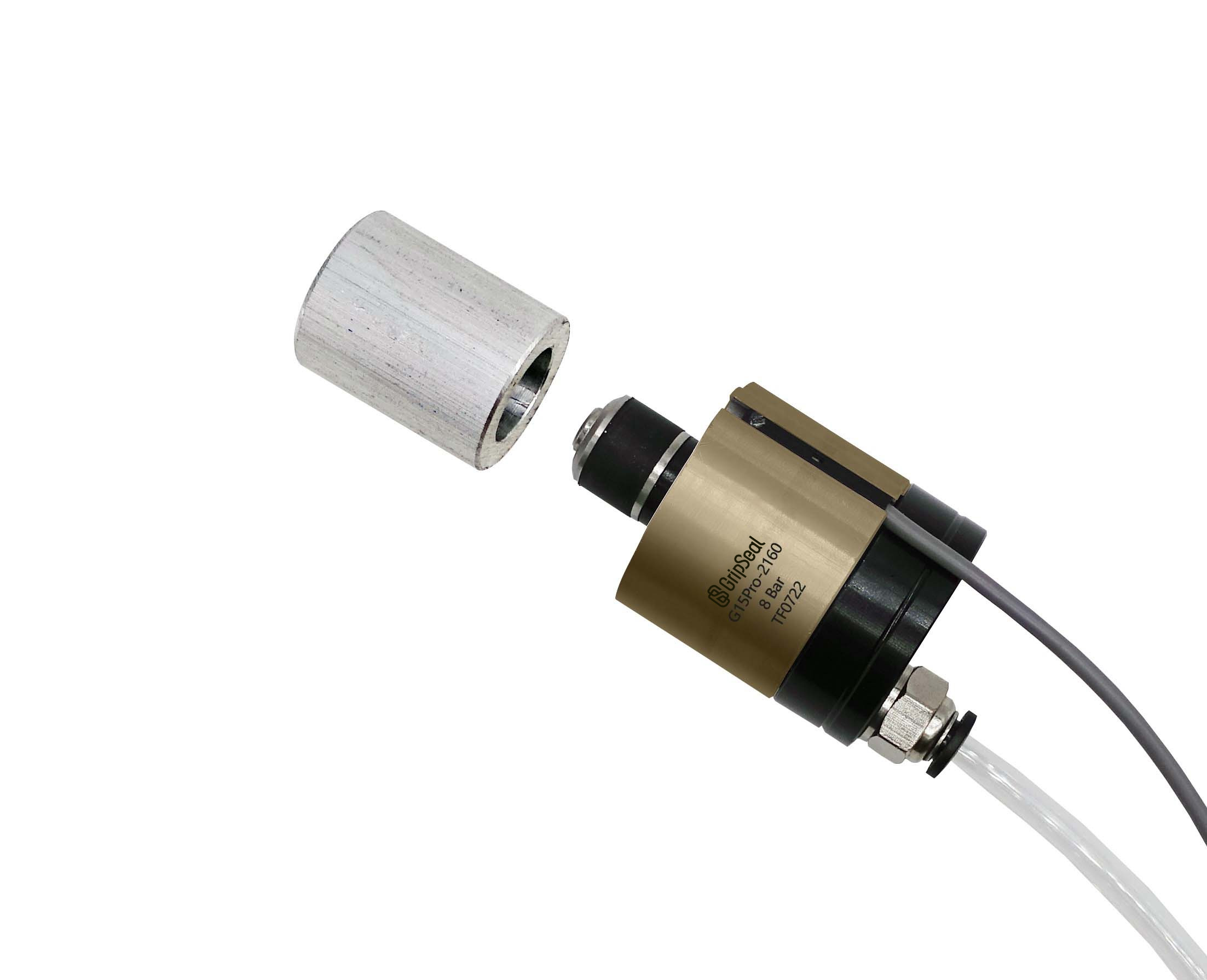

fixedG15ProTo the cylinder fixture and connect the drive interface (4-6bar) and test interface (test pressure does not exceed the maximum working pressure), and adjust the position of the sensor according to the sensor settings. cylinder pushG15ProConnect to the sealing position to ensure that the main sealing ring is within the inner diameter of the product under test.

: second step

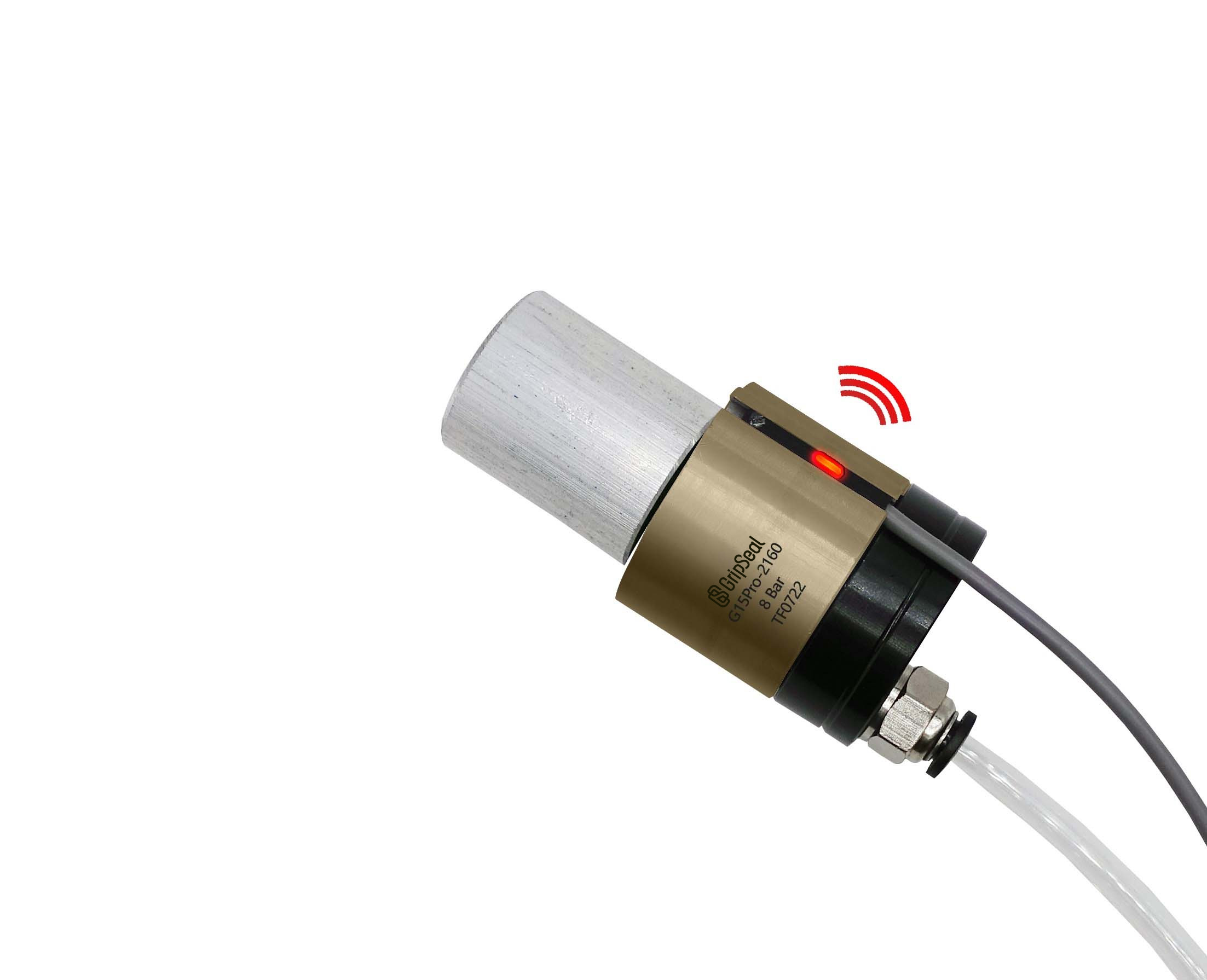

Pressurize the drive interface, the main seal will rise inward to seal the inner diameter of the product under test, and the sensor light will light up. Pass the test gas or other media to the test interface and start the test until the test is completed.

: Step three

Pressure relief to the drive interface, sensor light off, stay0.5-1Seconds. Cylinder returnedG15Connector to the initial position, press2-6Prepare for the next test.

Application case

Application cases

Get the application solution now

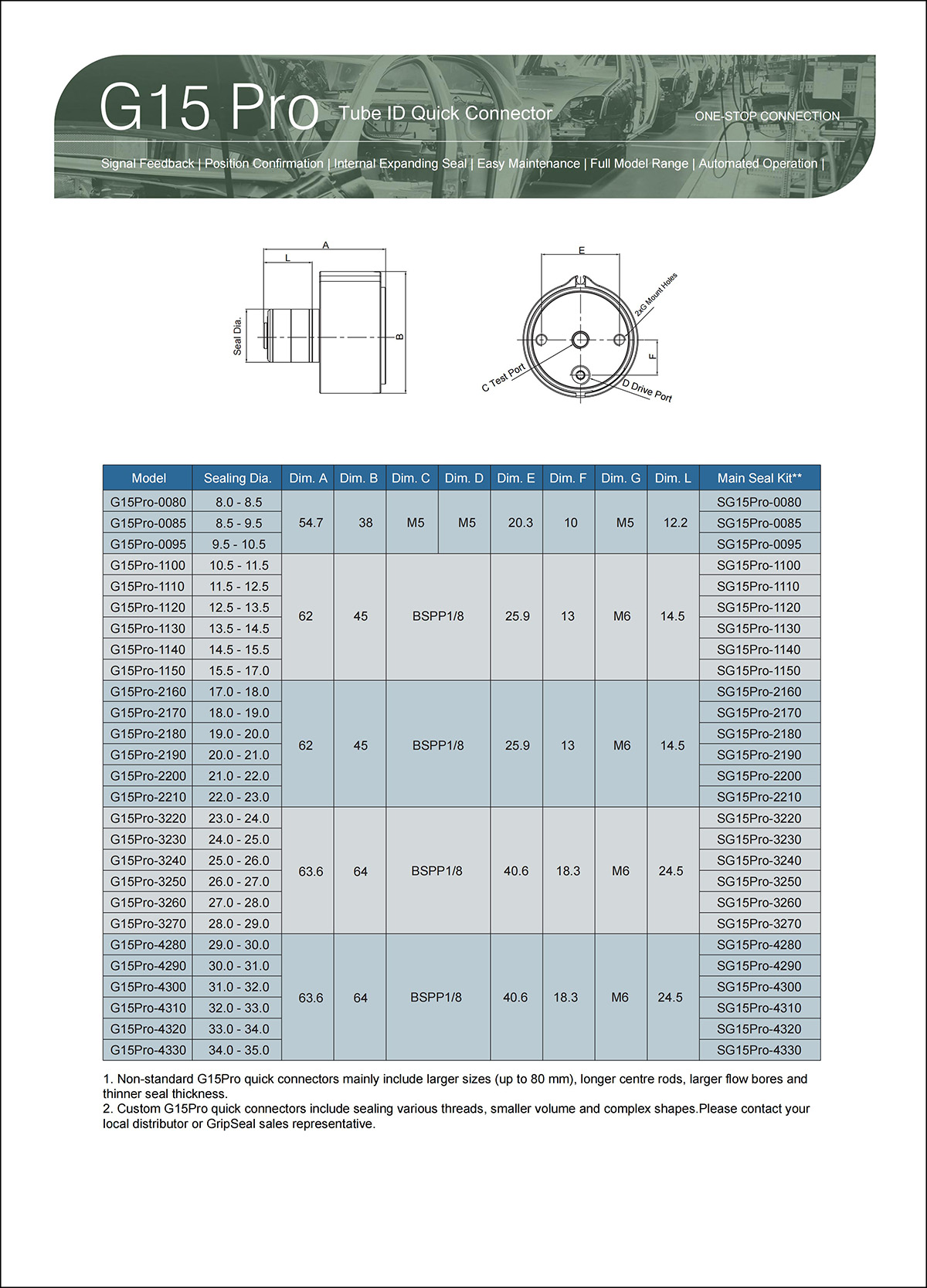

G15PRO Selection Table

Keywords: Smart Quick Seal Coupling Inner Diameter Seal Straight Pipe Leak Detection Automatic Connection G15Pro

Related Products

: C70 series UQD liquid cooling connector

The C70 series liquid-cooled connector is a UQD quick-change connector designed according to the OCP standard. The main body is made of 316 stainless steel, which has excellent anti-corrosion performance. The seal is EPDM, which is highly compatible with the data center coolant. The shell is marked with color, red and blue are optional, and the logo is conspicuous. The tail interface has various forms and can be customized by customers. It has passed various rigorous tests to ensure product quality.

: C71 series UQDB liquid cooling connector

The C71 series liquid-cooled connector is designed according to the OCP standard UQDB blind plug connector, which is suitable for the blind plug connection of the cooling pipeline of the data center server, with a radial alignment deviation of ± 1mm; the main body is made of 316 stainless steel, which has excellent anti-corrosion performance, and the sealing material is EPDM, which is compatible with the cooling medium. The tail interface has various forms and can be customized by customers. It has passed various rigorous tests to ensure product quality.

: C75 series MQD liquid cooling connector

The C75 series liquid-cooled connector is a very small size MQD quick-change connector designed for high-density cooling pipelines of data center servers. The main body is made of 316 stainless steel, which has excellent anti-corrosion performance. Theseal is EPDM, which is highly compatible with the data center coolant. The shell is marked with color, red and blue are optional, and the logo is conspicuous. The tail interface is diverse and can be customized by customers. Through various rigorous tests,product quality is guaranteed.

: C783 series two-way interlocking ball valve

The C783 series bi-directional interlocking ball valve features a high-flow design, with diameters of up to 20mm/40mm. The valve is equipped with a safety pin, which unlocks the valve handle only after the connection is completed. This feature preventsaccidental disconnection of the valve, which could lead to the loss of coolant fluid. The valve body is made of fully stainless steel, making it durable and corrosion-resistant. The tail connectors are versatile and can be customized according to needs.
