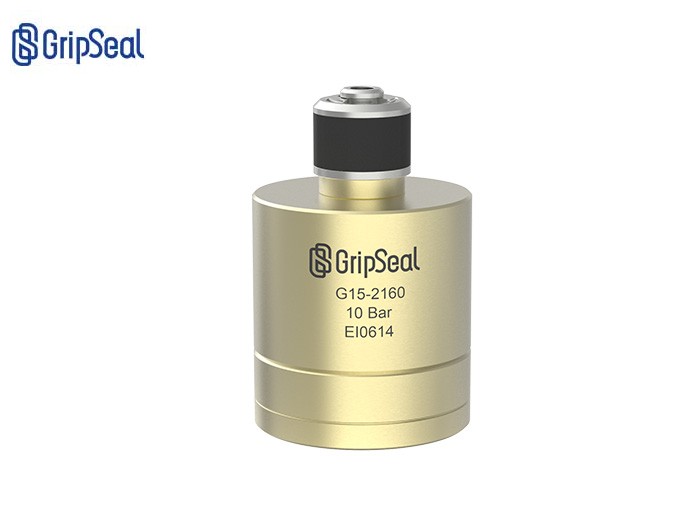

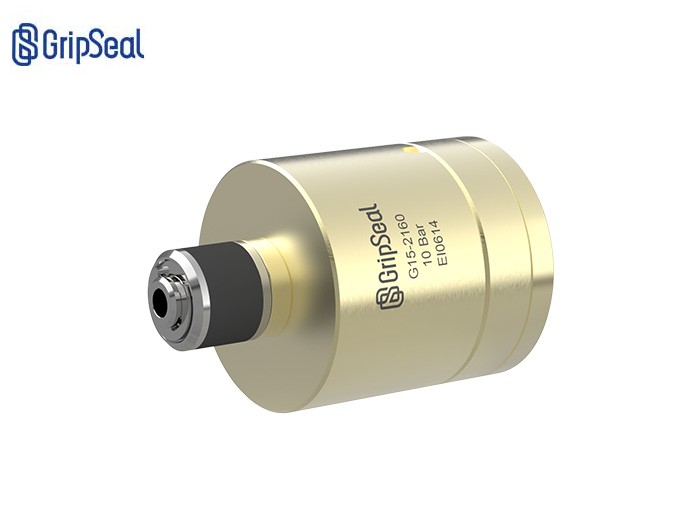

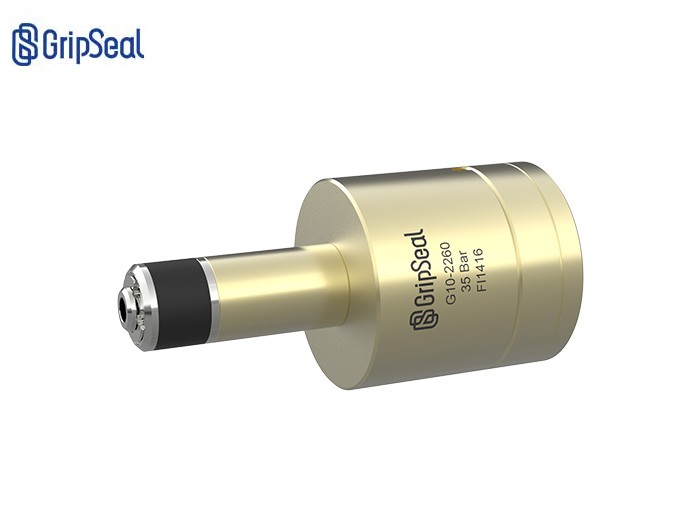

G15 series automatic pipe inner diameter sealing connector

The G15 series pneumatic quick-sealing connectors use air pressure to expand the sealing ring and establish an internal airtight connection with any type of connector, making them ideal for high-volume automated production testing.

Service Hotline: 0755-86215125

Product details
Product selection table

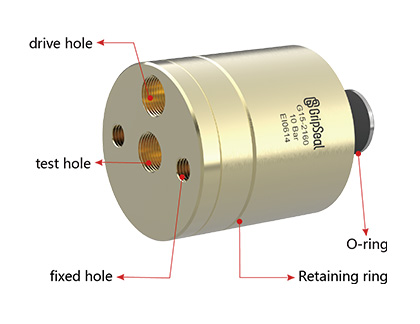

product parameters

Product parameters

Maximum operating pressure	From vacuum to8Bar

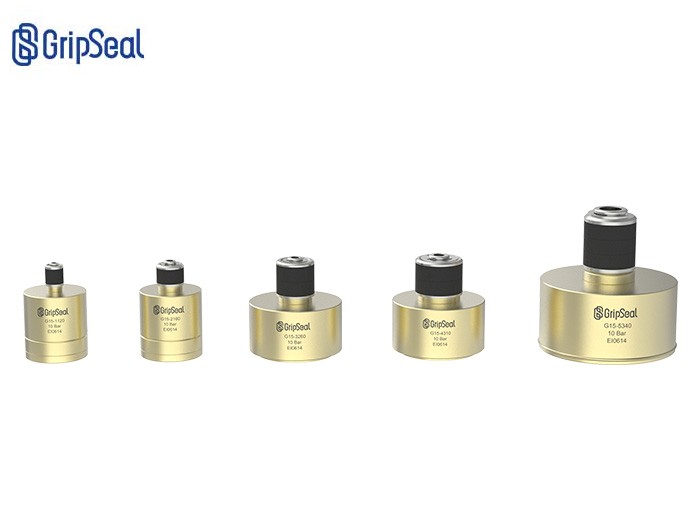

Sealing range	8.5mm-44mm
minimum insertion depth	1,2No. Body:15mm，3,4No. Body:30mm

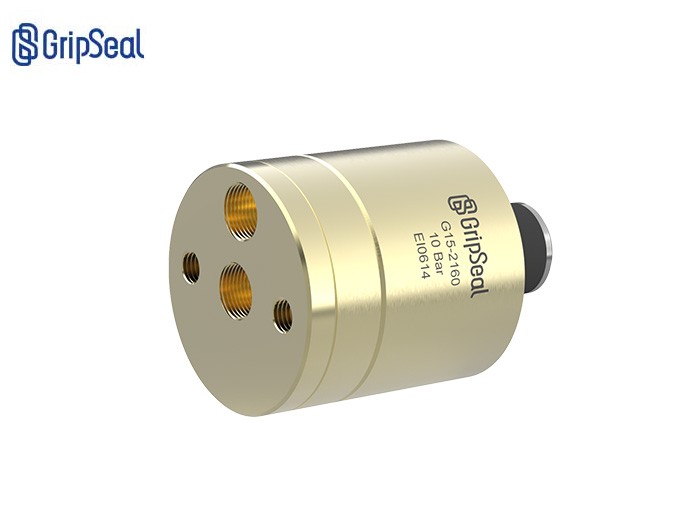

traffic interface	G1/8,G3/8
main material	Aluminum alloy or stainless steel
Main sealing ring material	neoprene/silicone rubber
Internal sealing ring material	Nitrile rubber
driving pressure	4-6 Bar
operating temperature	-20℃-120℃

G15Series automatic pipe inner diameter sealing connector

Product video

G15Series Pneumatic Internal Expansion Quick Seal Connector Operation Video

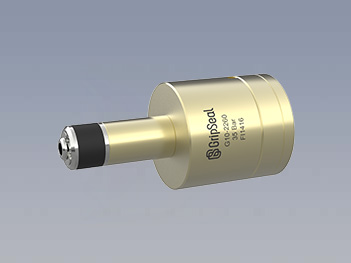

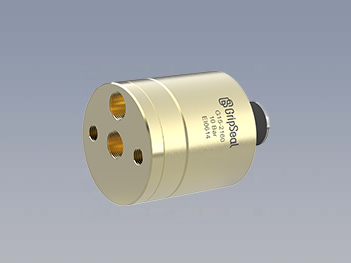

Product features

Product parameters

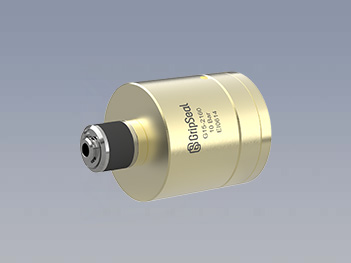

: pneumatic drive:Good sealing and easy operation

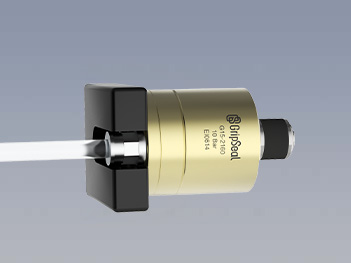

: Flexible customization: make the clamping position more flexible and avoid interference

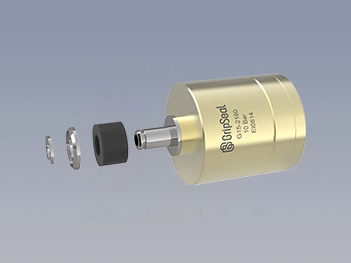

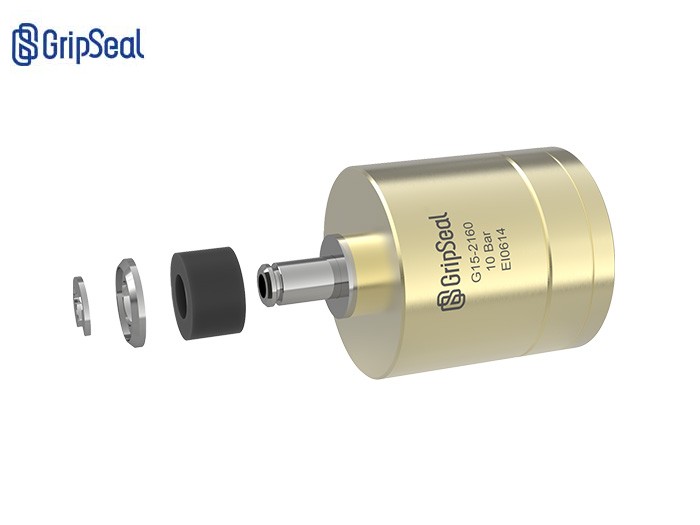

: Quick replacement of sealing rings: simple maintenance, extended connector life

: Compact size: does not take up operating space and can be placed anywhere on the fixture

: Automated operation: more efficient, more stable test results

operation method

Operation method

: Step one.

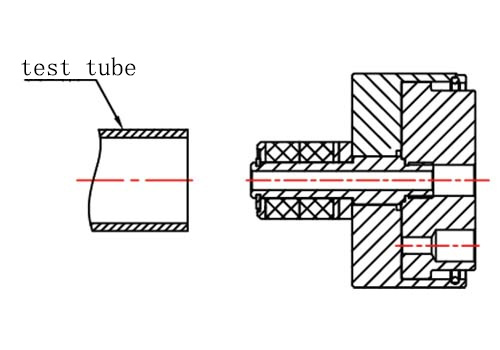

Place the test tubeG15Series, front-end test port

: second step

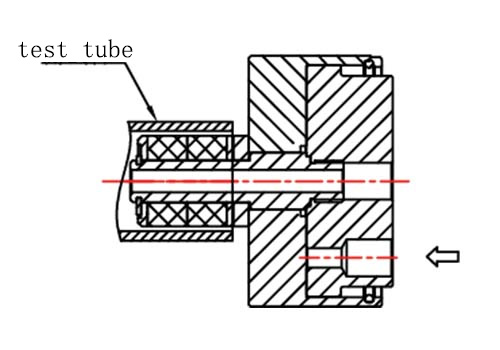

The air is fed from the driving hole. At this time, the sealing ring is squeezed, resulting in expansion, and then it is close to the inner wall of the test tube to form a seal.

: Step three

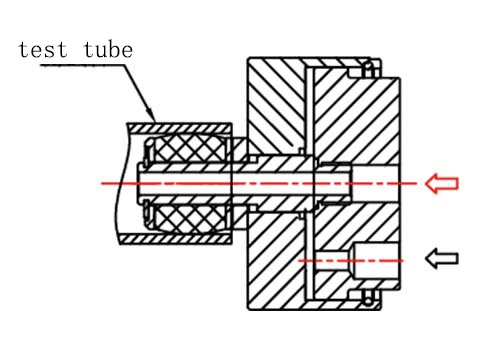

a, When the seal is formed, the test medium (e.g. compressed air, test liquid, etc.) is filled into the test hole at this time. b, After the test is completed, the test medium is evacuated, and the test pressure is returned to normal pressure. At this time, the driving air pressure is evacuated, the sealing ring is no longer under pressure, the sealing connection is disconnected, and the joint can be removed.

Application case

Application cases

Get the application solution now

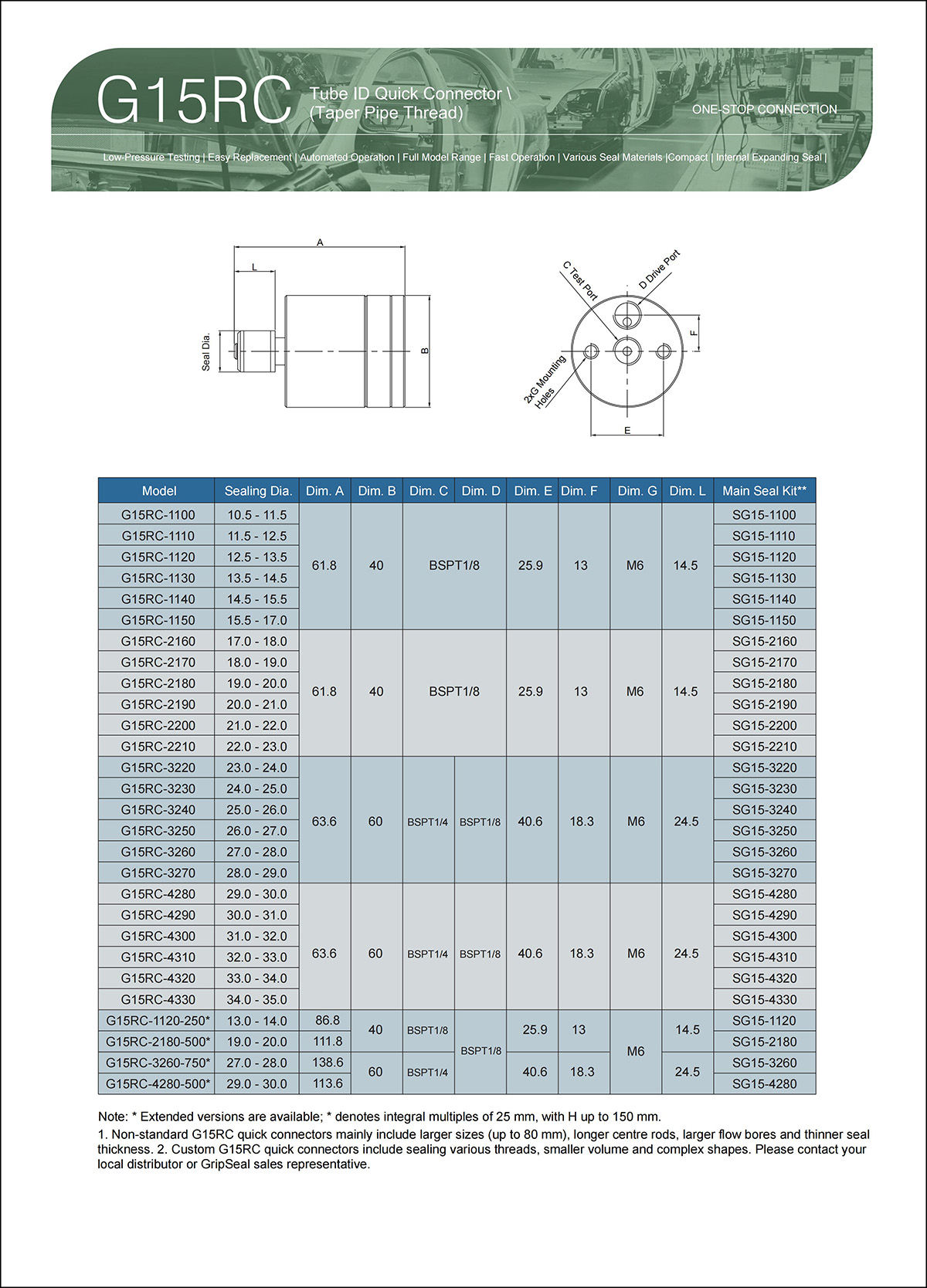

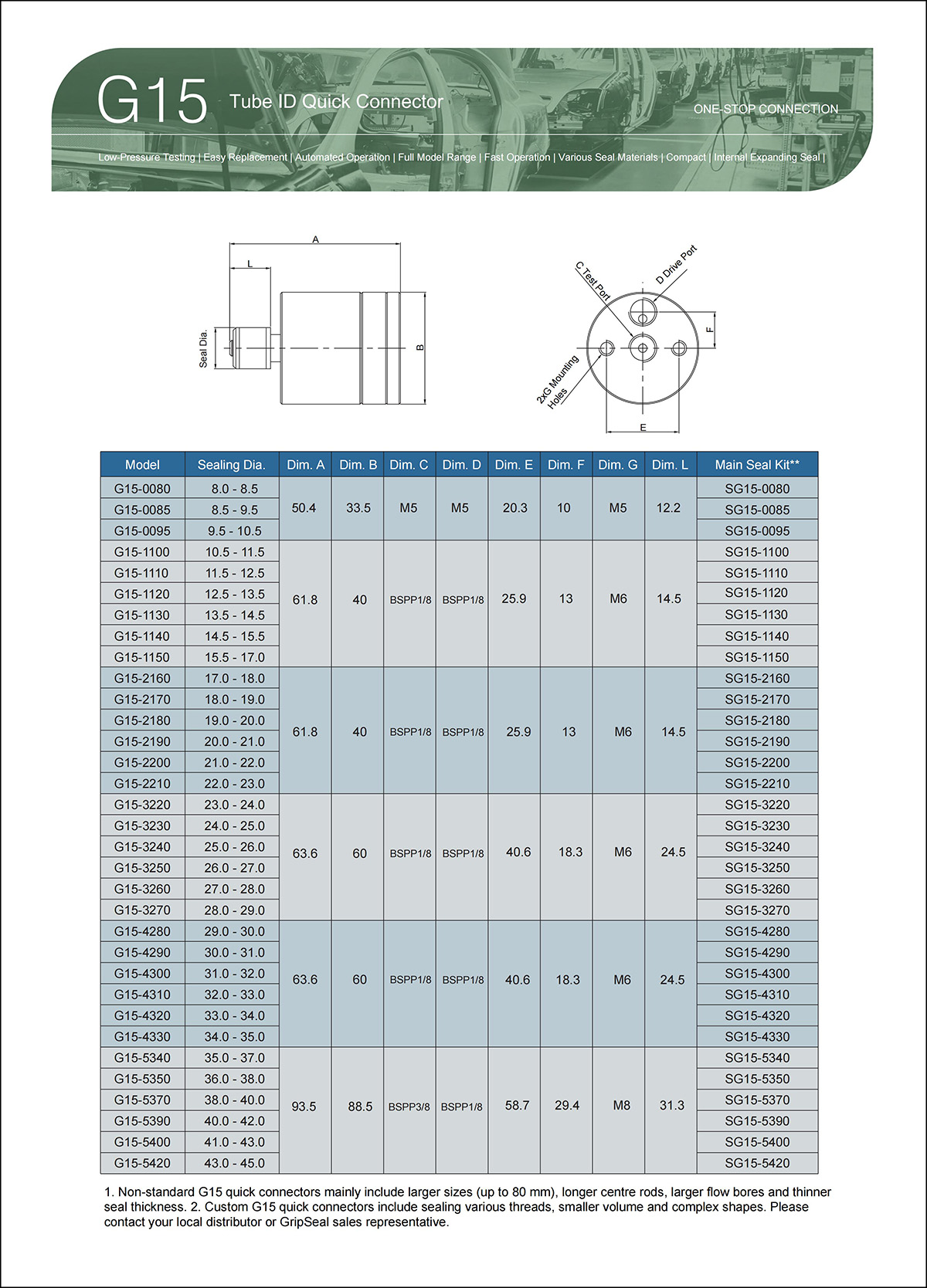

G15 Selection Table
