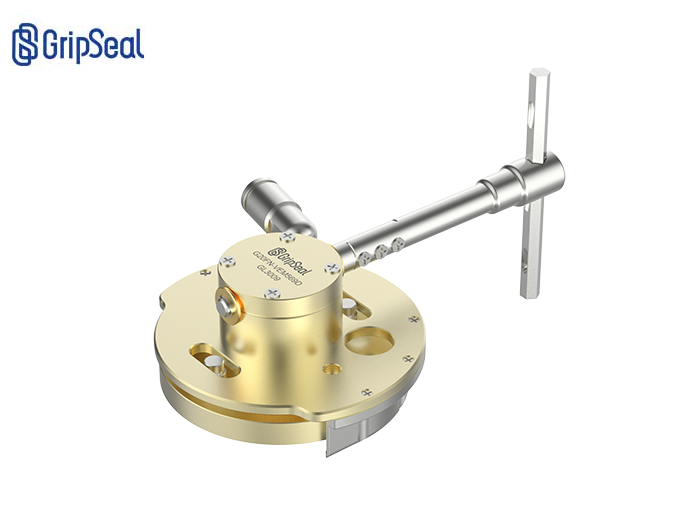

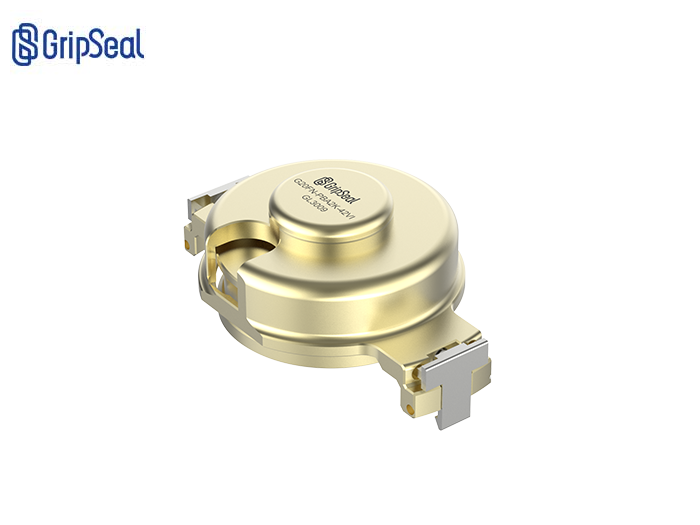

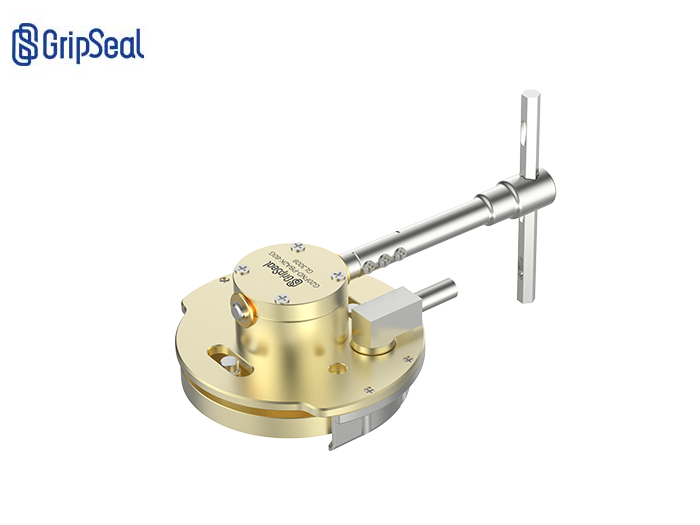

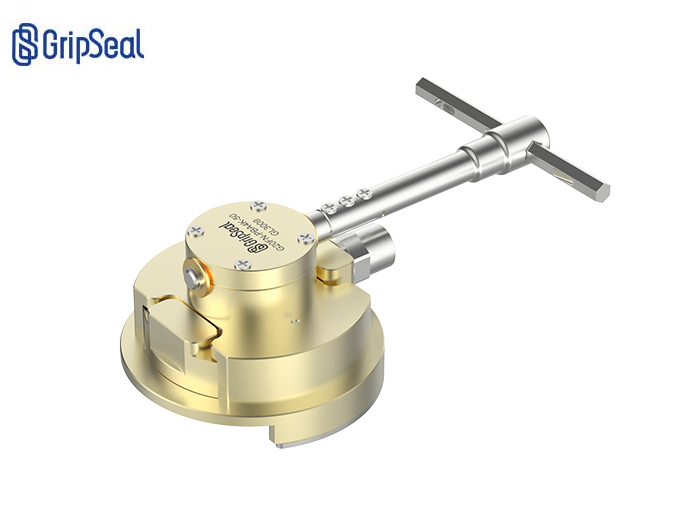

G20FN explosion-proof valve special quick connector

G20FN series is a special connector for mini explosion-proof valves with limited space in battery packs, which is widely used in various battery packs with limited space. The method of use is simple, align the bayonet of the explosion-proof valve and rotate the handle to complete the connection.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to30kpa
Sealing range	Customized according to explosion-proof valve
traffic interface	G1/8Threaded hole
main material	aluminum alloy
Main sealing ring	neoprene
Valve opening method	magnet/Suction cup/Silicone
operating temperature	-20℃-120℃

G20FN Quick connector for explosion-proof valve

Product video

Battery pack explosion-proof valve special-G20FNExplosion-proof valve connector

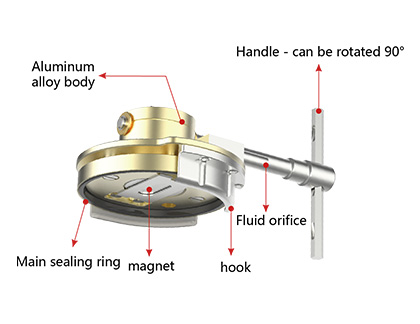

Product features

Product parameters

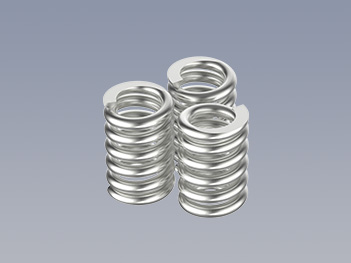

: Self-adjusting spring: automatically adjusts the sealing pressure according to the aperture, prolonging the service life

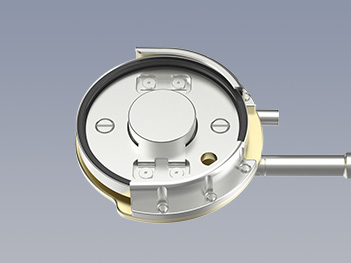

: magnetic attraction/Suction cup design: open the explosion-proof valve for easy ventilation

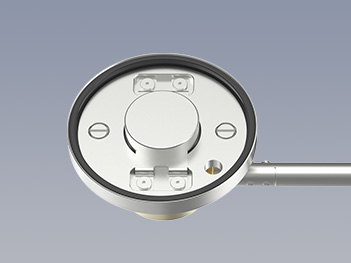

: End face seal: reliable seal, easy to replace sealing ring, easy to maintain

: Aluminum alloy body: light and durable, reducing the operating burden

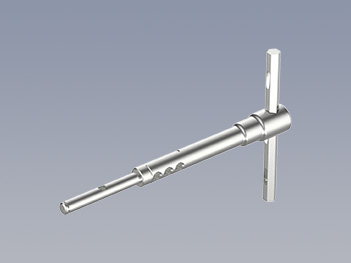

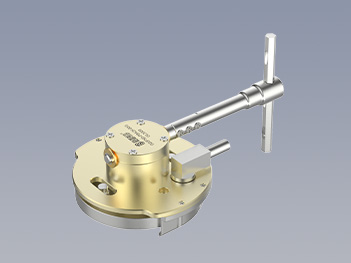

: Handle operation: use the handle to operate, simple and labor-saving

operation method

Operation method

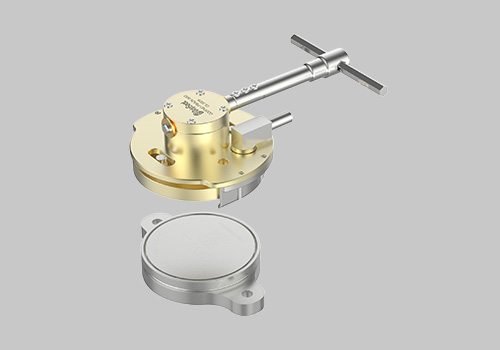

: Step one.

Sleeve the front end of the connector into the explosion-proof valve to be sealed.

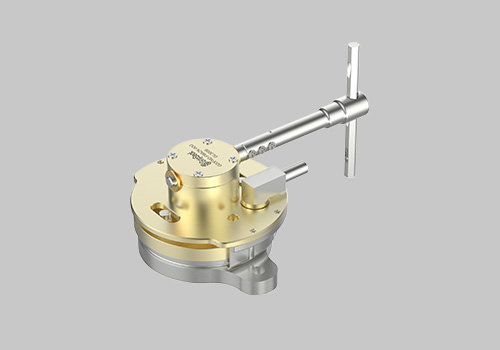

: second step

Rotate the handle to form a seal.

Application case

Application cases

Batterypackpackage testing
Explosion-proof valve test1
Explosion-proof valve test2

Get the application solution now

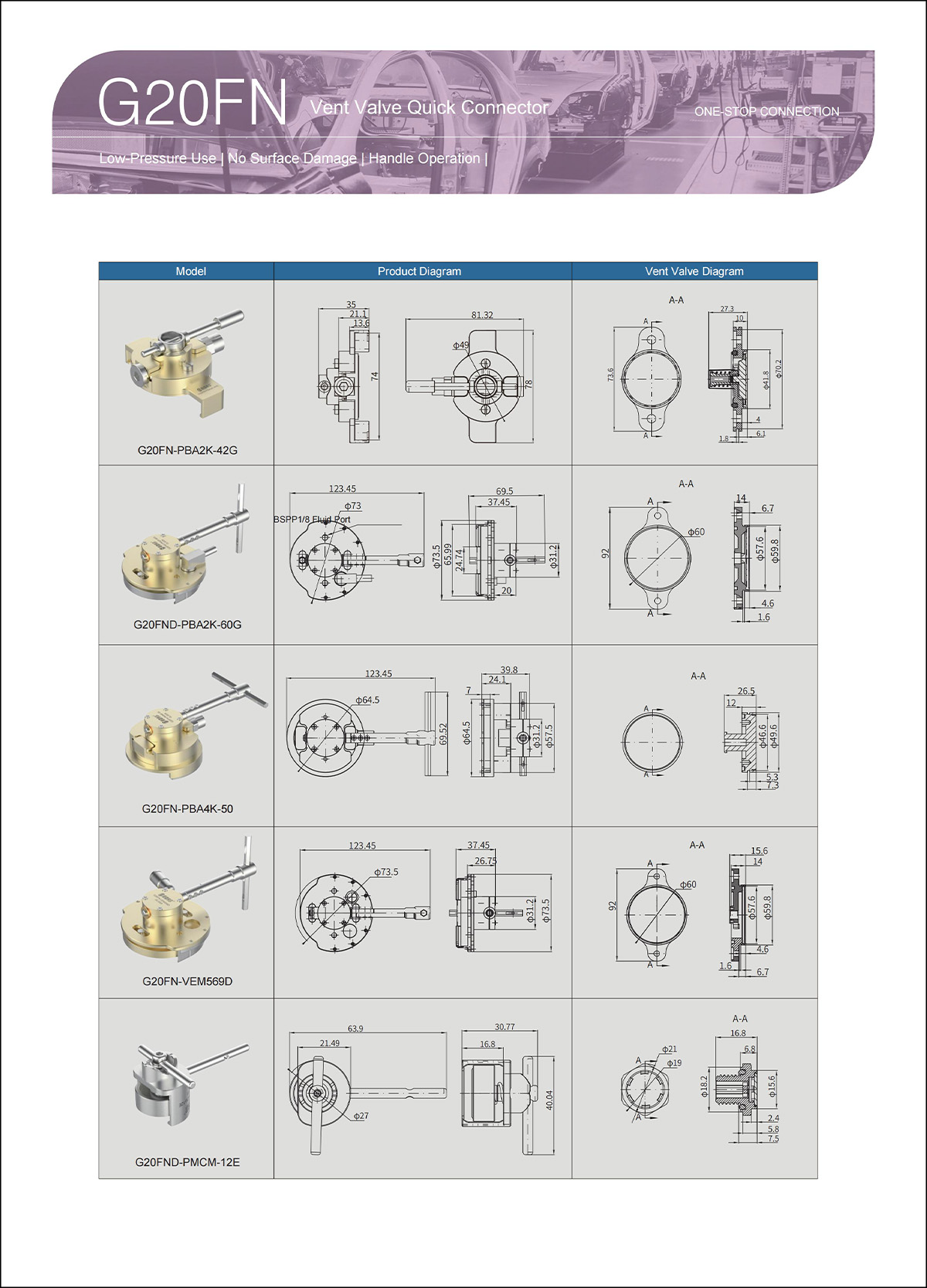

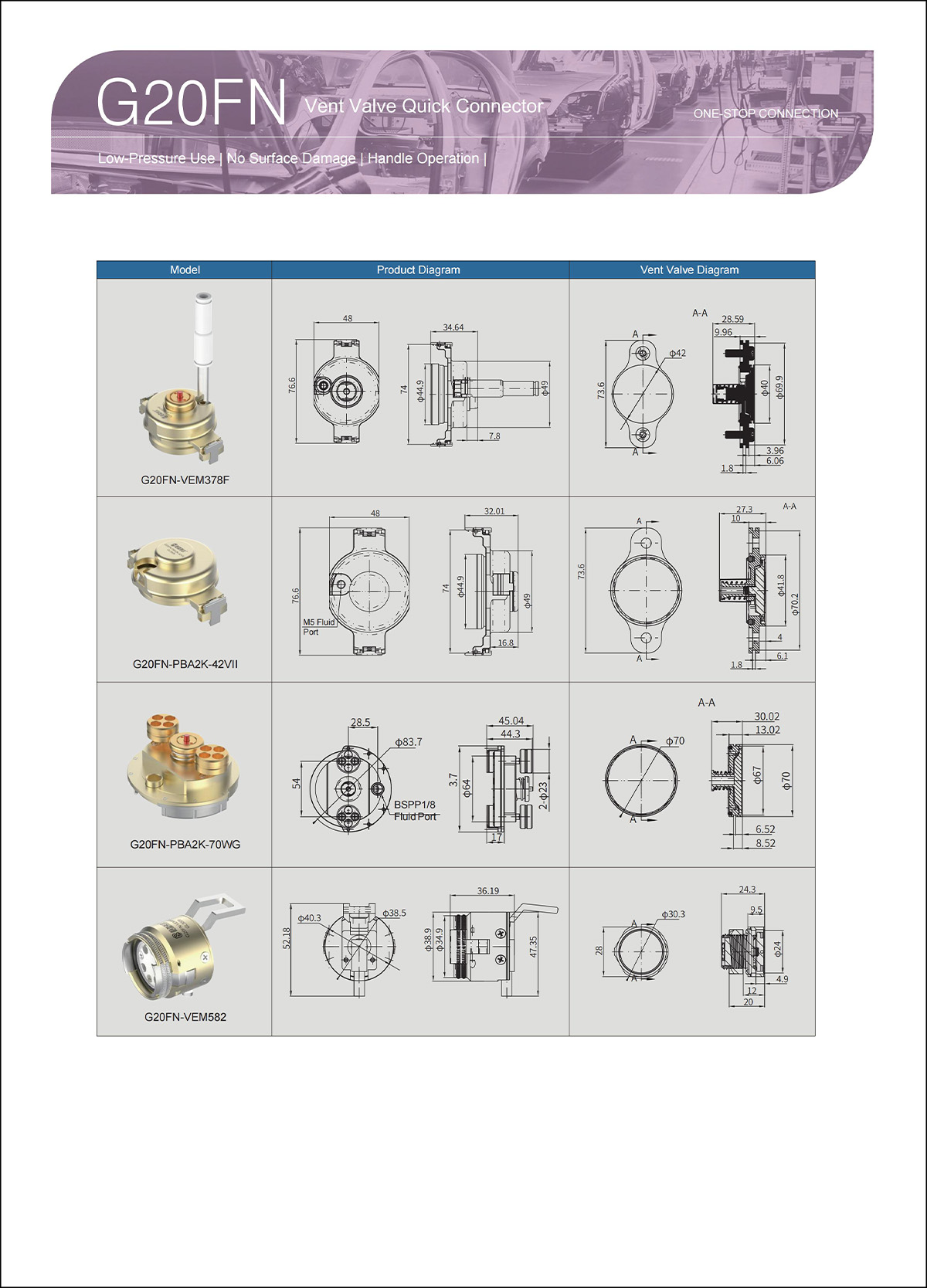

G20FN Selection Table 2

Keywords: G20FN Connectors Explosion Proof Valve Connectors Mini Explosion Proof Valve Connectors Battery Pack Explosion Proof Valve Connectors
