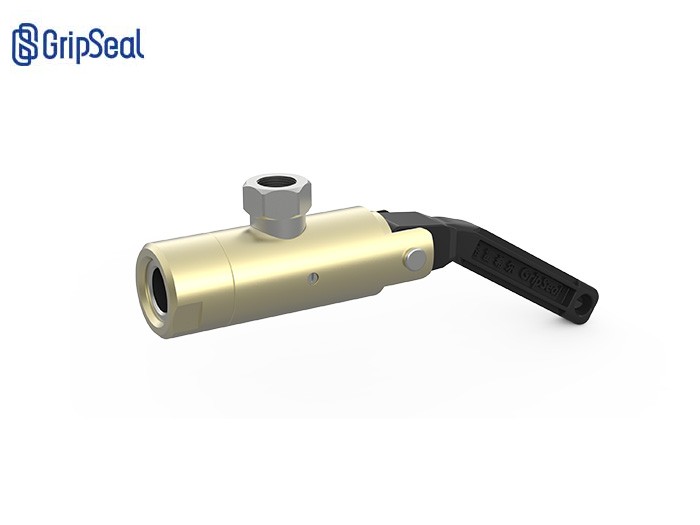

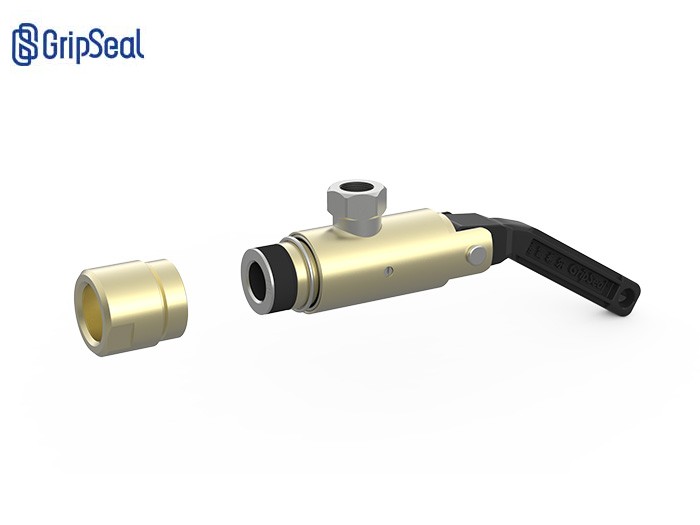

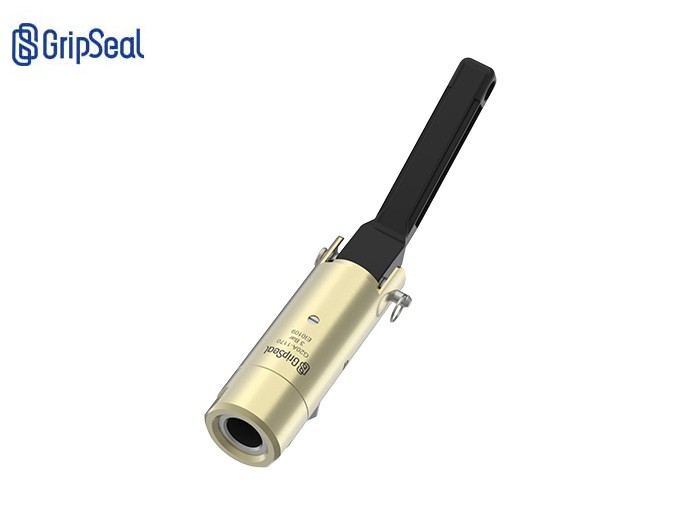

G20A series low voltage external connector

G20A series low-pressure external connector is suitable for testing the sealing of pipe fittings below 3 Bar of air pressure. The radial sealing surface of the connecting pipe is formed by the expansion of the sealing ring, and the sealing effect is good, which will not cause any damage to the appearance of the test piece. Tail handle operation, simple operation, adaptive adjustment of the spring, prolong the service life of the sealing ring.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to3Bar
Sealing range	Refer to the selection table
minimum insertion depth	G1/8，G3/8
main material	aluminum alloy
Main sealing ring material	Neoprene, silicone rubber
operating temperature	-20℃-120℃

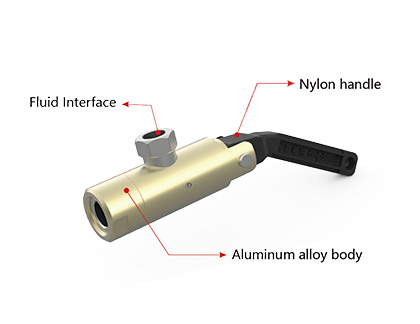

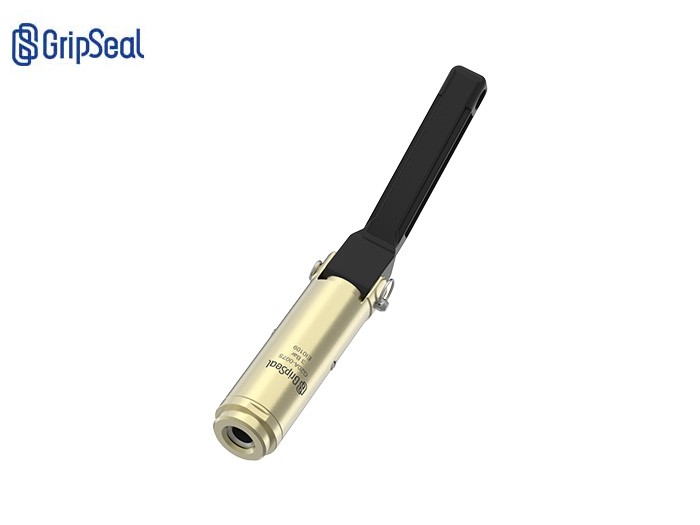

G20A Series low voltage external connector

Product video

G20Series low voltage external connector video

Product features

Product parameters

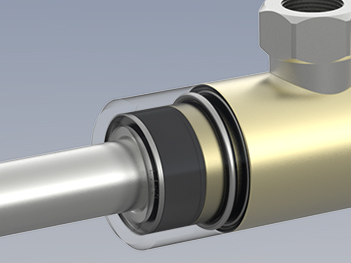

: The outer sealing ring has no scratches on the product, and the material is optional.

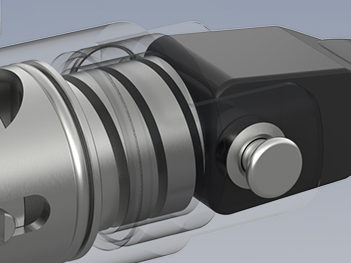

: The adjustment nut adjusts the compression amount of the sealing ring, and the adaptation range is wider

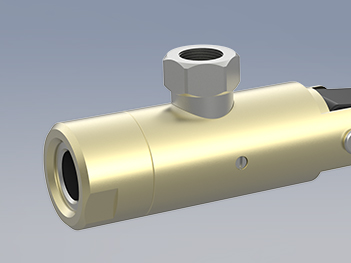

: Aluminum alloy body is light and sturdy, with low operating strength

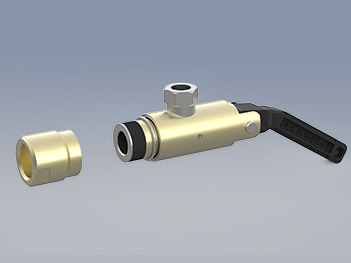

: Simple maintenance can be disassembled without tools, simple maintenance

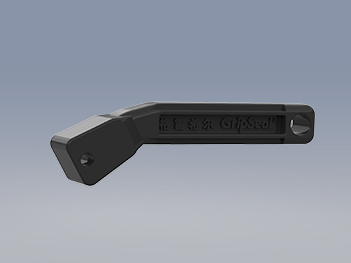

: Handle operation Utilize handle operation, simple and labor-saving

operation method

Operation method

: Step one.

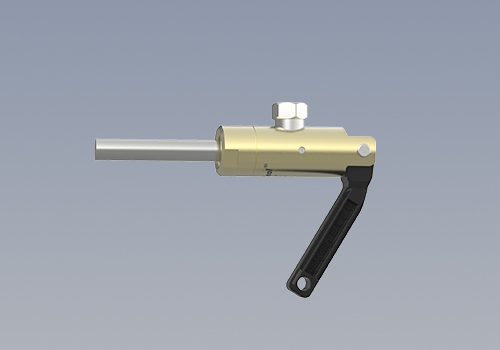

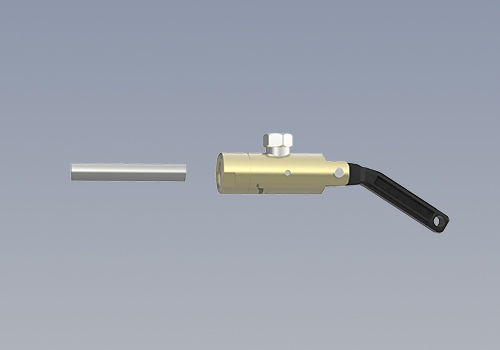

willG20Insert the corresponding inner diameter of the test product. Bend the handle to seal.

: second step

Pass test air pressure (below3bar), complete the relevant test, and then release the test air pressure. Straighten the handle and take it outG20。

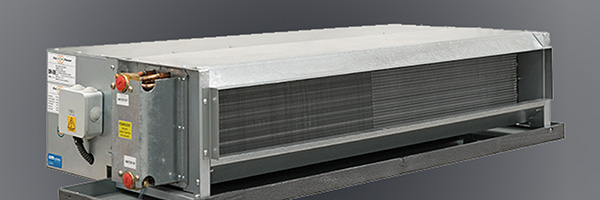

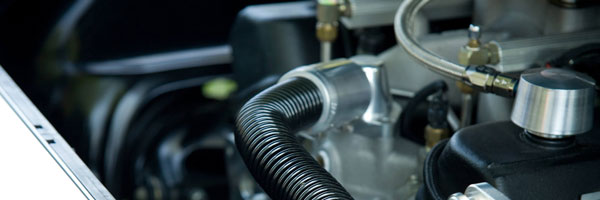

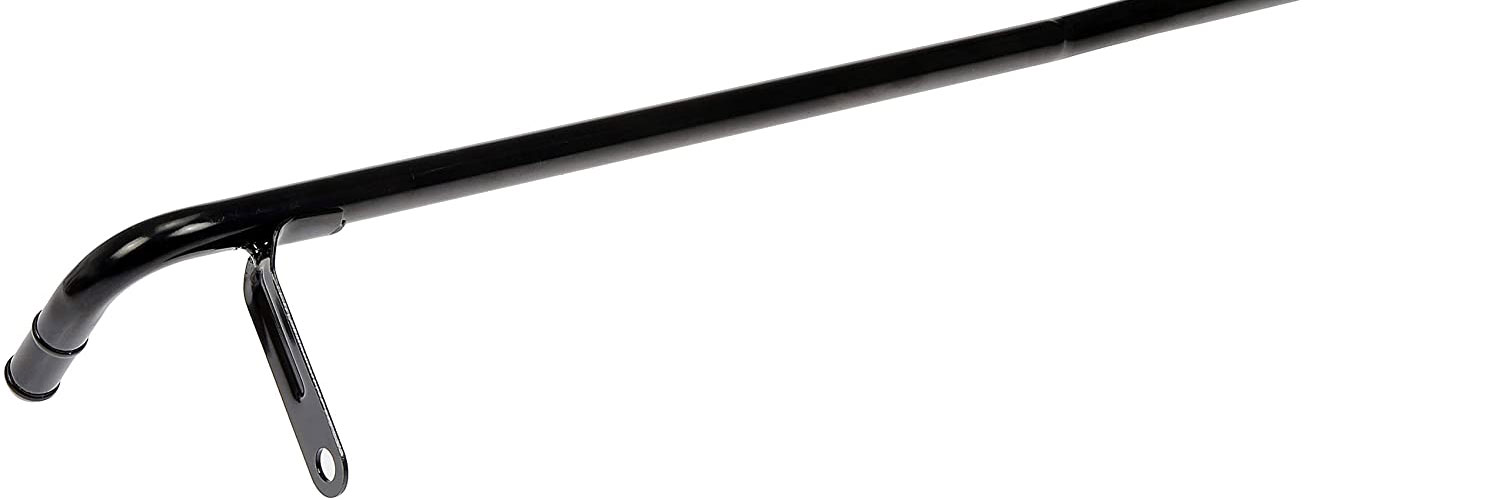

Application case

Application cases

Get the application solution now

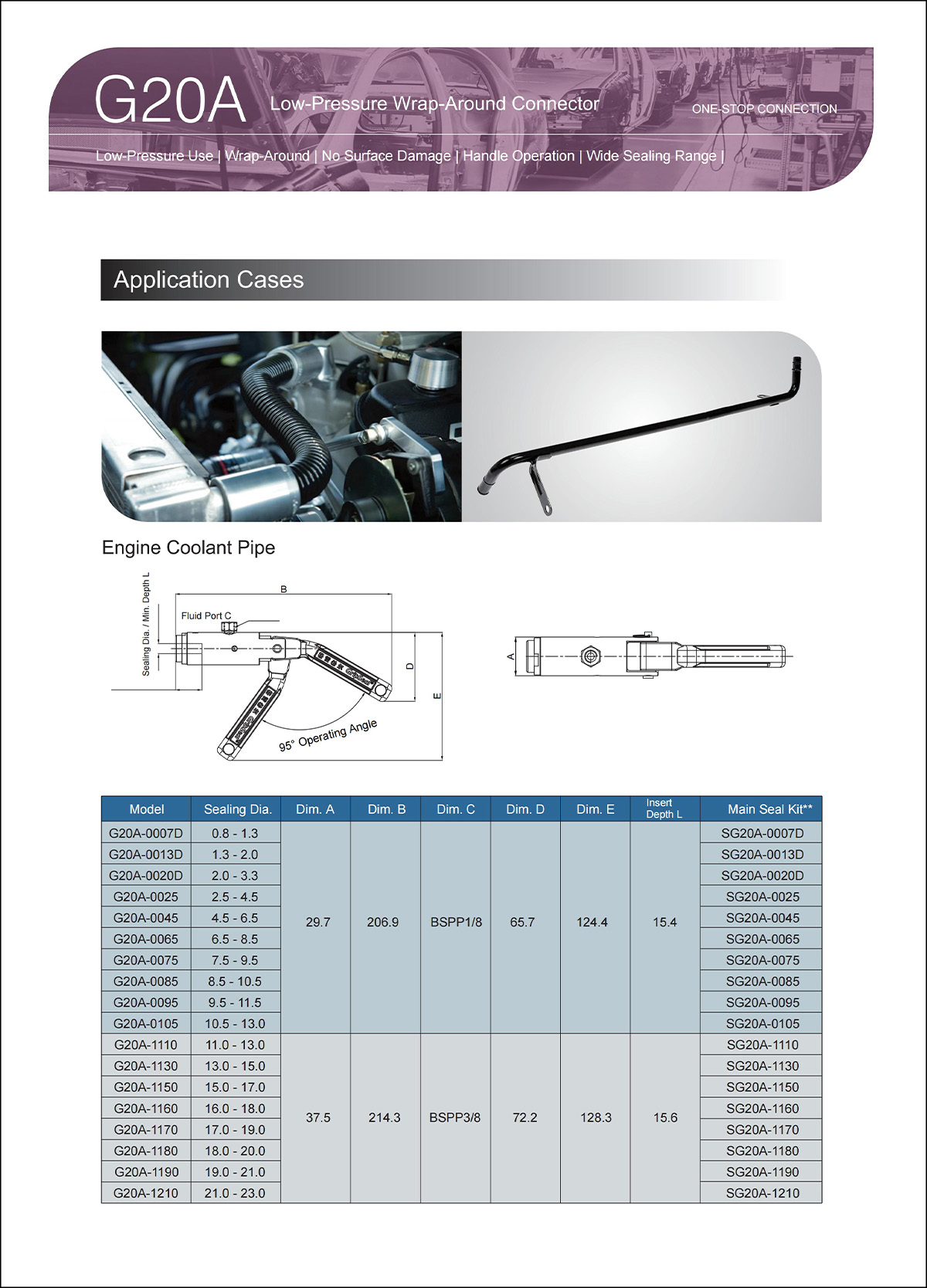

G20A Selection Table
