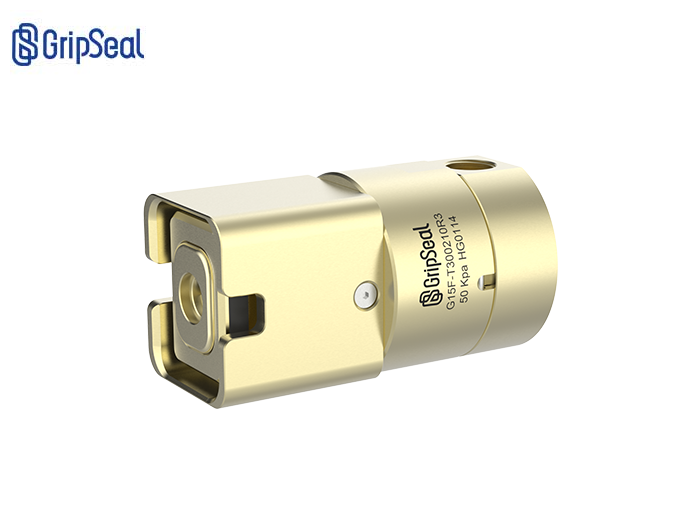

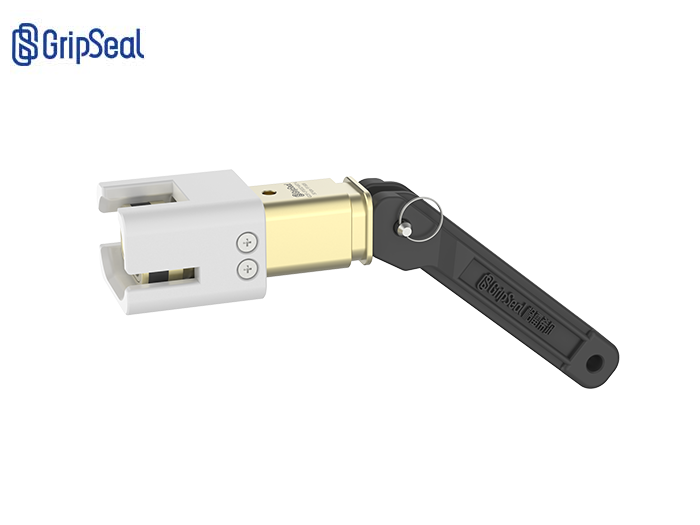

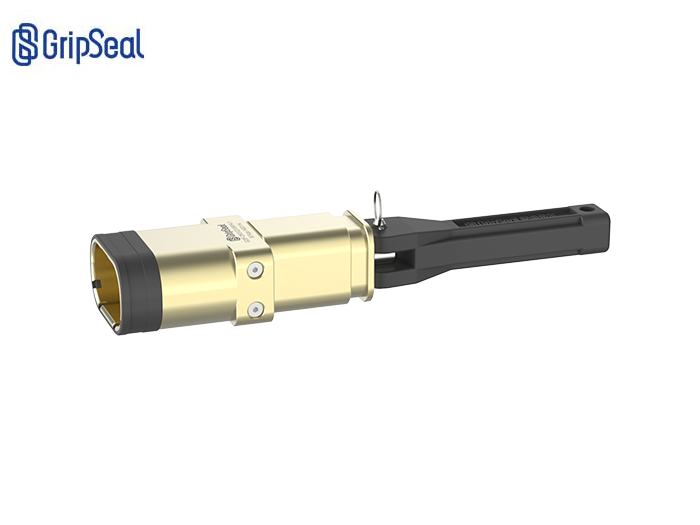

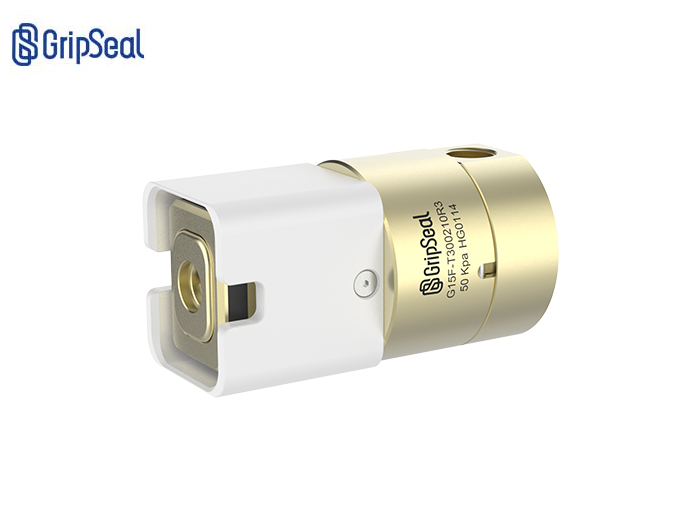

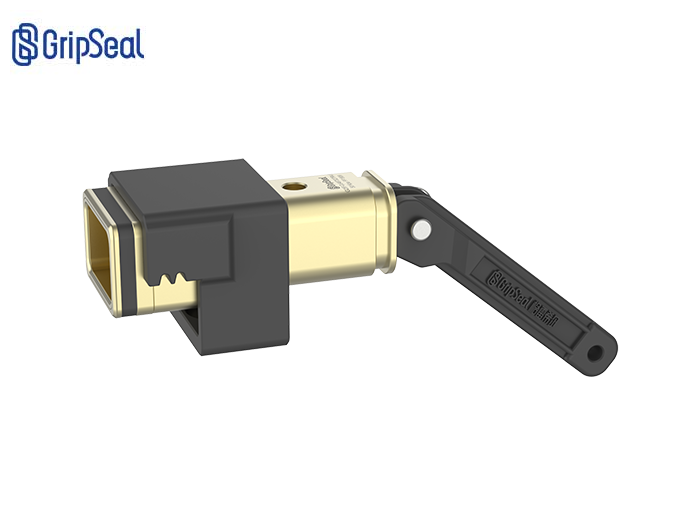

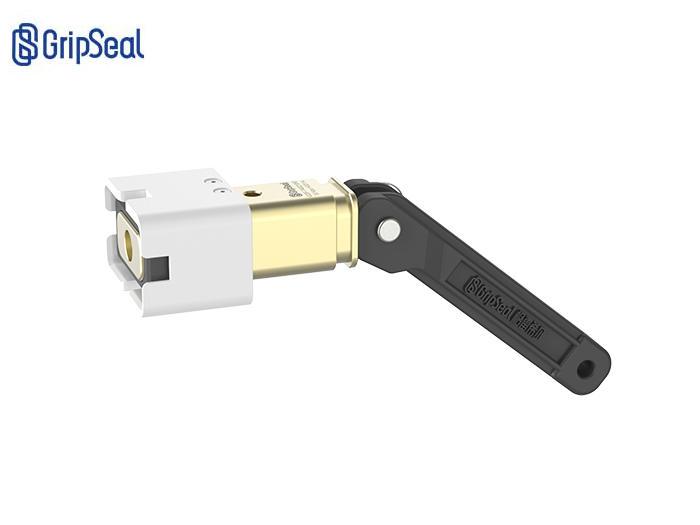

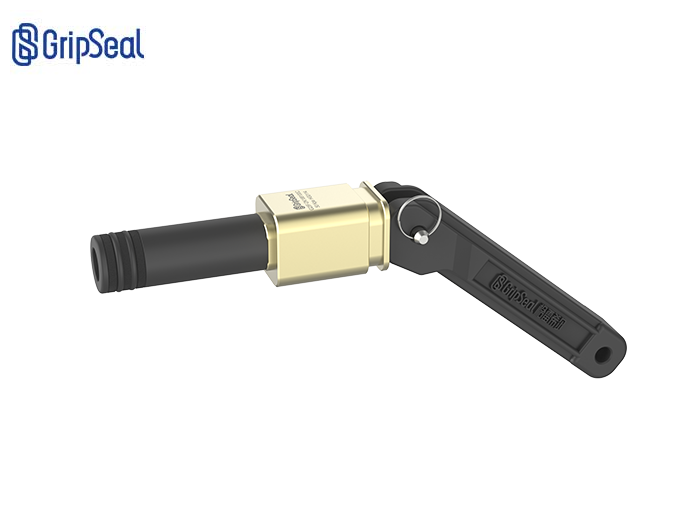

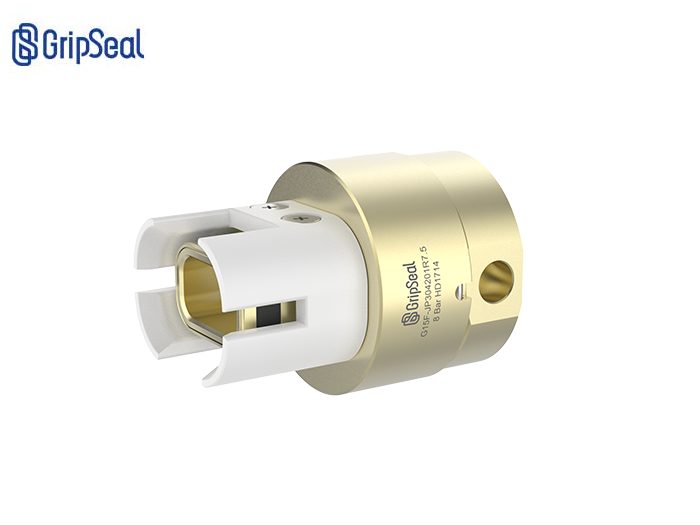

G25F connector test quick connector

G25F series is used as the airtight test of the electrical interface. If you need communication/electrical test, please move to E10 series. Seal the inner wall of the electrical interface by tightening the sealing ring. The joint is relatively short as a whole to prevent the length and weight of the joint itself from affecting the sealing.

Service Hotline: 0755-86215125

Product details

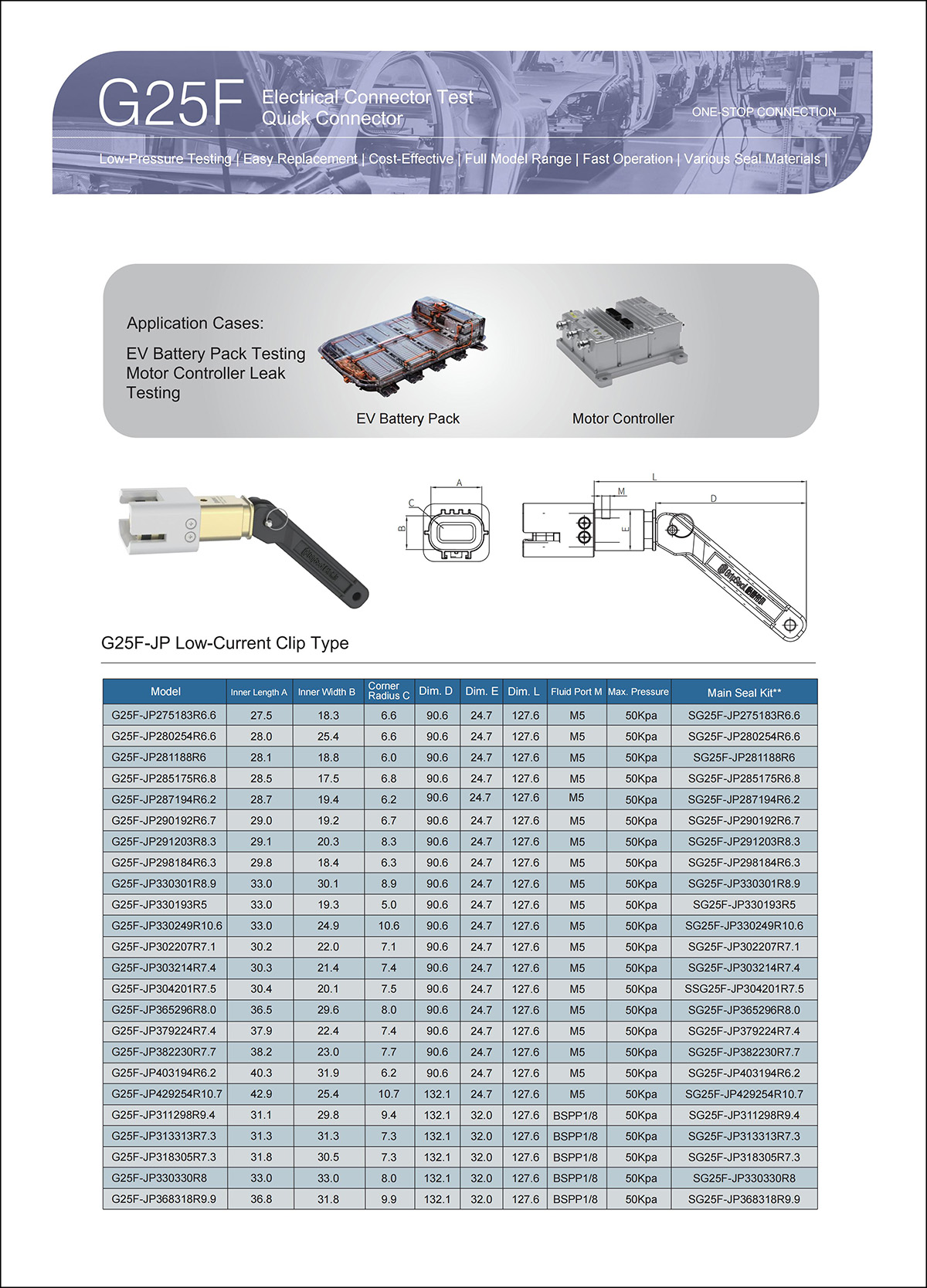

Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to50kpa
Sealing range	Customized according to the size of the electrical interface
traffic interface	M5,G1/8
main material	aluminum alloy
Main sealing ring	neoprene/Silicone
Valve opening method	magnet/Suction cup/Silicone
operating temperature	-20℃-120℃

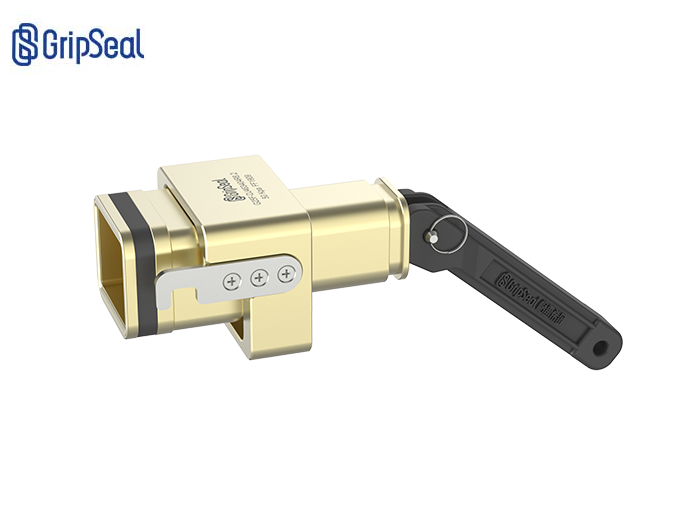

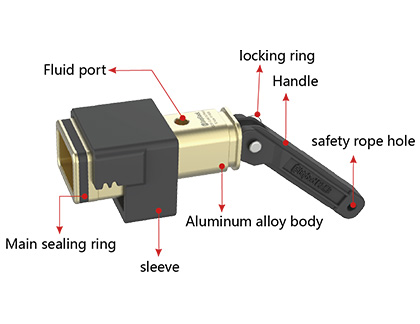

G25F Electrical connector test quick connector

Product video

G25Fregular quick connector-Use the operation tutorial

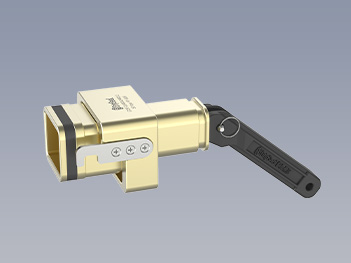

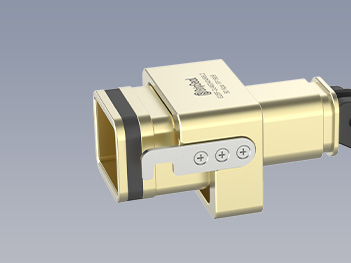

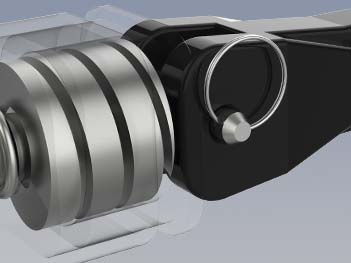

Product features

Product parameters

: Self-adjusting spring: automatically adjusts the sealing pressure according to the aperture, prolonging the service life

: Slide sleeve locking: Slide sleeve locking, anti-ejection

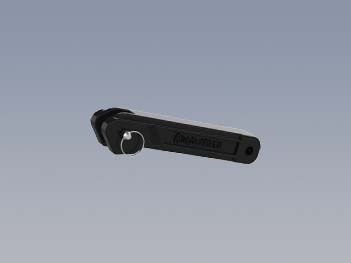

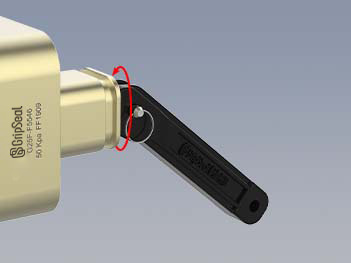

: Rotatable handle: The handle can be rotated for easy operation

: Aluminum alloy body: light and durable, reducing the operating burden

: Handle operation: simple, labor-saving, self-locking, anti-rebound

operation method

Operation method

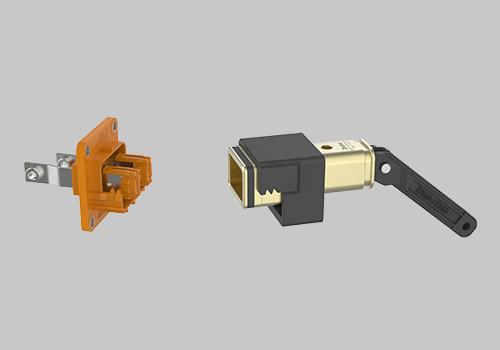

: Step one.

Put the front sealing ring of the connector into the electrical connector to be sealed.

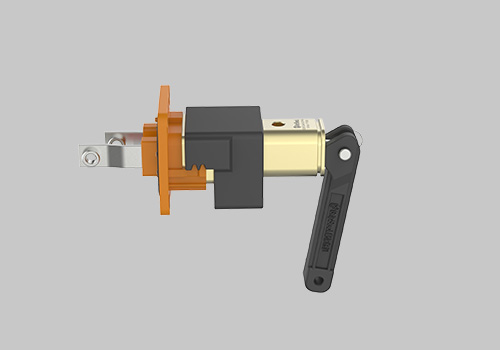

: second step

The sliding sleeve locks, and the handle is folded to form a seal.

Application case

Application cases

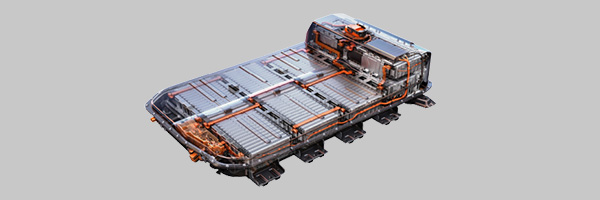

New energy batteryPACK

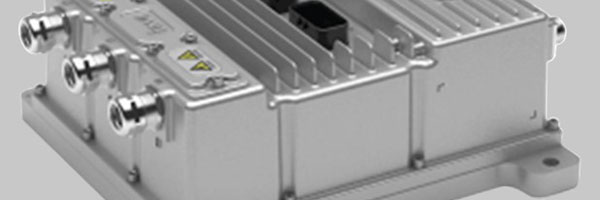

Motor controller

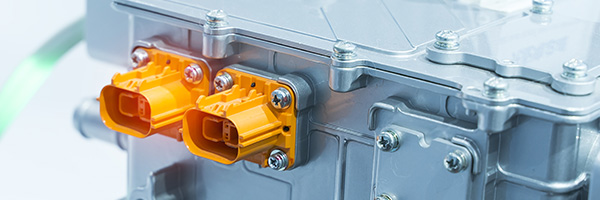

Low current clip test

Get the application solution now

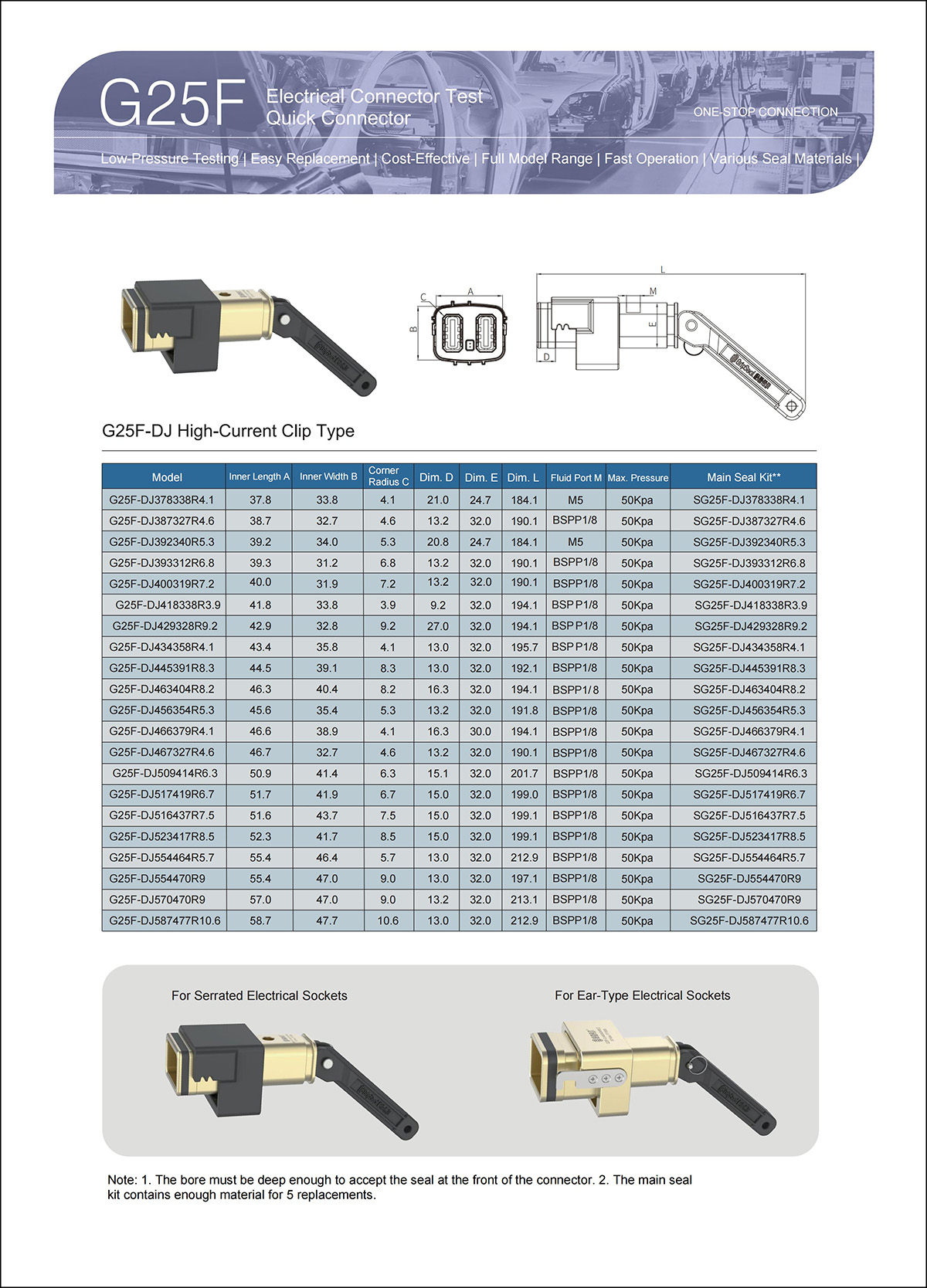

G25F Selection table parameters2

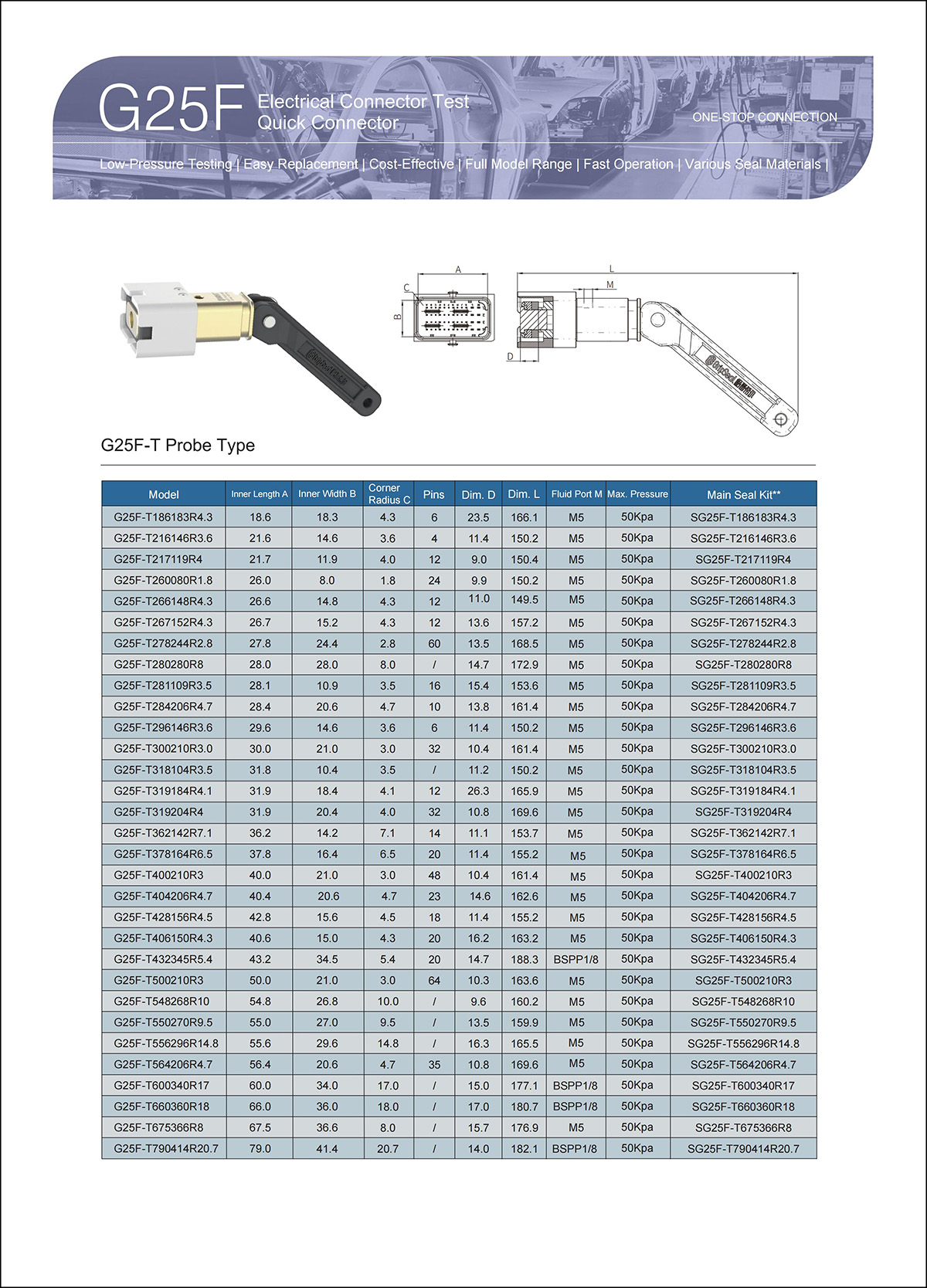

G25F Selection table parameters3

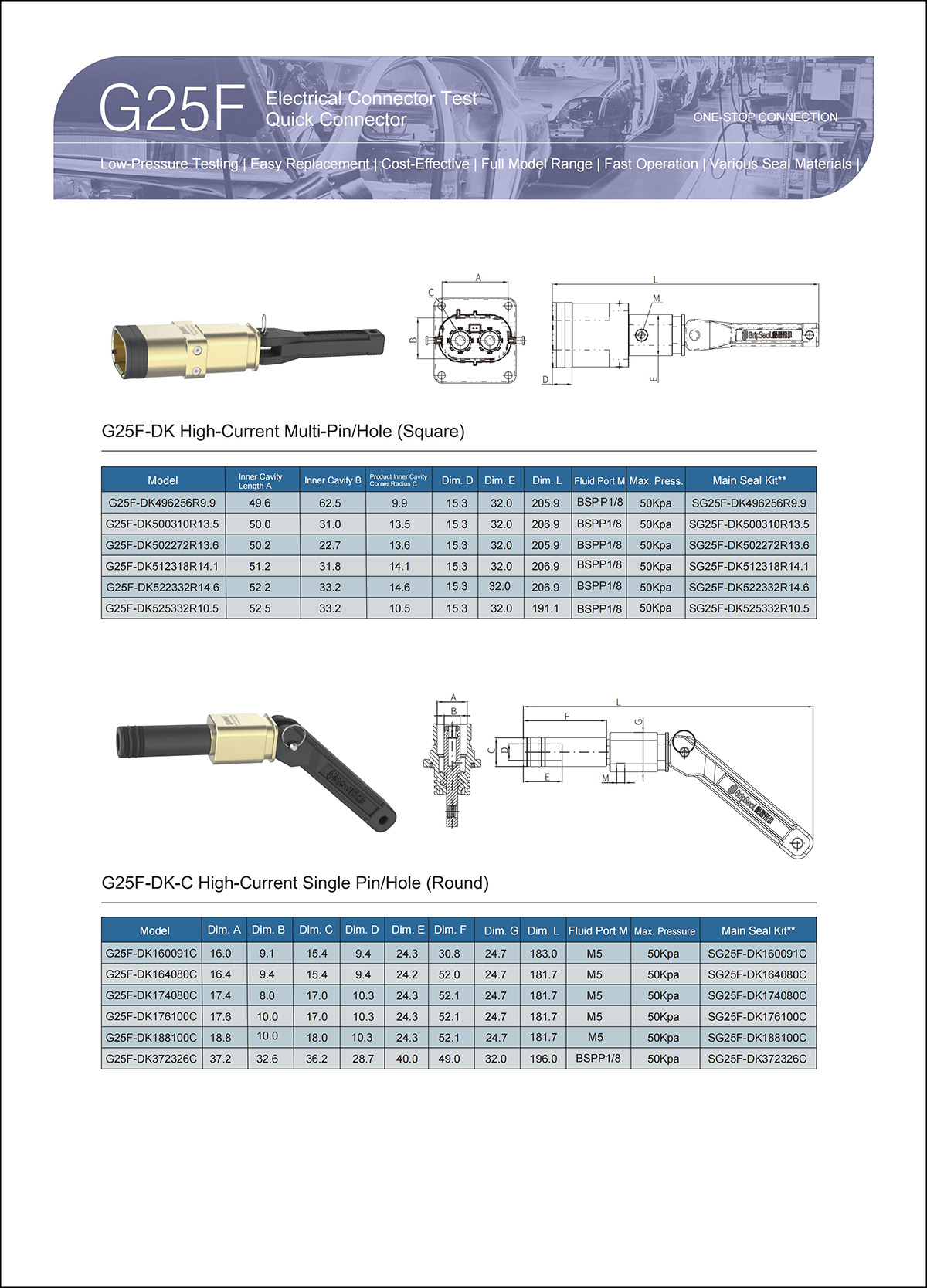

G25F Selection table parameters4
