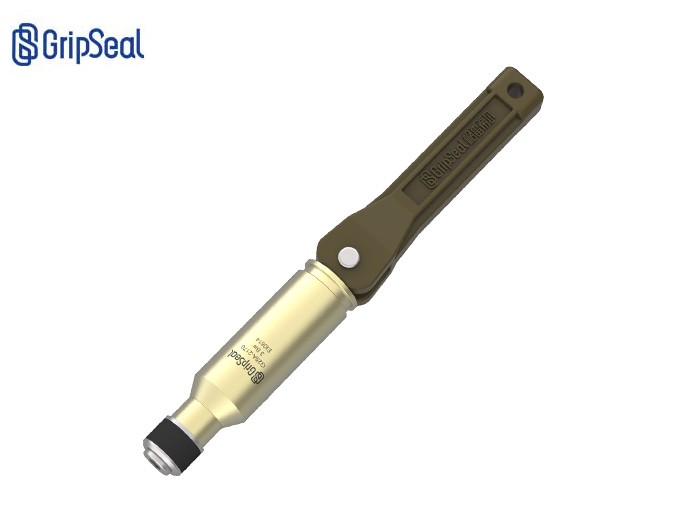

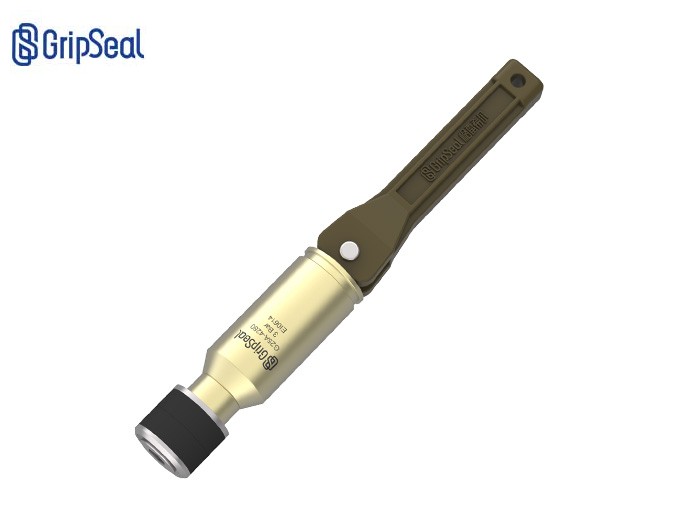

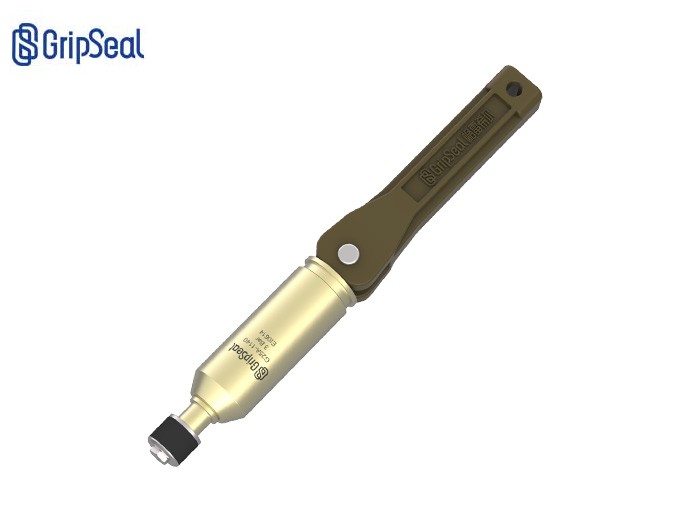

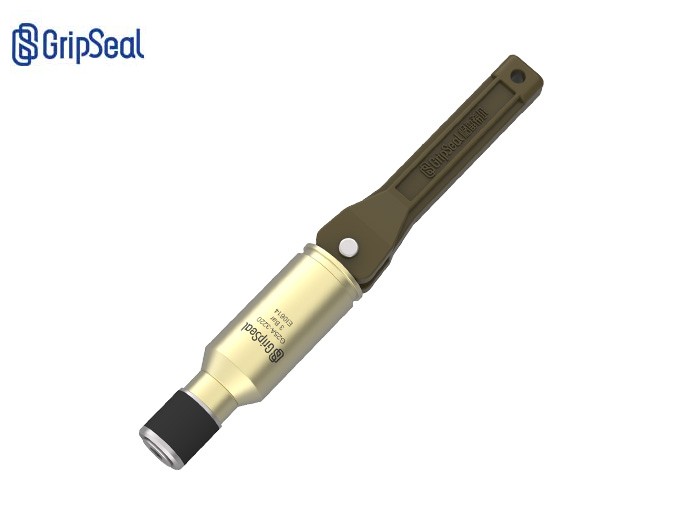

G25A series internal expansion quick connector

G25A series quick connector is an internal expansion type quick connector, which mainly seals various inner holes, tube holes, etc. Whether the sealing surface is machine-added surface or part of the casting surface, an effective seal can be formed.

Service Hotline: 0755-86215125

Product details
Product selection table

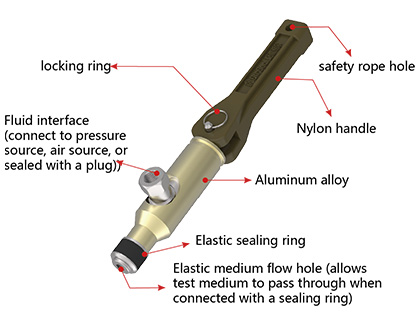

product parameters

Product parameters

Maximum operating pressure	From vacuum to3Bar
Sealing range	10mm-34mm
minimum insertion depth	1,2No. Body:15mm，3,4No. Body:25mm
traffic interface	G1/8Threaded hole
main material	aluminum alloy
Main sealing ring material	neoprene
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

Product video

G25A Operation video of series low pressure tube inner diameter sealing connector

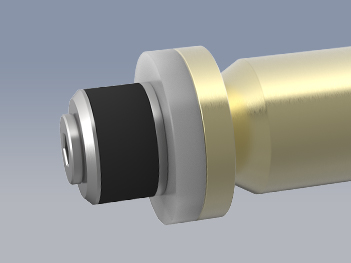

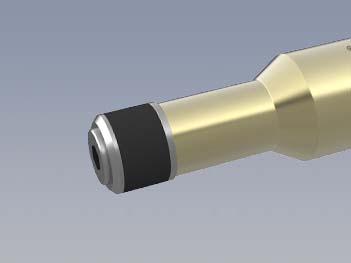

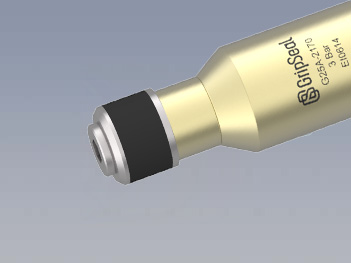

Product features

Product parameters

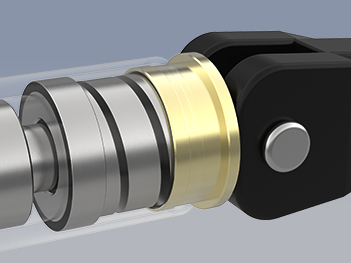

: Self-adjusting spring: automatically adjusts the sealing pressure according to the aperture, prolonging the service life

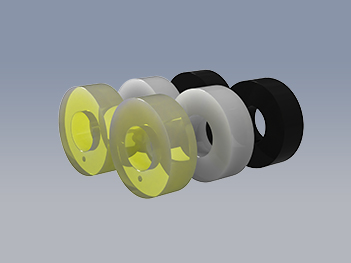

: A variety of sealing materials: materials are optional to meet customer-specific needs

: Quick replacement of sealing rings: can be replaced without special tools

: Nylon handle: ergonomic design, reducing the labor intensity of the operator

: Pipe thread fluid hole: in line with international standards, commonly used in China, related accessories are easy to obtain

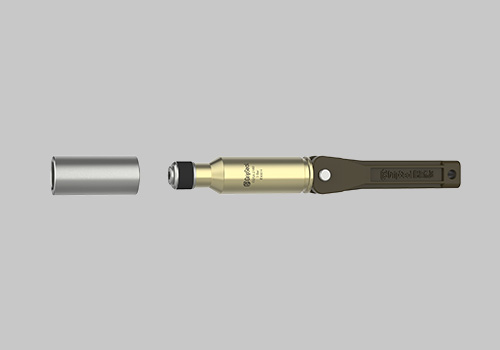

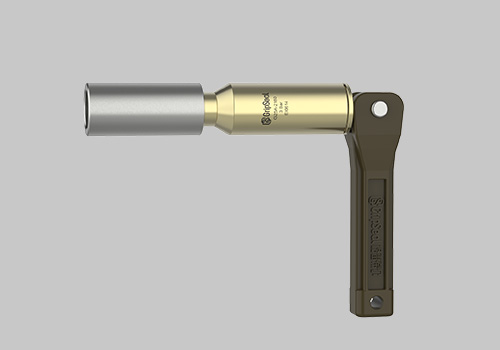

operation method

Operation method

: Step one.

willG25Insert the corresponding inner diameter of the test product. Bend the handle to seal.

: second step

Pass test air pressure (below3bar), complete the relevant test, and then release the test air pressure. Straighten the handle and take it outG25。

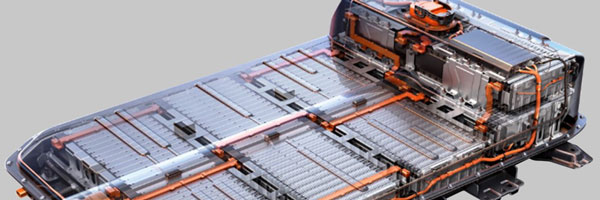

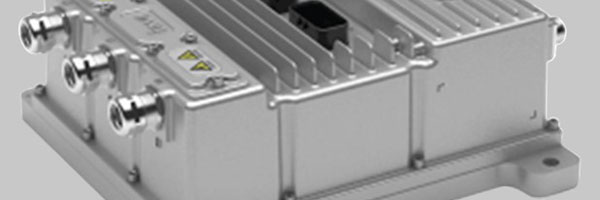

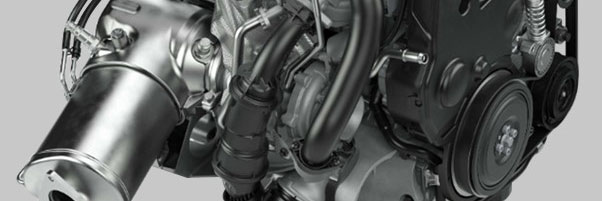

Application case

Application cases

Get the application solution now

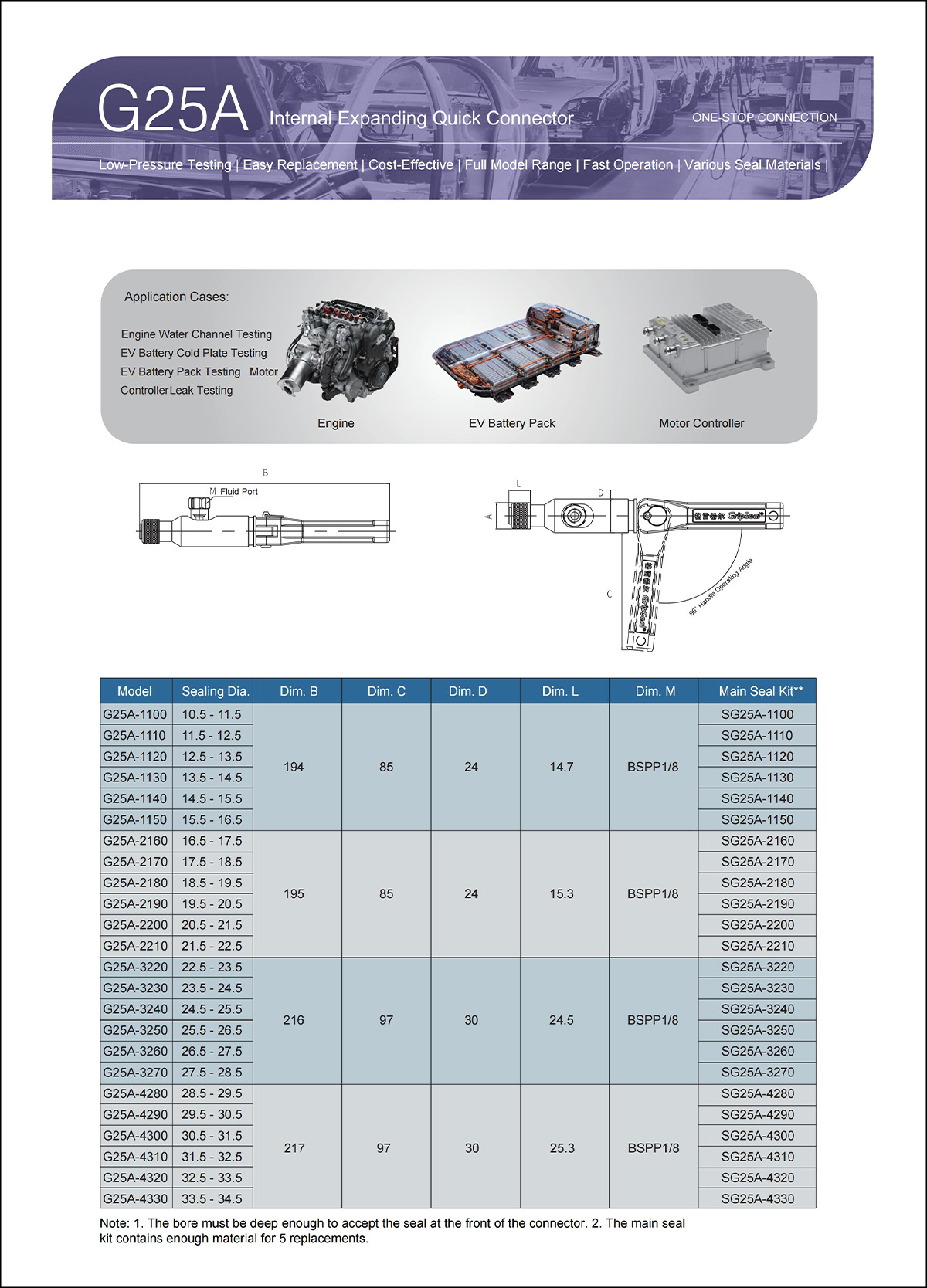

G25A Selection Table
