G30 Series High Pressure Pipe Outer Diameter Sealing Connectors

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Pipe Type » Straight Pipe Seal Connectors » G30 series high voltage outer diameter quick connector

prve

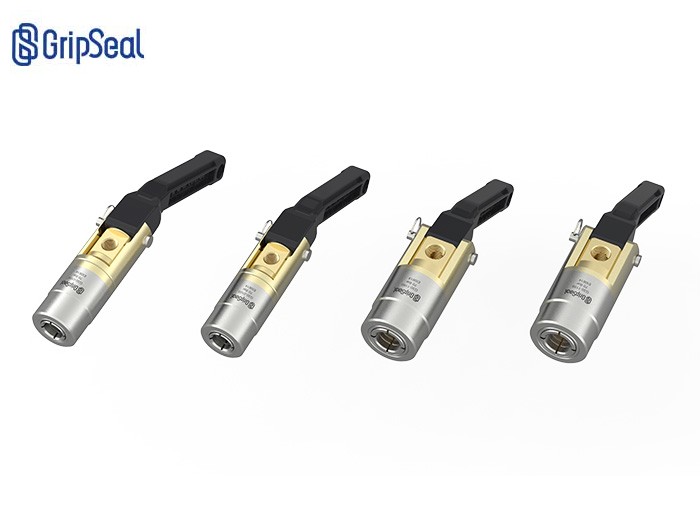

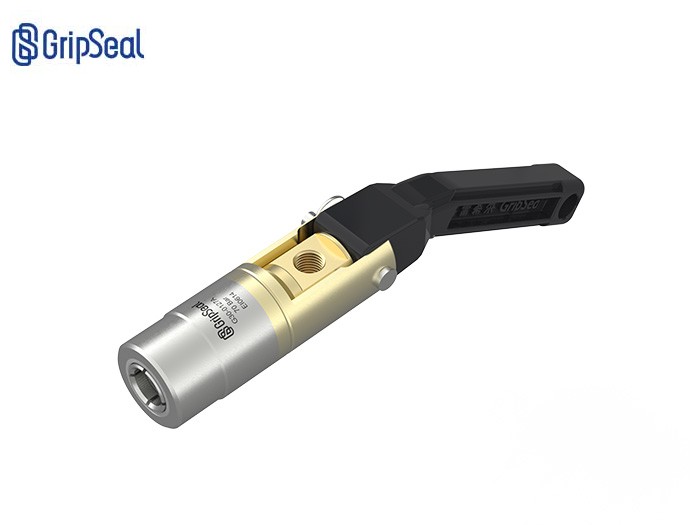

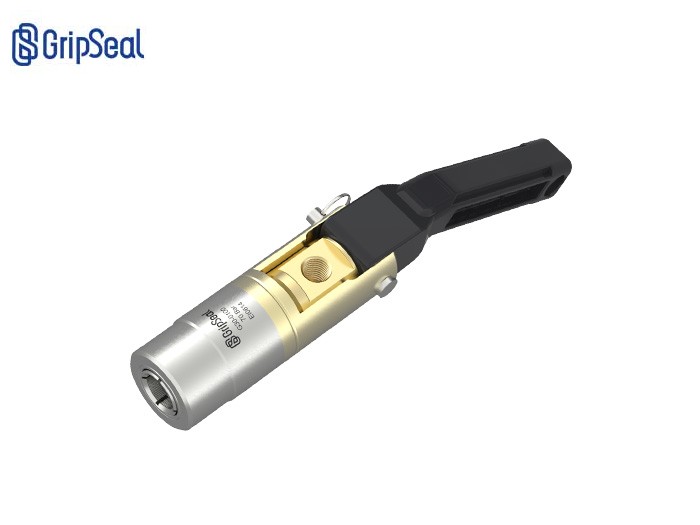

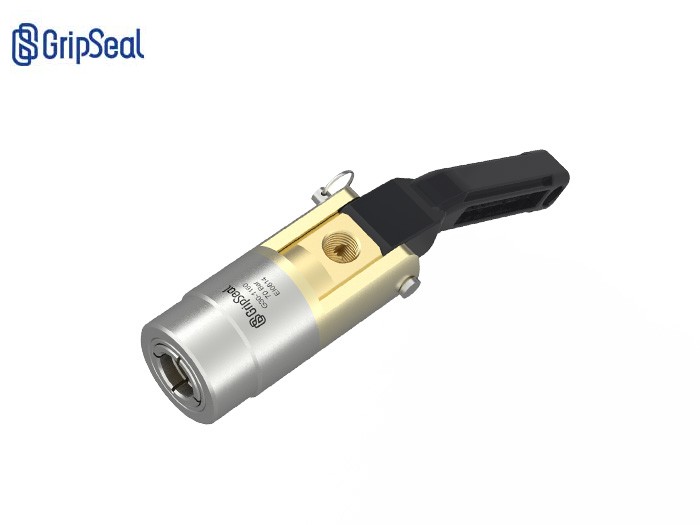

G30 series high voltage outer diameter quick connector

G30 series connector is a high-voltage application connector, which is a sealing solution for the outer diameter of various copper, steel and aluminum pipes. It is used in refrigeration and new energy industries, such as heat exchangers, pressure vessels, instruments, meters, motor controllers, cooling plates, etc

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to70Bar
Sealing range	6mm-35mm
minimum insertion depth	25mm
traffic interface	ZG1/8orZG1/4
main material	Aluminum alloy, stainless steel, nylon
Main sealing ring material	fluororubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

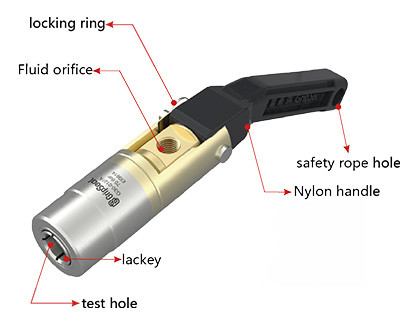

G30 Series high pressure pipe outer diameter sealing connector

Product video

G30Operation video of series high pressure pipe outer diameter sealing connector

Product features

Product parameters

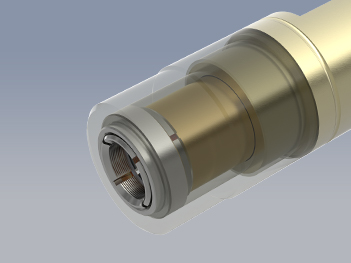

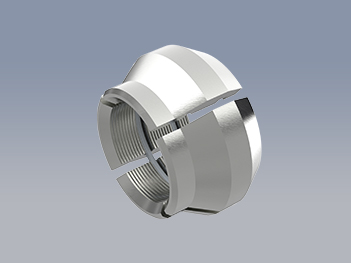

: High hardness locking minions: with locking minions, which can firmly grasp the outer wall of the pipe fittings and improve the upper limit of pressure resistance

: Horizontal characteristics: There are fine horizontal lines on the locking claws, which can increase the force area and provide a firmer grip

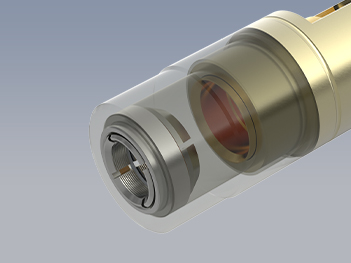

: Automatic return: make the operation more labor-saving, reduce the risk of jamming, and improve operation efficiency

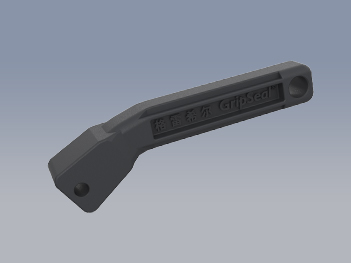

: Nylon handle: ergonomic design, more comfortable to grasp

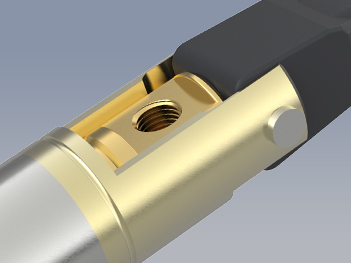

: Pipe taper thread fluid hole: in line with international standards, commonly used in China, related accessories are easy to obtain, easier to seal

operation method

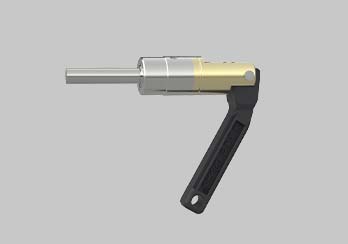

Operation method

: Step one.

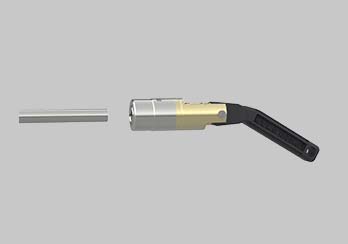

Insert the test piece into the test port of the connector

: second step

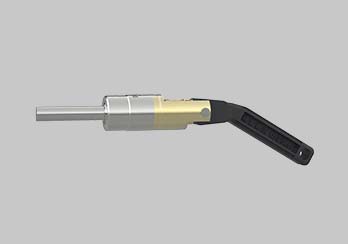

Insert the test piece into the bottom of the test hole

: Step three

Pull the handle, at which point the test piece is locked in the test hole, completing the sealing

Application case

Application cases

Get the application solution now

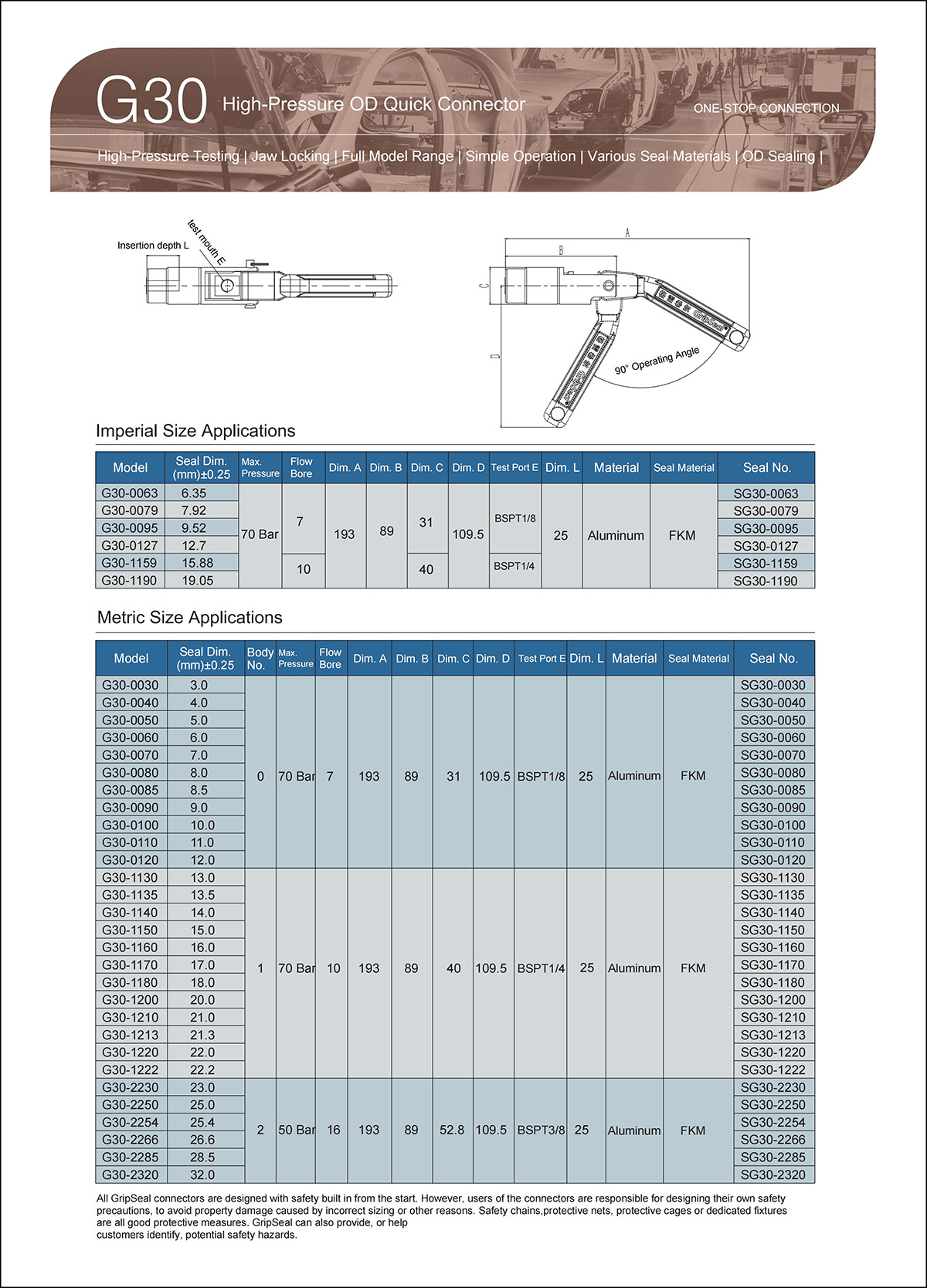

G30 Selection Table

Keywords: Copper Pipe Quick Seal Stainless Steel Pipe Seal Straight Pipe High Pressure Seal Air Conditioning Copper Pipe G30
