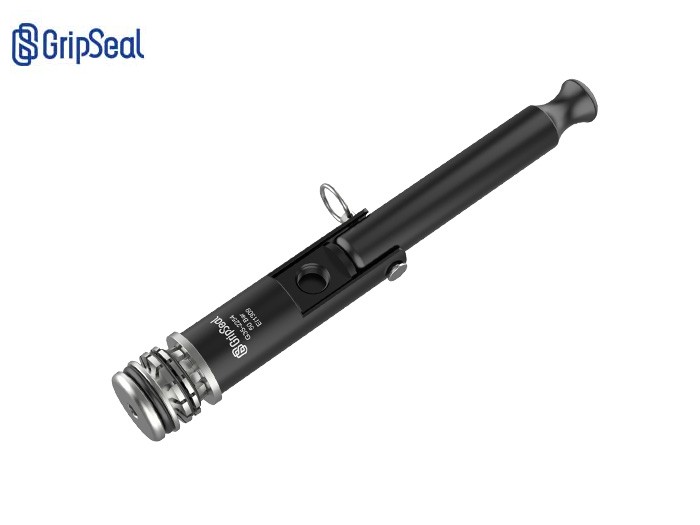

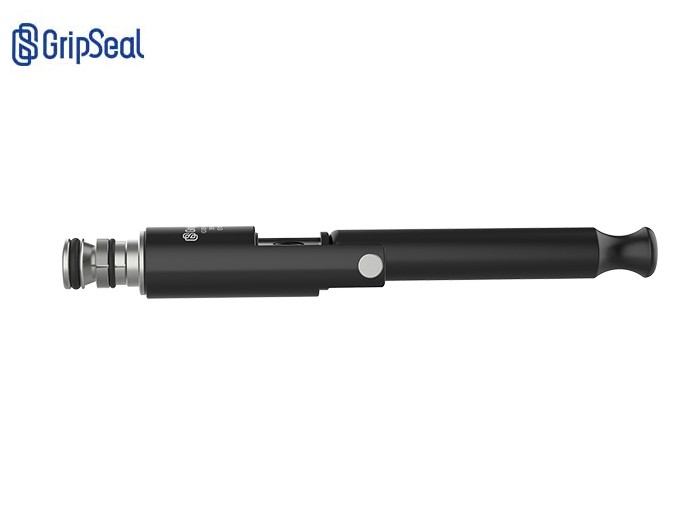

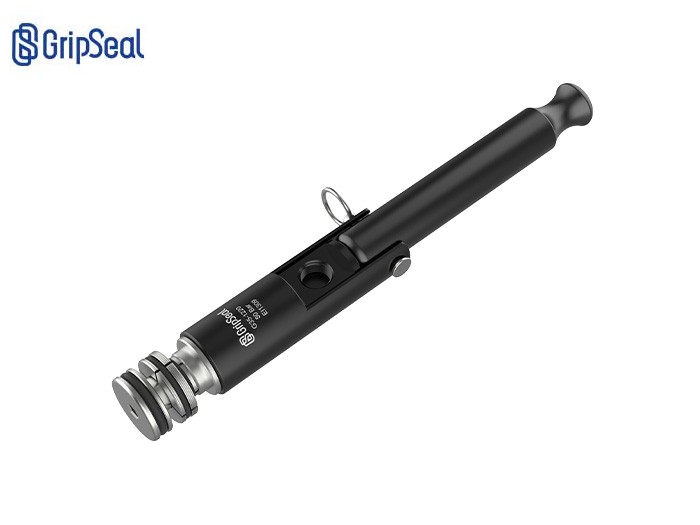

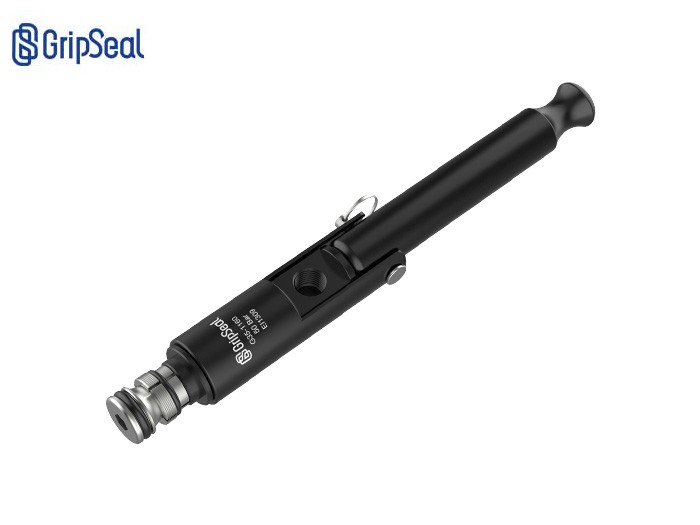

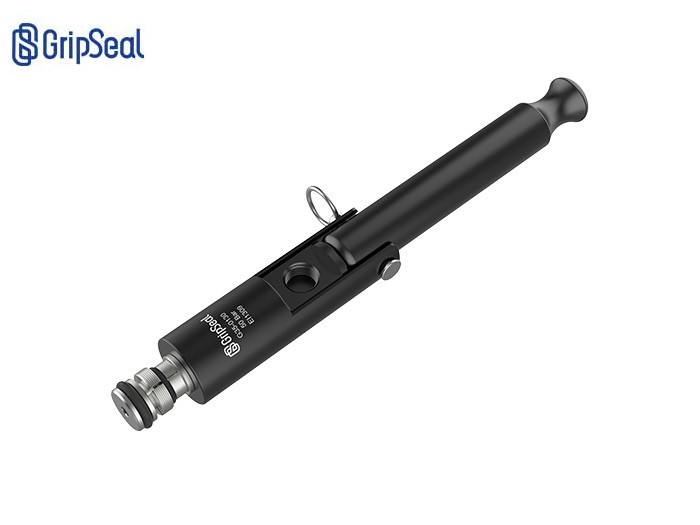

G35 series high voltage internal expansion quick connector

The G35 series connector is a connector for high-voltage applications. It is an internal solution for sealing various types of copper, steel, and aluminum pipes. It is used in refrigeration and new energy industries, such as heat exchangers, pressure vessels, instruments, meters, and motor controller cooling plates.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to50Baror70Bbar
Sealing range	8mm-100mm
minimum insertion depth	0,1No. Body:12mm，2No. Body:23mm
traffic interface	G1/8Threaded hole orZG1/8Threaded hole
main material	Aluminum alloy, stainless steel, nylon
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

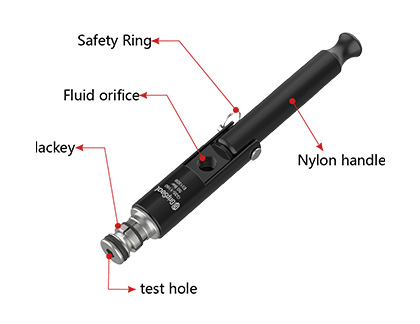

G35Series high pressure pipe inner diameter sealing connector

Product video

G35Operation video of series high pressure pipe inner diameter sealing connector

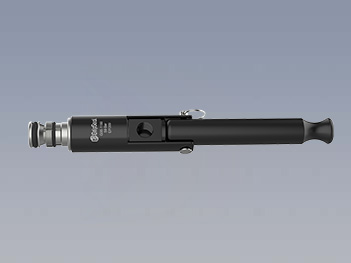

Product features

Product parameters

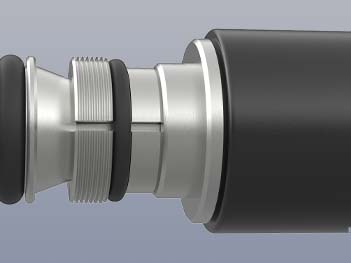

: Locking minions: with locking minions, which can firmly grasp the inner wall of the pipe fittings and improve the upper limit of pressure resistance

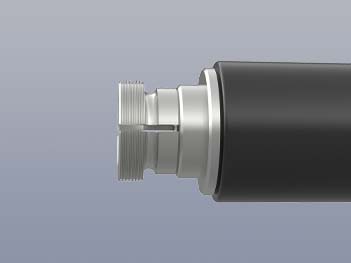

: Horizontal characteristics: There are fine horizontal lines on the locking claws, which can increase the force area and provide a firmer grip.＊only1,2No. The main body has

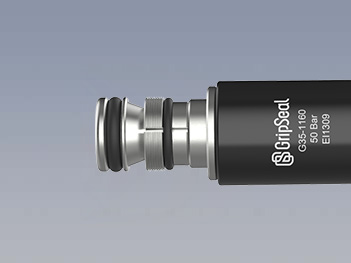

: Multi-point seal: Special minion shape, multi-point contact provides more grip while reducing inner wall scratches

: Aviation aluminum, nylon handle: easy to operate, reducing the labor intensity of the operator

: Pipe thread fluid hole: in line with international standards, commonly used in China, related accessories are easy to obtain

operation method

Operation method

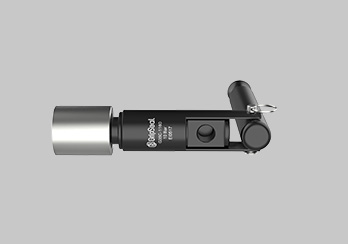

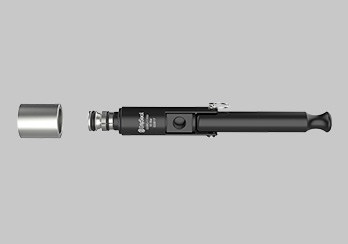

: Step one.

Align the connector inside the fitting

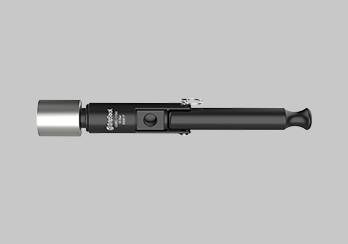

: second step

Insert the connector into the fitting

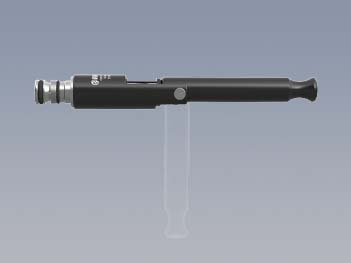

: Step three

Pull the handle, at this time the test piece is locked by the connector pawn, and the seal is completed.

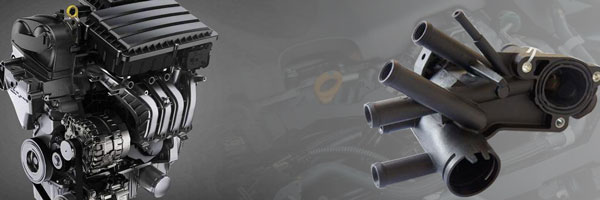

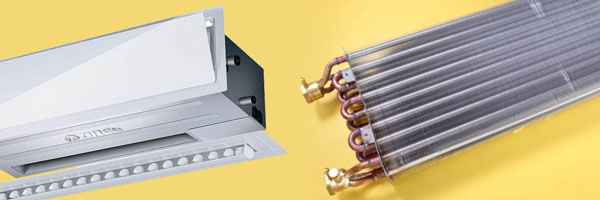

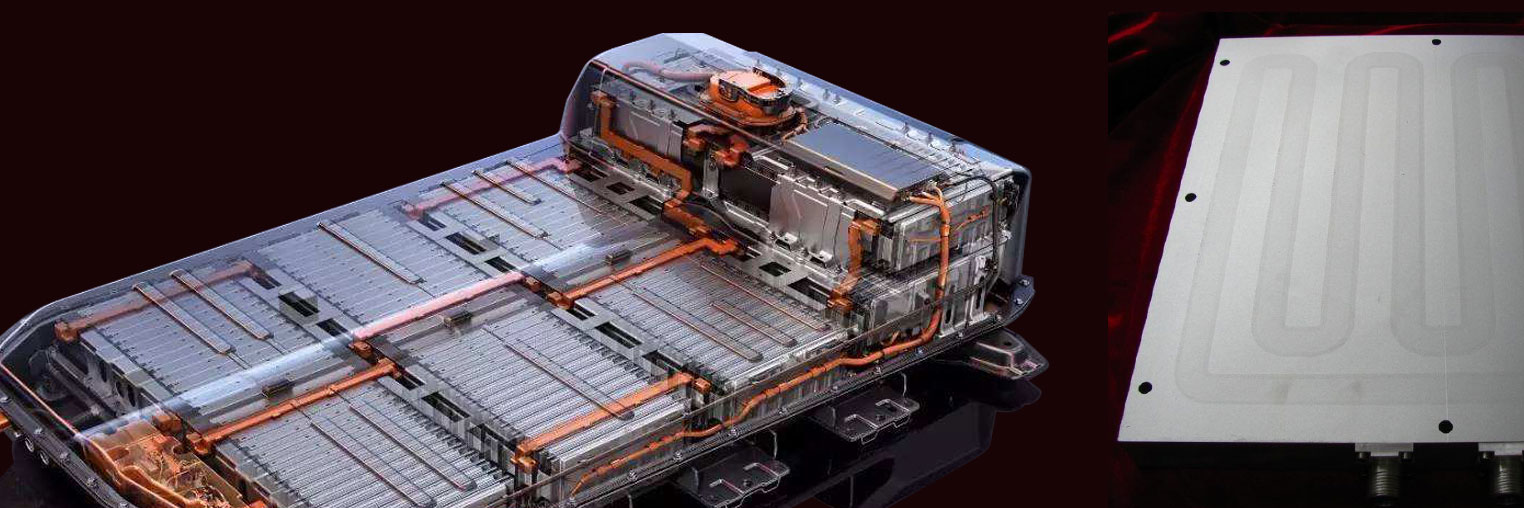

Application case

Application cases

Get the application solution now

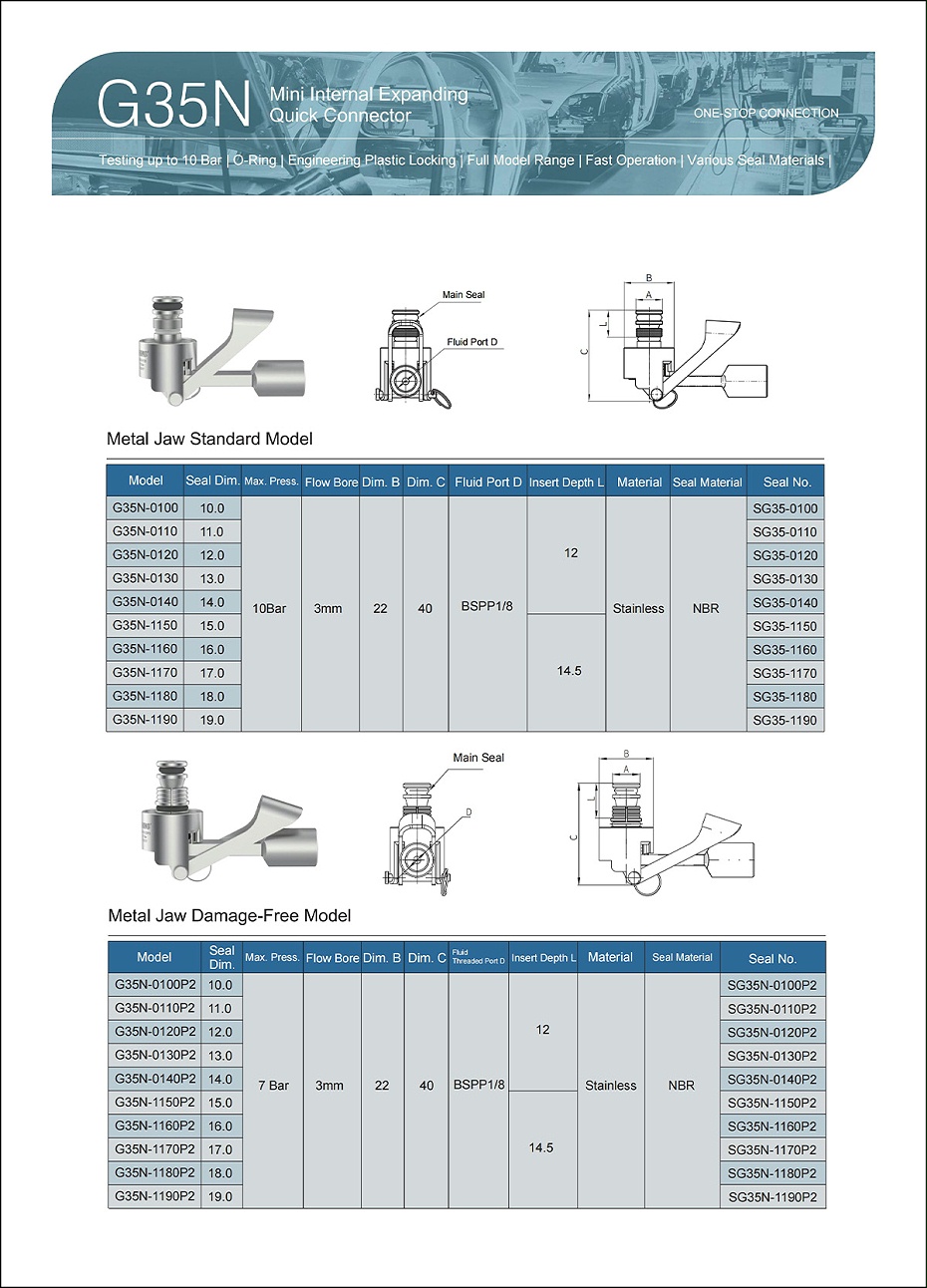

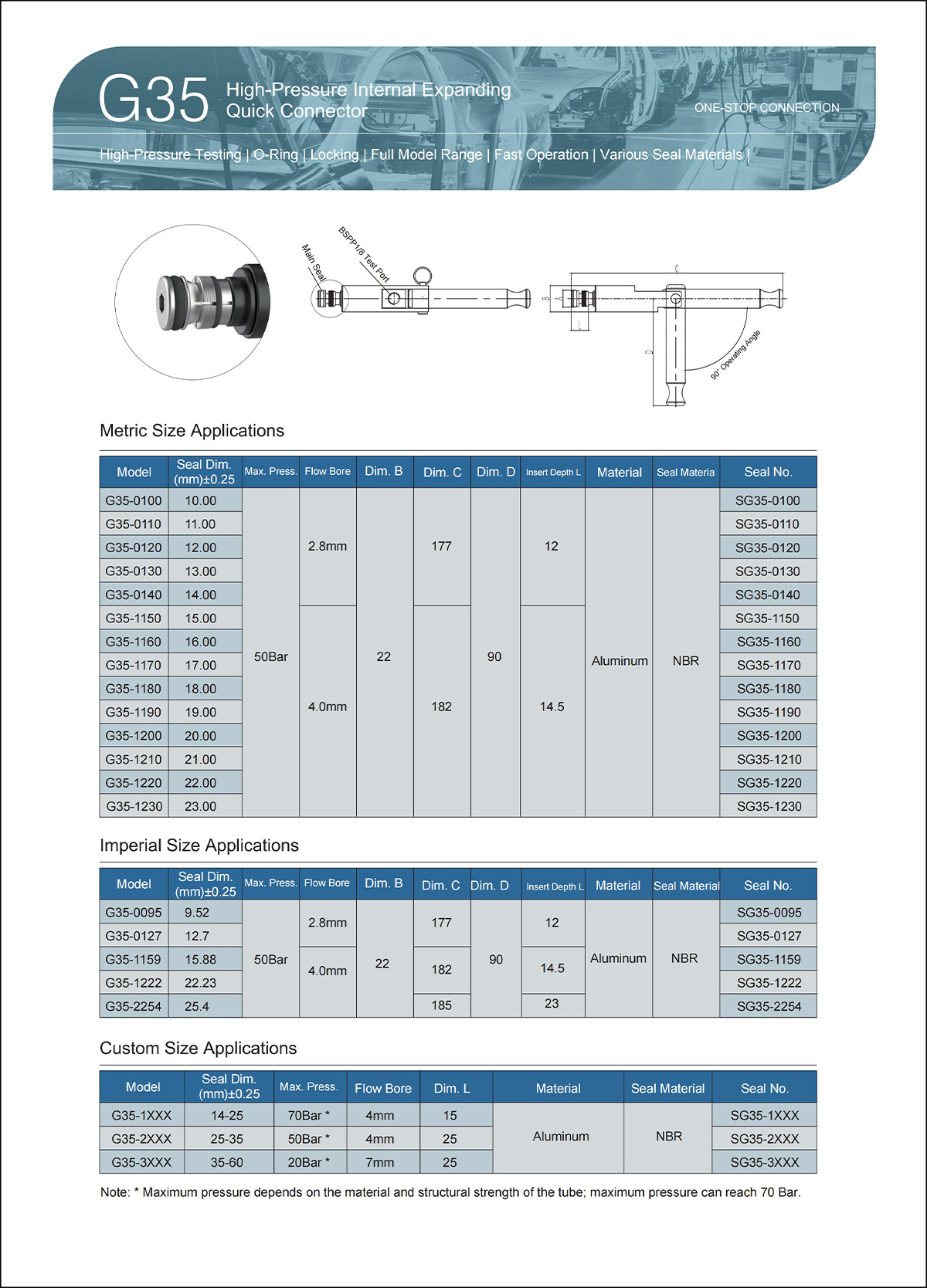

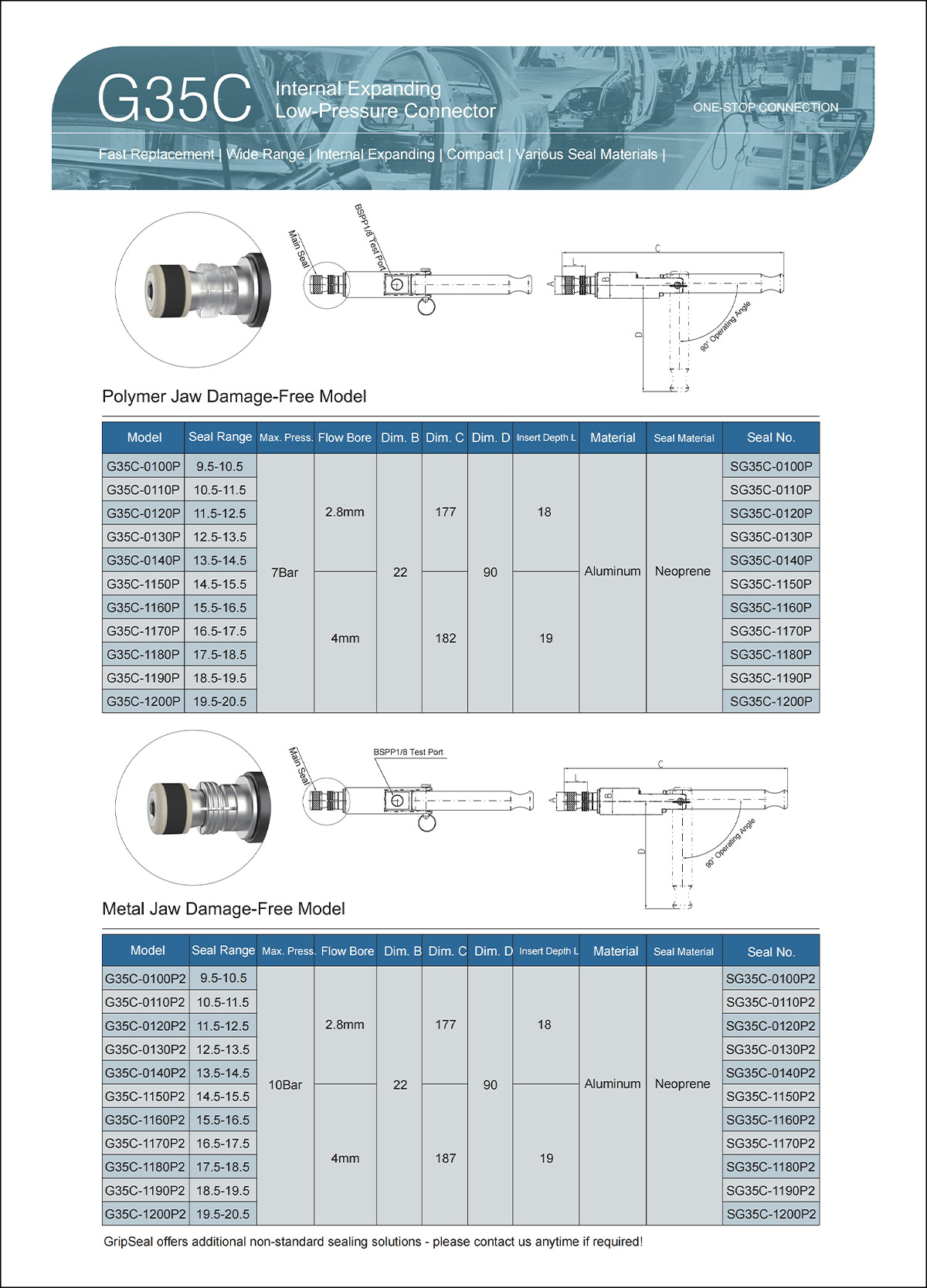

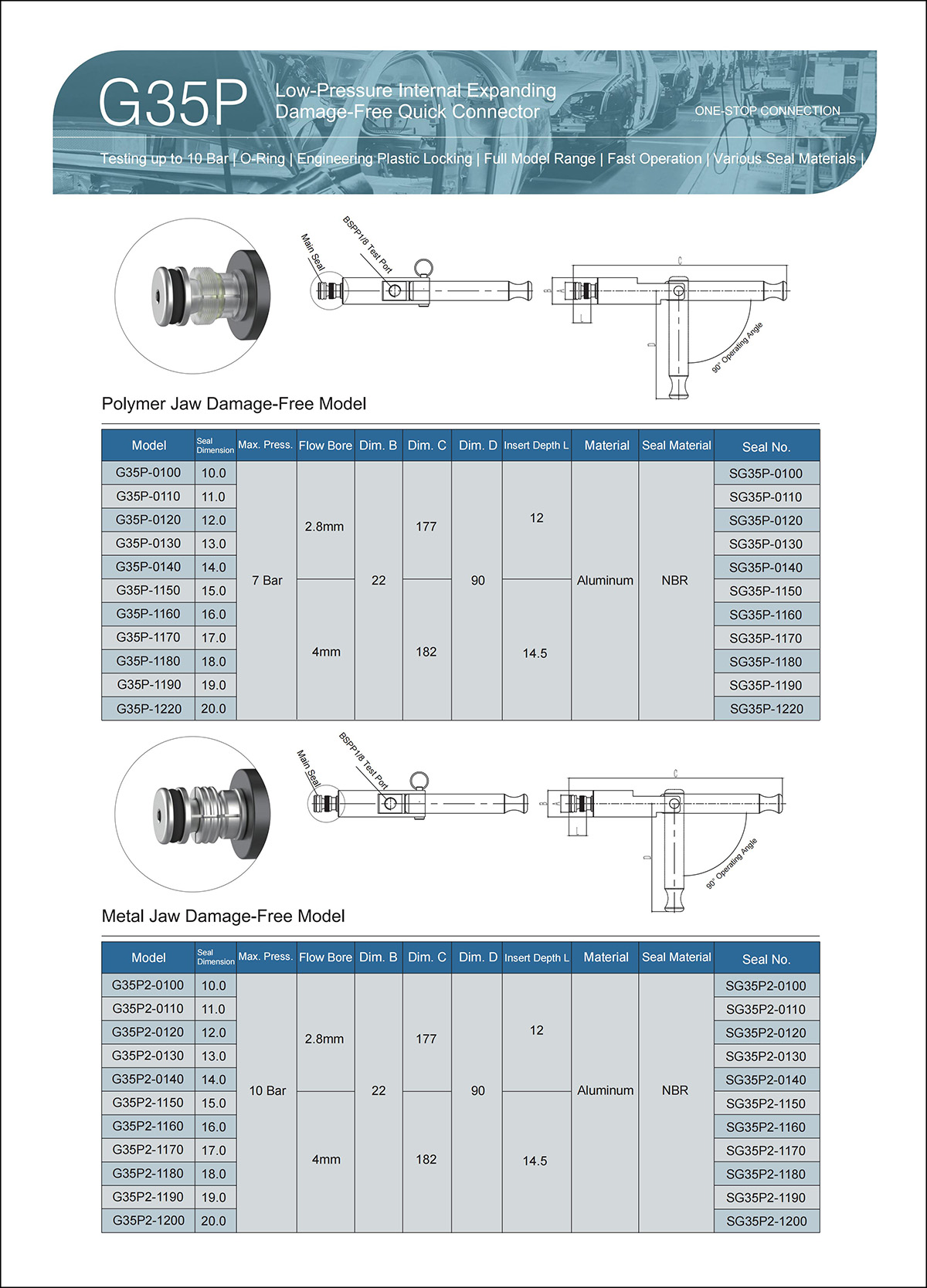

G35 Selection Table
