G60 Series Male Seal Connectors

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Pipe Type » Thread Seal Connectors » G60 series external thread quick connector

prve

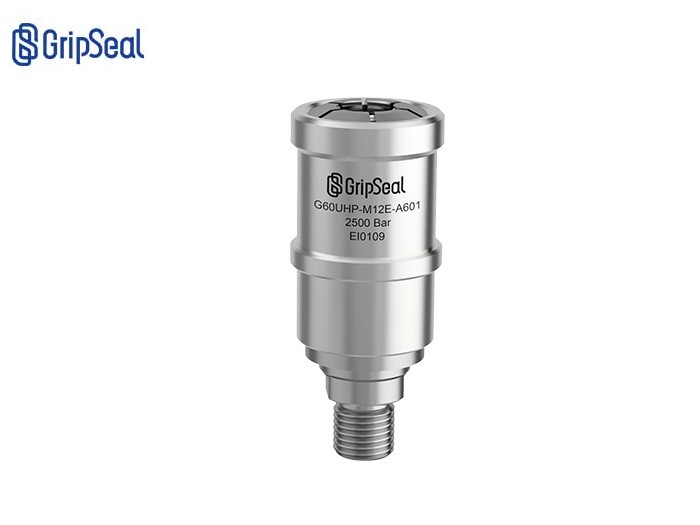

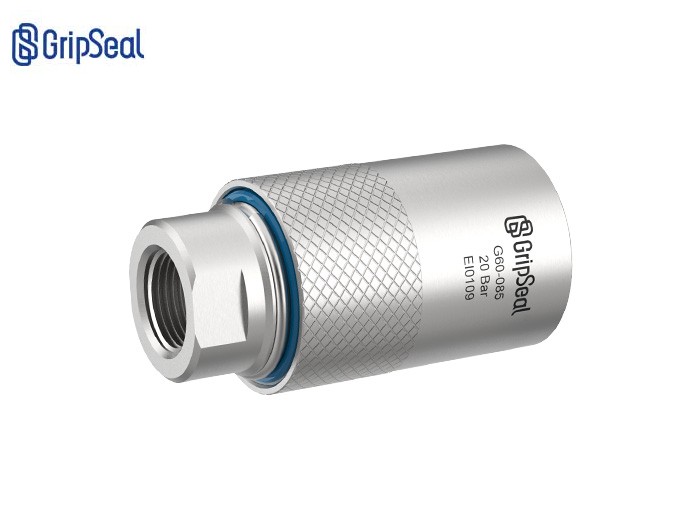

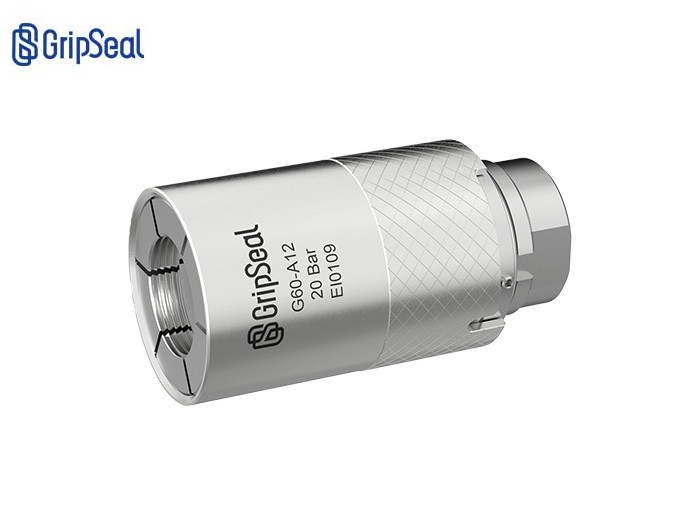

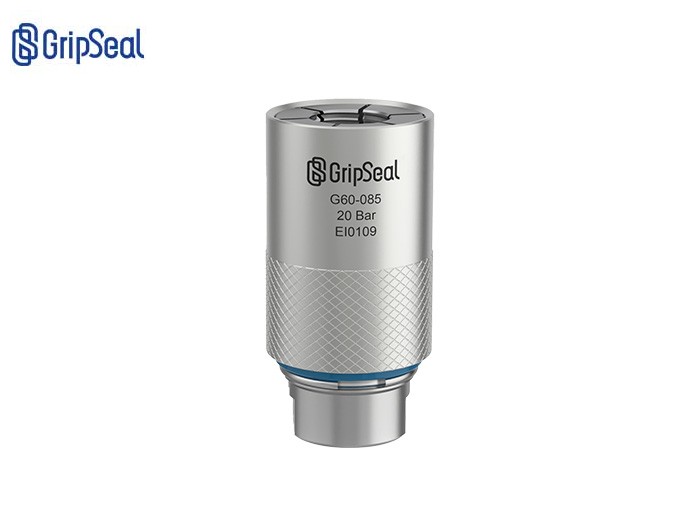

G60 series external thread quick connector

G60 series connector is a special connector for external threads, suitable for various instruments/meters, home appliances, air conditioning industry operation test, such as water heater ignition test, instrument stress testing, air conditioning external unit assembly process of refrigerant charging, etc..

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to50Bar(UHPversion2500Bar)
Sealing range	1/8"-2"
minimum insertion depth	25mm
traffic interface	See selection table
main material	stainless steel,Aluminum alloy, nylon
Main sealing ring material	neoprene,Nitrile rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

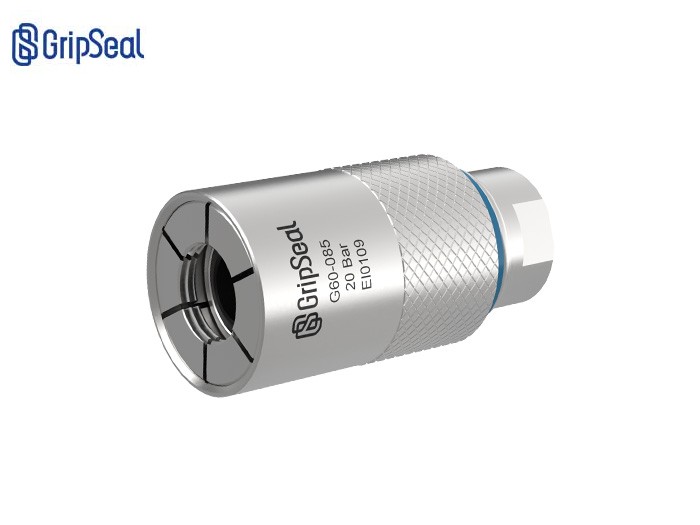

G60 series external thread quick connector

Product video

G60Series Quick Connectors-operation video

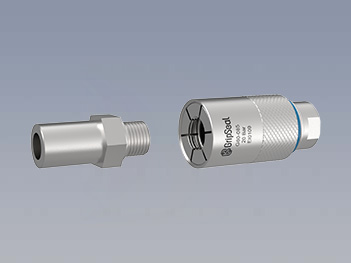

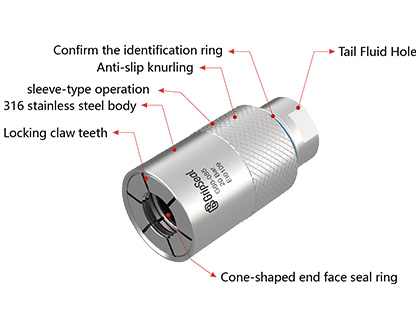

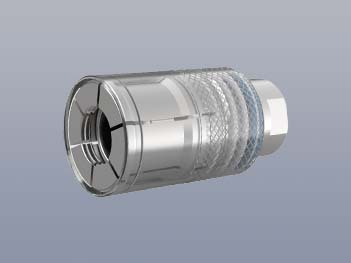

Product features

Product parameters

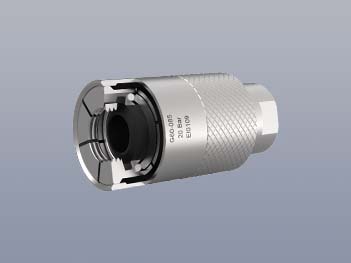

: The outer thread is tight and does not need to be rotated. Protect product thread

: Reticulated knurling increases friction for easy operation

: Sliding sleeve structure, easy to push to achieve locking and disconnection

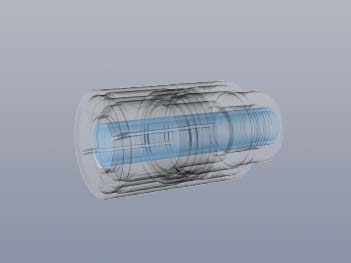

: Pass-through design to reduce the loss of traffic and ensure the accuracy of test results

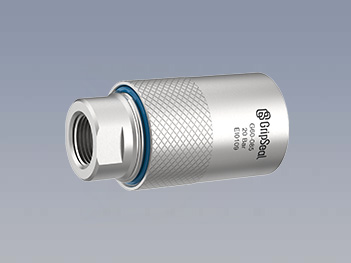

: End face sealing ring, easy to replace and easy to maintain

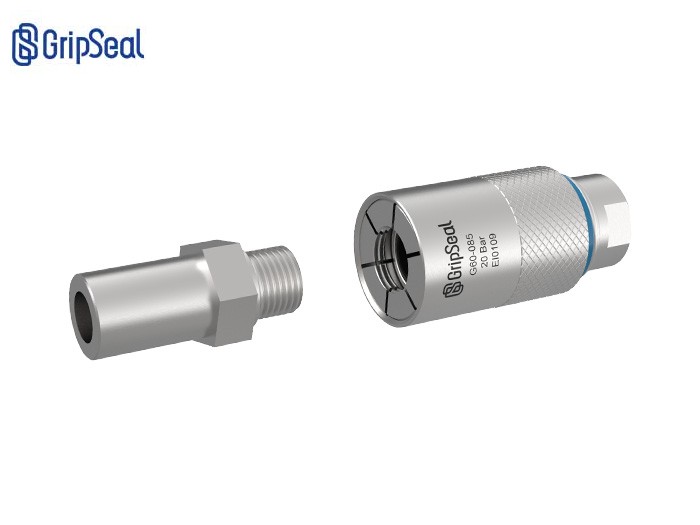

operation method

Operation method

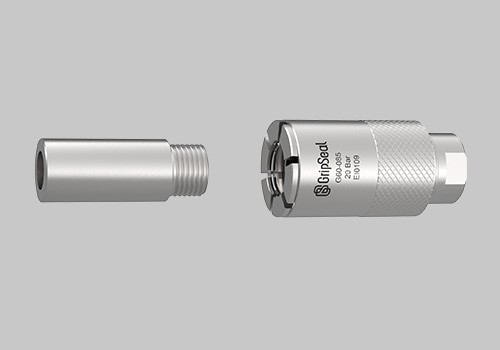

: Step one.

Pull the metal sleeve back, and the mechanical claw will open by itself.

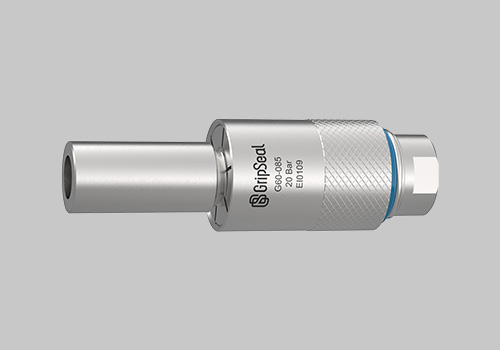

: second step

Push the connector in the direction of the male thread or pipe interface of the test piece, the metal sliding sleeve moves forward, the mechanical jaw shrinks by itself, and completes the clamping and sealing connection.

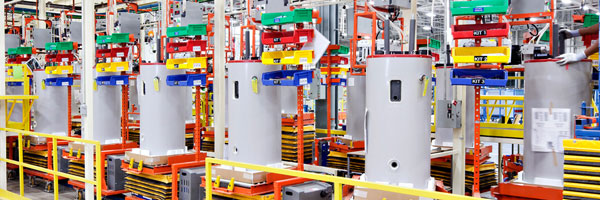

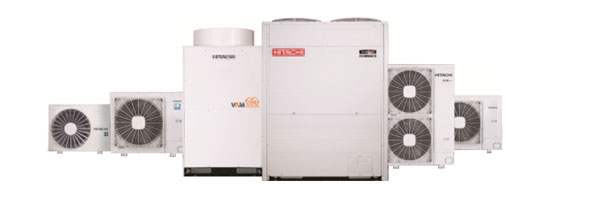

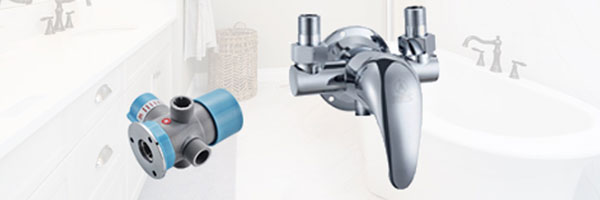

Application case

Application cases

Get the application solution now

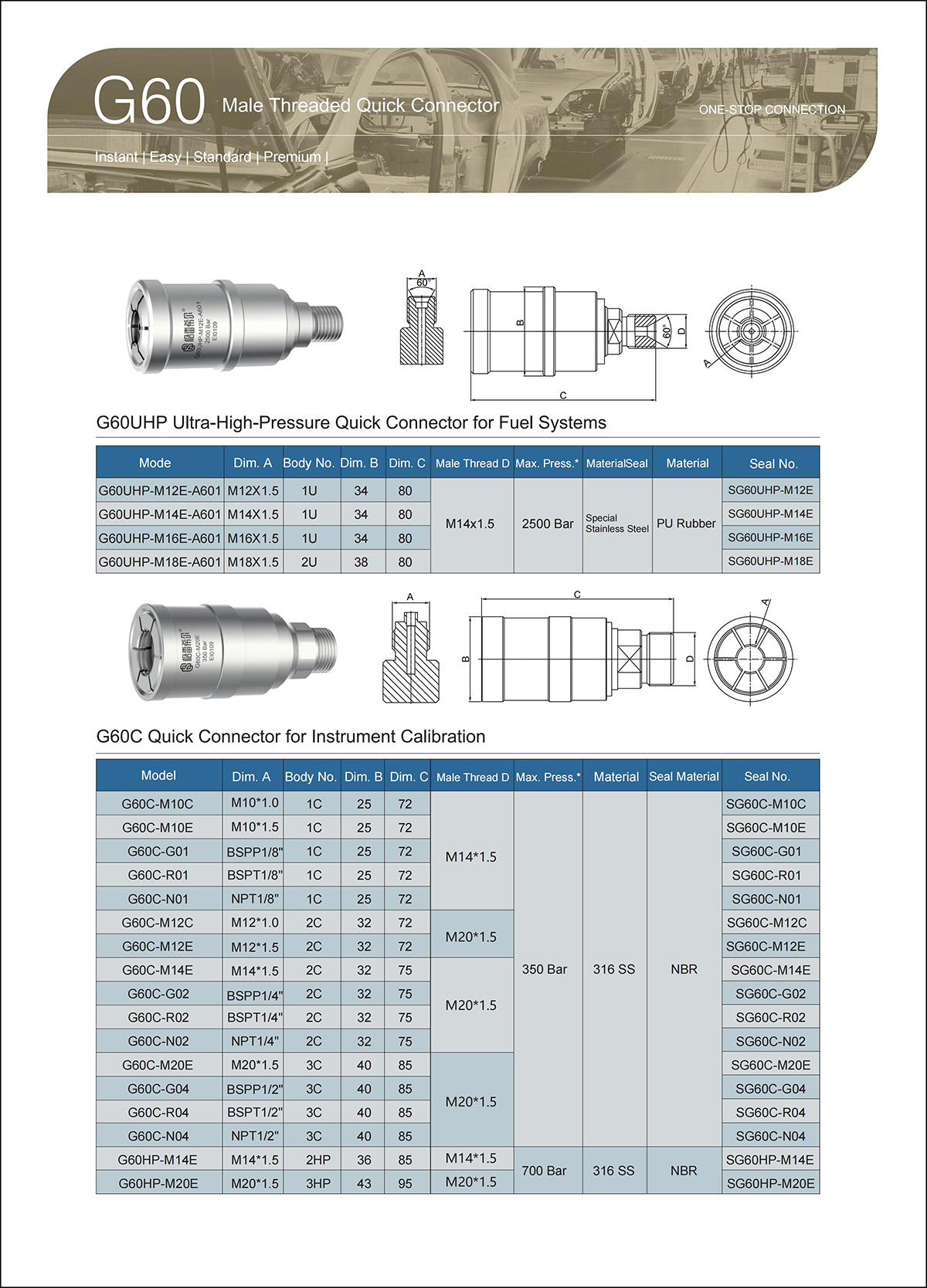

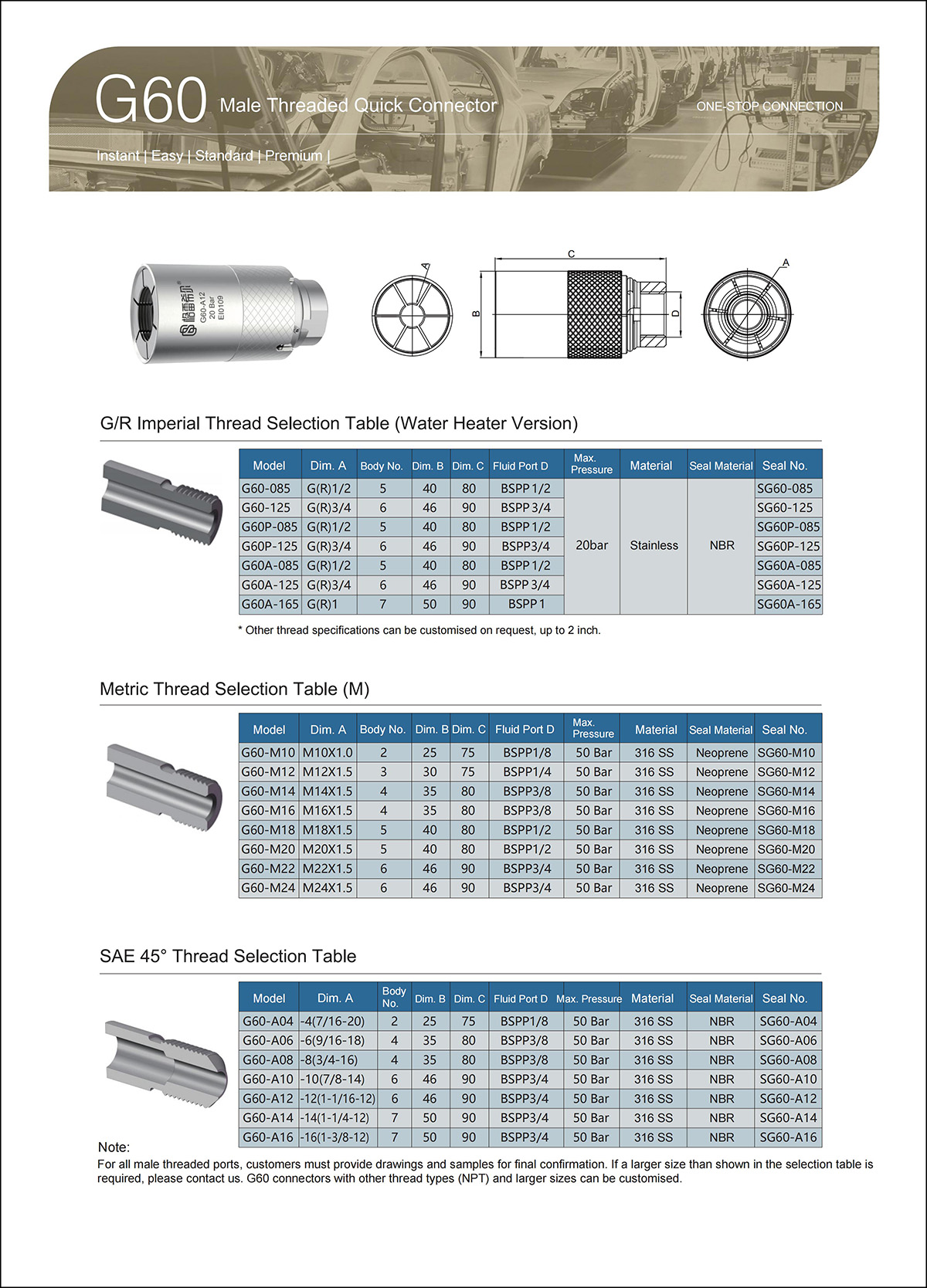

G60 Selection Table

Keywords: Male thread sealing connector quick sealing connector water heater detection connector washing machine detection connector G60
