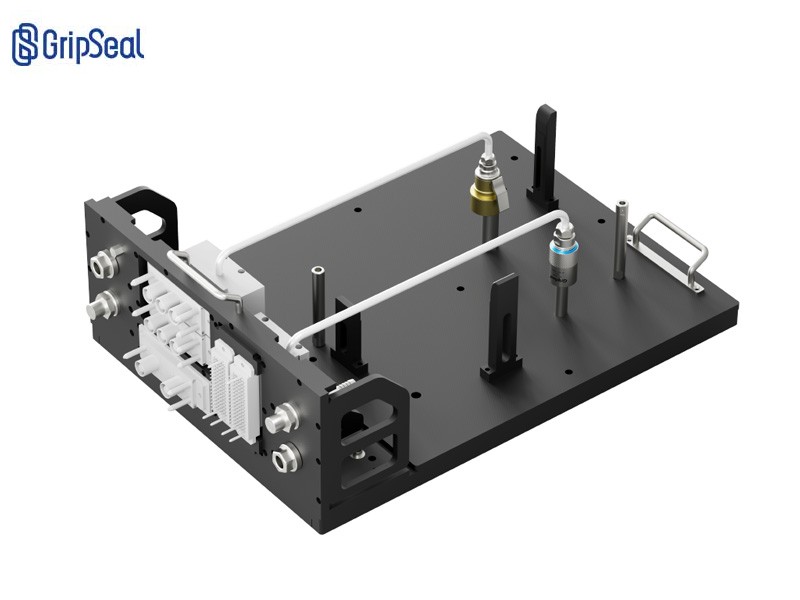

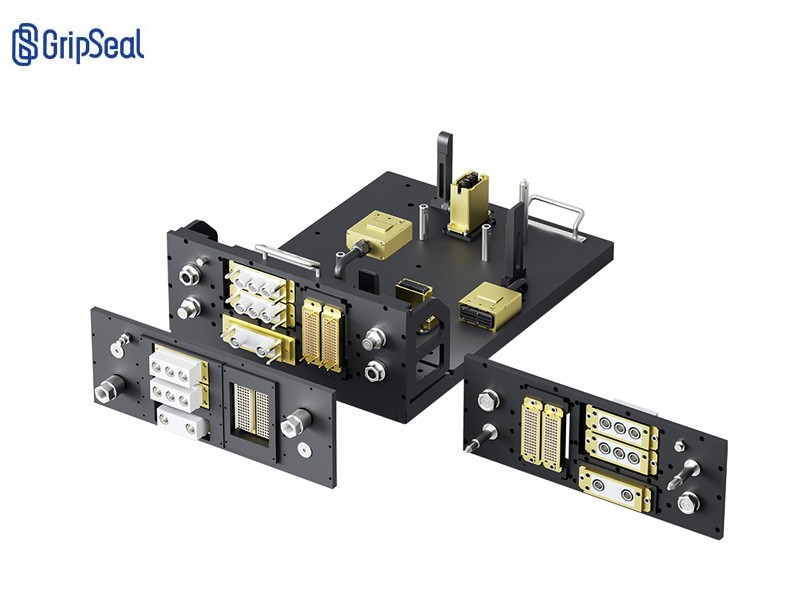

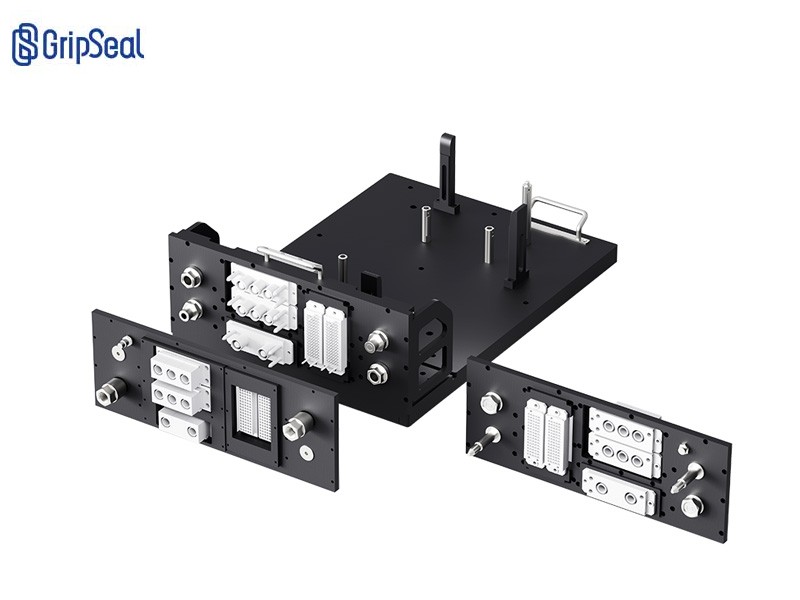

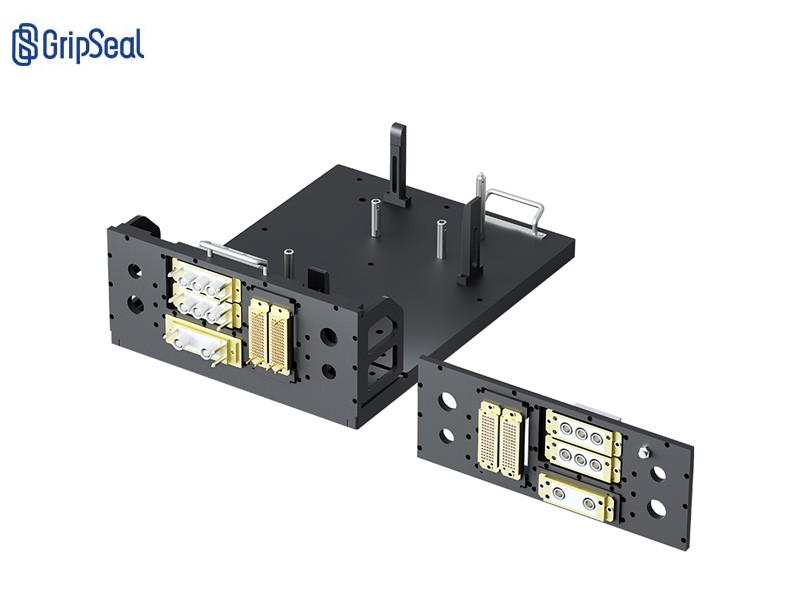

Pneumatic-electro-hydraulic docking system

A gas-electro-hydraulic docking system consists of a fixed plate, one or more modular electrical connectors, and a combination of automatic male and female connectors, excluding tray test electrical connectors, quick-seal fittings, and associated wiring or takeover services. A docking plate project may consist of one or more gas-electro-hydraulic docking systems.

Service Hotline: 0755-86215125

Product details

naming convention

NAMING RULE

Butt plate femaleC9S(Usually used on the device side)

C9S-Item number+serial number

Butt plate maleC9P(Usually used for tray ends)

C9P-Item number+serial number
