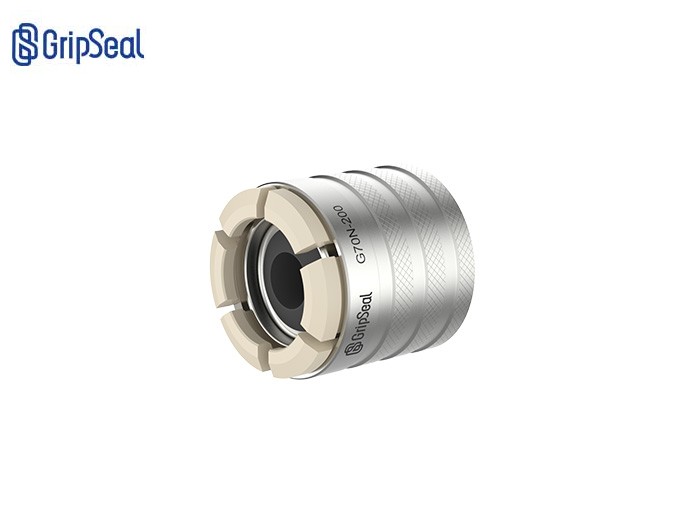

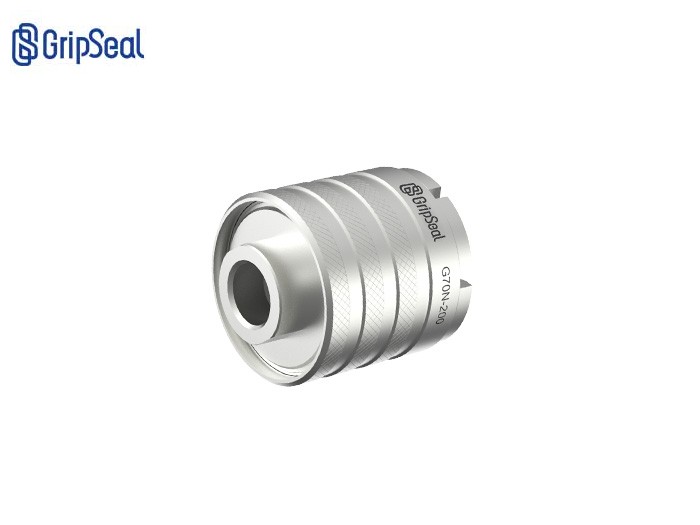

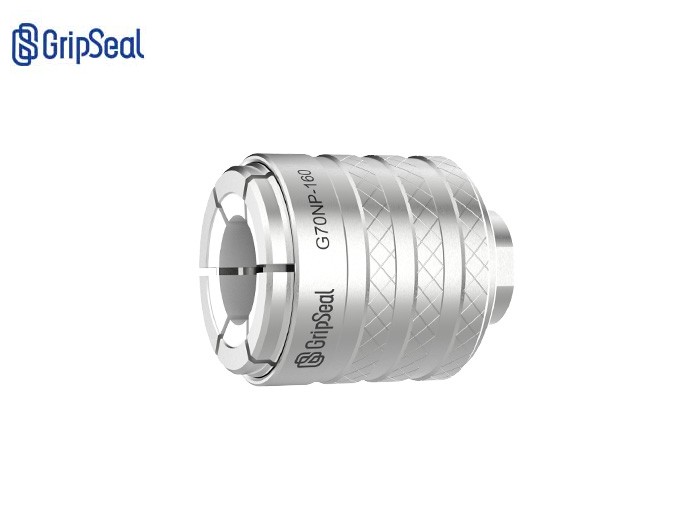

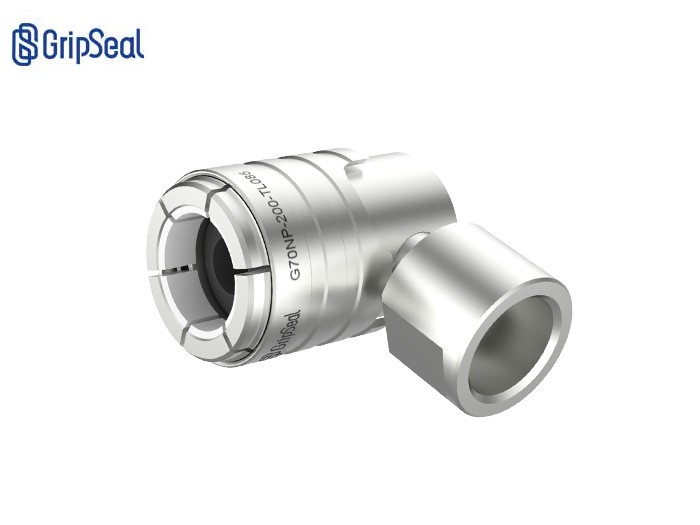

G70NP Mini Lossless Quick Connector

G70NP series connectors, with a smaller outer diameter and shorter length than G70P, are quick connectors designed for narrow spaces. With the same pipe diameter seal, this connector has the smallest size and a non-destructive gripping structure. It includes a side-out design, making it compact and practical.

Service Hotline: 0755-86215125

Product details

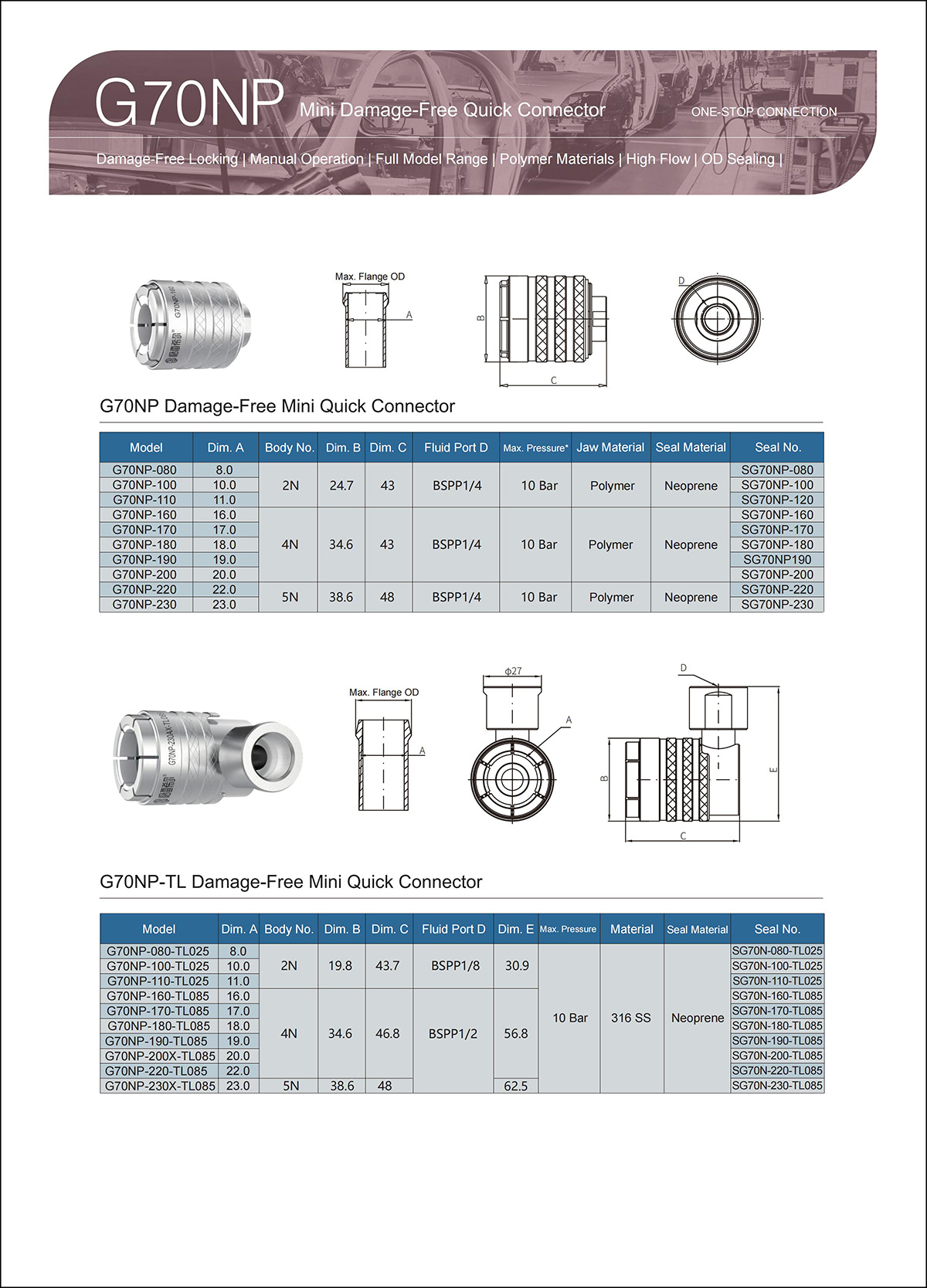

Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to10Bar
Sealing range	Refer to the selection table
Top raised width	4mm-8mm
traffic interface	Refer to the selection table
main material	316stainless steel
Main sealing ring material	Neoprene, silicone
Internal sealing ring material	Nitrile rubber, EPDM
operating temperature	-20℃-120℃

Product video

G70NPConventional Quick Seal Connectors-Use the operation tutorial

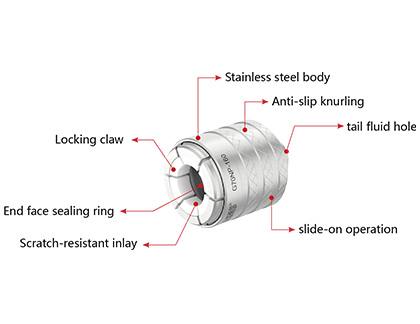

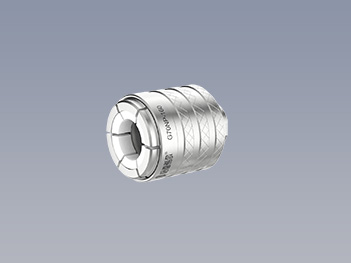

Product features

Product parameters

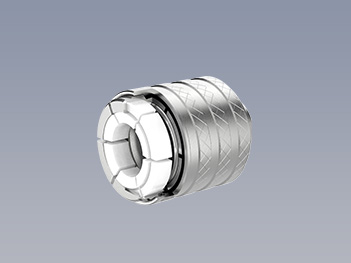

: Polymer claws: no scratches on customer products

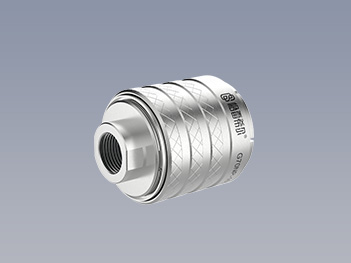

: Reticulated knurling: increases friction and is easy to operate

: Sliding sleeve structure: easy to push to achieve locking and disconnection

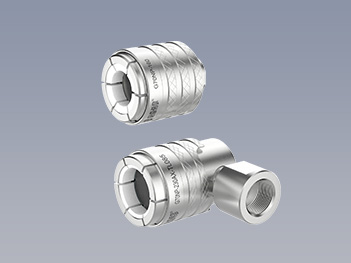

: through andLType optional

: Limit small size

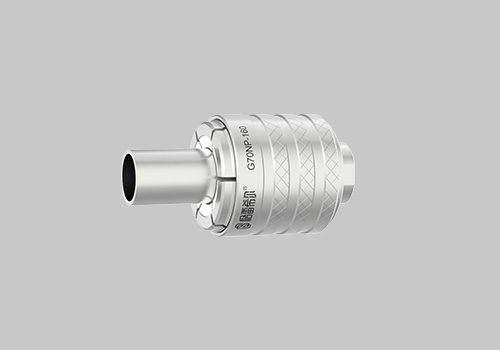

operation method

Operation method

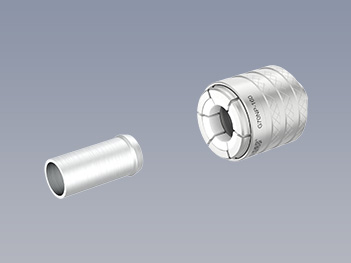

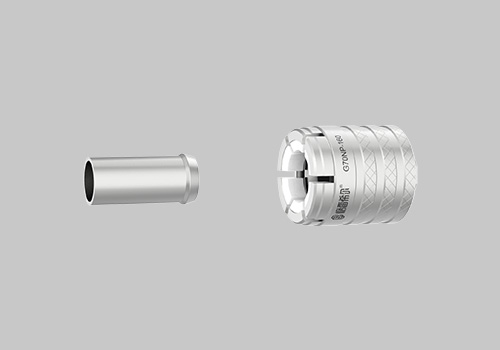

: Step one.

Align the fitting to be sealed.

: second step

Push the connector to form a connection

Application case

Application cases

New energy battery water cooling board test

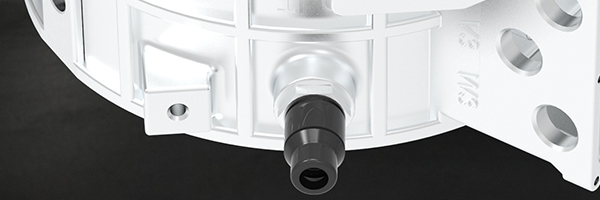

Motor cooling system
Engine cooling water channel test

Get the application solution now
