G70P Series Shaped Tube Lossless Connectors

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Pipe Type » Fuel Pipe Seal Connectors » G70P series lossless quick connector

prve

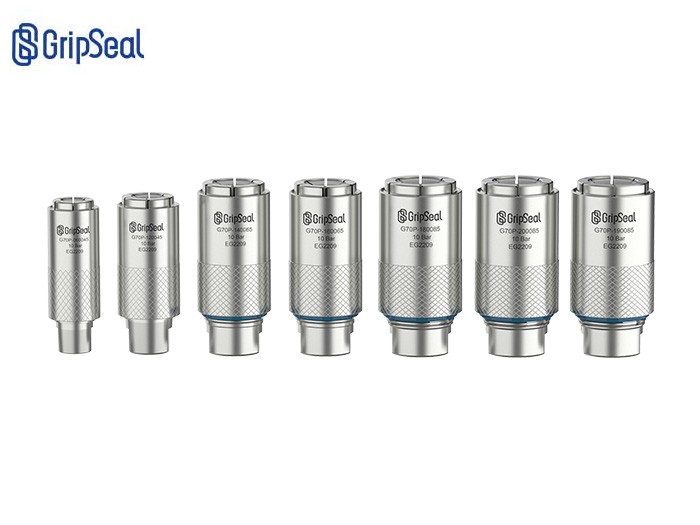

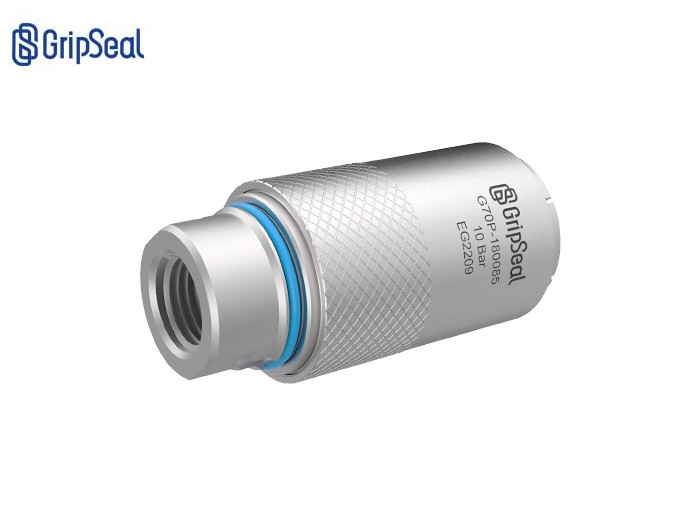

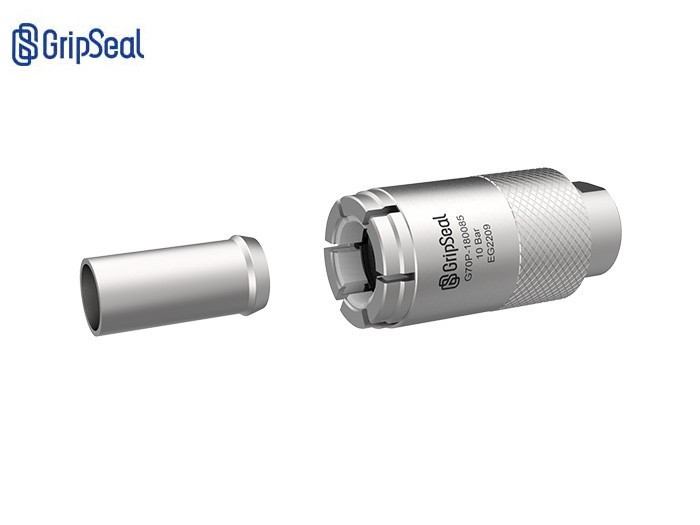

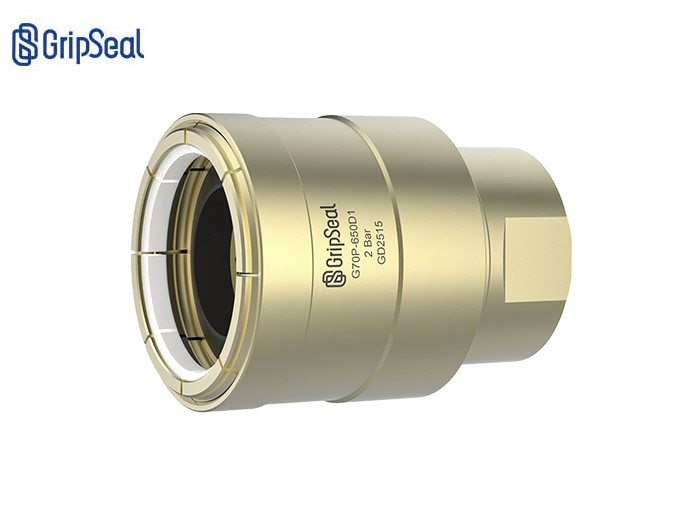

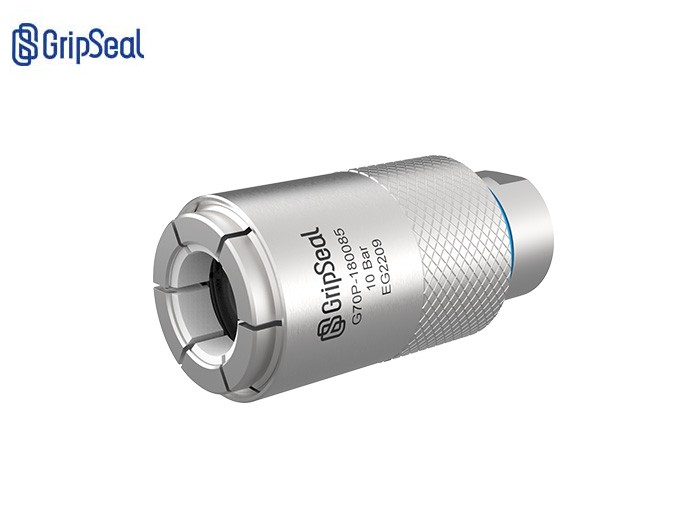

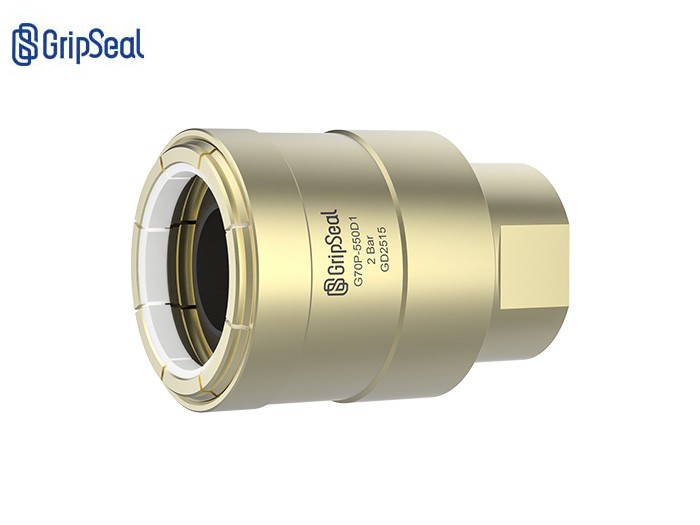

G70P series lossless quick connector

The G70P series connector is a special version based on the traditional G70 external card connector. In order to prevent scratches, the material of the customer's product is aluminum alloy or engineering plastic. The locking claw, which will come into contact with the surface of the customer's product, has been improved to achieve non-destructive connection to the customer's product under the premise of ensuring the sealing of the connector and the life of the claw.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to10Bar
Sealing range	Refer to the selection table
Top raised width	4mm-8mm
traffic interface	Refer to the selection table
main material	316stainless steel
Main sealing ring material	Neoprene, silicone
Internal sealing ring material	Nitrile rubber, EPDM
operating temperature	-20℃-120℃

Product video

G70PConventional Quick Seal Connectors-Use the operation tutorial

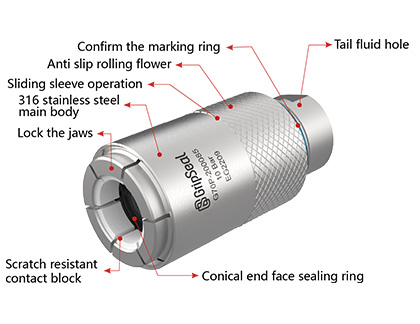

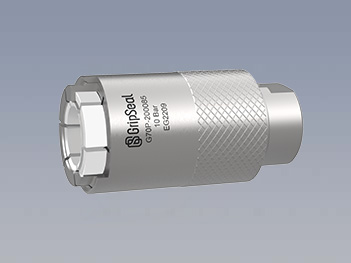

Product features

Product parameters

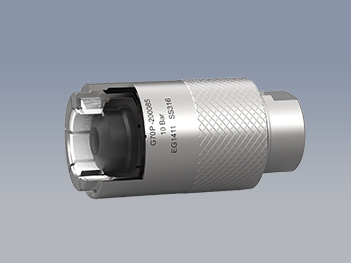

: Polymer claws: no scratches on customer products

: Reticulated knurling: increases friction and is easy to operate

: Sliding sleeve structure: easy to push to achieve locking and disconnection

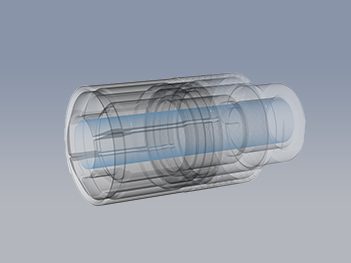

: Pass-through design: reduce the loss of traffic and ensure the accuracy of test results

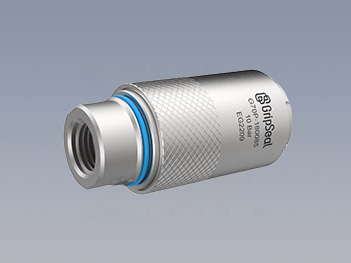

: End face sealing ring: simple to replace and easy to maintain

operation method

Operation method

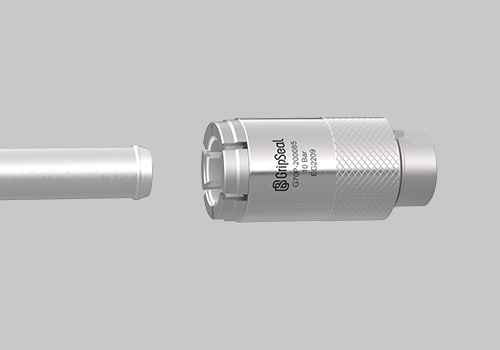

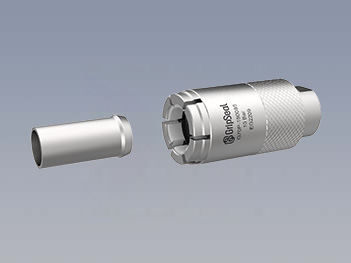

: Step one.

Align the fitting to be sealed.

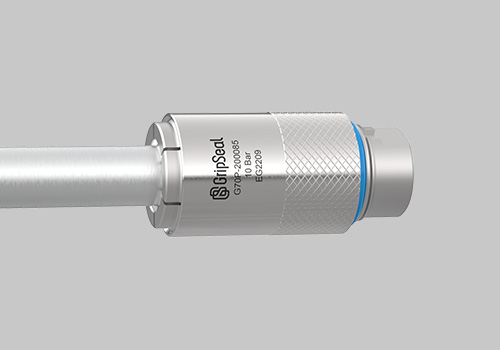

: second step

Push the connector to form a connection

Application case

Application cases

New energy battery water cooling board test
Motor cooling system
Engine cooling water channel test

Get the application solution now

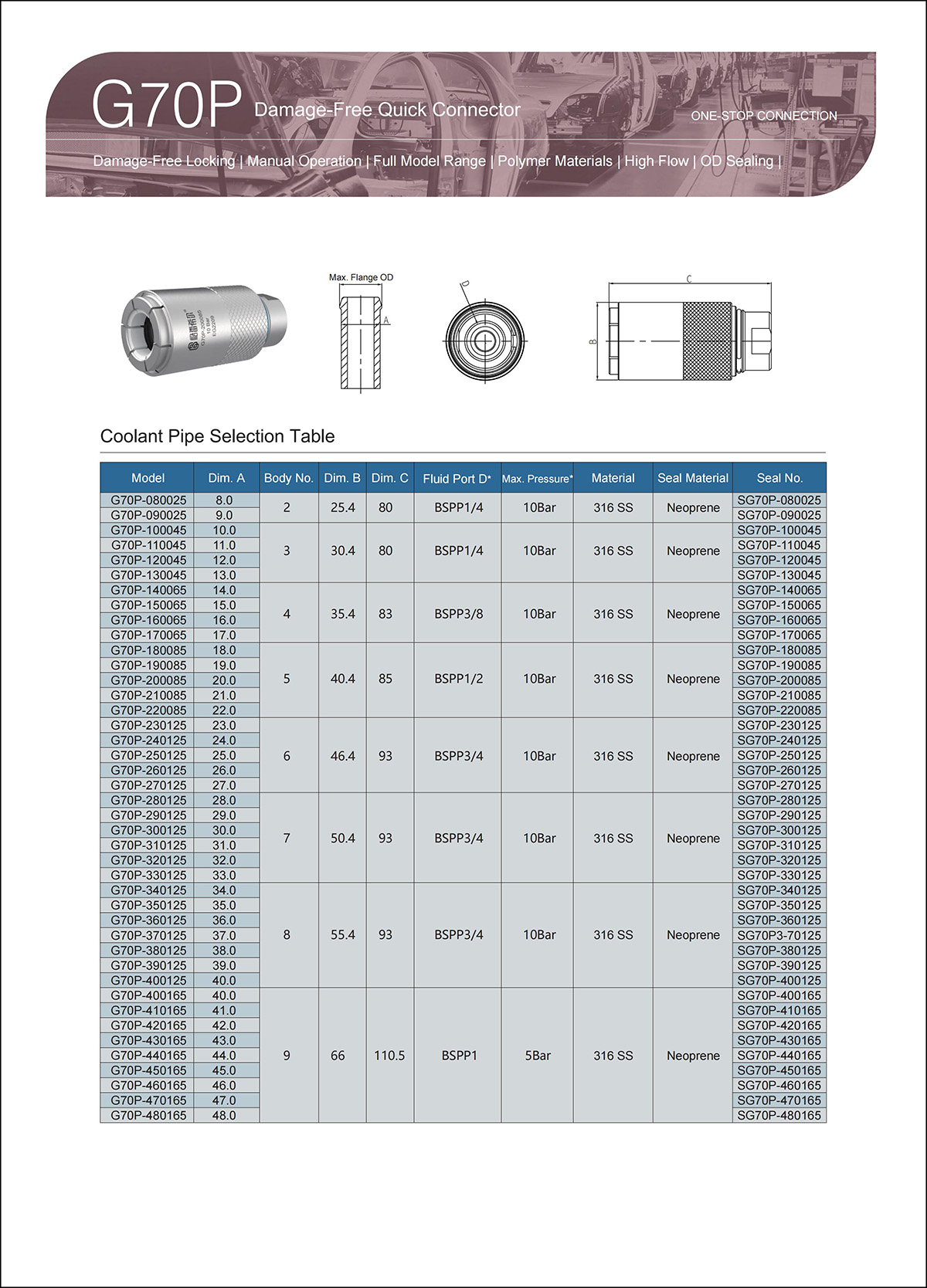

G70P Selection Table1

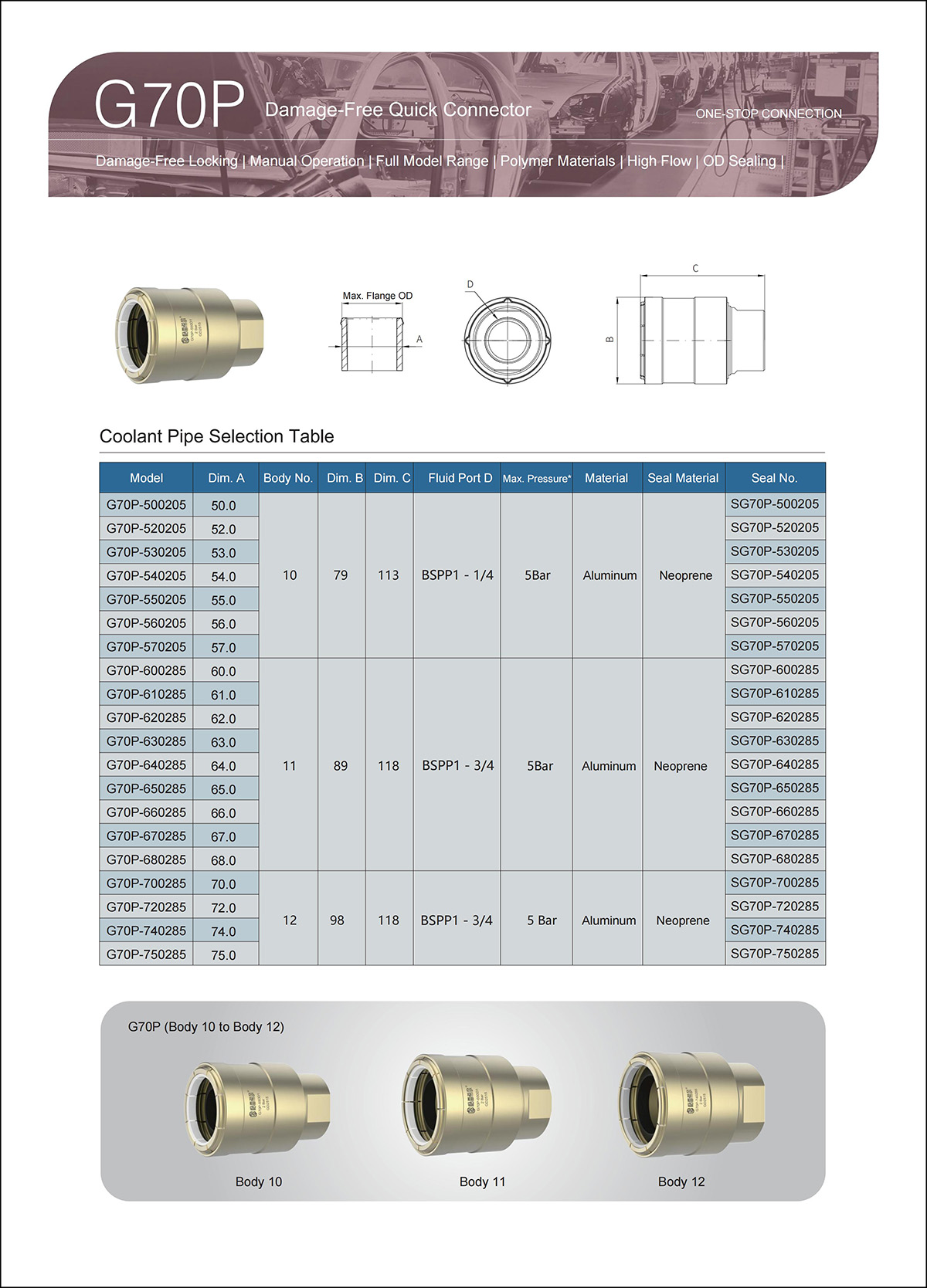

G70P Selection Table2

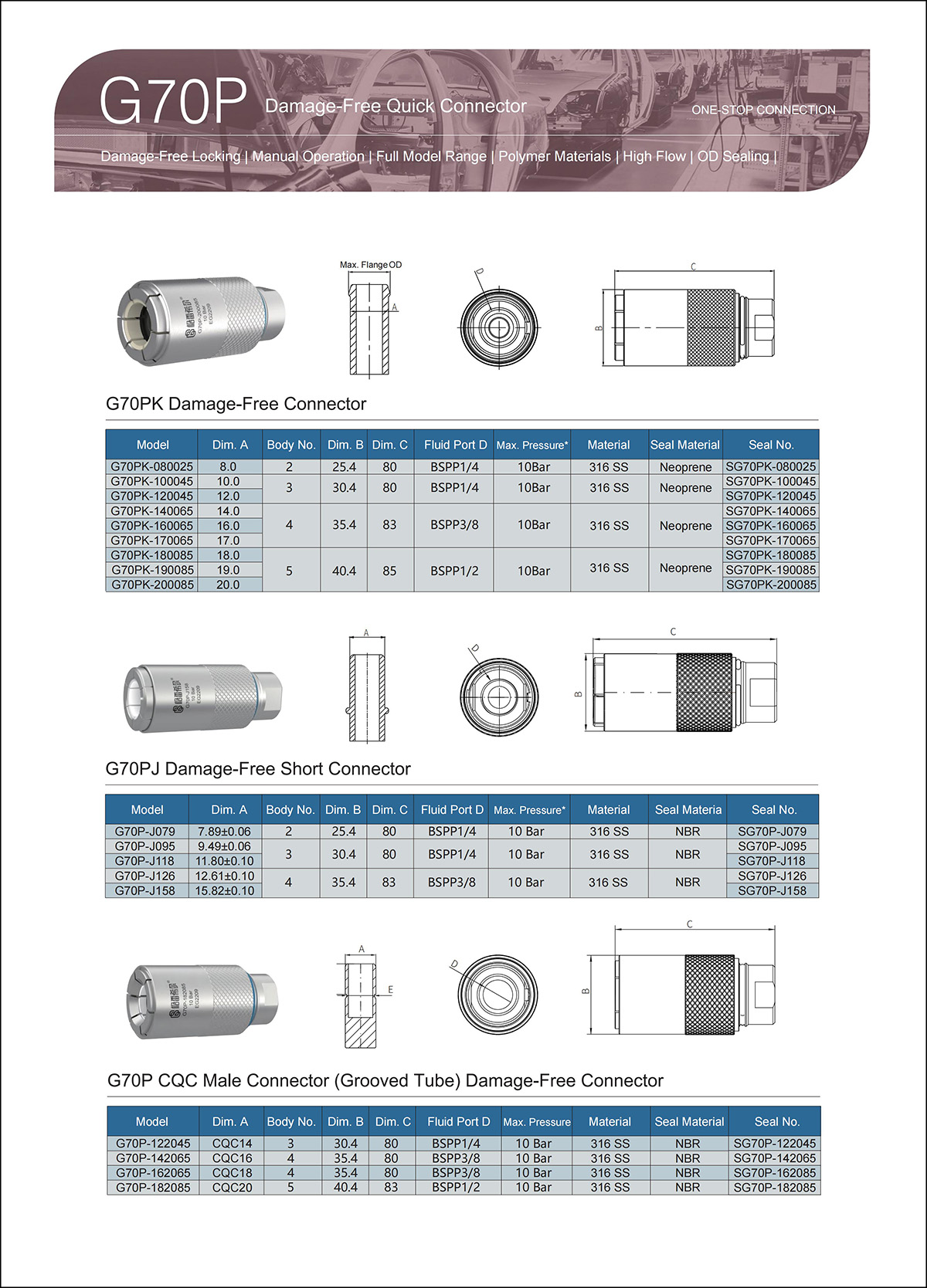

G70P Selection Table3
