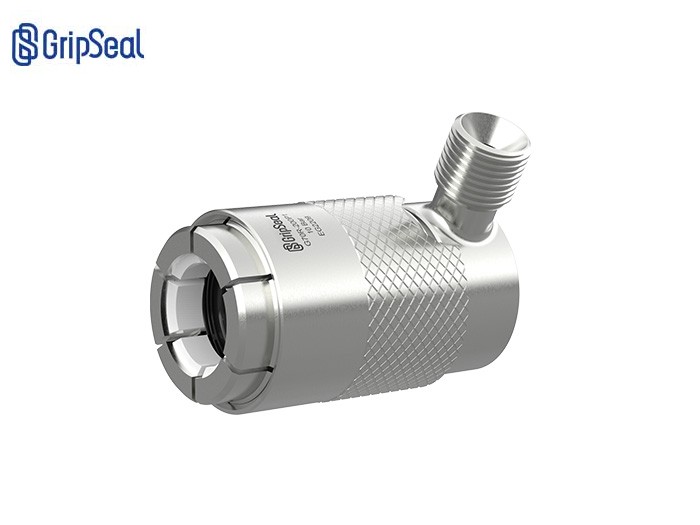

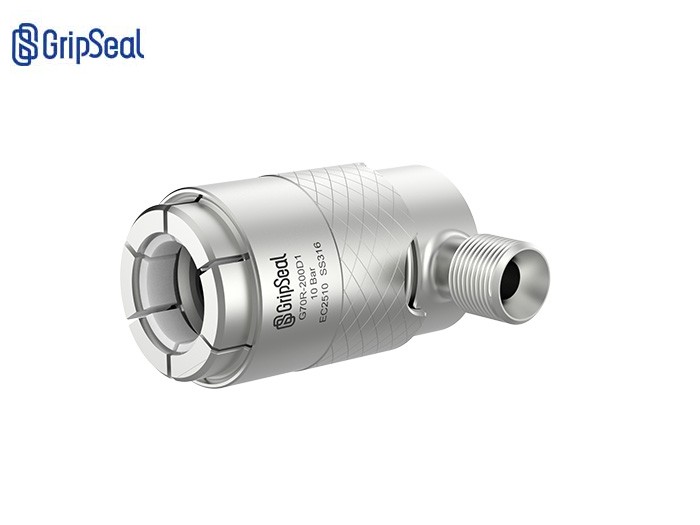

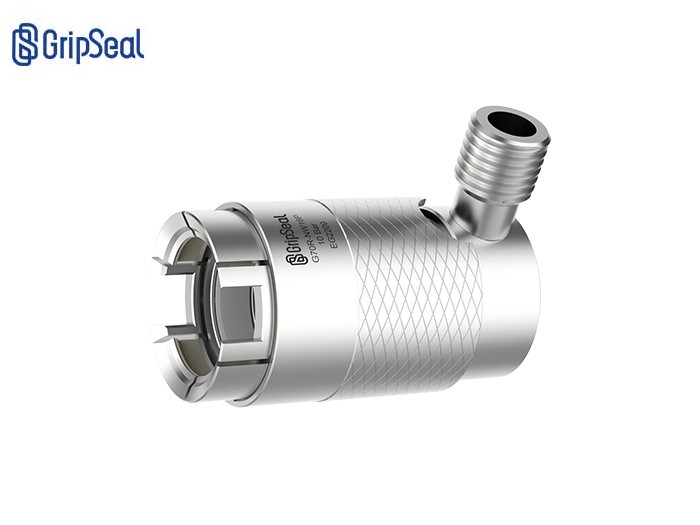

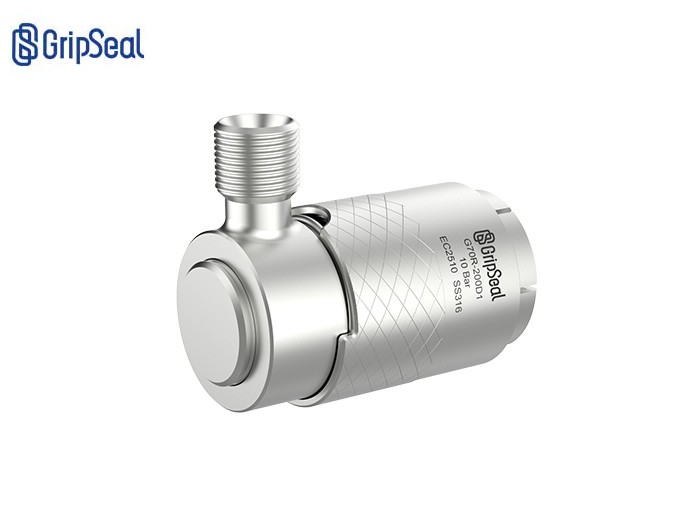

G70RP Rotary sleeve lossless quick connector

The G70RP series connector is a quick connector with a rotating interface at the tail. The front end grabbing part retains the design of non-destructive inserts, and the tapered sealing ring seals. The tail rotating sleeve can realize 360 ° rotation, which is convenient for arranging test pipelines. The sleeve is left with a locking notch. After the connection is completed, it is turned to the notch to ensure that the connection will not be accidentally disconnected.

Service Hotline: 0755-86215125

Product details

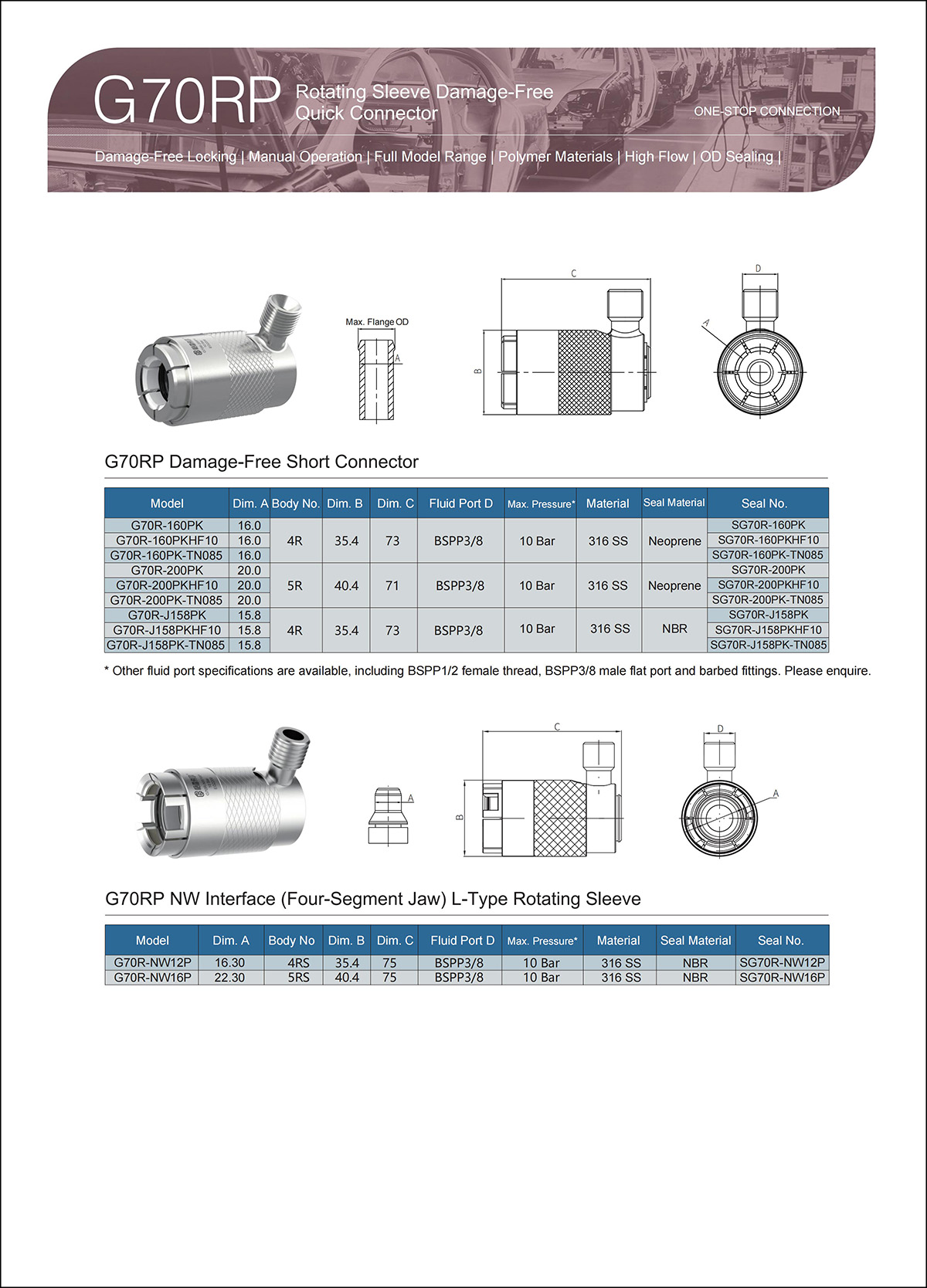

Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to10Bar
Sealing range	Refer to the selection table
Top raised width	4mm-8mm
traffic interface	Refer to the selection table
main material	316stainless steel
Main sealing ring material	Neoprene, silicone
Internal sealing ring material	Nitrile rubber, EPDM
operating temperature	-20℃-120℃

Product video

G70RPConventional Quick Seal Connectors-Use the operation tutorial

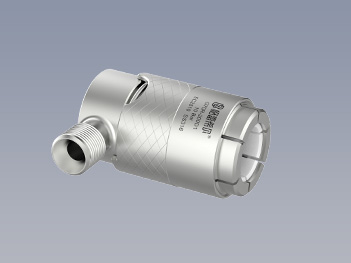

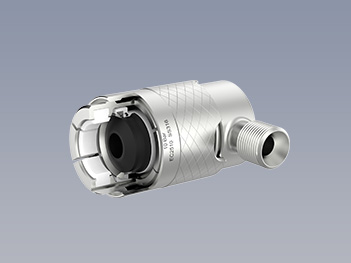

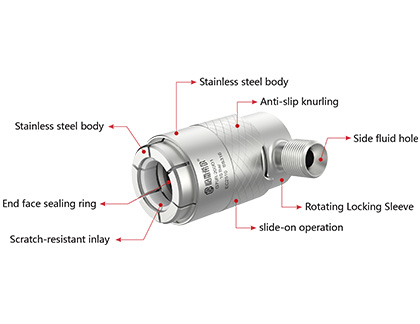

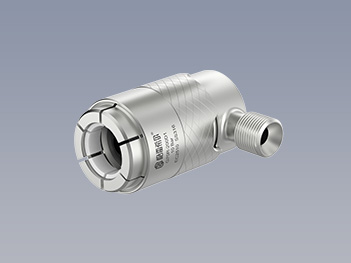

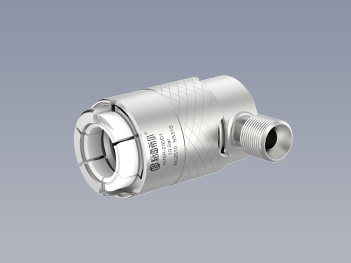

Product features

Product parameters

: Polymer claws: no scratches on customer products

: Rotary sleeve locking: prevent test loosening and ensure test safety

: Sliding sleeve structure: easy to push to achieve locking and disconnection

: Side water intake: shorter joints, suitable for tight spaces

: End face sealing ring: simple to replace and easy to maintain

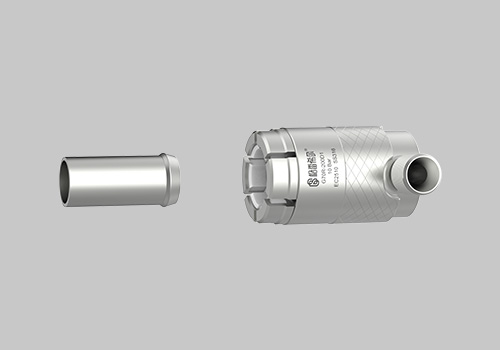

operation method

Operation method

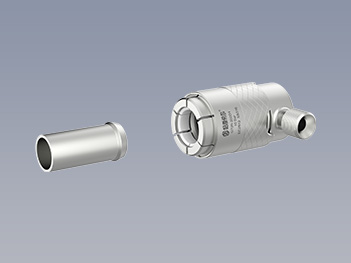

: Step one.

Align the fitting to be sealed.

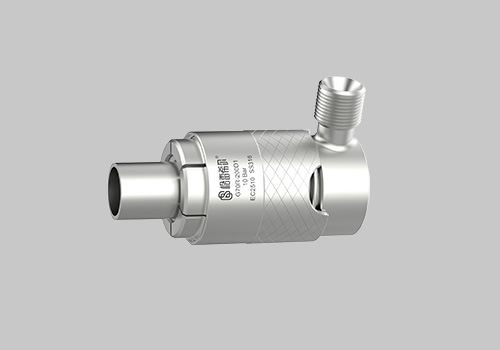

: second step

Push the connector to form a connection

Application case

Application cases

New energy battery water cooling board test
Motor cooling system
Engine cooling water channel test

Get the application solution now
