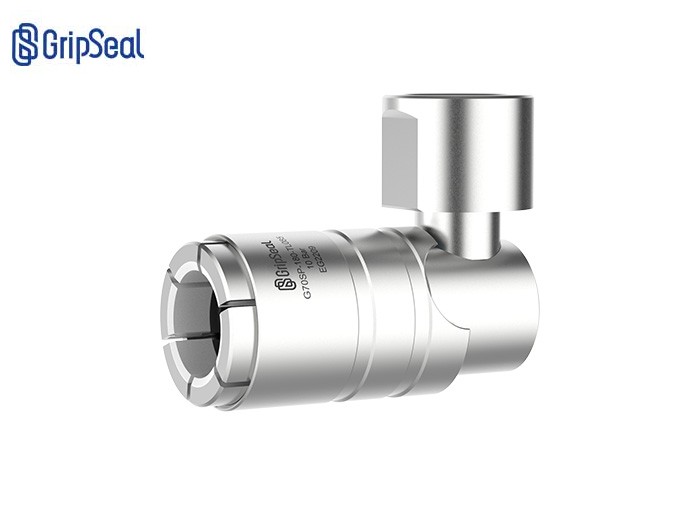

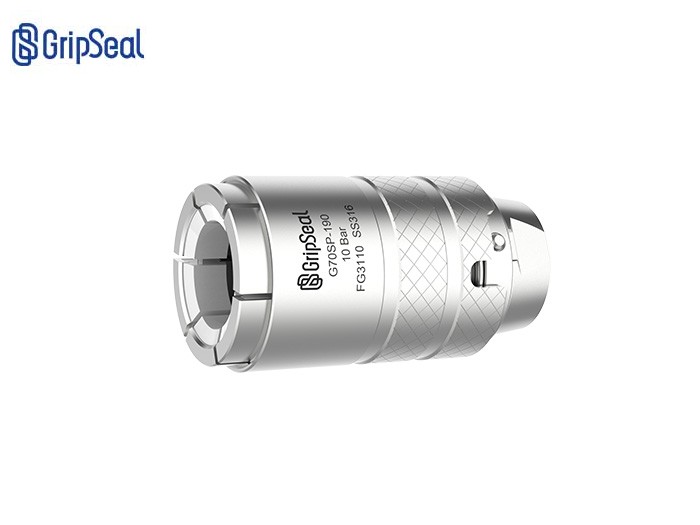

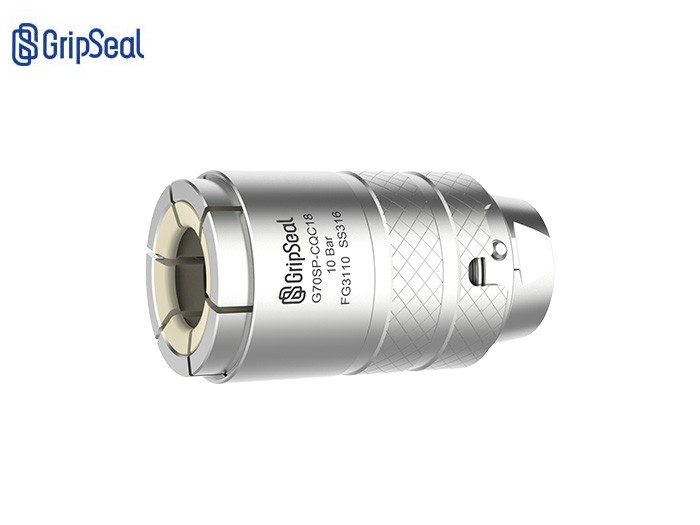

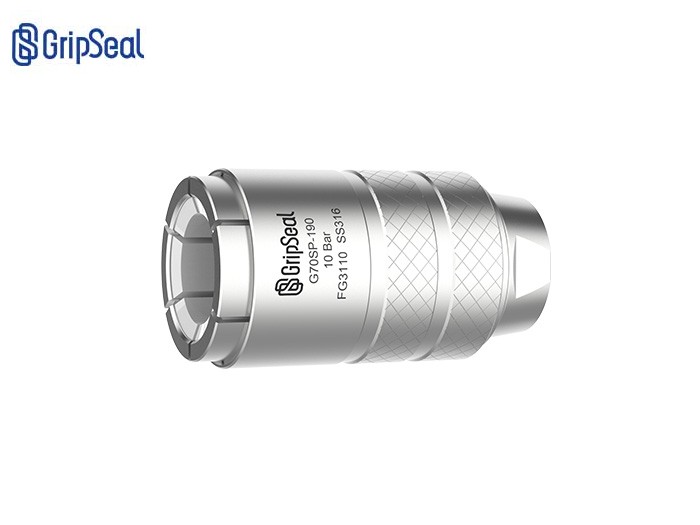

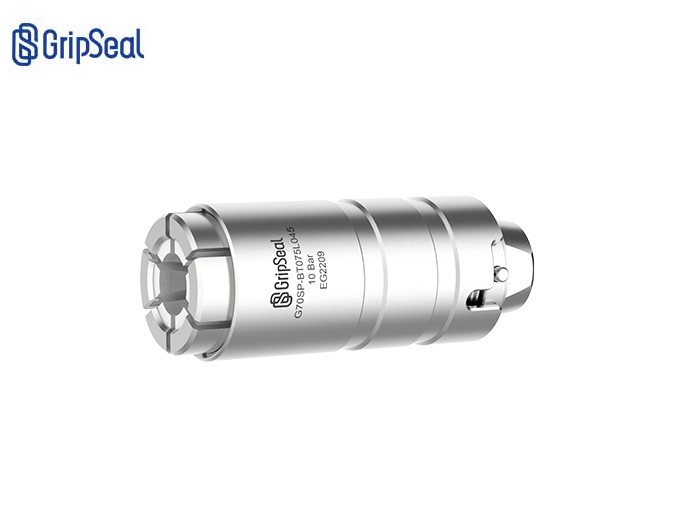

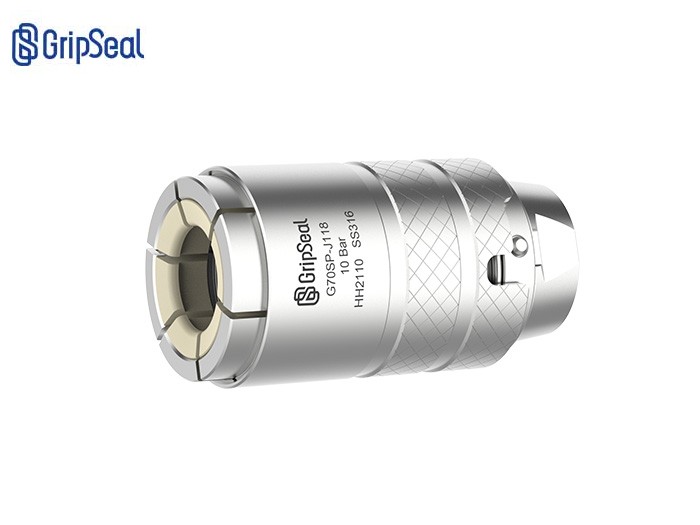

G70SP small body lossless quick connector

The G70SP series connector is a special version based on the traditional G70 external card connector. It adopts the method of inlaid plastic minions to achieve non-destructive grabbing test function, and at the same time reduces the external size, reducing the outer diameter of the same caliber products on the market by about 5mm. It is suitable for various test scenarios. The tail is equipped with a safety lock structure, and the high-pressure application can ensure that the joint will not open accidentally.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to10Bar
Sealing range	Refer to the selection table
Top raised width	4mm-8mm
traffic interface	Refer to the selection table
main material	316stainless steel
Main sealing ring material	Neoprene, silicone
Internal sealing ring material	Nitrile rubber, EPDM
operating temperature	-20℃-120℃

Product video

G70SPQuick Seal Connector-Introduction video

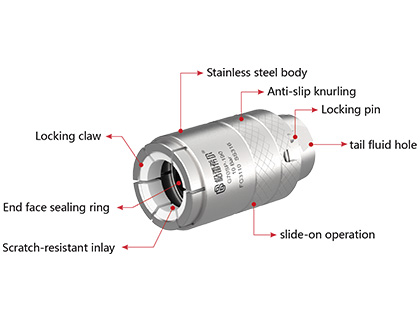

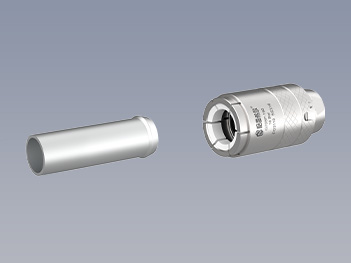

Product features

Product parameters

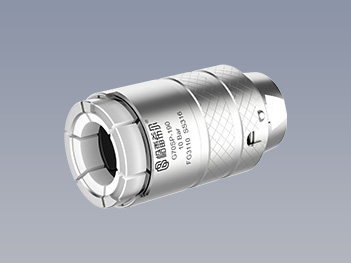

: Polymer claws: no scratches on customer products

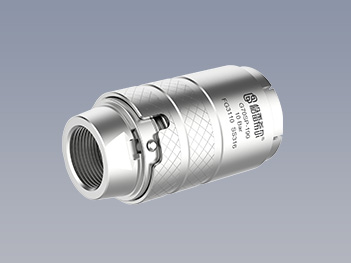

: Safety locking ring: prevent test loosening and ensure test safety

: Sliding sleeve structure: easy to push to achieve locking and disconnection

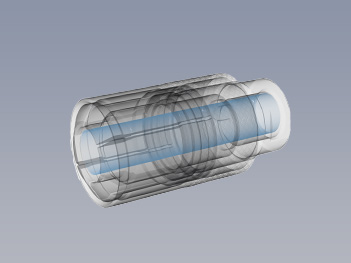

: Pass-through design: reduce the loss of traffic and ensure the accuracy of test results

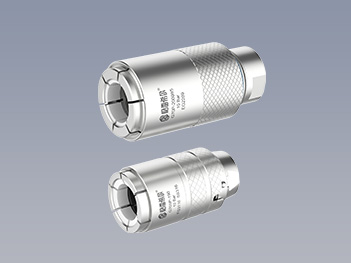

: Compact size: for location interference scenarios

operation method

Operation method

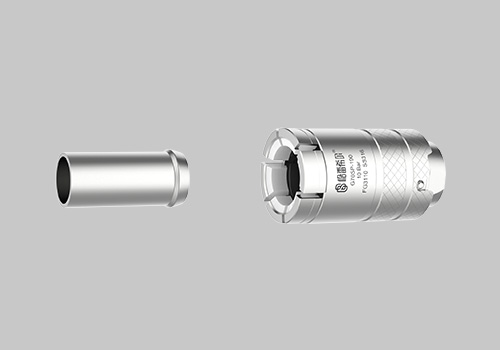

: Step one.

Align the fitting to be sealed.

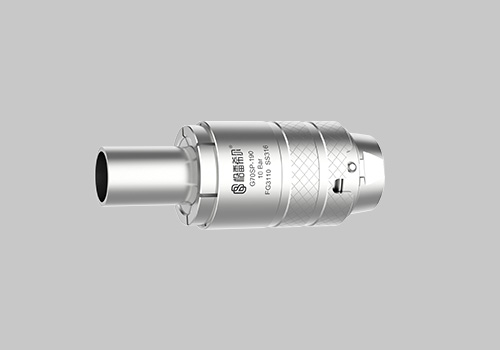

: second step

Push the connector to form a connection

Application case

Application cases

New energy battery water cooling board test
Motor cooling system
Engine cooling water channel test

Get the application solution now

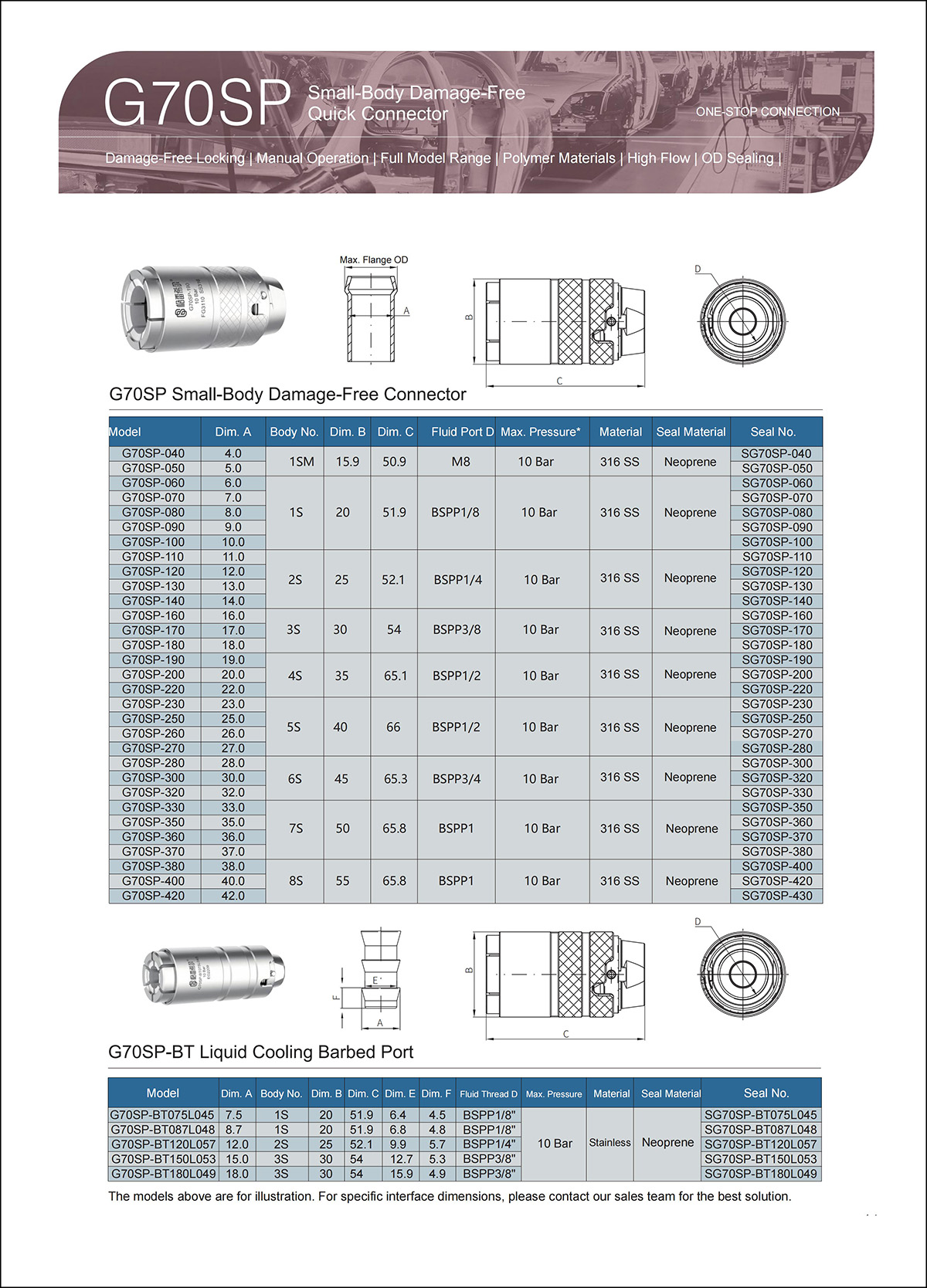

G70SP Parameter selection table1

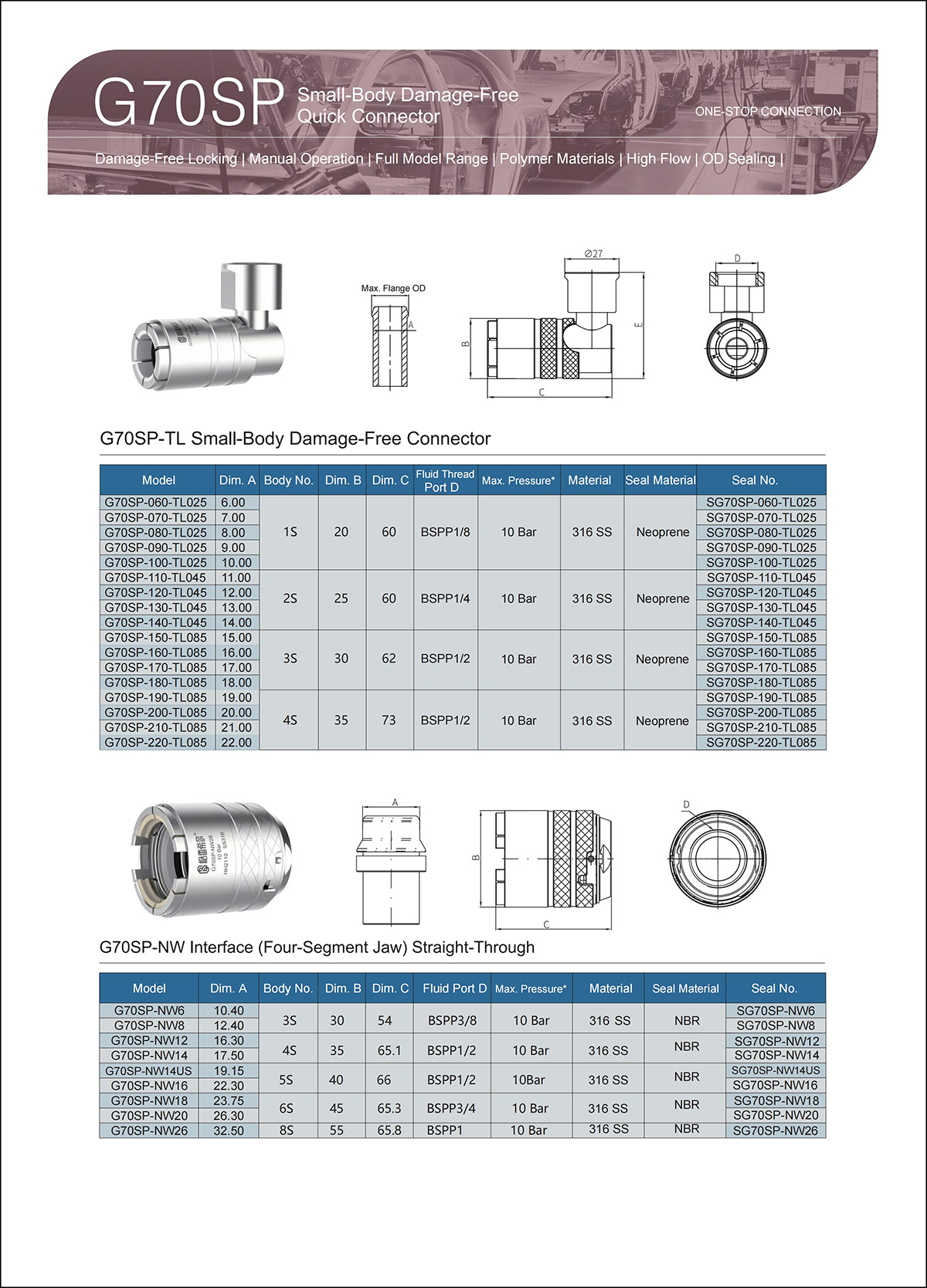

G70SP Parameter selection table2

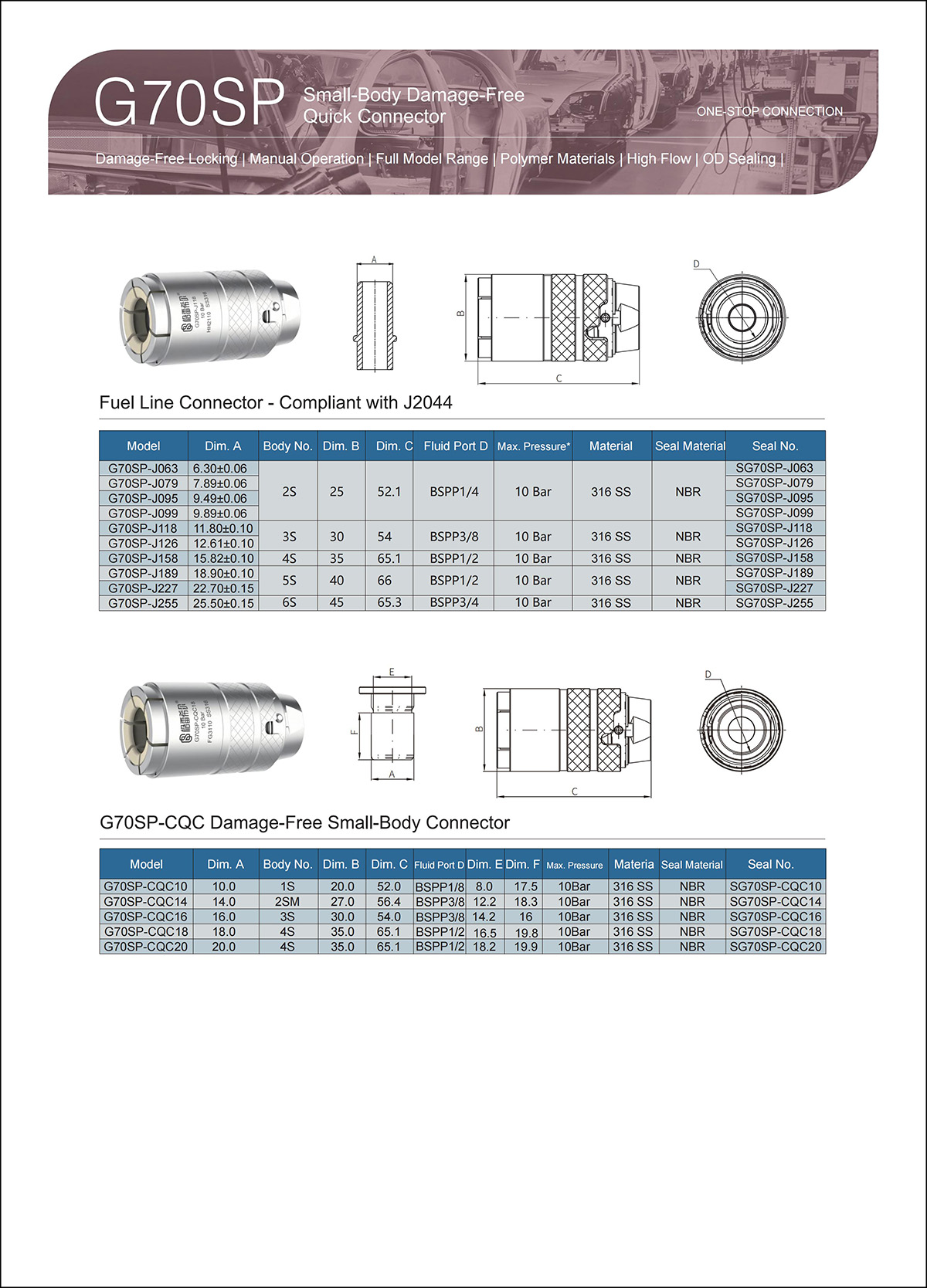

G70SP Parameter selection table3
