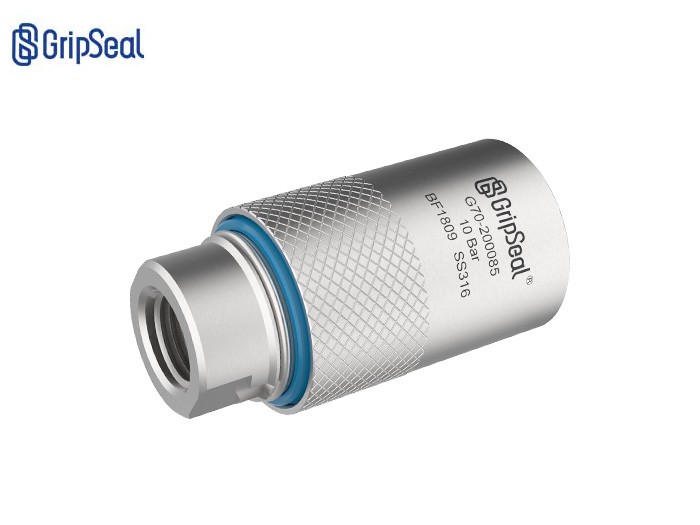

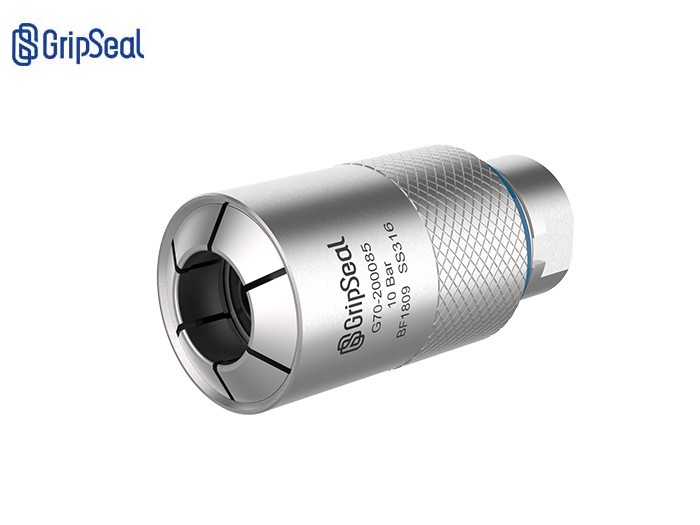

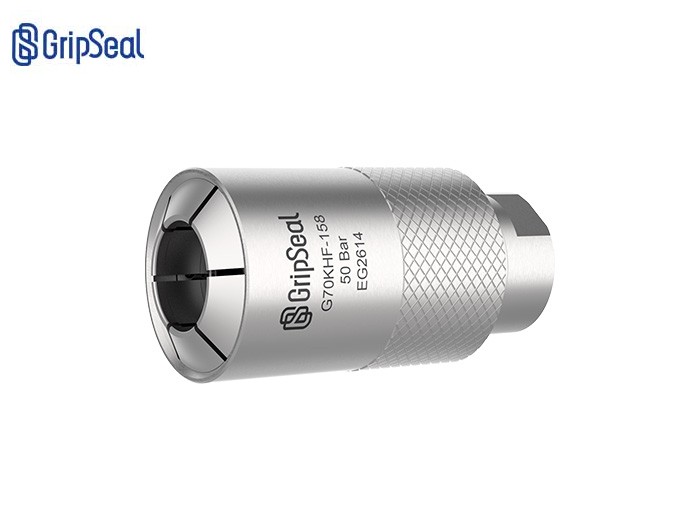

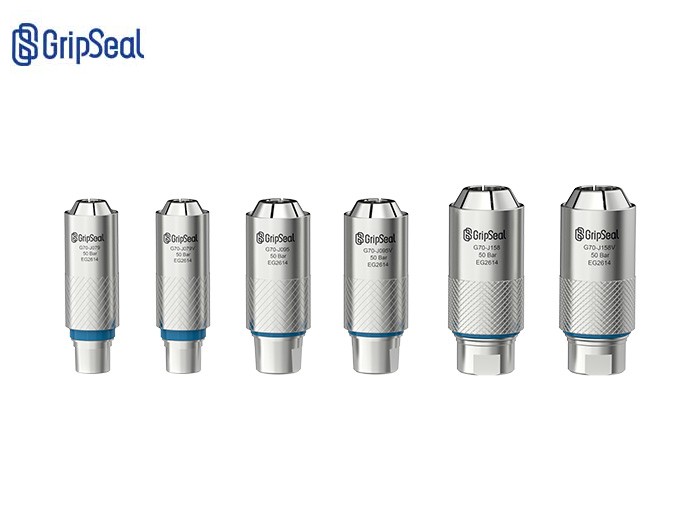

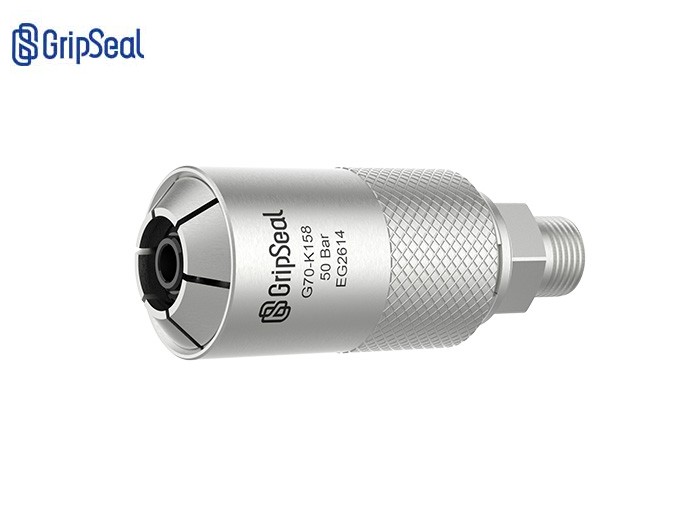

G70 series special-shaped tube quick connector

G70 series connector is an external card connector, which is widely used in air tightness test, operation test, aging test of various cooling water pipe, fuel pipe and other special-shaped pipes. Compact structure, can be held with one hand, simple to use, hand-held nudge can complete the connection.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to70Bar
Sealing range	Refer to the selection table
Top raised width	4mm-8mm
traffic interface	Refer to the selection table
main material	316stainless steel
Main sealing ring material	Neoprene rubber, nitrile rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

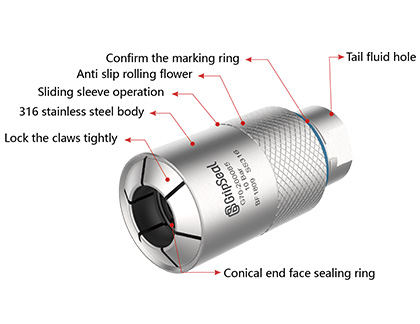

G70Series special-shaped pipe connectors

Product video

G70Conventional Quick Seal Connectors-Use the operation tutorial

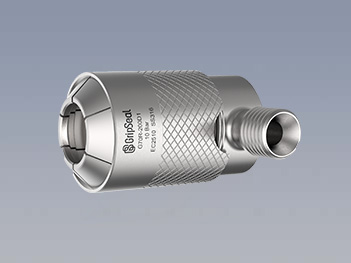

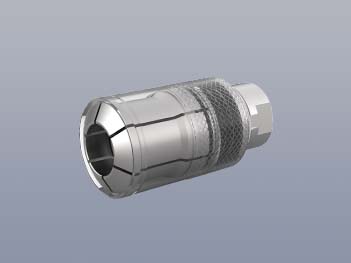

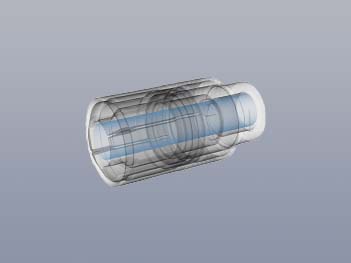

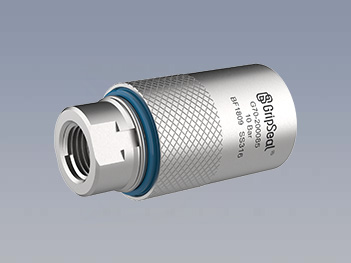

Product features

Product parameters

: External clamp jaw locking, direct grab tube end raised feature

: Reticulated knurling for increased friction and easy operation

: Sliding sleeve structure, easy to push to achieve locking and disconnection

: Pass-through design to reduce the loss of traffic and ensure the accuracy of test results

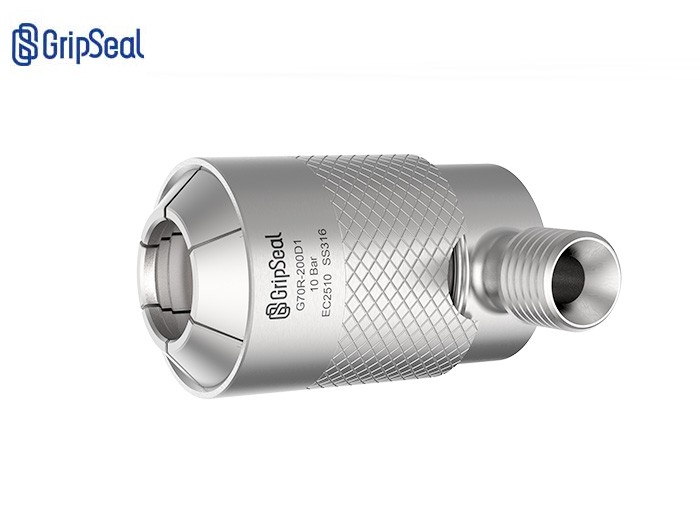

: Side water intake:G70RType, with side water inlet option, shorter connector, suitable for tight spaces

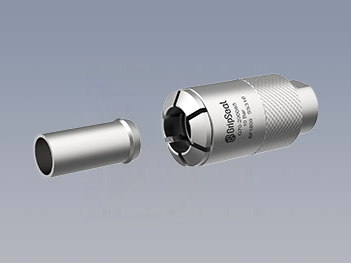

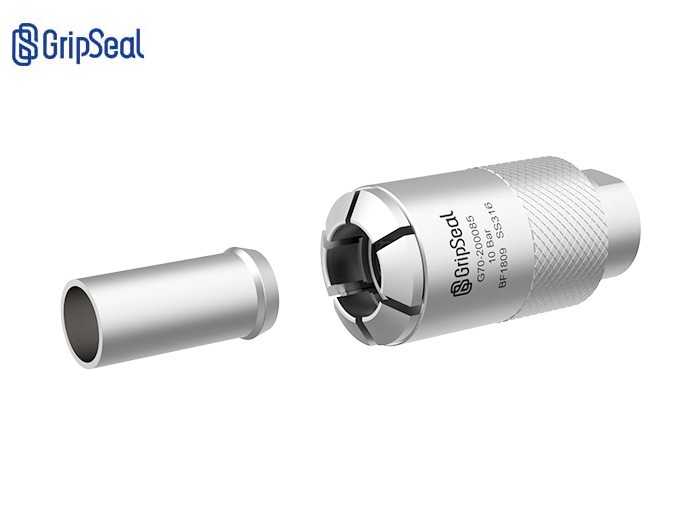

operation method

Operation method

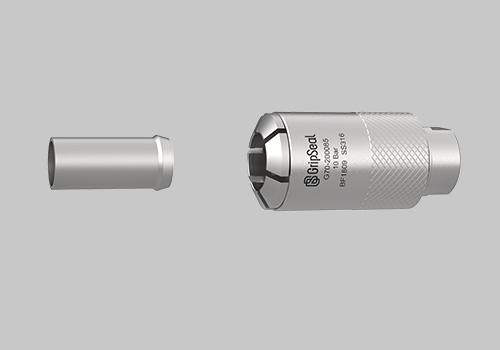

: Step one.

Align the joint to the pipe to be sealed

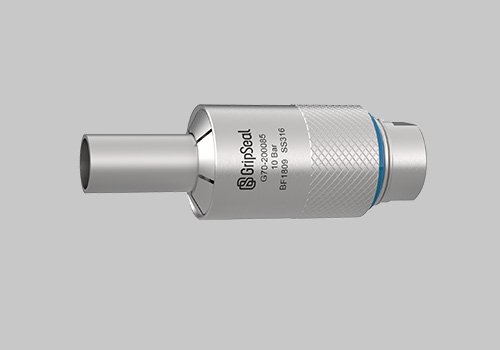

: second step

Push the joint to form a seal

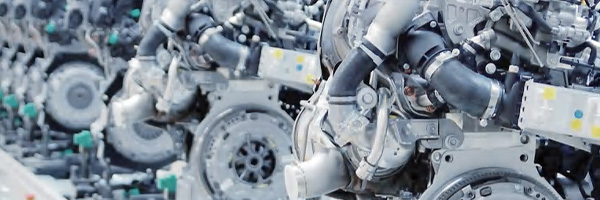

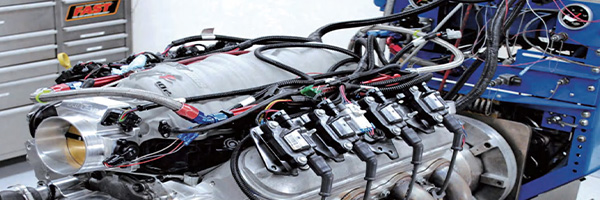

Application case

Application cases

Get the application solution now

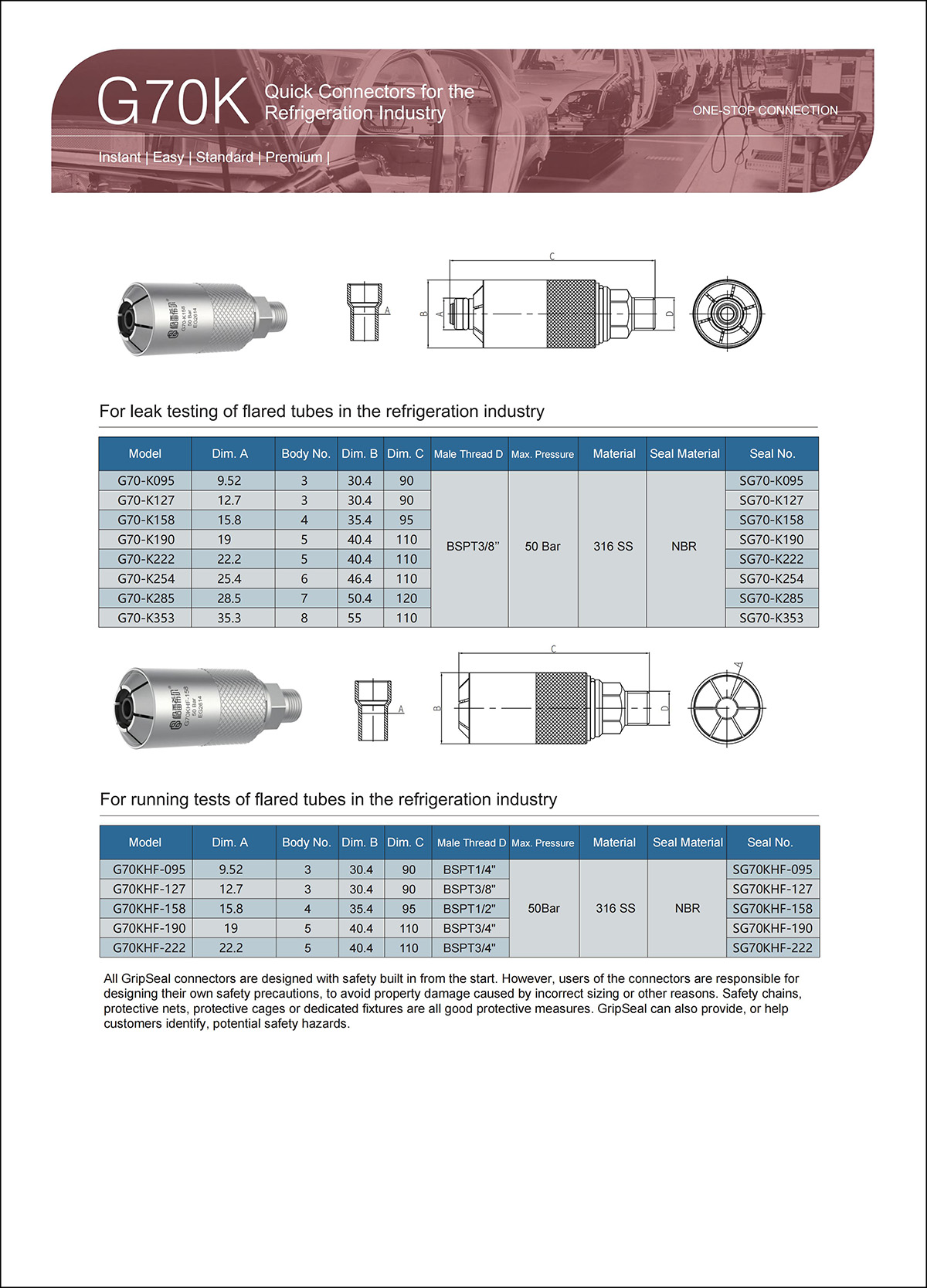

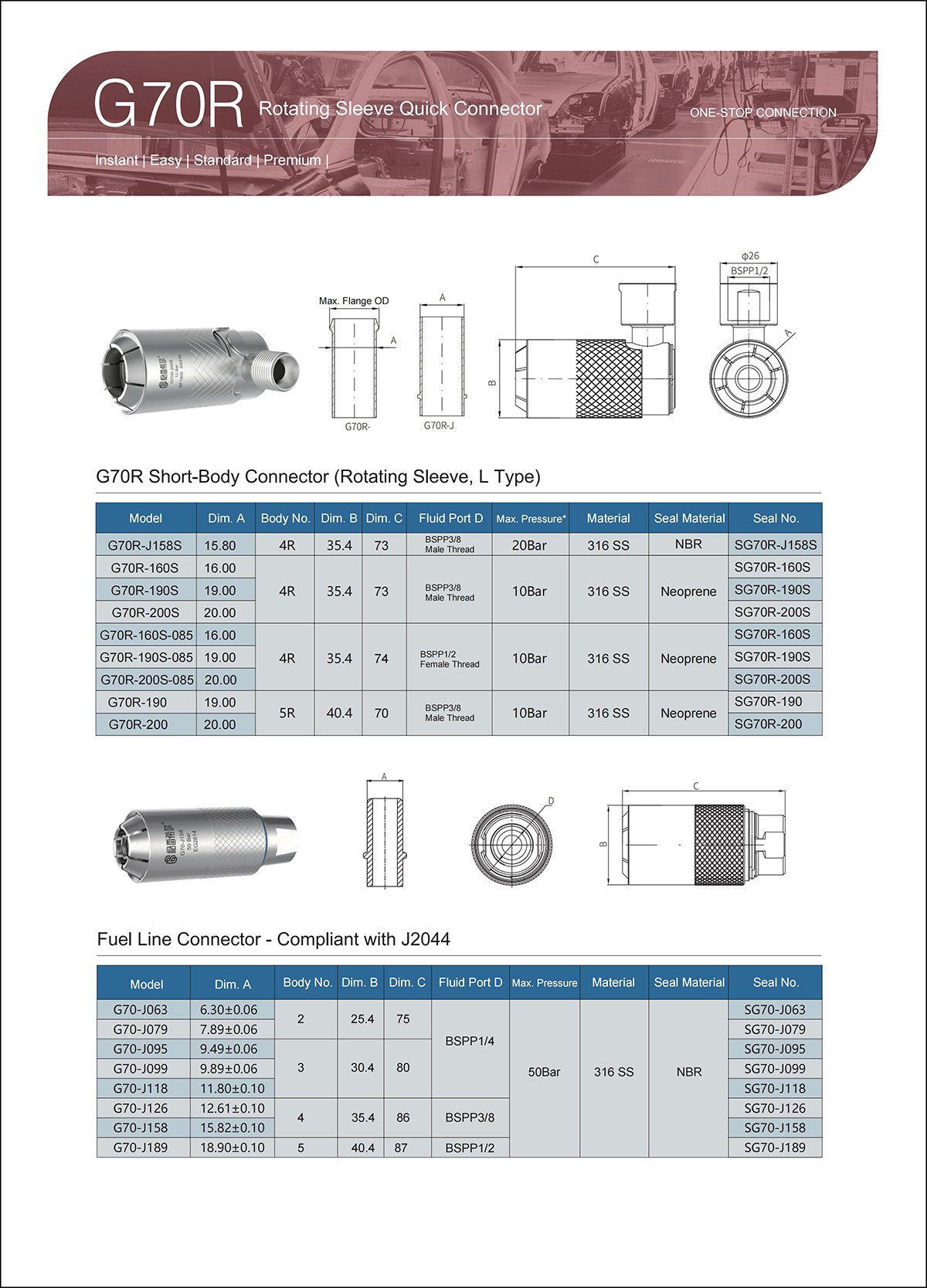

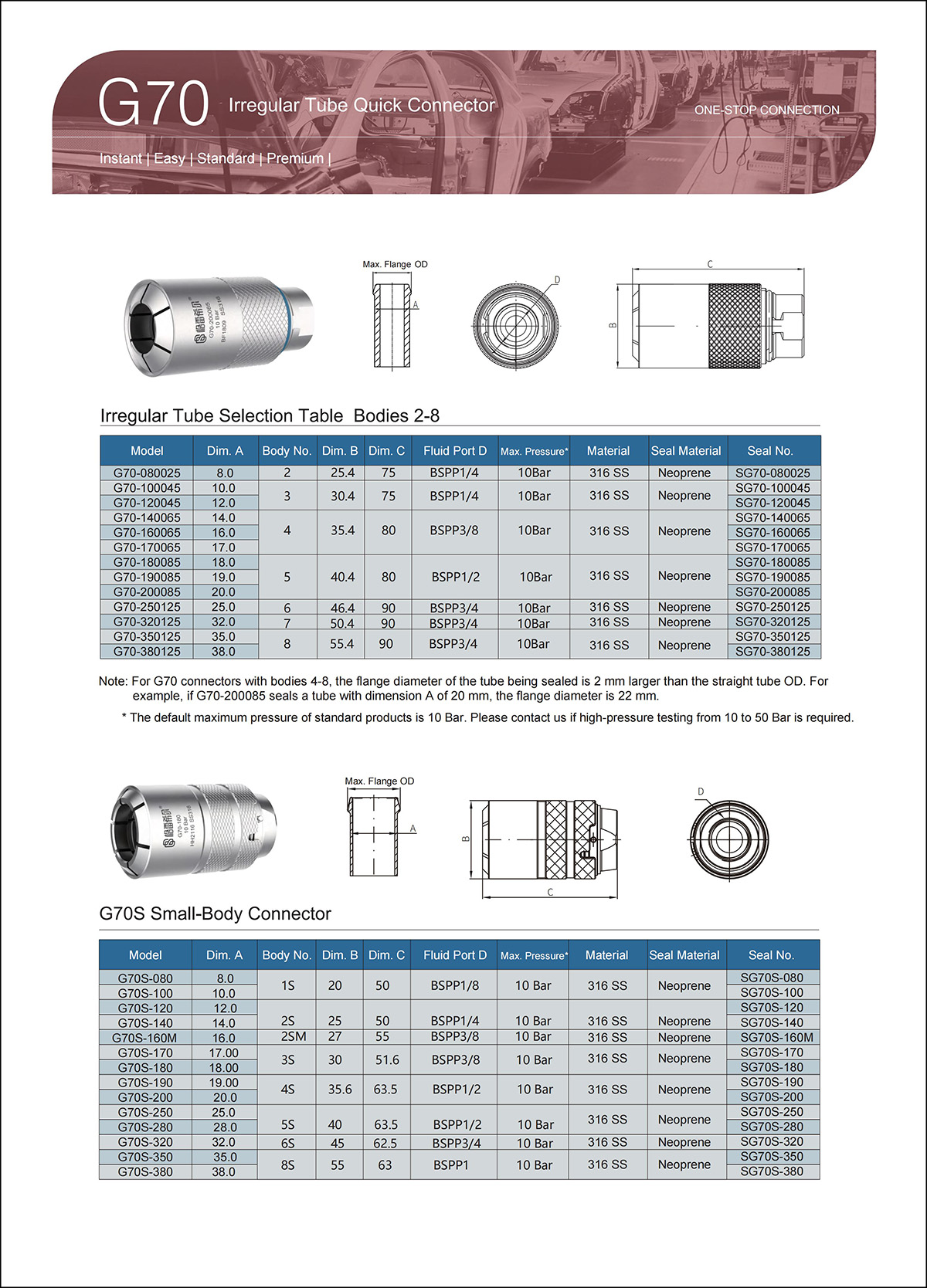

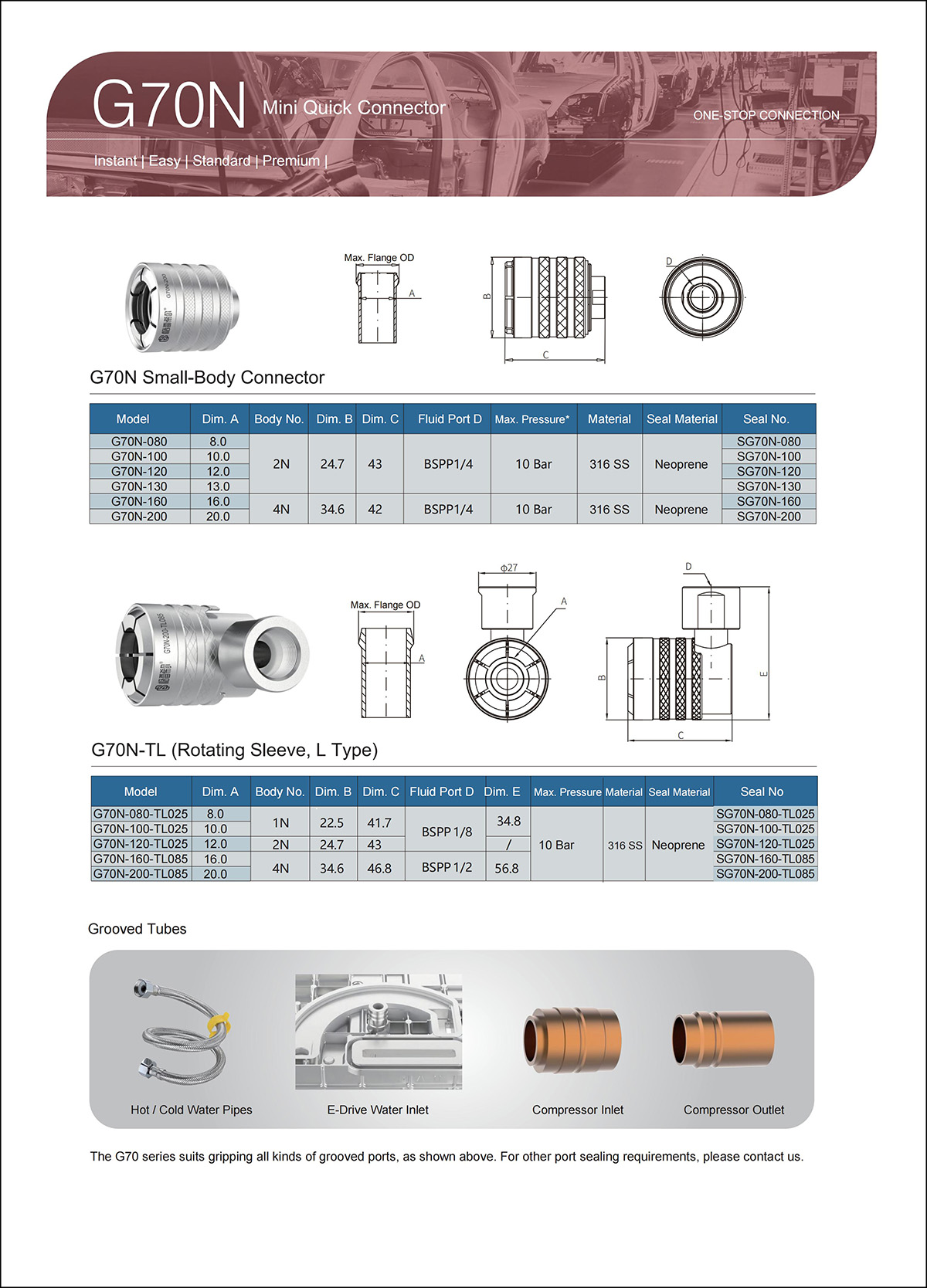

G70 Selection Table

Keywords: Cooling water pipe quick connector fuel pipe quick connector brake pipe quick connector air conditioner pipe high pressure connector G70 connector
