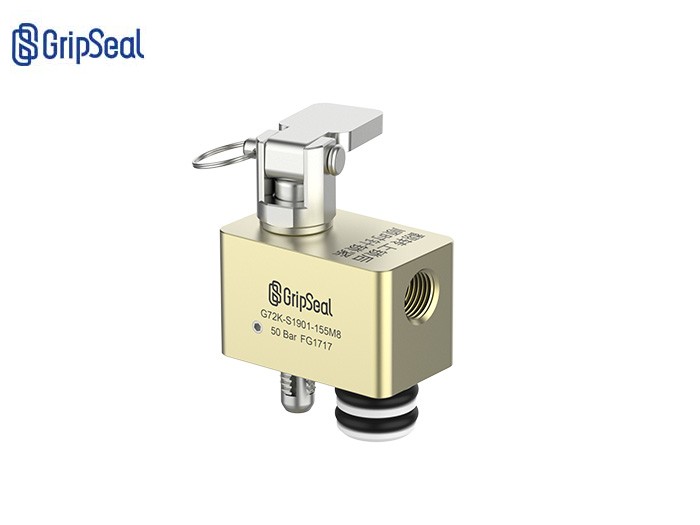

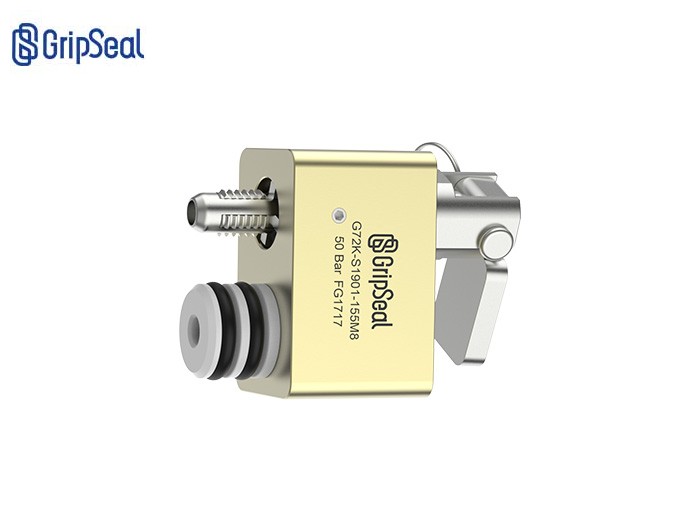

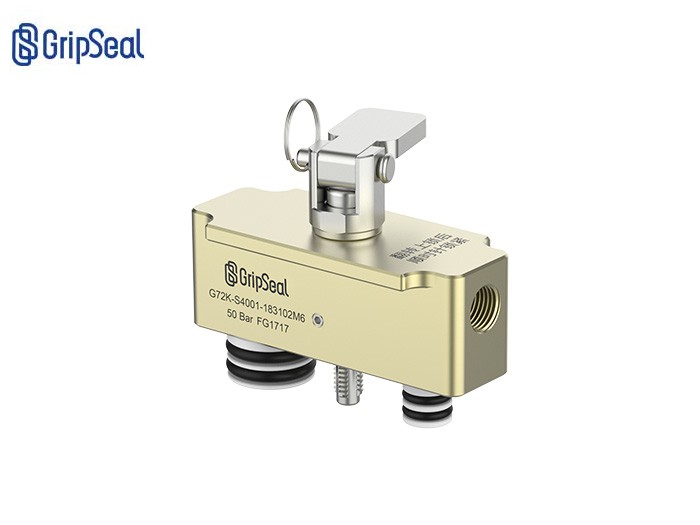

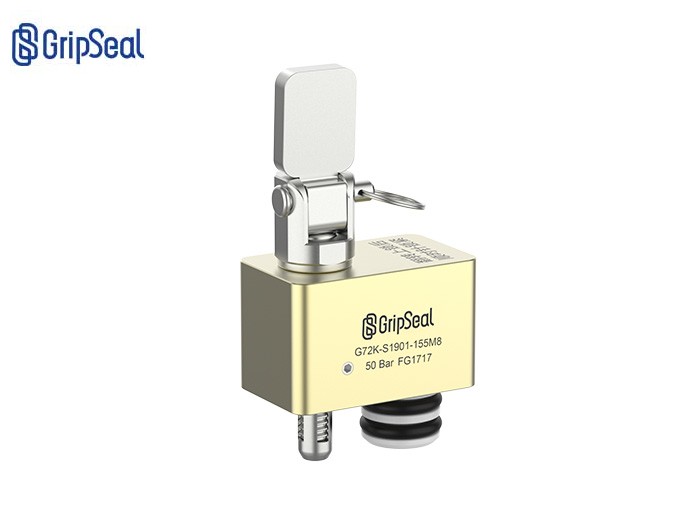

G72K special-shaped nozzle quick connector

The G72K series quick-sealing connector is suitable for test interfaces with threaded holes on the side. It is compact in size and can quickly lock threads. With a small amount of rotation, the sealing head can be quickly compressed to withstand test pressures up to 50 bar. After the test is completed, the connector can be removed by releasing the handle, which greatly improves the test efficiency. The sealing head can be replaced. It is made of POM material and does not damage the test hole.

Service Hotline: 0755-86215125

Product details

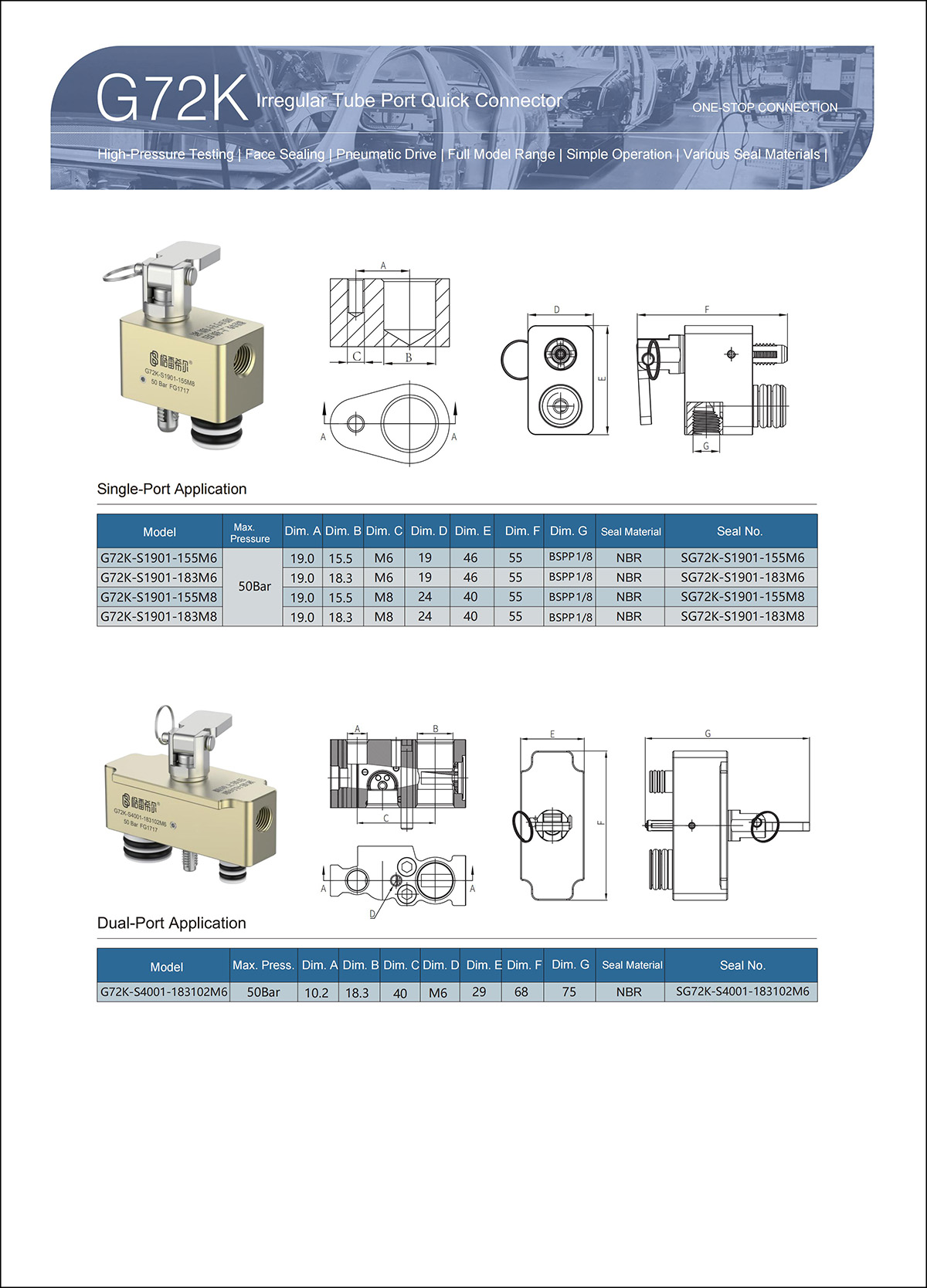

Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to50Bar
Sealing range	Customized according to product
traffic interface	G1/8、G1/4Threaded hole
main material	aluminum alloy
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber/fluororubber
operating temperature	-20℃-120℃

Product video

G72KThreaded quick lock sealing connector-animation operation

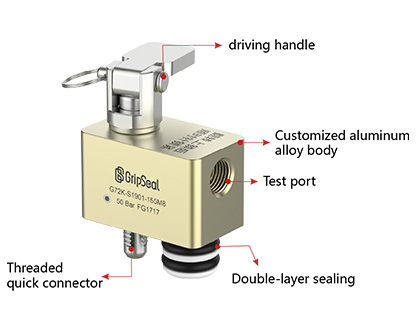

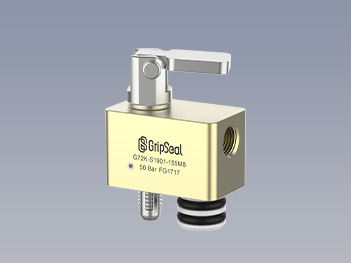

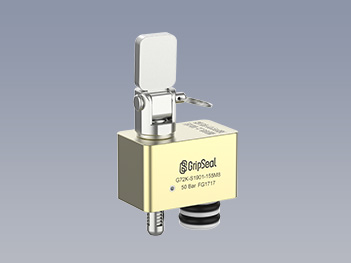

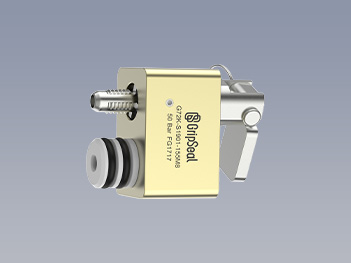

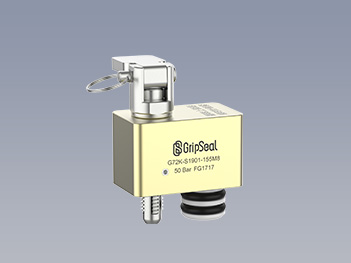

Product features

Product parameters

: Handle drive: flip the handle to lock, simple and convenient

: Aluminum alloy body: lightweight and durable, with low operating strength

: Thread quick connection: high-strength minions, stable and reliable

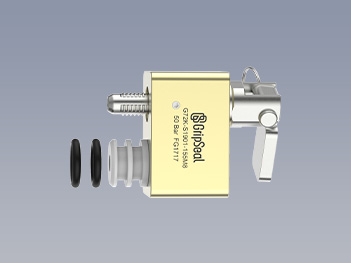

: Quick replacement of sealing rings: easy replacement of sealing rings and simple maintenance

: Test Hole: Side UseGThreaded test holes, customizable threaded holes

operation method

Operation method

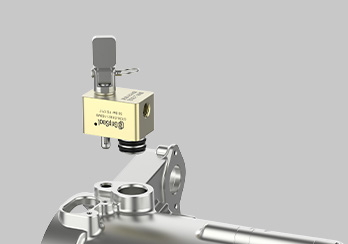

: Step one.

Put the front end of the connector into the hole to be sealed.

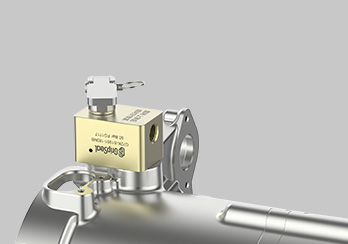

: second step

Fold the handle

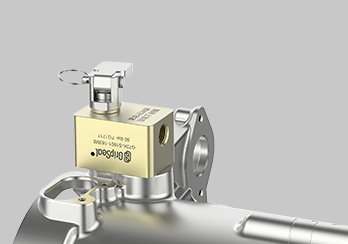

: Step three

The handle is tightened clockwise to complete the connection.

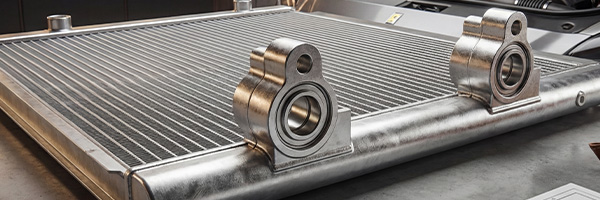

application scenario

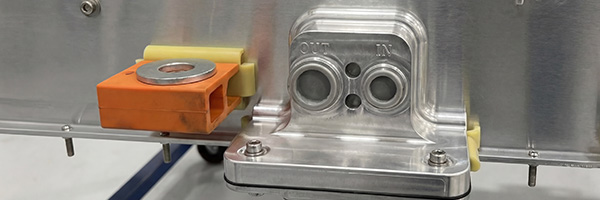

Application scenarios

Get the application solution now
