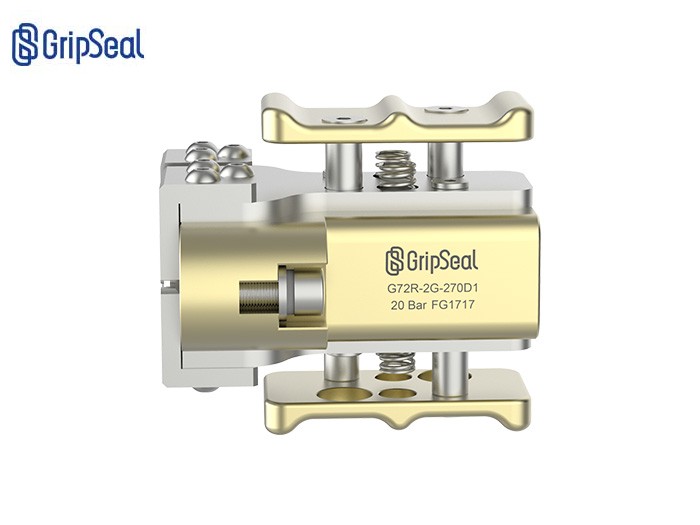

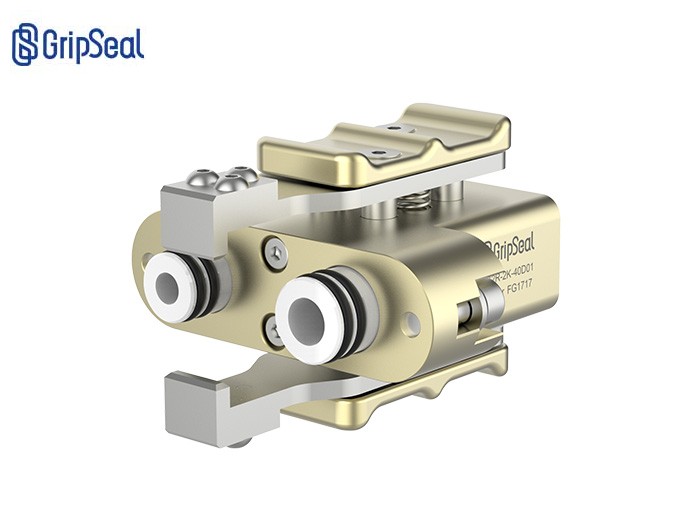

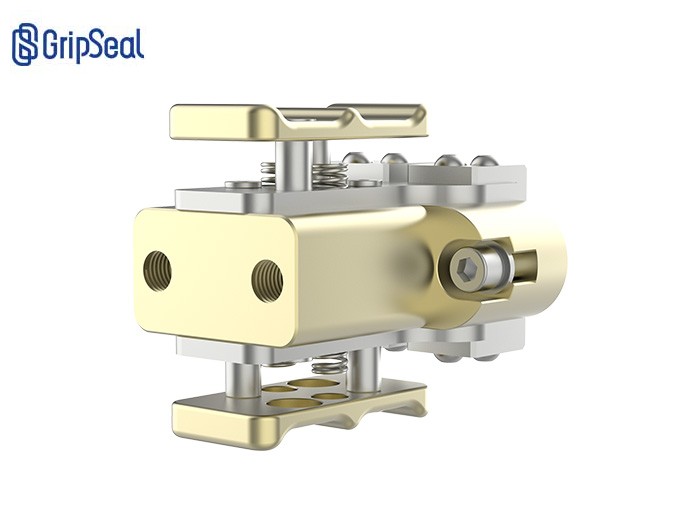

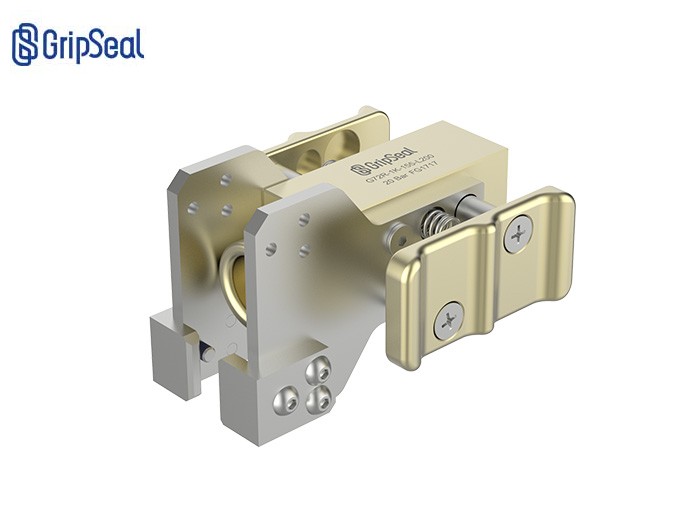

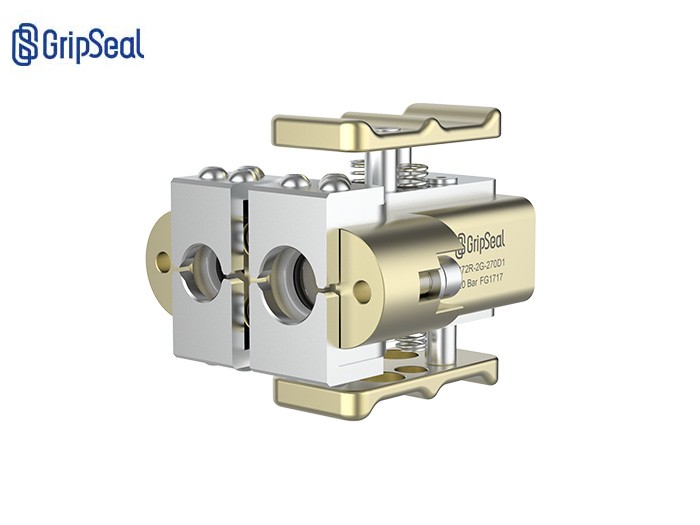

G72R special-shaped nozzle quick connector

G72R series connector is a special connector for radiator special-shaped nozzles, which can seal 2 dense nozzles at the same time to solve the sealing problem of narrow space; manual operation, simple and easy to use, special aviation aluminum alloy body not only ensures firmness, but also ensures the lightness of the connector, greatly reducing the labor intensity of the operator. Complete product models, can adapt to various sizes of flange tube sealing applications. Straight-through design, to ensure high flow performance of the product, whether it is gas test or liquid test, can adapt.

Service Hotline: 0755-86215125

Product details

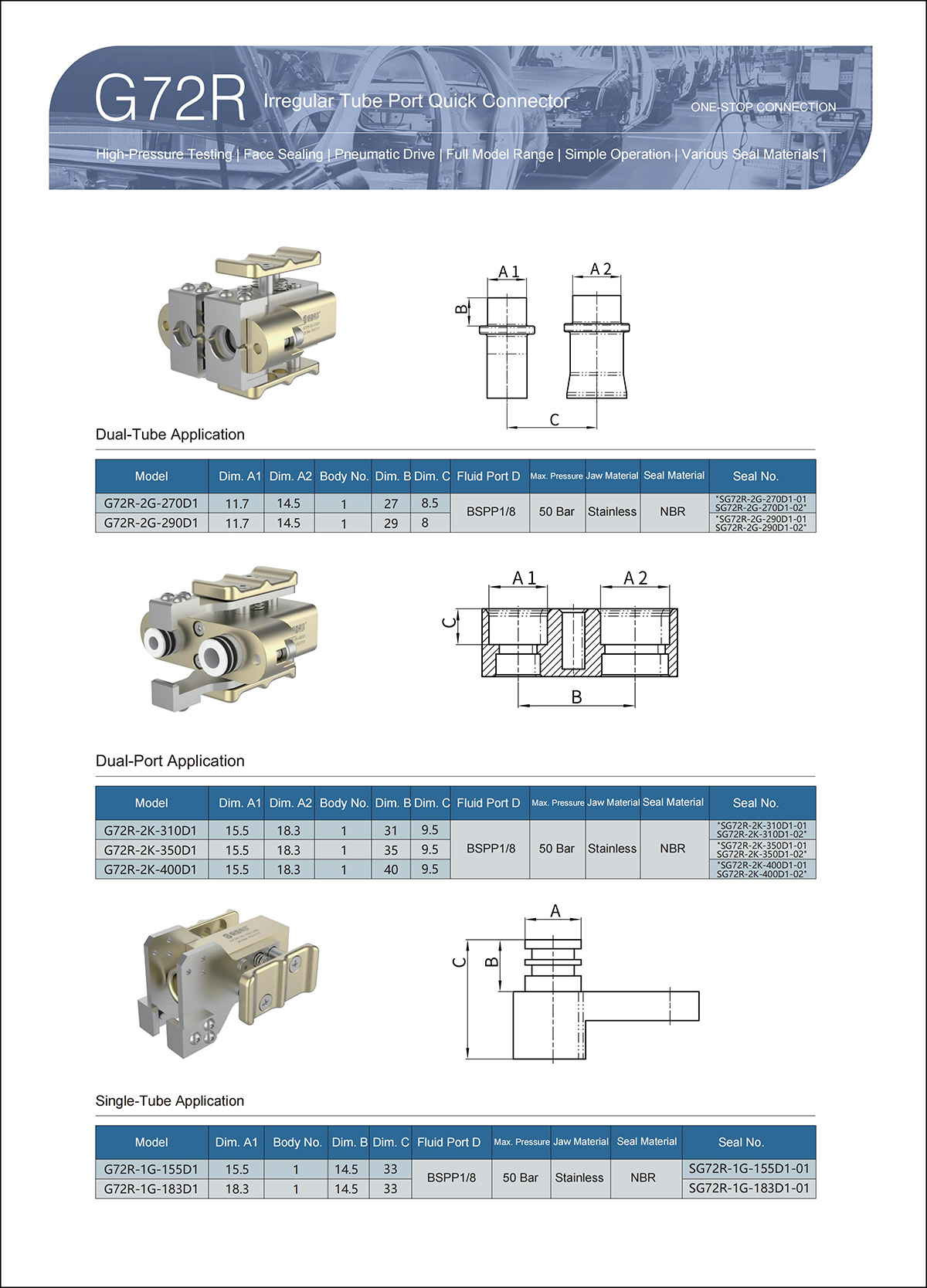

Product selection table

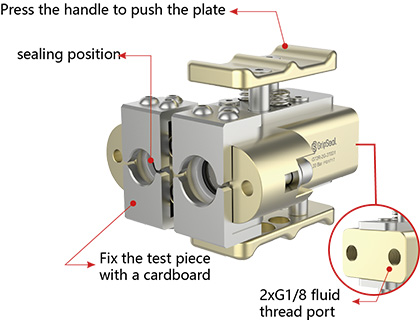

product parameters

Product parameters

Maximum operating pressure	From vacuum to50Bar
Sealing range	Customized according to pipe fittings
traffic interface	G1/8、G1/4Threaded hole
main material	aluminum alloy
Main sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

Product video

G72RQuick Seal Connector-animation operation

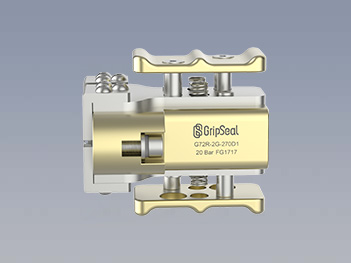

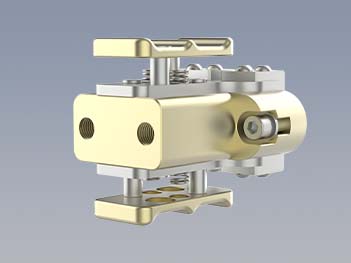

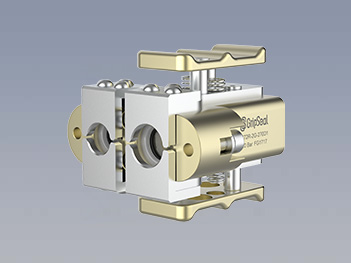

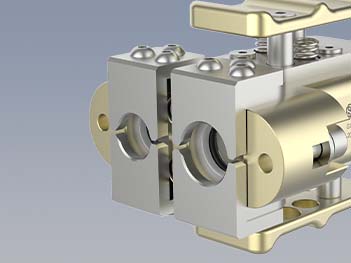

Product features

Product parameters

: Handle press drive: handle operation, simple and fast, high operation efficiency

: Aluminum alloy body: lightweight and durable, with low operating strength

: Stainless steel jaw: to ensure sufficient strength while taking into account anti-corrosion, the highest pressure50Bar

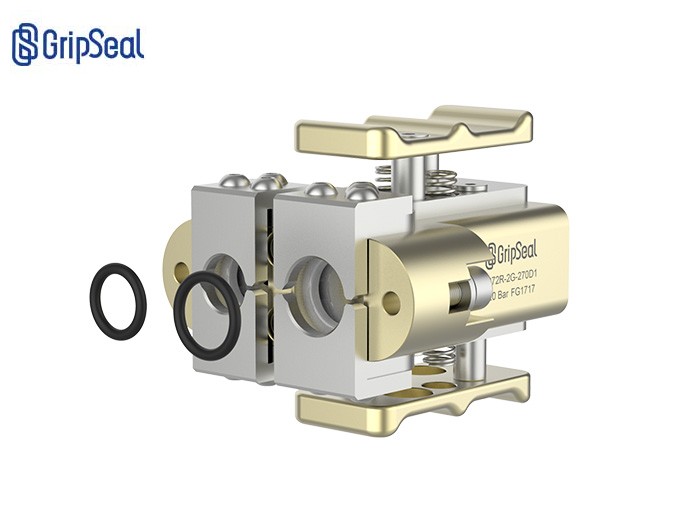

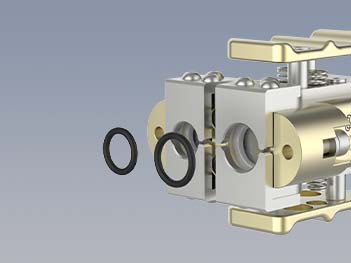

: Quick replacement of sealing rings: simple maintenance and extended service life

: Test Hole: Tail AdoptedGThreaded test holes, customizable threaded holes

operation method

Operation method

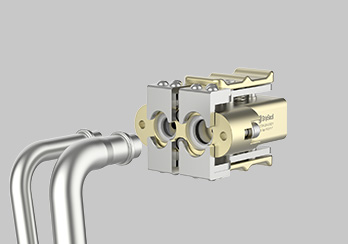

: Step one.

Press the handle, open the claws, and place the test piece.G72RSeries front-end test port

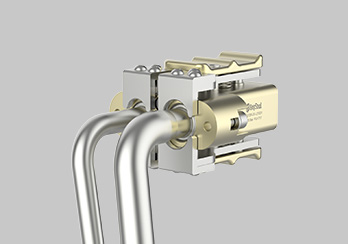

: second step

Access test piece

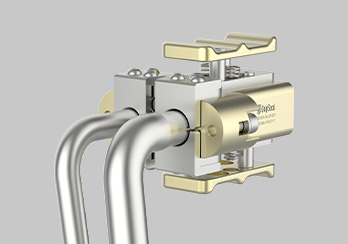

: Step three

Release the handle, the claws will be automatically tightened, and the gas test will be carried out after the connection is completed.

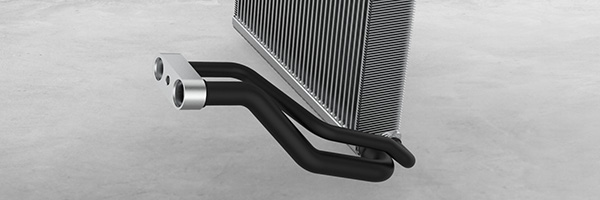

application scenario

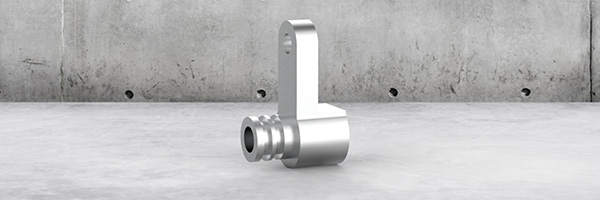

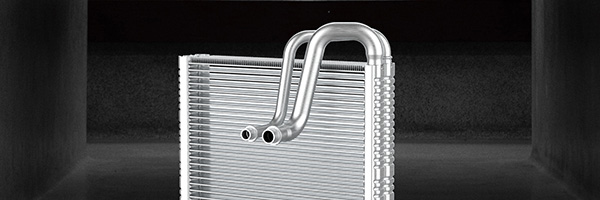

Application scenarios

Get the application solution now
