G80N Mini Female Thread Connector

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Application » Hydraulic valve test joint » G80N Mini Female Thread Connector

prve

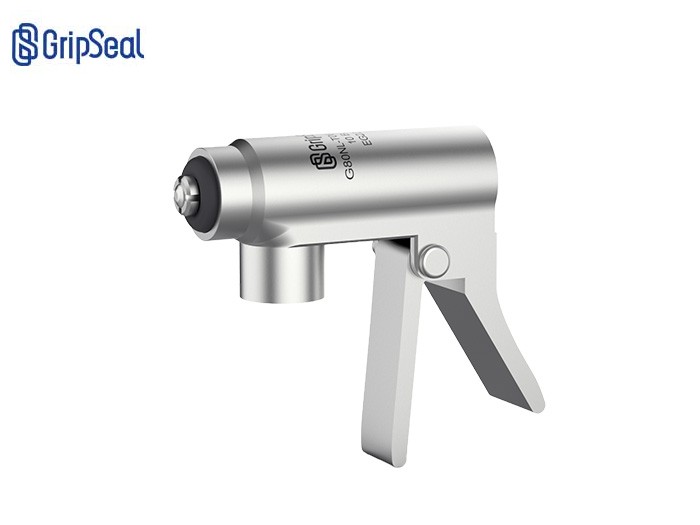

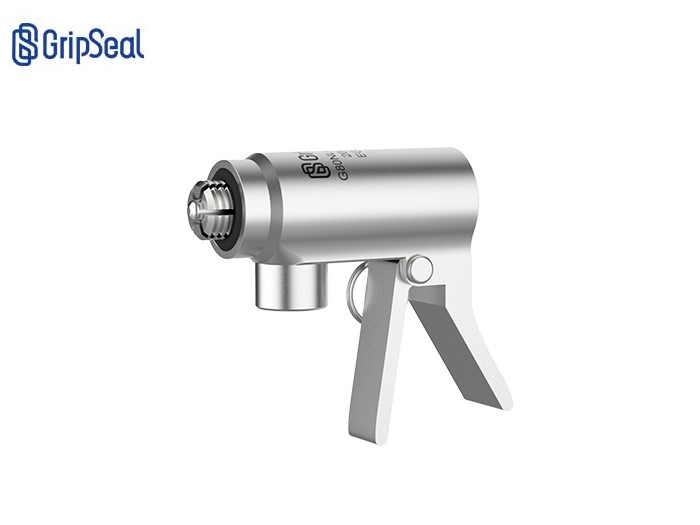

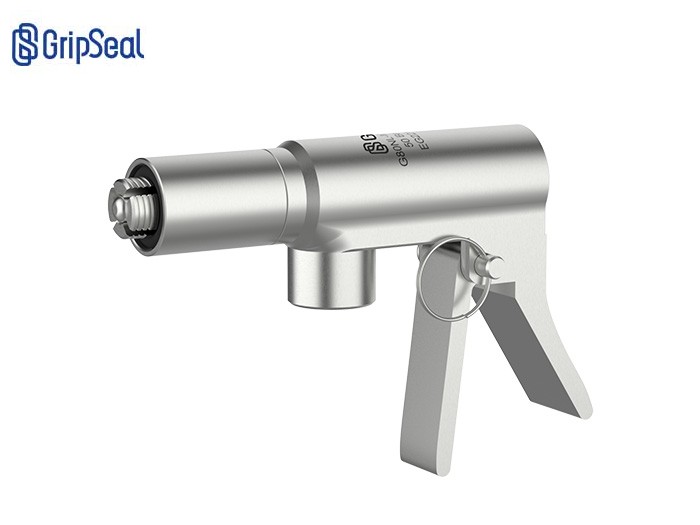

G80N Mini Female Thread Connector

The G80N series connector is a short connector of the G80 series. It is designed with a side handle and can be easily connected by pinching the handle. The total length is half that of other connectors on the market. If the space above the test interface is limited, this is a good choice.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to350Bar
minimum insertion depth	Please refer to the relevant selection table
traffic interface	G1/8，G1/4，G3/8，G1/2
main material	316stainless steel
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber/fluororubber
operating temperature	-20℃-120℃

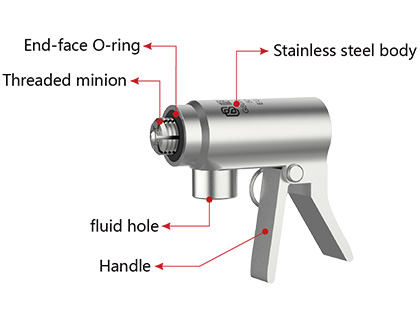

G80NQuick connector specifications and parameters

Product video

G80NLSeries Quick Connectors-operation video

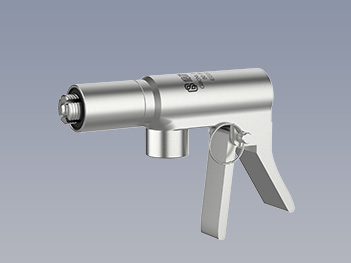

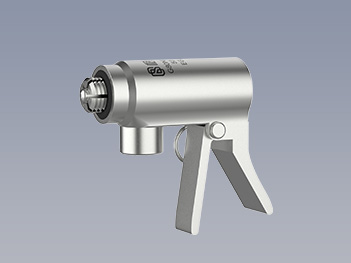

Product features

Product parameters

: Lossless connection:
No scratches on customer products.

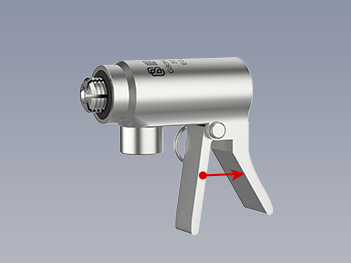

: Side handle design: easily pinch the handle to achieve connection

: Neck length customization: avoid interference

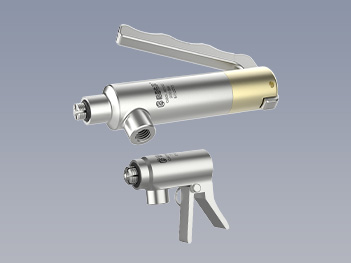

: Limit small size: half shorter than other connectors on the market

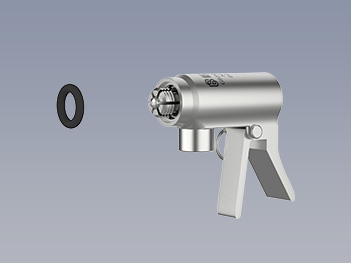

: end faceOType sealing ring: easy to replace and easy to maintain

operation method

Operation method

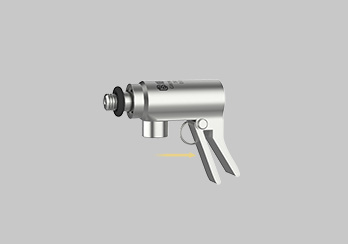

: Step one.

Press handle

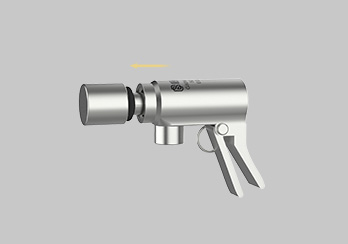

: second step

Insert threaded hole

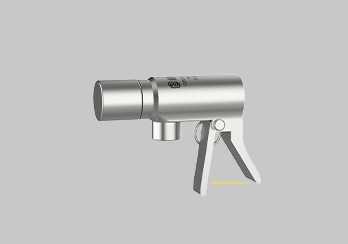

: Step three

Release the handle and complete the connection.

Application case

Application cases

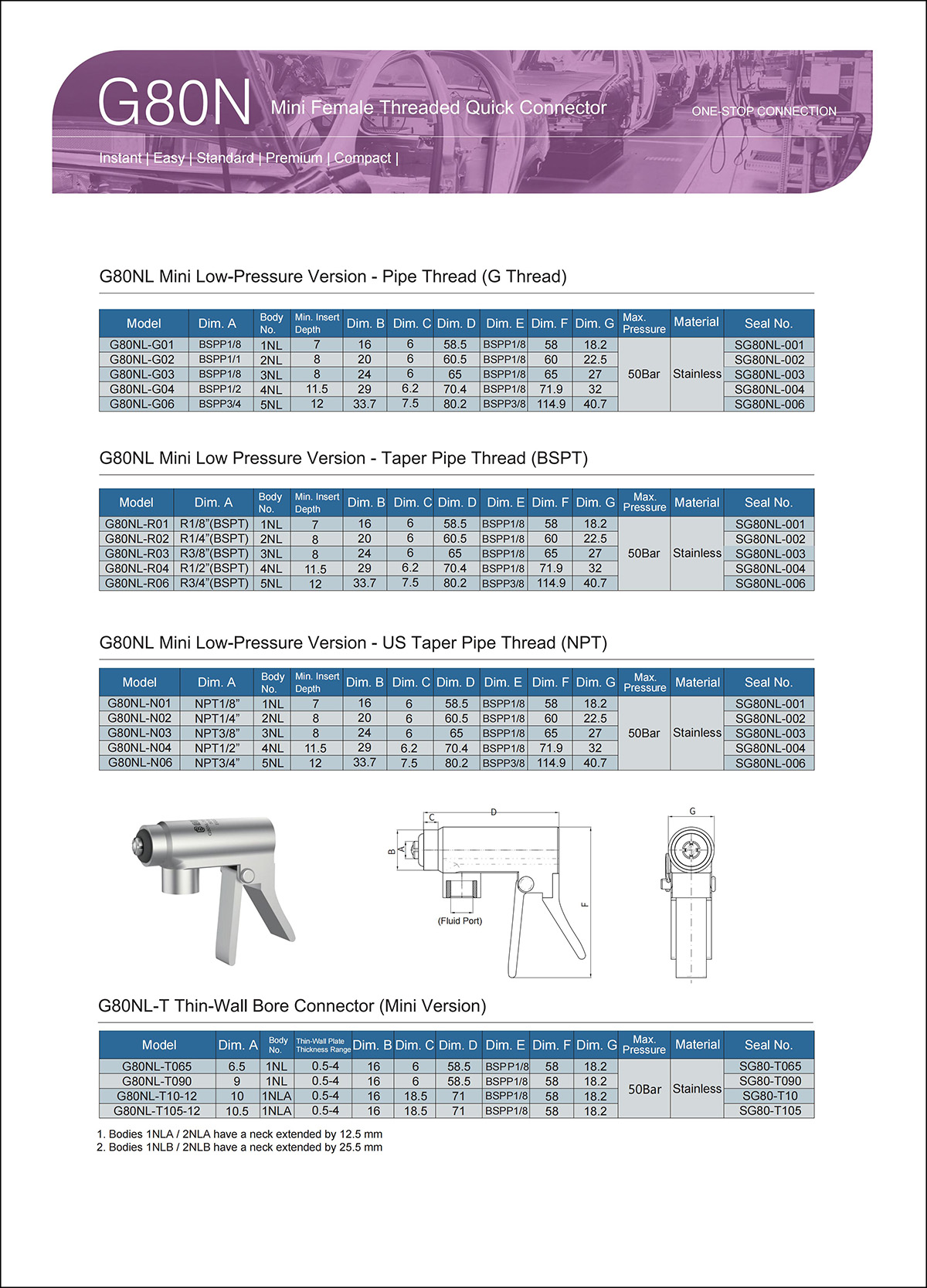

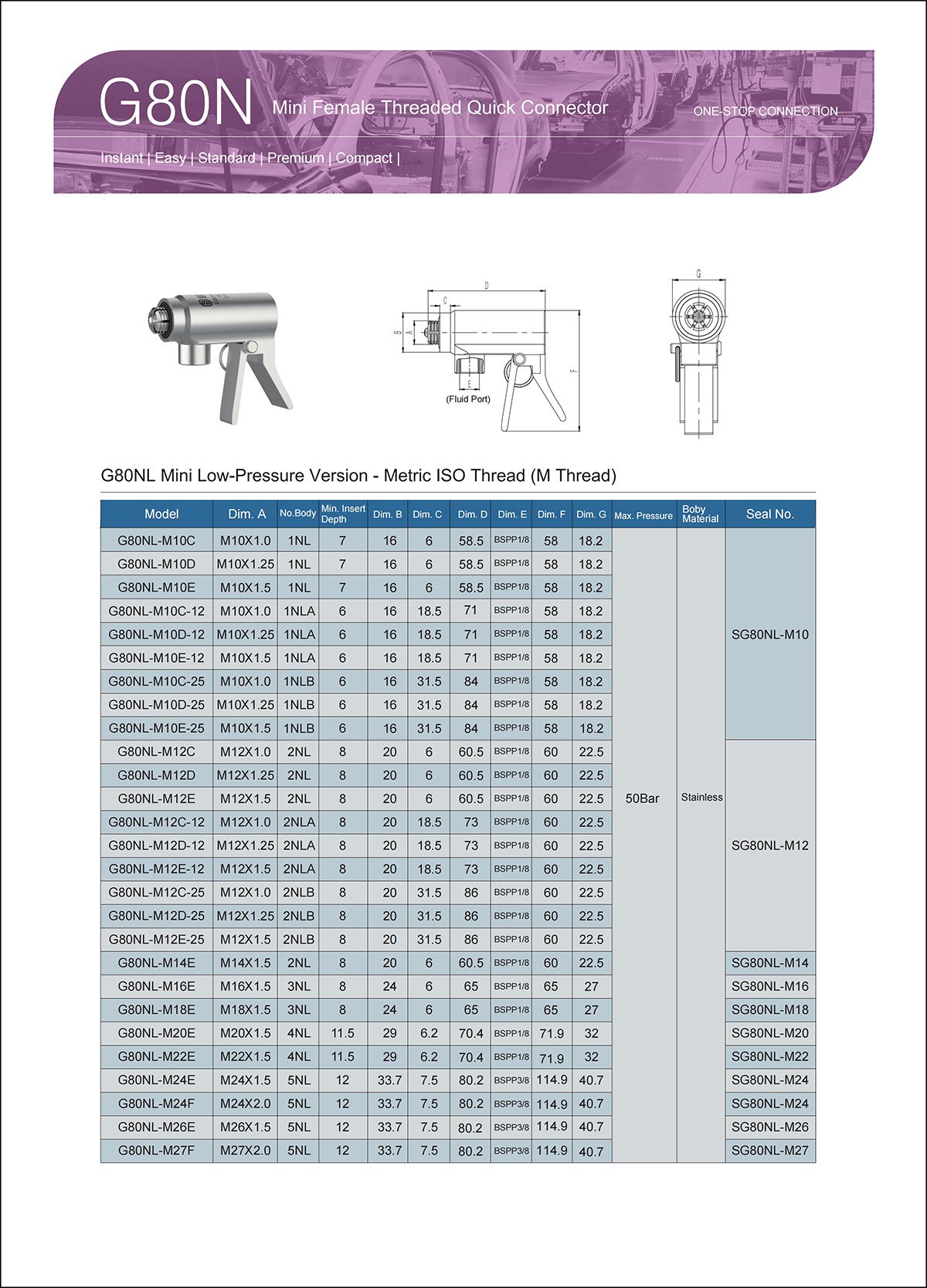

G80NMini internal thread connector selection table

Keywords: G80N Quick Connectors Mini Female Connectors GripSeal Connectors
