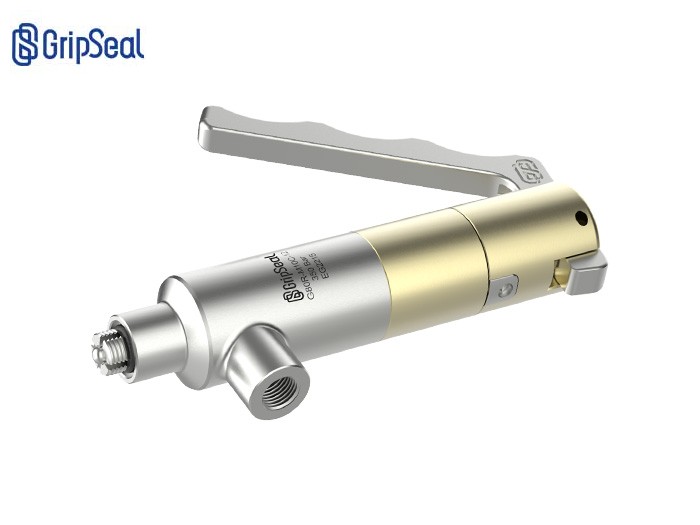

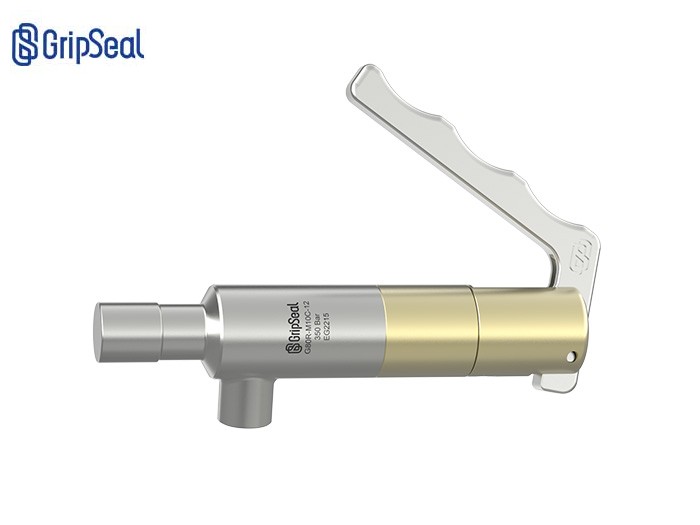

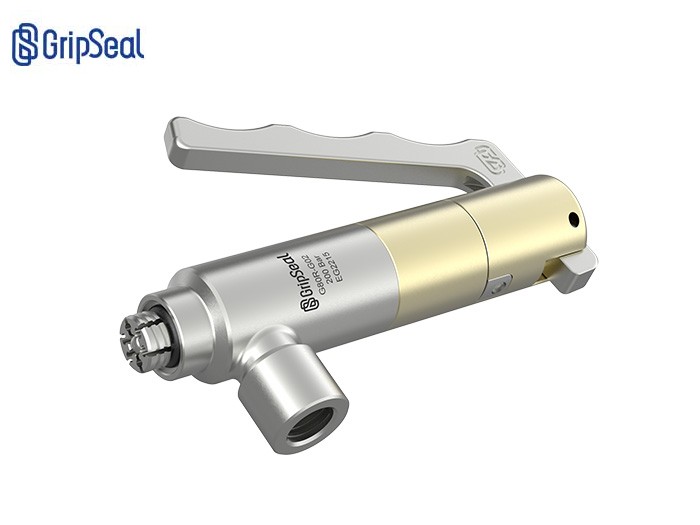

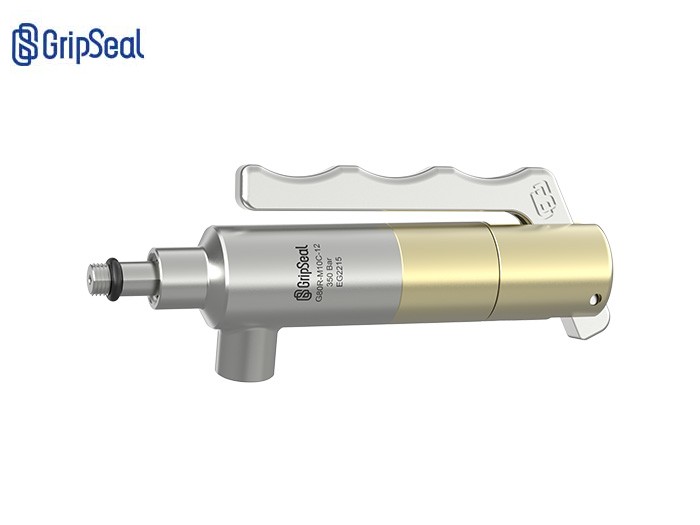

G80R internal thread connector

G80R series connector is a connector for internal thread sealing. We have innovatively designed a handle that can be rotated arbitrarily, which effectively solves the problem of customer interference between the connection pipeline and the handle position in different testing environments.

Service Hotline: 0755-86215125

Product details

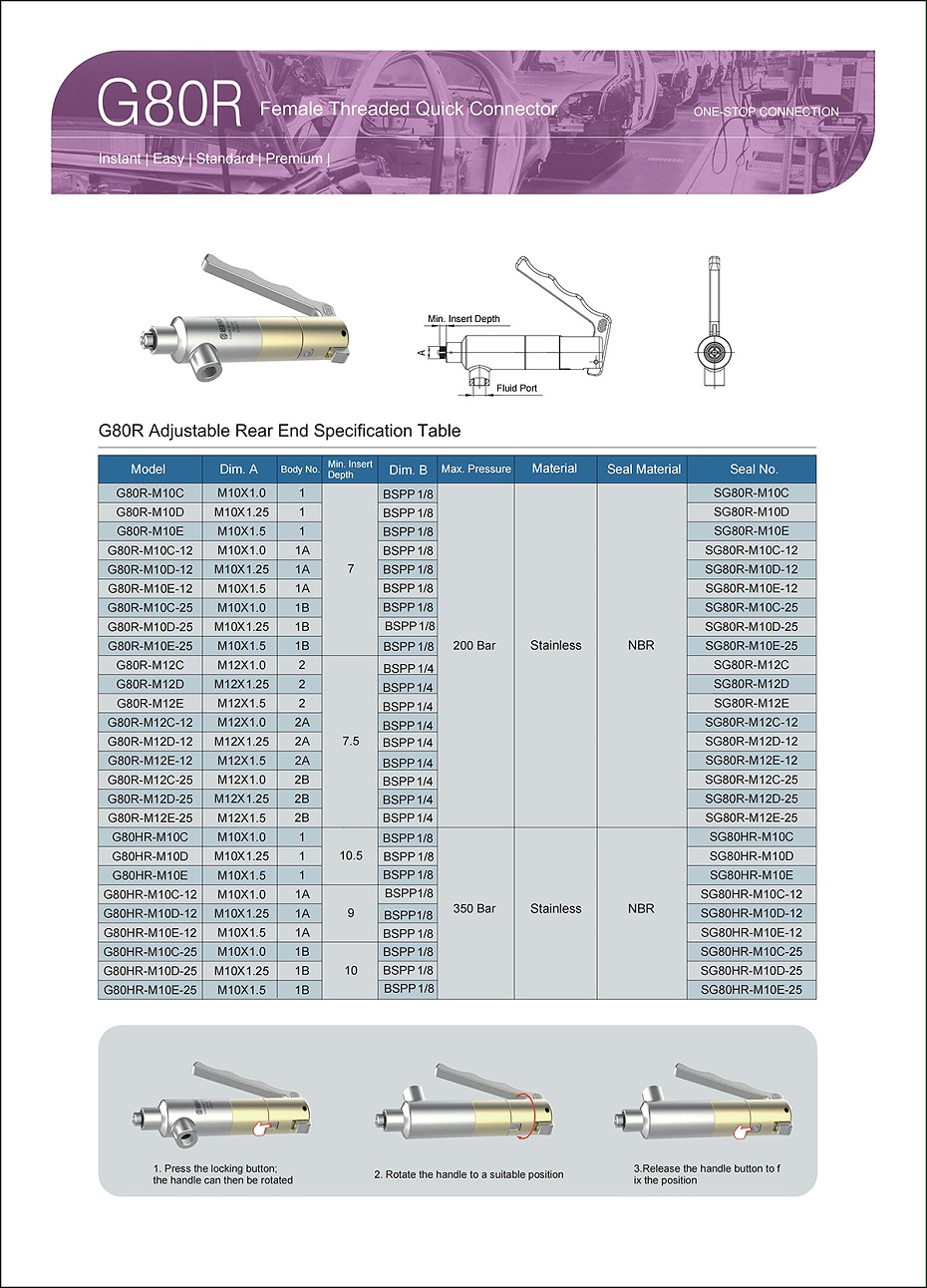

Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to350Bar
minimum insertion depth	Please refer to the relevant selection table
traffic interface	G1/8，G1/4，G3/8，G1/2
main material	316stainless steel
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber/fluororubber
operating temperature	-20℃-120℃

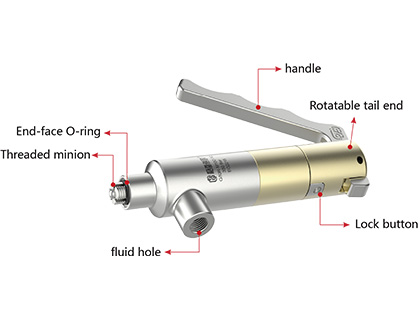

G80RQuick connector specifications and parameters

Product video

G80RSeries Quick Connectors-operation video

Product features

Product parameters

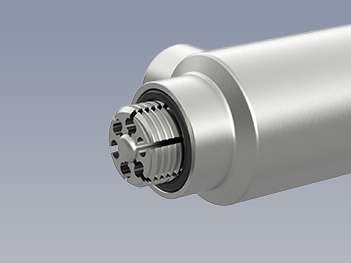

: Internal thread hole: Screw claw expansion locking, less damage to screw teeth

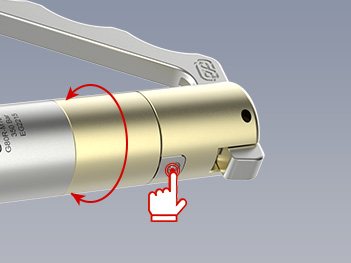

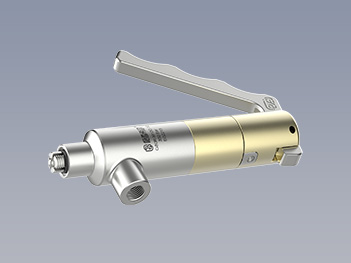

: Rotatable handle: Solve the problem of handle position interference

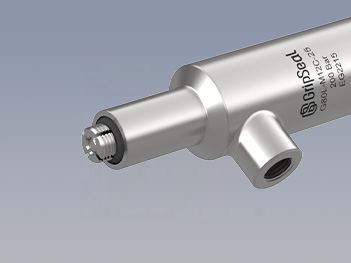

: Neck length customization: avoid interference

: Flow holes: Some are equipped with increased flow holes to shorten the test time

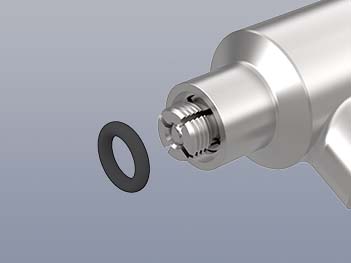

: end faceOType sealing ring: easy to replace and easy to maintain

operation method

Operation method

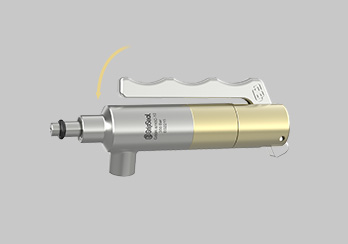

: Step one.

Press handle

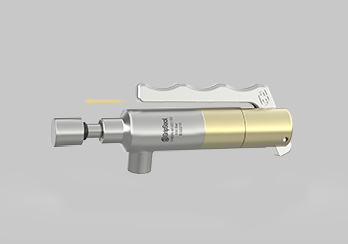

: second step

Insert threaded hole

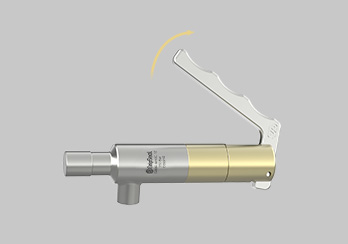

: Step three

Release the handle and complete the connection.

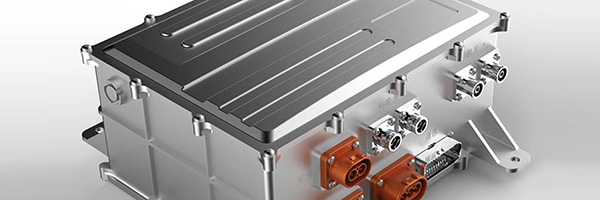

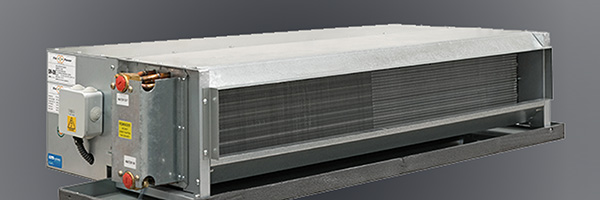

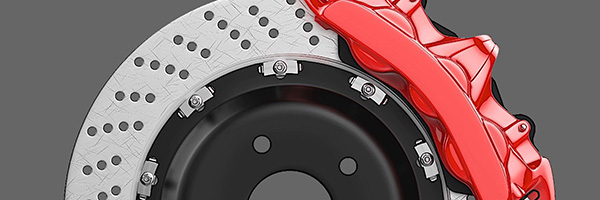

Application case

Application cases

Keywords: G80R Quick Couplings Female Connectors GripSeal Couplings
