G85 Series High Pressure External Thread Seal Connectors

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Pipe Type » Thread Seal Connectors » G85 series external thread quick connector

prve

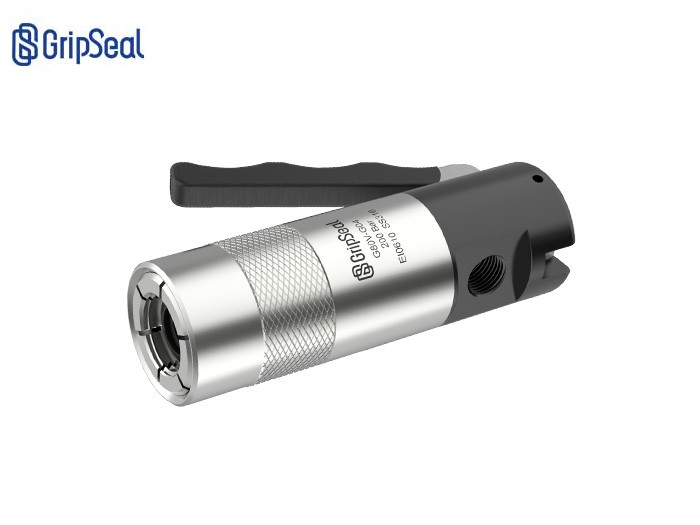

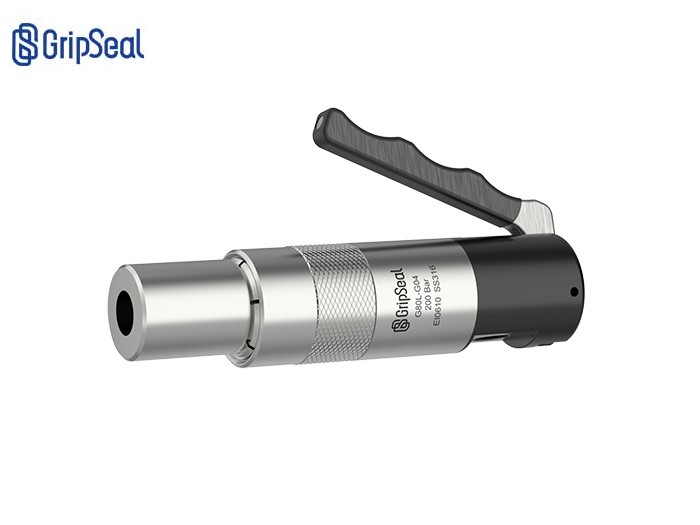

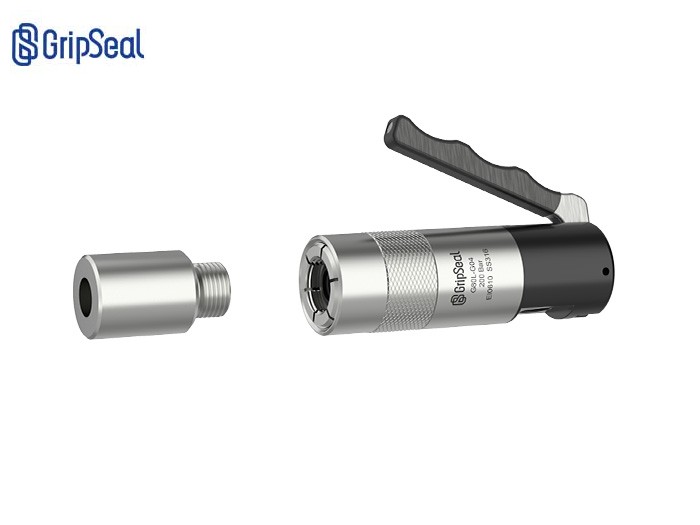

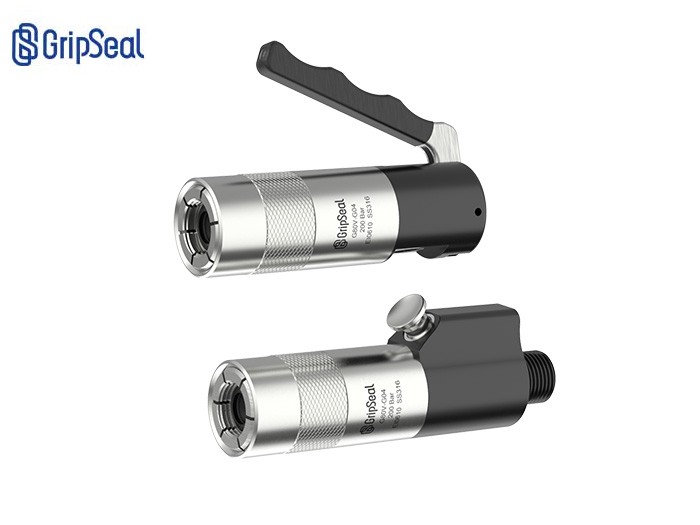

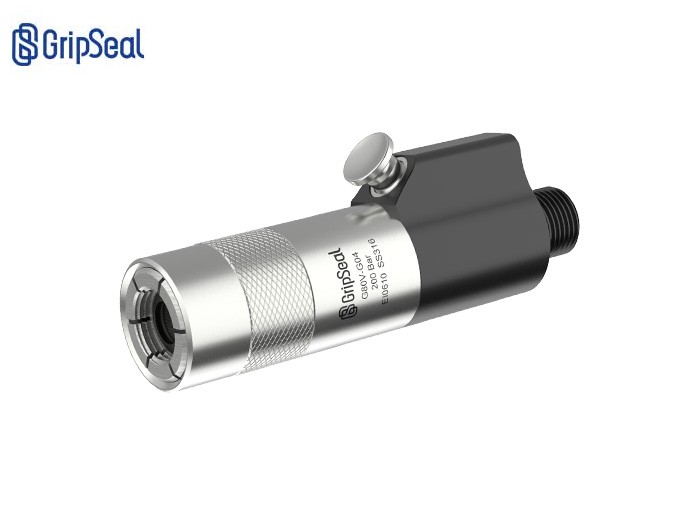

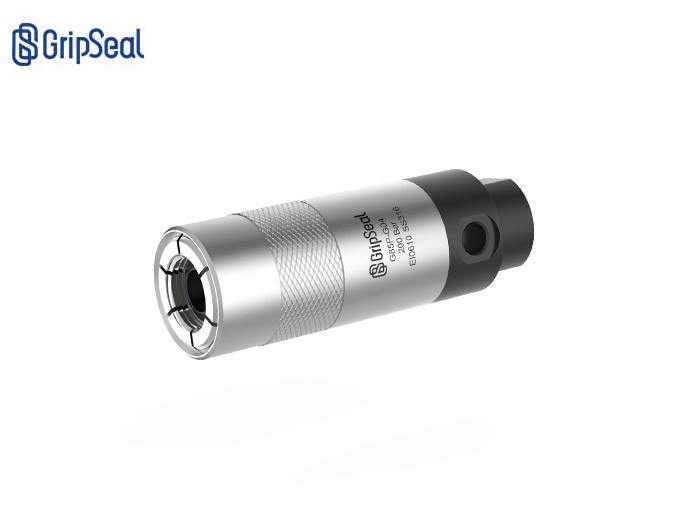

G85 series external thread quick connector

G85 series connector is an external thread connector, suitable for plugging and connecting various external thread interfaces, such as water heaters, instrumentation, etc. There are various driving methods, suitable for various manual and pneumatic applications.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to350Bar
Sealing range	Please refer to the relevant selection table
External thread height	Please refer to the relevant selection table
traffic interface	G1/8，G1/4，G3/8
main material	316stainless steel
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

Product video

G85Series high pressure external thread sealing connector operation video

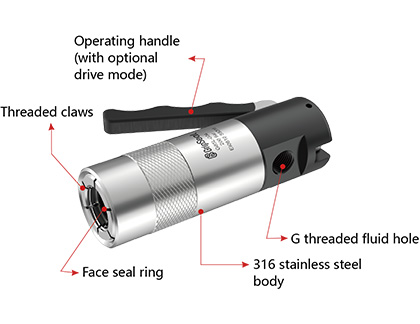

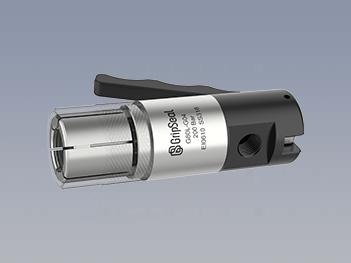

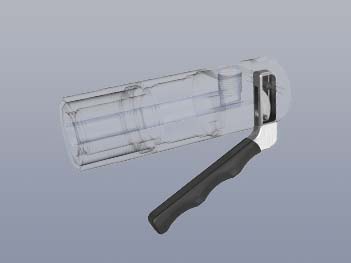

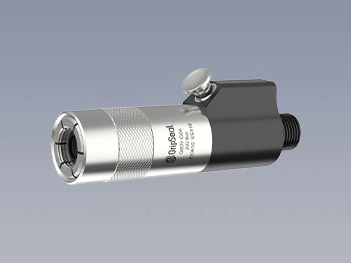

Product features

Product parameters

: Screw jaw shrink locking, less damage to screw teeth. High connection efficiency

: 316Stainless steel body,Good mechanical properties and high pressure bearing capacity

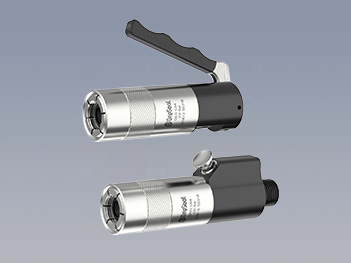

: Multiple driving methods,Meeting various operating requirements

: The internal flow path is large, which has little impact on the operation test

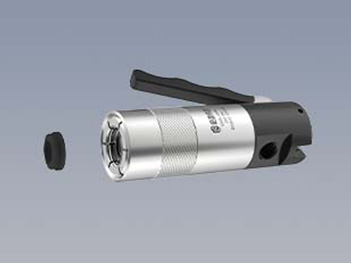

: End face sealing ring, easy to replace and easy to maintain

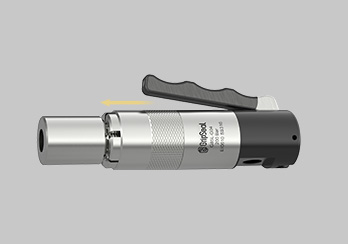

operation method

Operation method

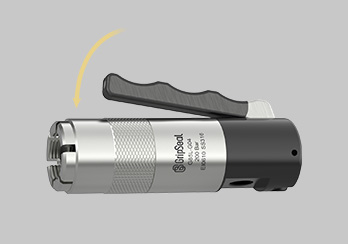

: Step one.

G85LHandle type, the handle is depressed, and the claws are extended and in an expanded state.

: second step

Push in the direction of the threaded interface of the test piece until the threaded end face fully contacts the main sealing ring.

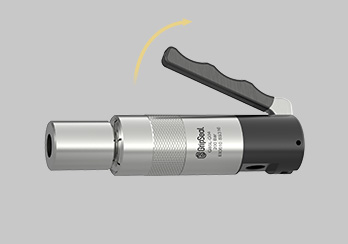

: Step three

releaseG85LThe handle, metal jaw retract, and complete the clamping and sealing connection.

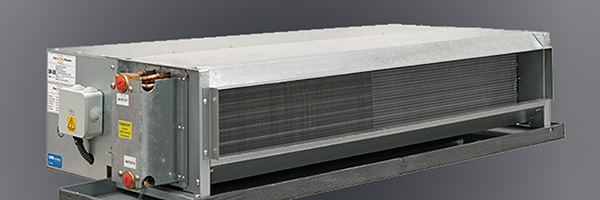

Application case

Application cases

Get the application solution now

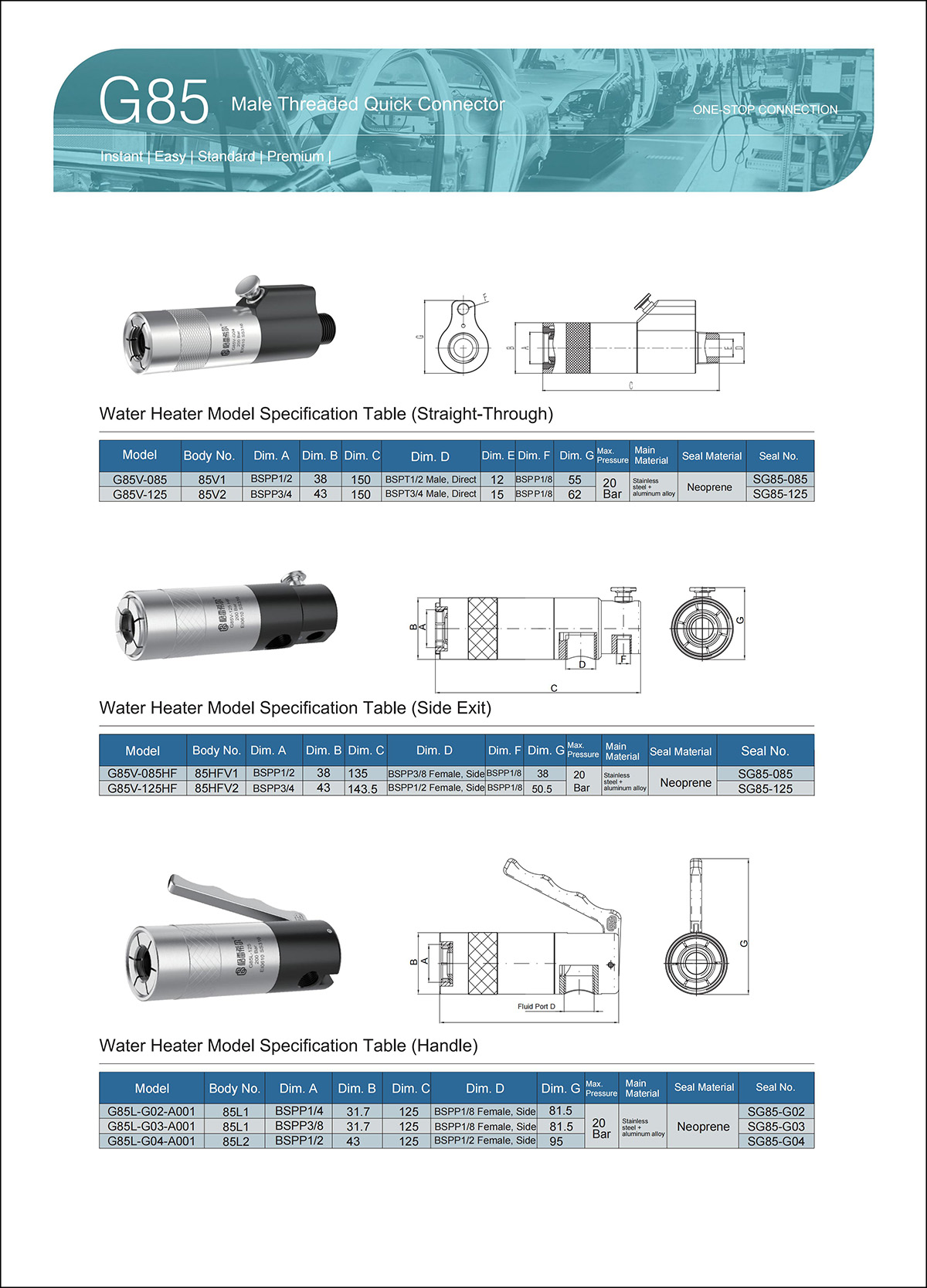

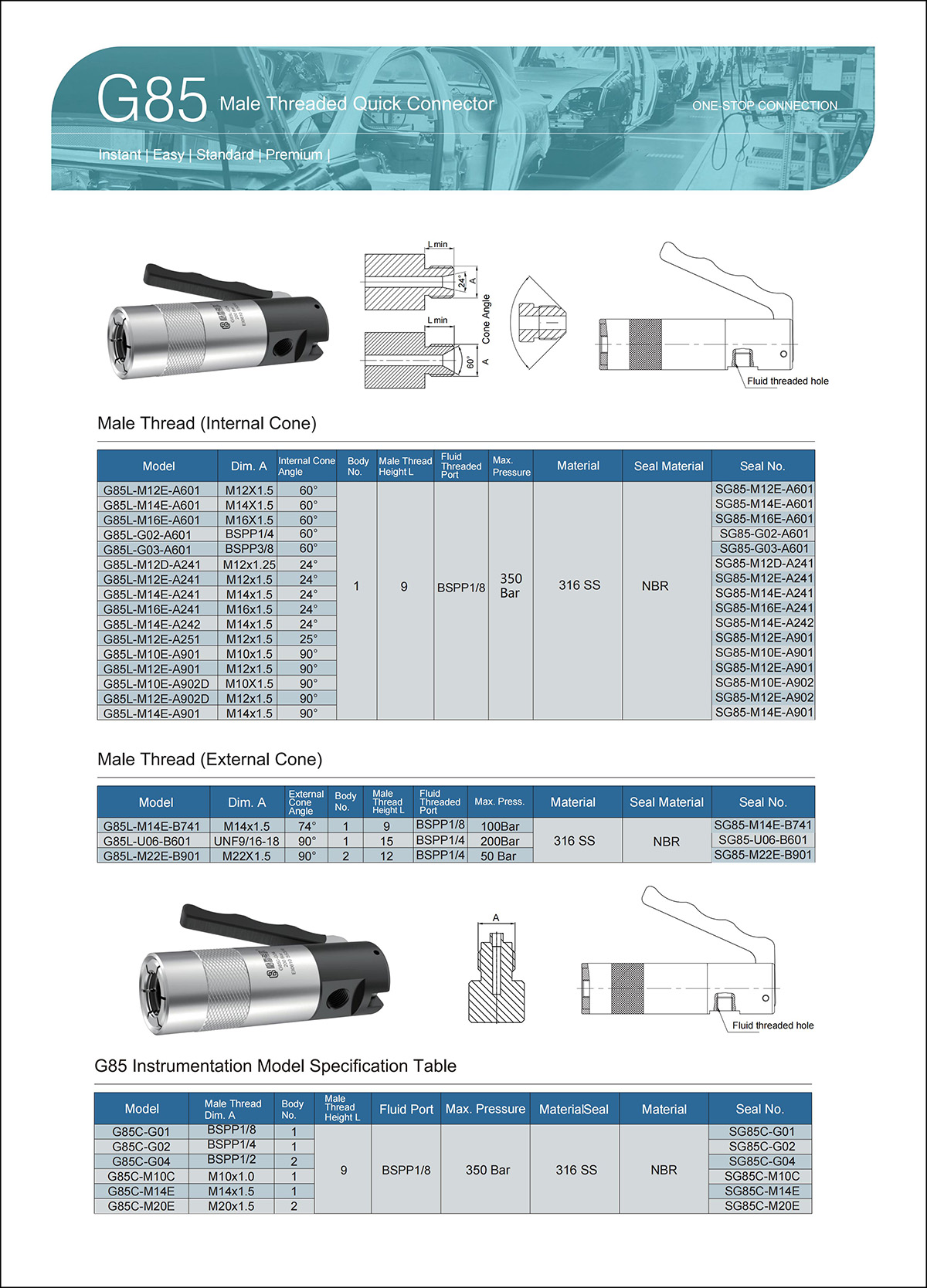

G85 Selection Table

Keywords: Male Seal Quick Seal Joint Water Heater Inspection Hydraulic Fitting Leak Detection G85
