G90L series compression rod type non-destructive connector

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Application » New Energy Vehicle Test Connectors » G90L series compression rod type non-destructive connector

prve

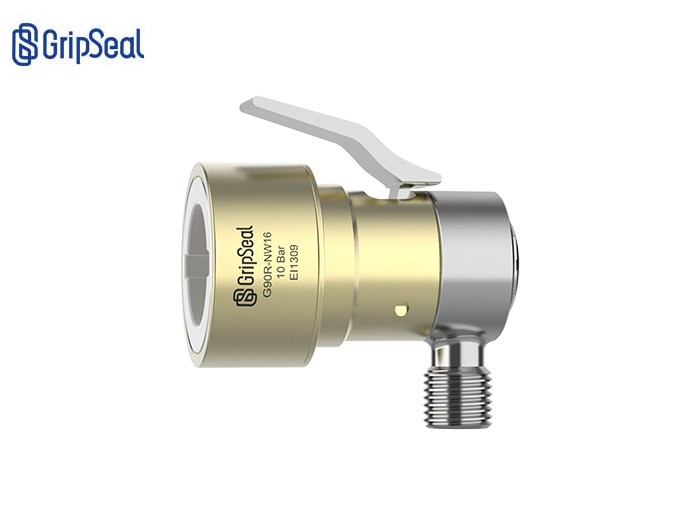

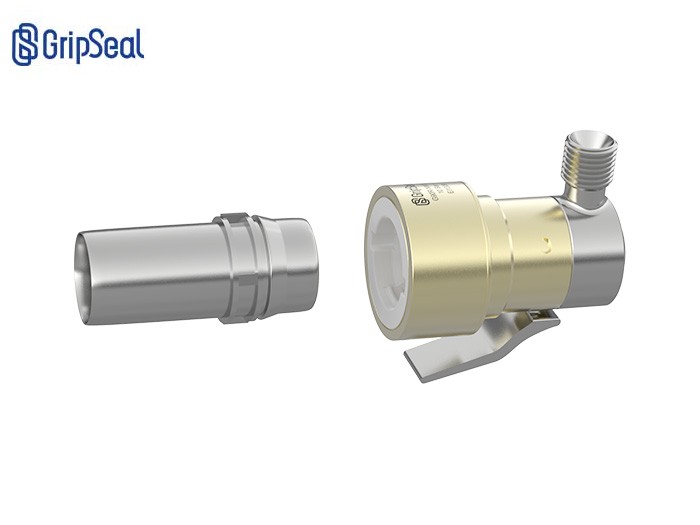

G90LThe series connector is a sealed connectionNWSeries interface products, the connection is designed non-destructive to prevent scratching the product, the handle is designed on the side, press-type operation, there are through and side out forms, and the tail interface is rich.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to10Bar
minimum insertion depth	10mm-56mm
traffic interface	G1/8，G1/4，G3/8，G1/2
main material	Aluminum alloy, stainless steel, nylon
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

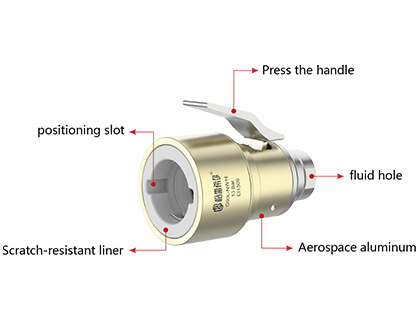

G90LQuick connector specifications and parameters

Product video

G90LSeries Quick Connectors-operation video

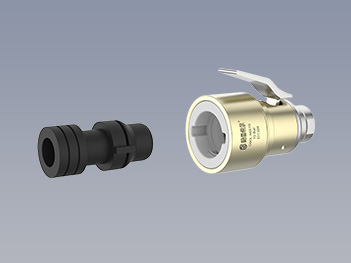

Product features

Product parameters

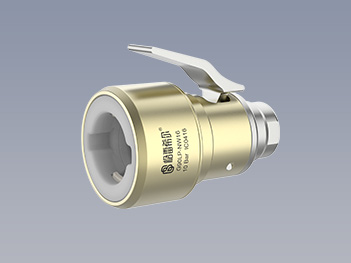

: Lossless connection:
No scratches on customer products.

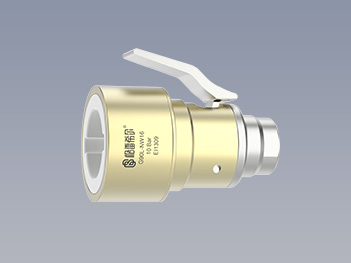

: Handle operation: The handle is designed on the side, press operation

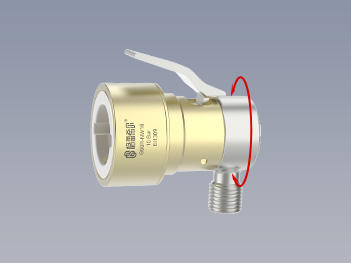

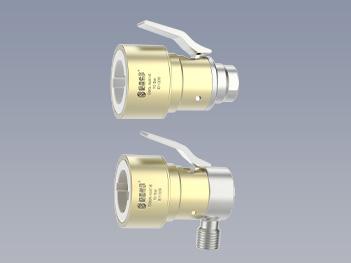

: Optional orientation: Through and side air intakes are optional, flexibly configured according to the on-site environment

: The tail interface is rotatable: solving the interference problem of the side fluid hole

: Apply toNWInterface:VDA-NWinterface specification

operation method

Operation method

: Step one.

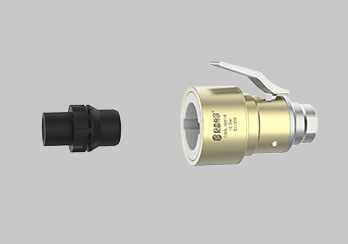

Align the quick connector with the female head.

: second step

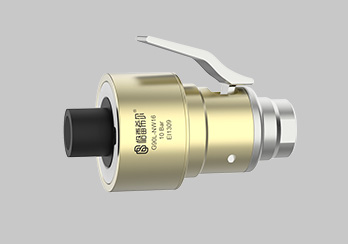

Insert to form a seal

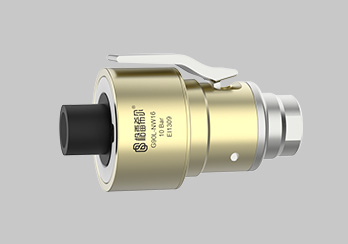

: Step three

Press and hold the side pressure rod to easily pull it out.

Application case

Application cases

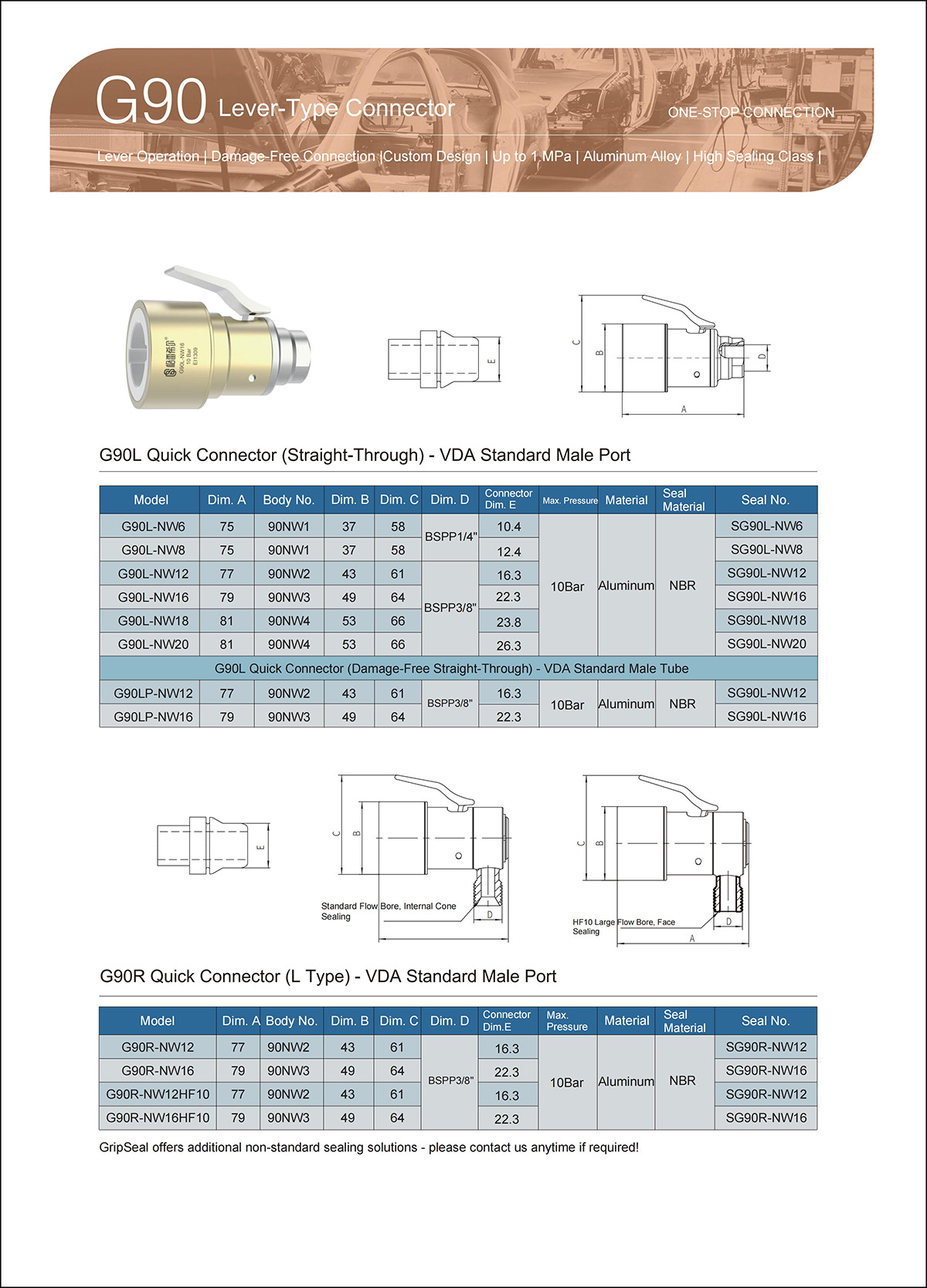

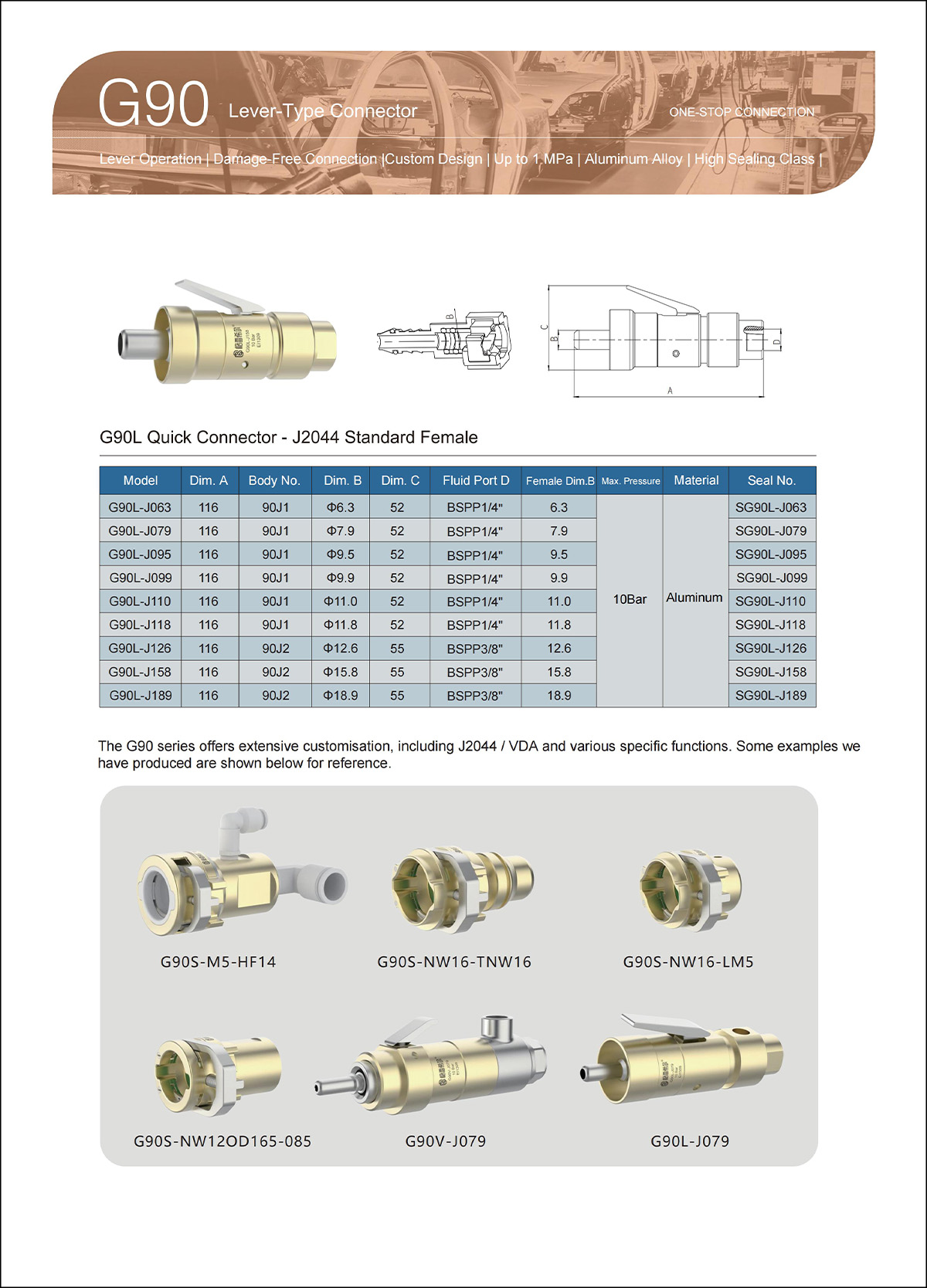

G90LSeries pressure bar type non-destructive connector selection table
