G90SP series pressure bar connector

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Pipe Type » Cooling Water Pipe Seal Connectors » G90SP series lossless connector

prve

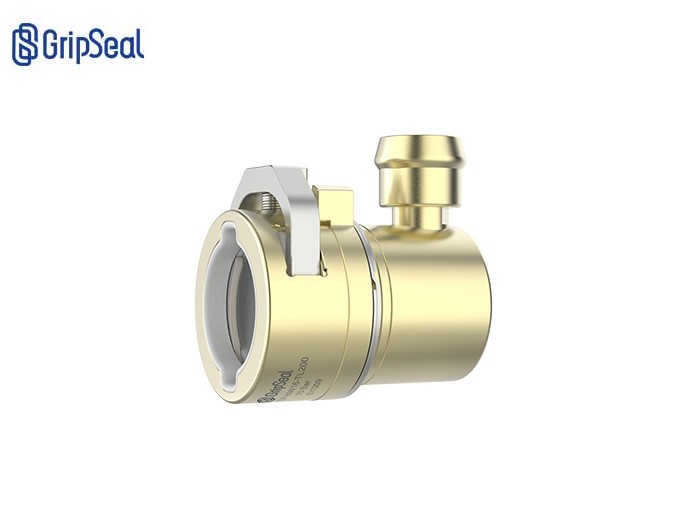

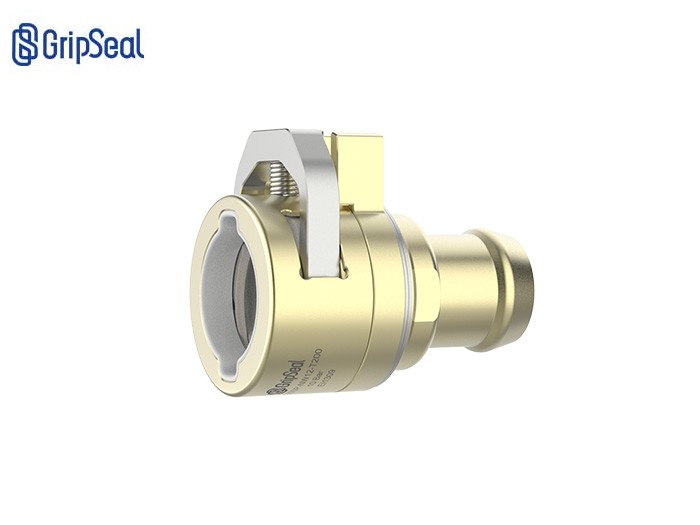

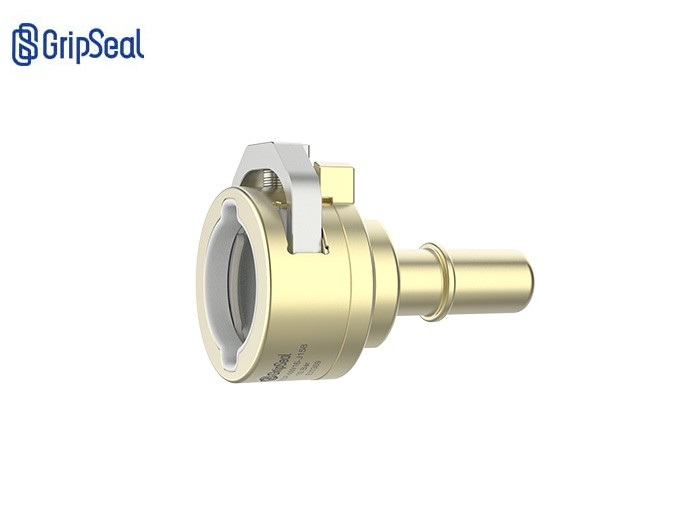

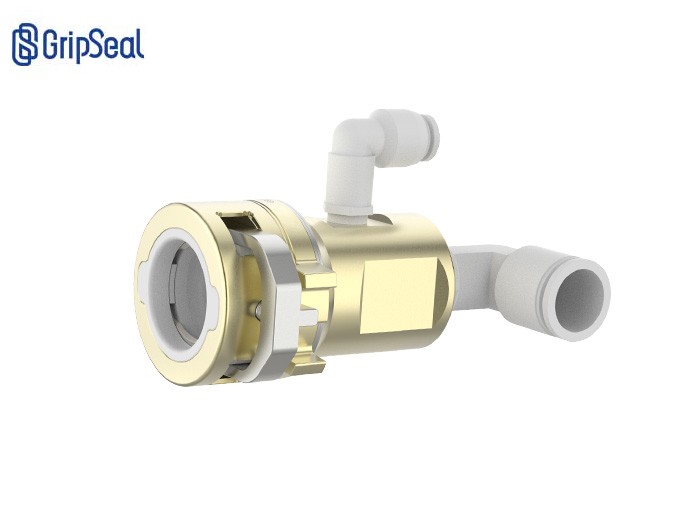

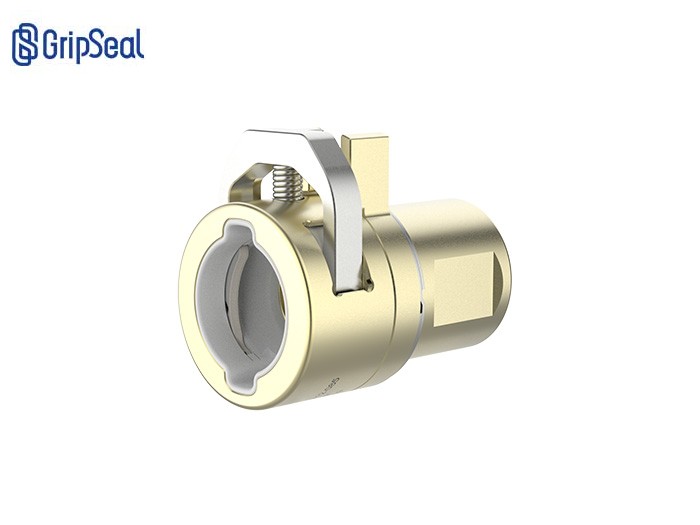

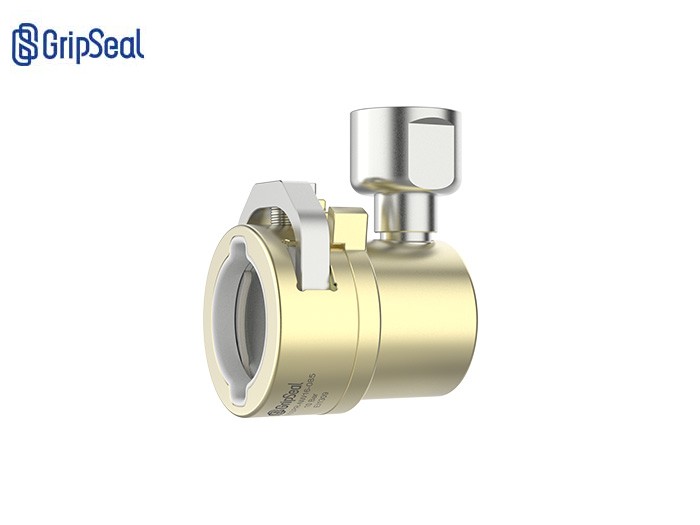

G90SP series lossless connector

G90SP series connector is a connector that seals and connects NW series interfaces. It is compact in appearance, operates by pressing the lock, connects non-destructive in the sealing position, and is sealed radially. The tail interface has threads, flange pipes, side outs and other types, and the interface is rich

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to10Bar
minimum insertion depth	10mm-56mm
traffic interface	G1/8，G1/4，G3/8，G1/2
main material	Aluminum alloy, stainless steel, nylon
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

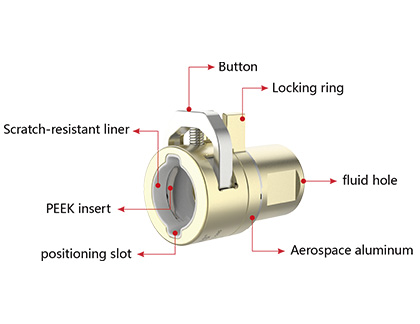

G90SPQuick connector specifications and parameters

Product video

G90SSeries Quick Connectors-operation video

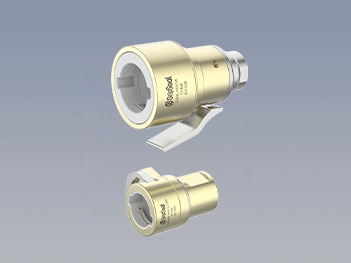

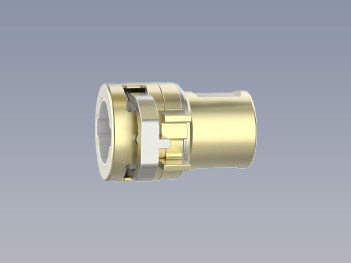

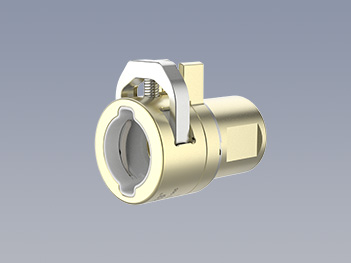

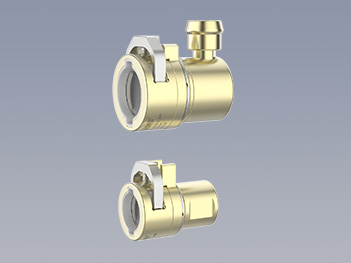

Product features

Product parameters

: Button operation:
Easily pinch the button to operate

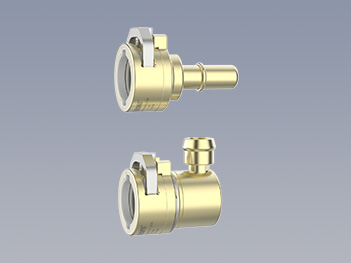

: Optional orientation: Through and side air intakes are optional, flexibly configured according to the on-site environment

: Lossless connection: usePEEKInsert design, and polymer piston nesting, for aluminum alloy or plasticVDAStructural connection without damage

: Mini subjects: Mini subjects are suitable for scenarios with positional interference and have a wide range of adaptability

: Adapter function:G90SP/G90SPRProvide a variety of through or side-out adaptations for other forms of pipe fittings,Including flanged tubes,J2044Even threaded joints, etc

operation method

Operation method

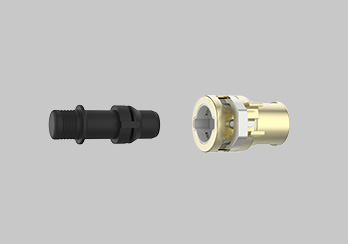

: Step one.

Align the quick connector with the female head.

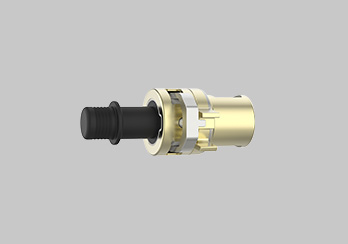

: second step

Insert to form a seal

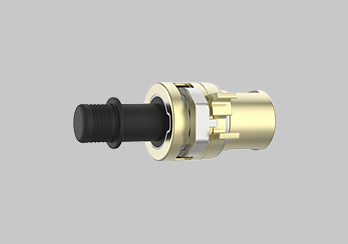

: Step three

Press and hold the side button to easily unplug

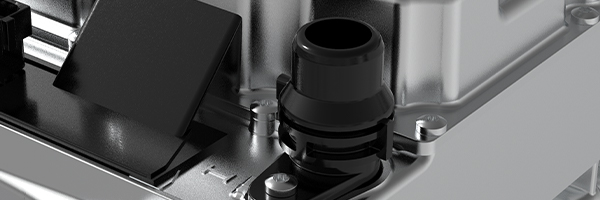

Application case

Application cases

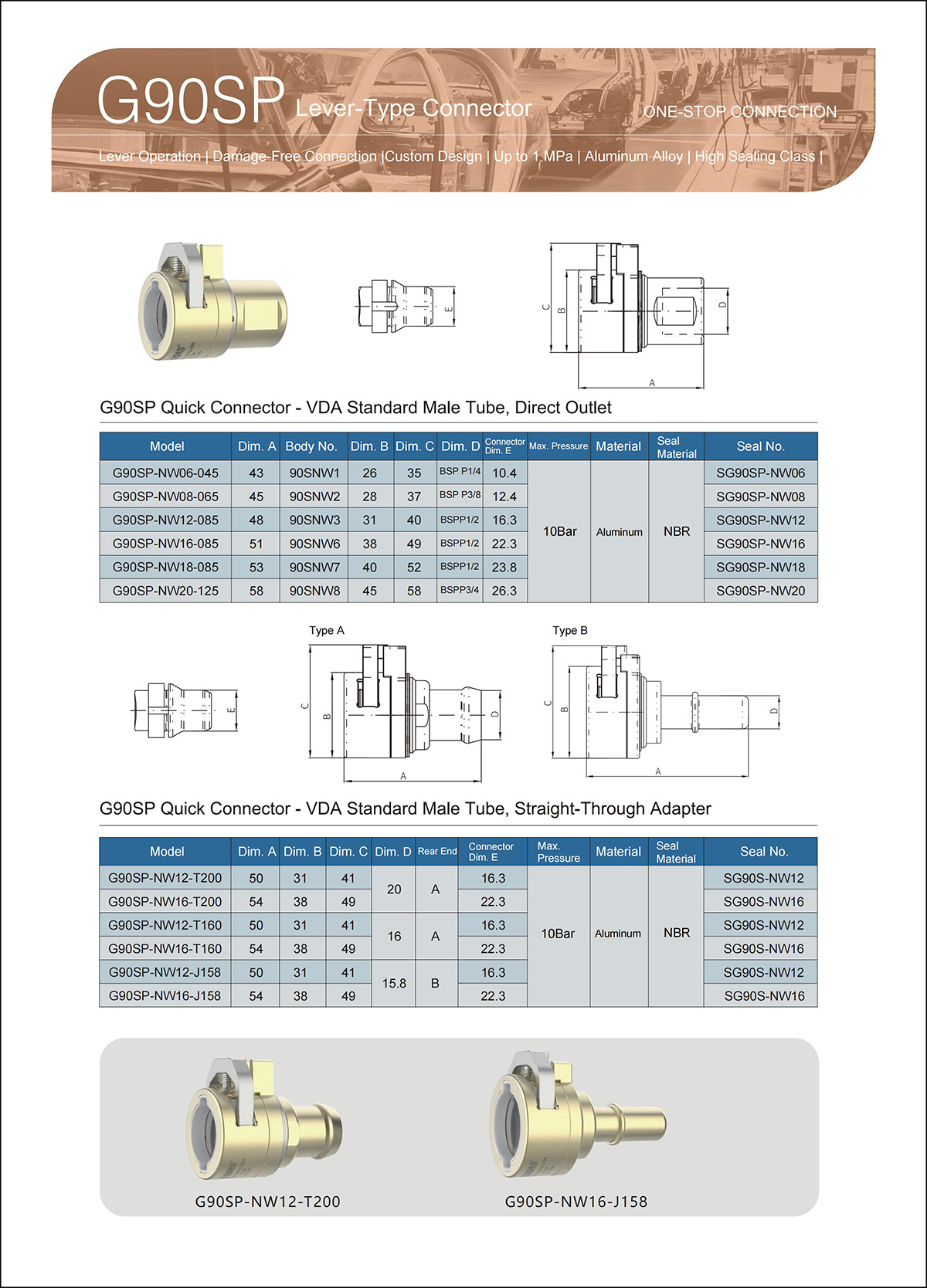

G90SPConnector selection table

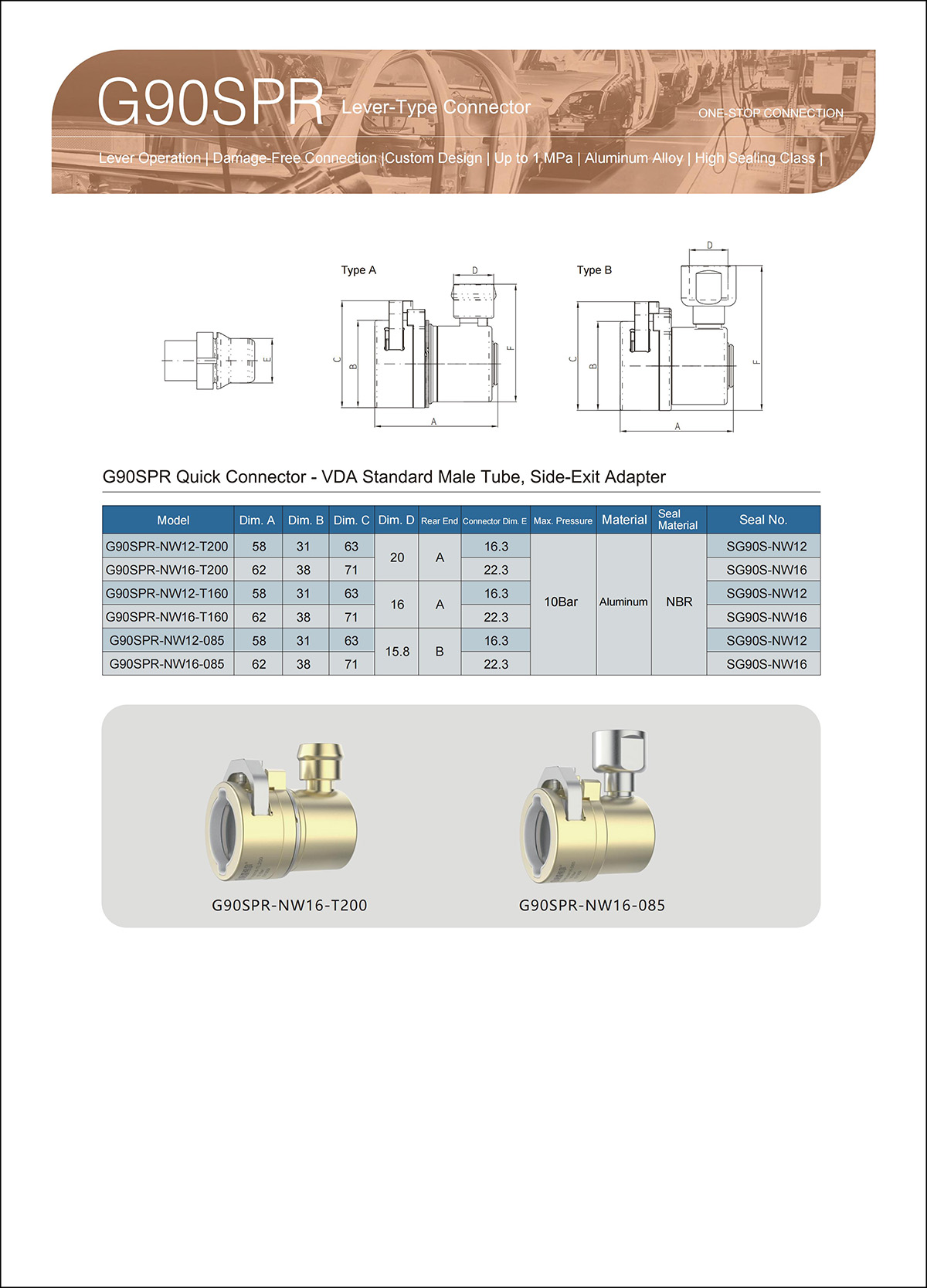

G90SPRConnector selection table

Keywords: G90SP quick connector G90SP pressure bar connector
