G80 Series Female Quick Connectors

Keywords：: Quick-connect couplings; Quick-test connectors; Leak-tight test connector

Location: Home » Product » Quick Seal Connectors » By Pipe Type » Thread Seal Connectors » G80 series internal thread quick connector

prve

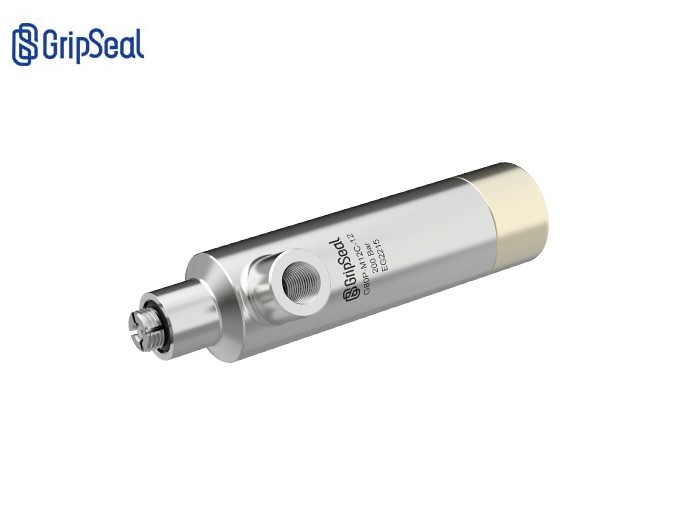

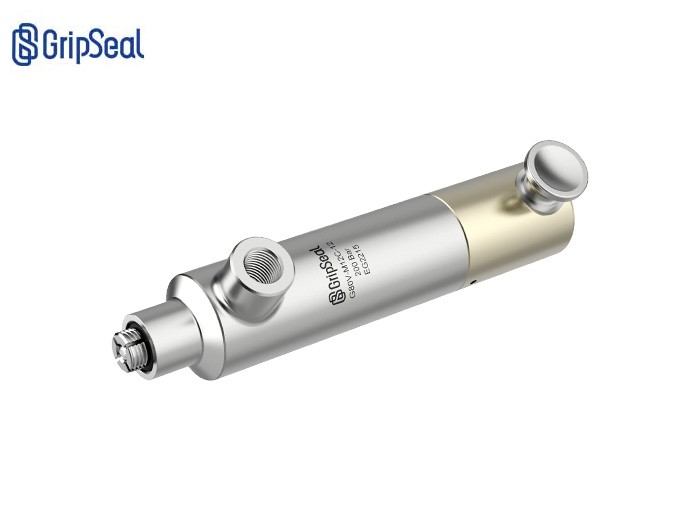

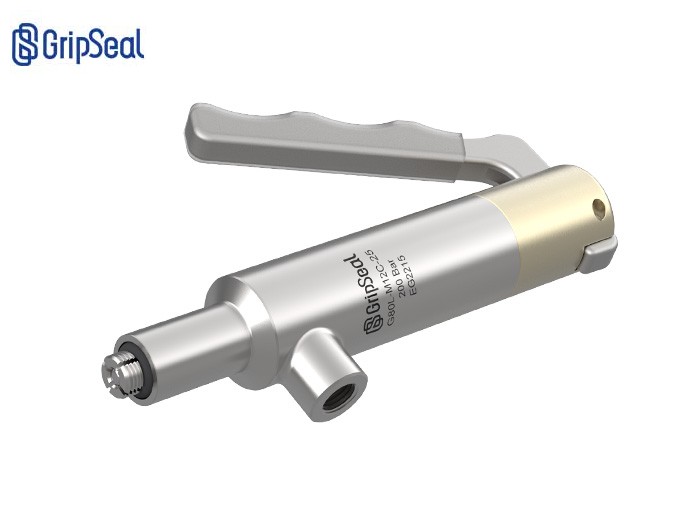

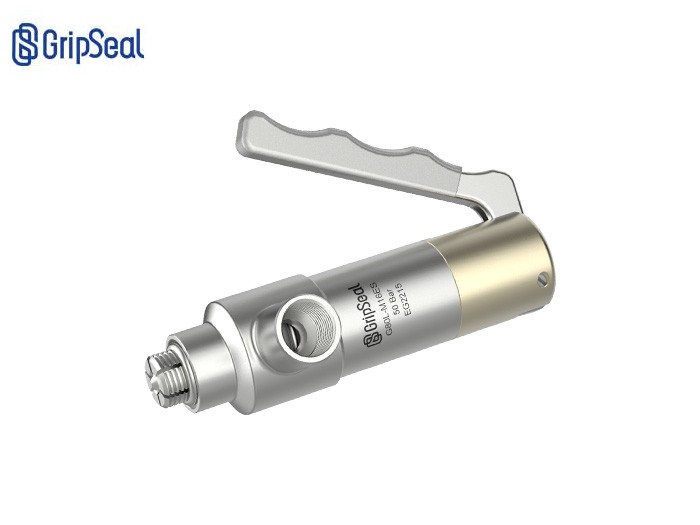

G80 series internal thread quick connector

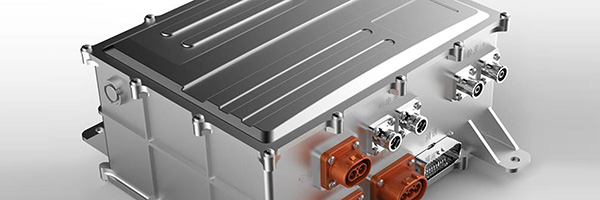

G80 series connector is a connector for internal threads, which is widely used for plugging and connecting various threaded holes, such as high voltage testing of auto parts, air tightness testing, shell plugging of new energy motor controllers, etc. There are various driving methods, suitable for various manual and pneumatic applications.

Service Hotline: 0755-86215125

Product details
Product selection table

product parameters

Product parameters

Maximum operating pressure	From vacuum to350Bar
Sealing range	Refer to the selection table
Minimum thread depth	Refer to the selection table
traffic interface	G1/8;G1/4;G3/8;G1/2
main material	316stainless steel
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber/fluororubber
operating temperature	-20℃-120℃

Product video

G80Series internal thread quick connector operation video

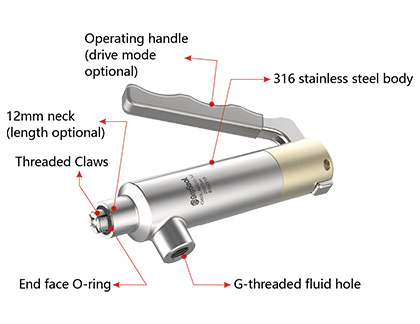

Product features

Product parameters

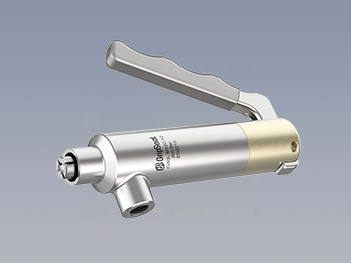

: Internal thread hole, screw claw expansion locking, less damage to screw teeth

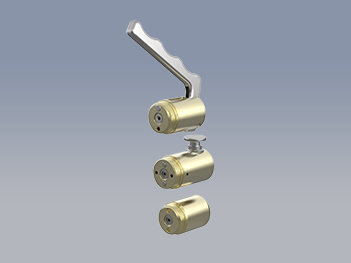

: Modular drive to meet customer's manual and pneumatic operation requirements

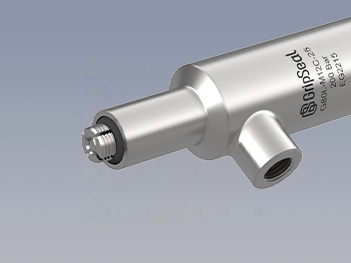

: Neck length customization to avoid interference

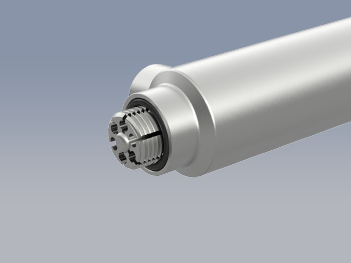

: Flow holes are attached to the screws to increase flow and shorten test time

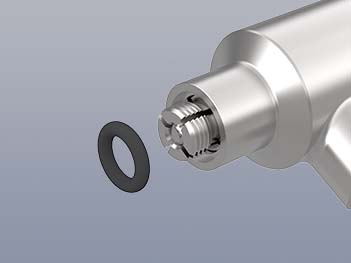

: end faceOType sealing ring, easy to replace and easy to maintain

operation method

Operation method

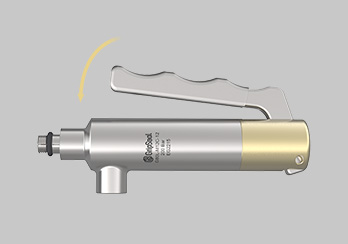

: Step one.

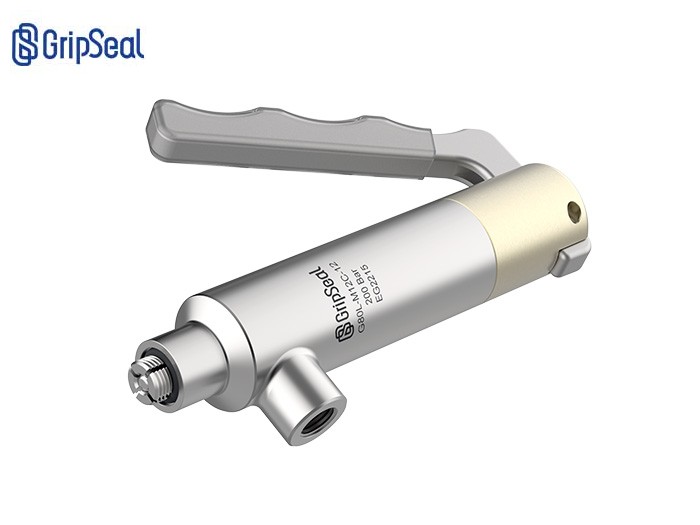

G80LHandle type, the handle is depressed, and the claws are extended and in a contracted state.

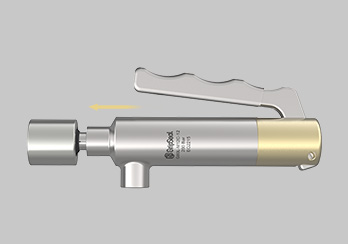

: second step

Insert the minions in the direction of the internal thread interface of the test piece until the threaded end face is in full contact with the main seal ring.

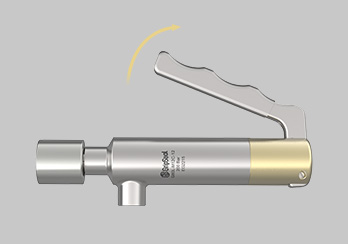

: Step three

releaseG80LThe handle and metal jaws expand by themselves and complete the clamping and sealing connection.

application scenario

Application scenarios

Get the application solution now

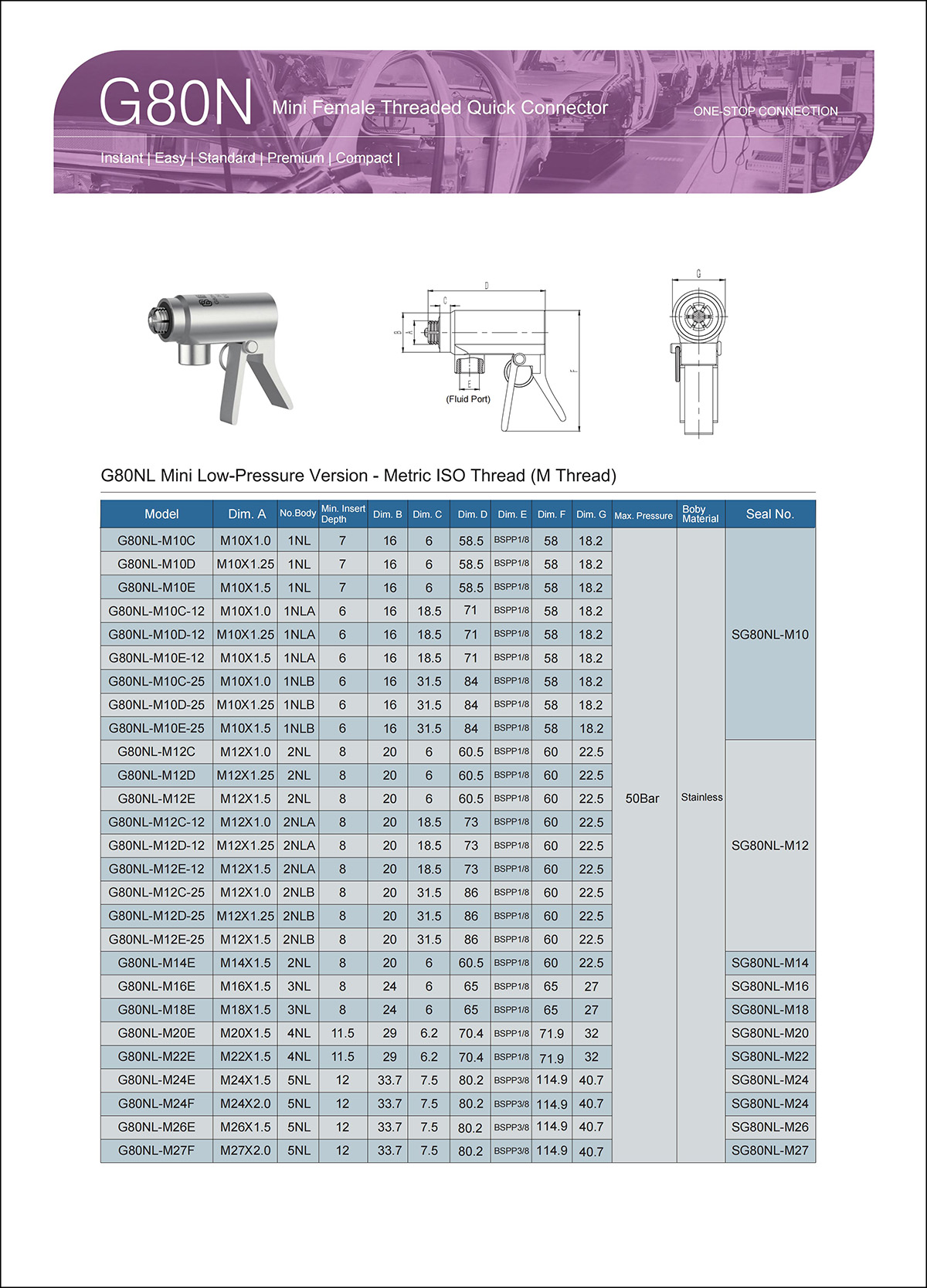

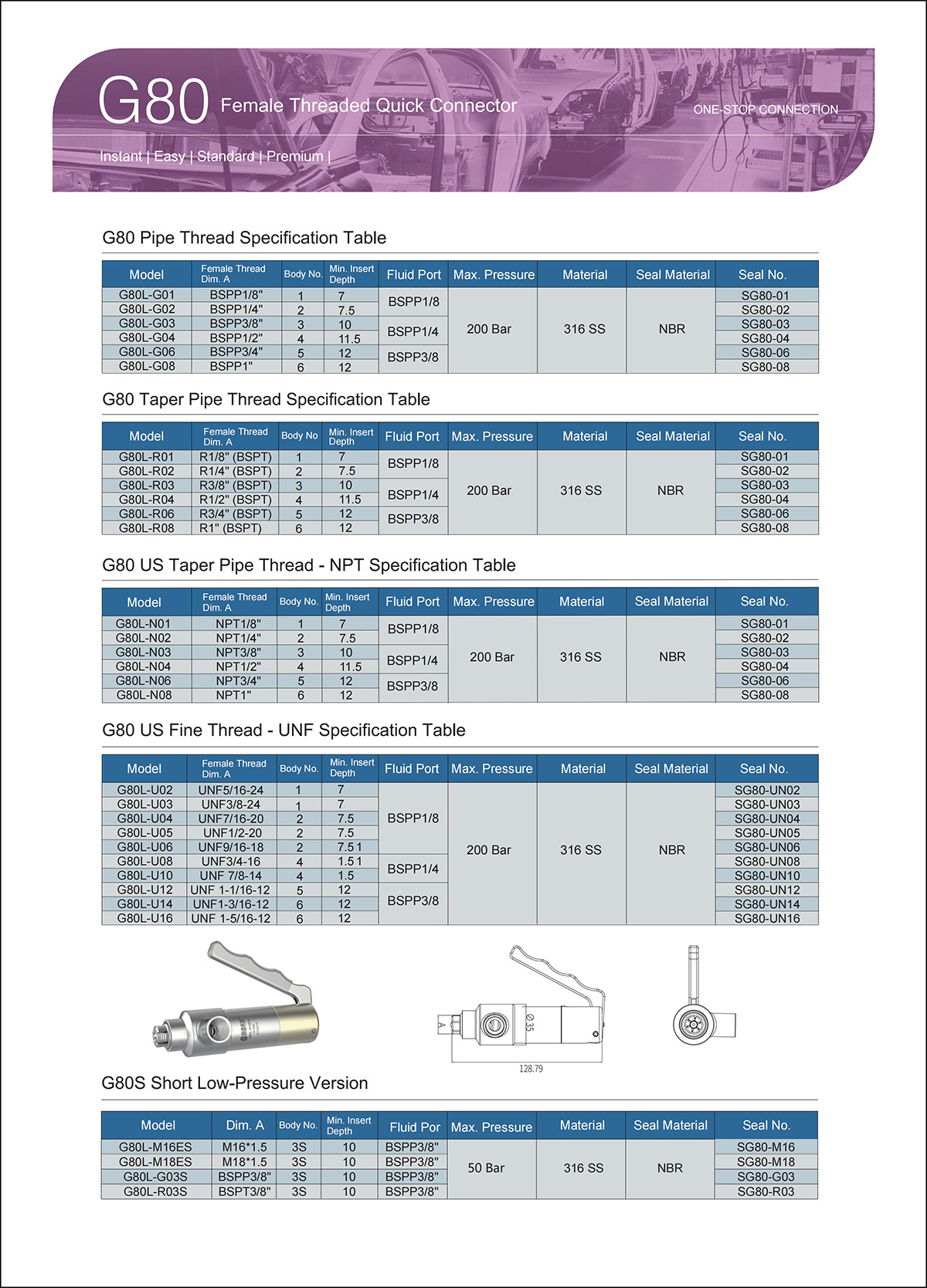

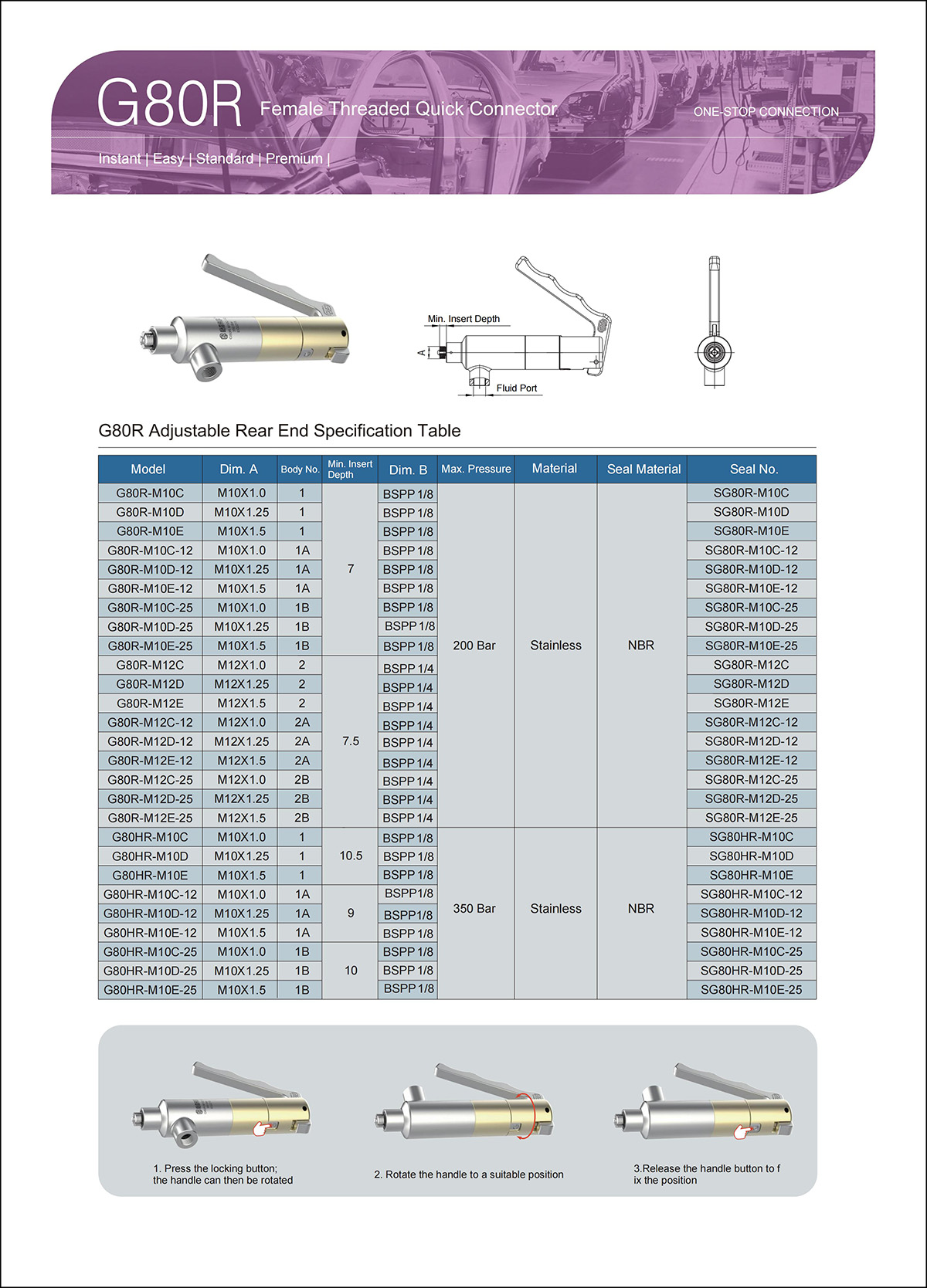

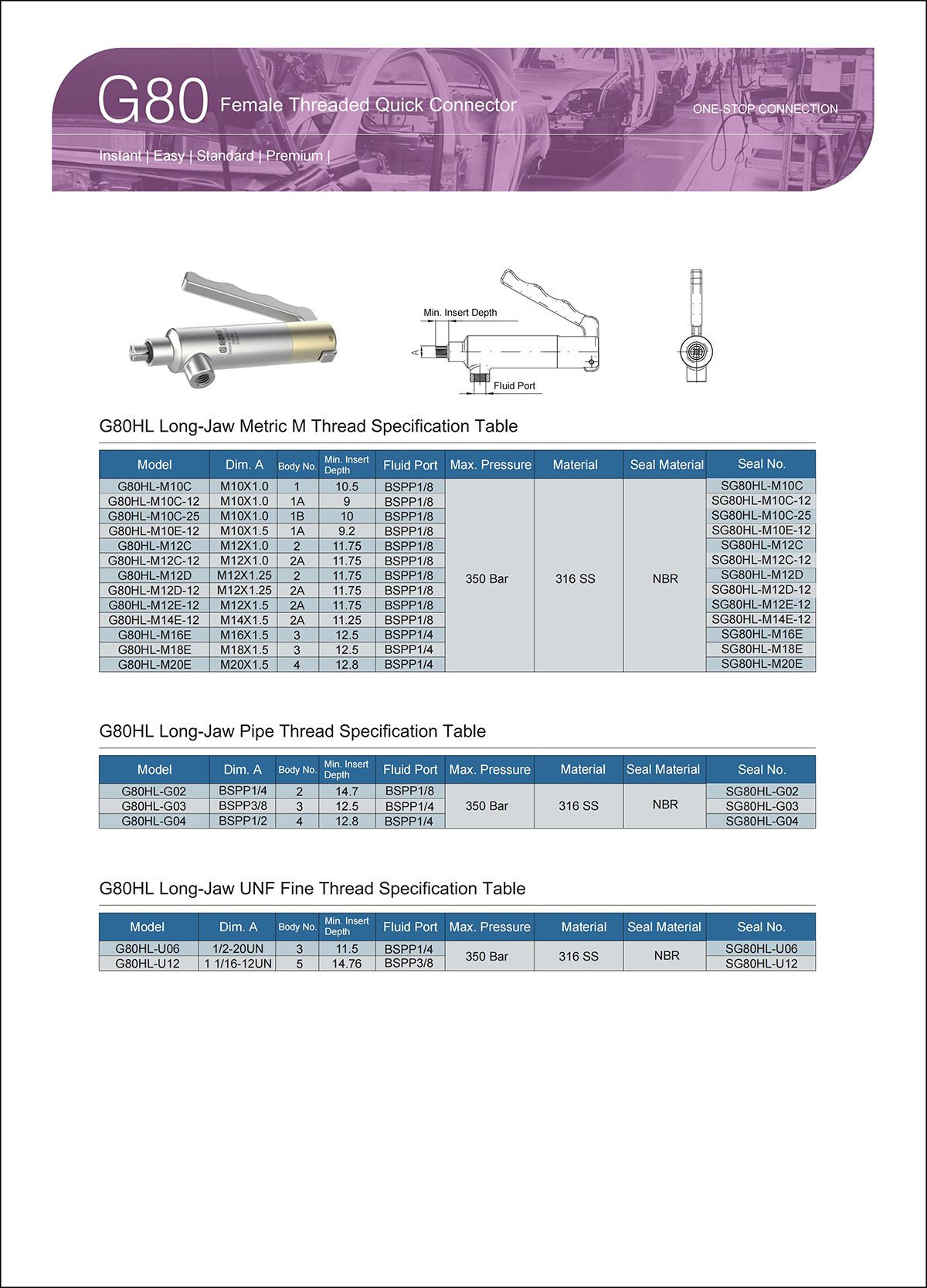

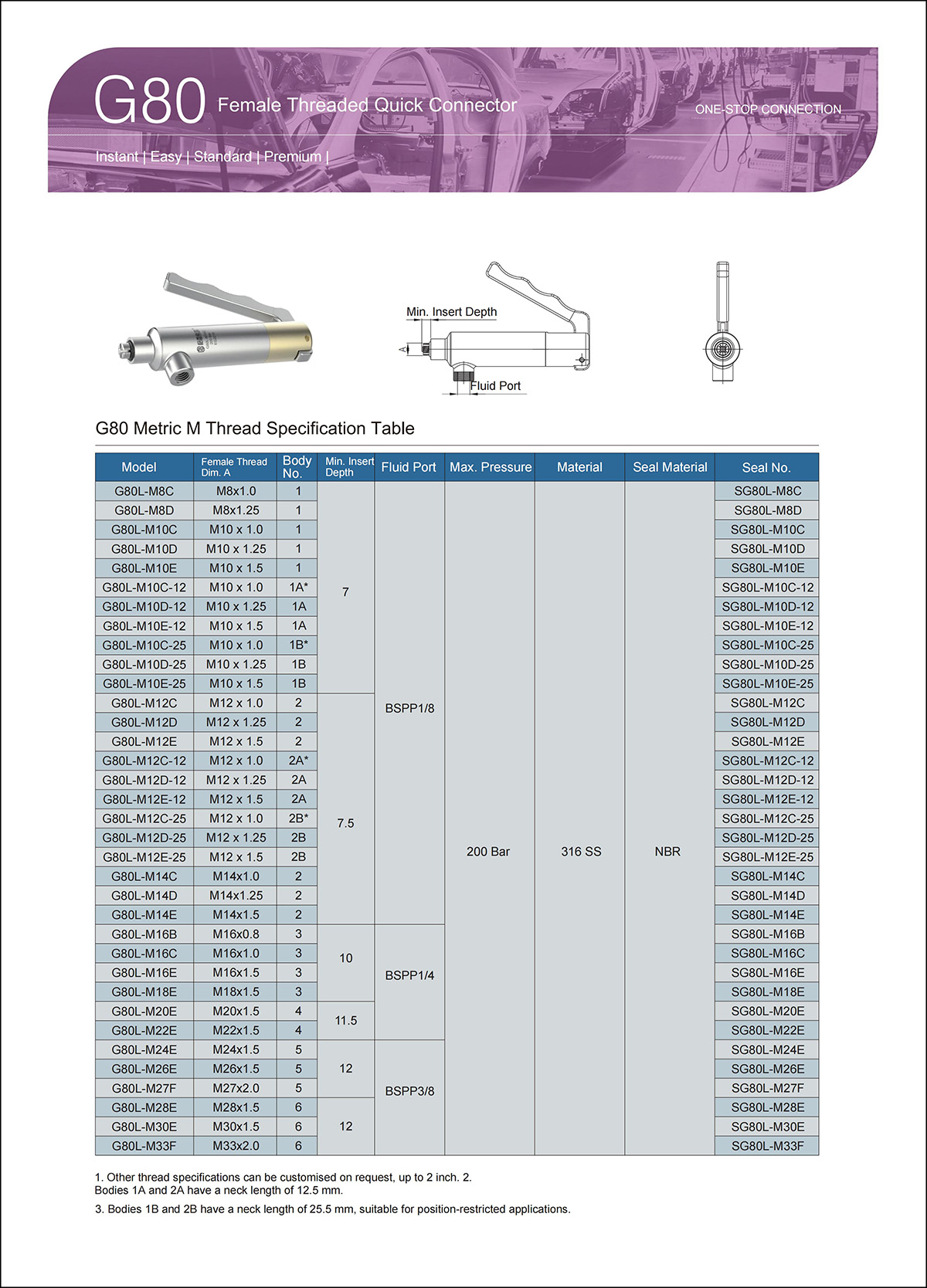

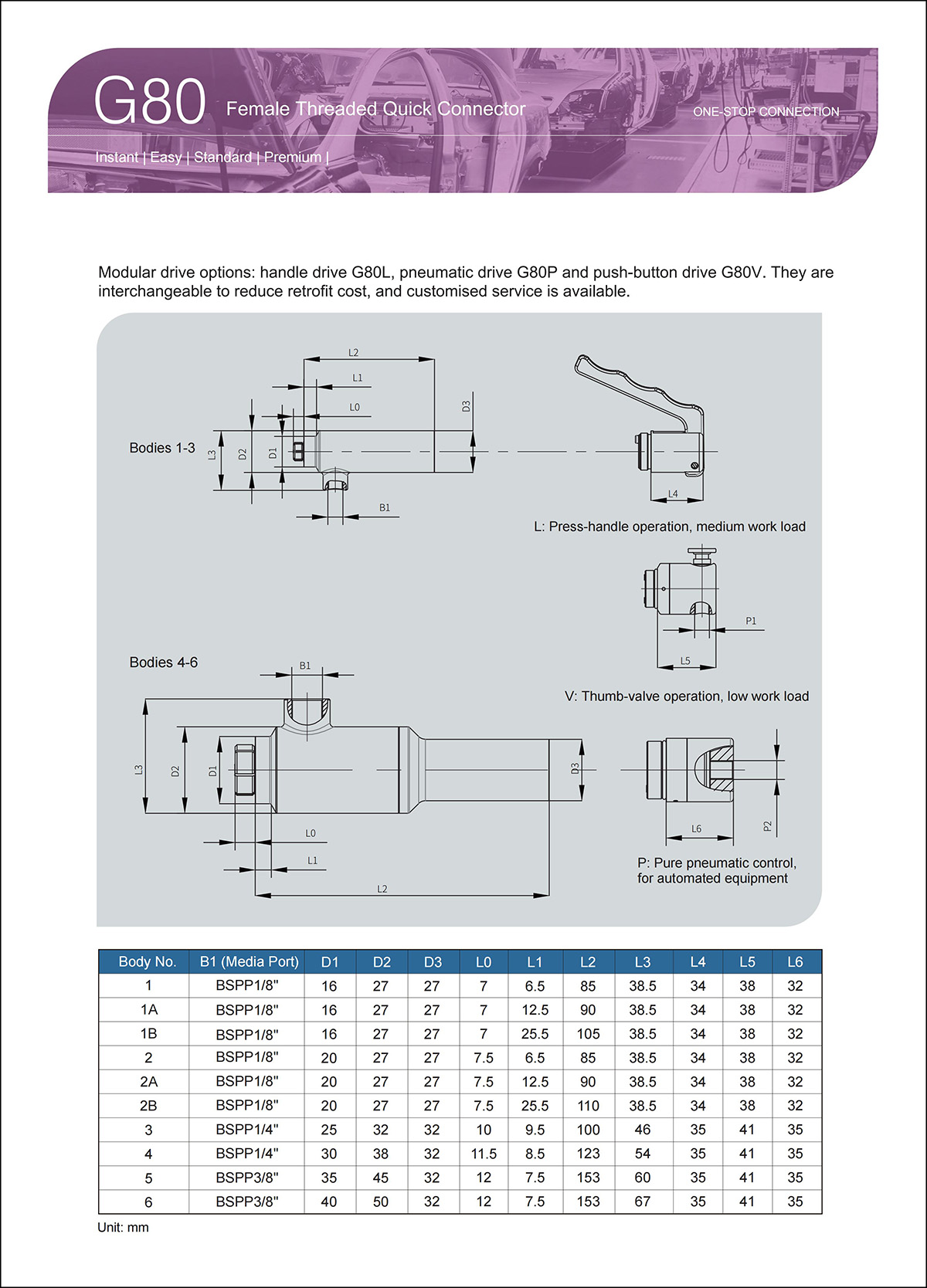

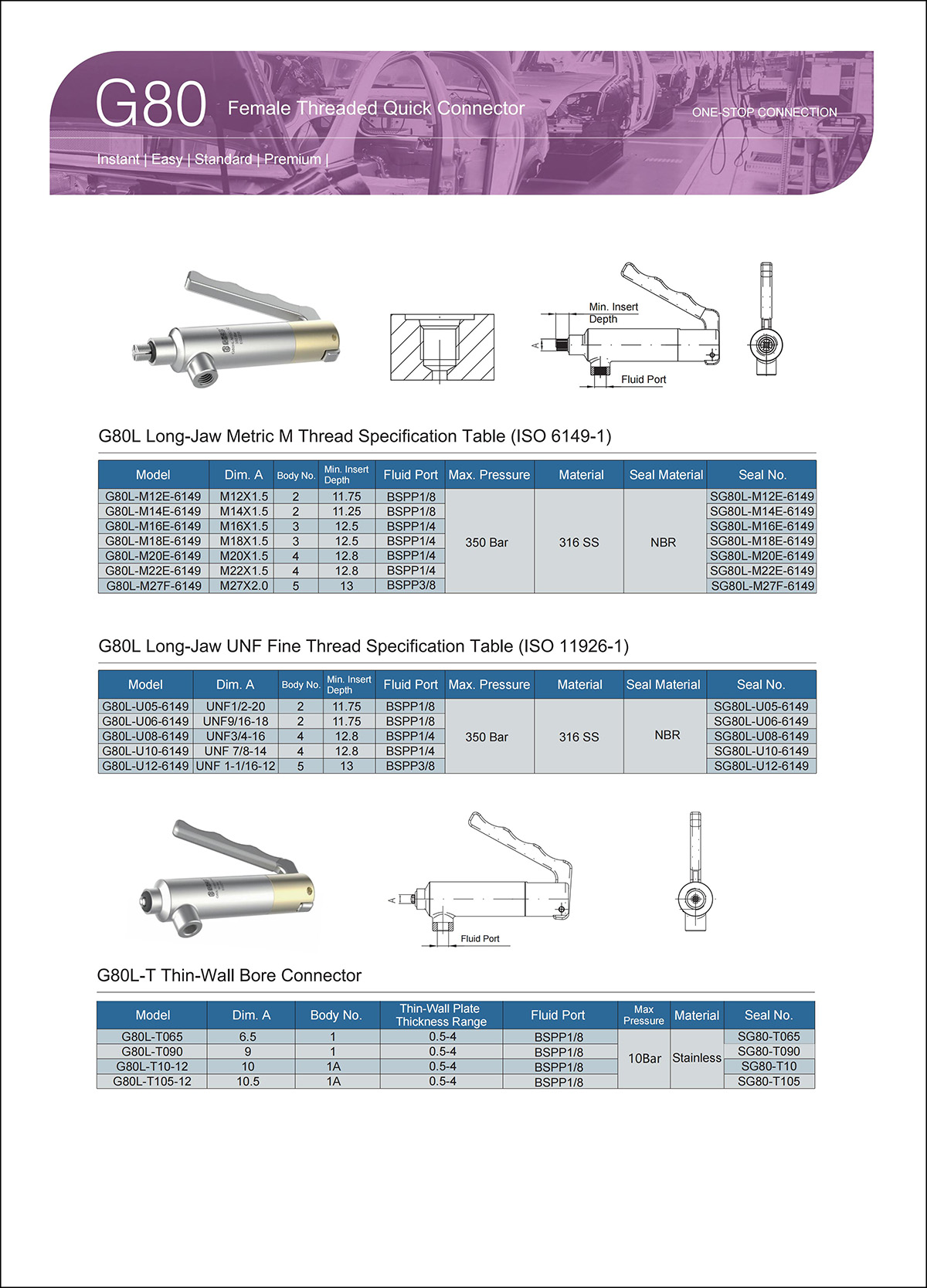

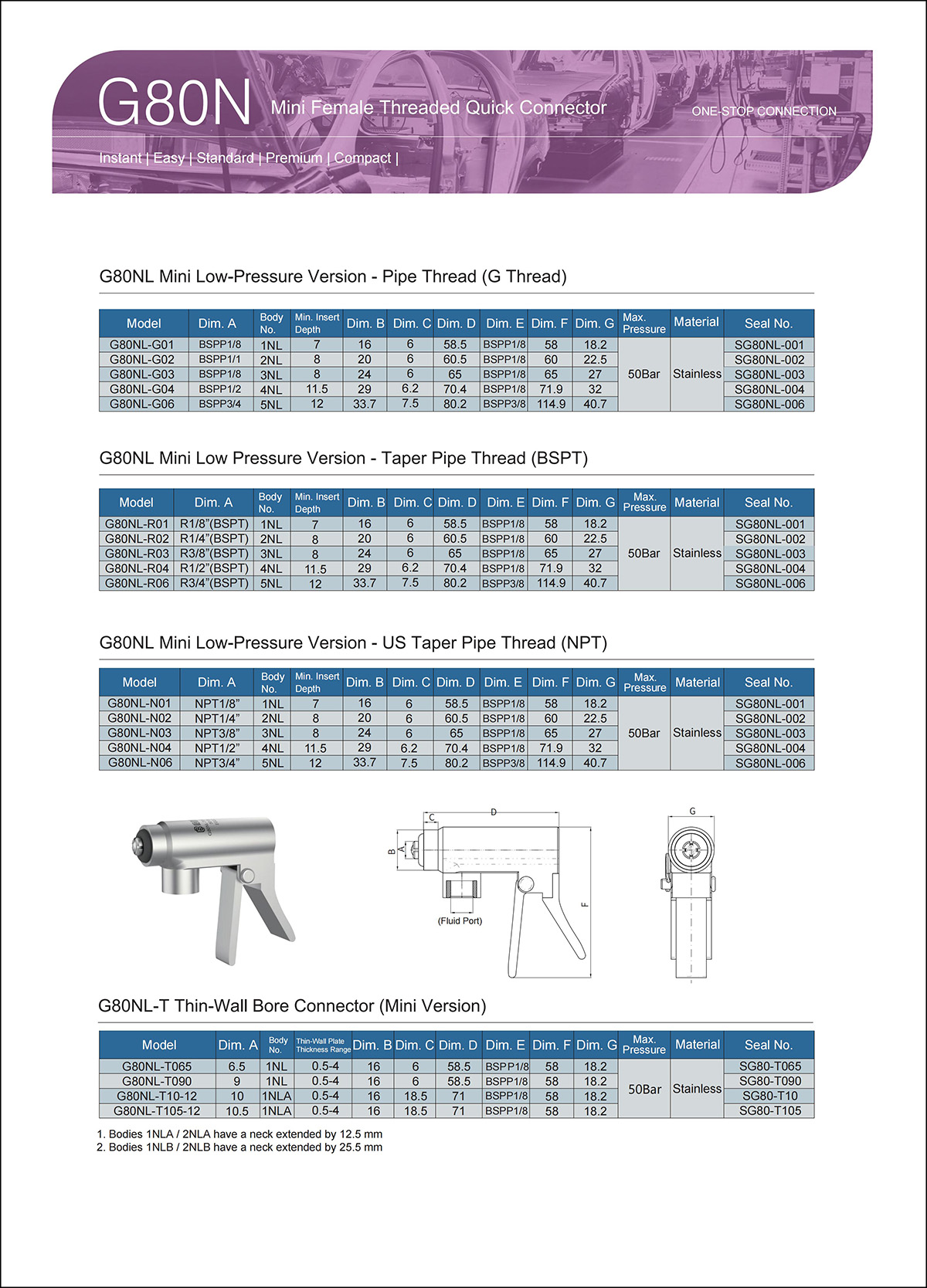

G80 Selection Table

Keywords: Female thread quick seal joint high pressure seal plug thread plug thread quick plug G80
