Low pressure internal expansion anti-scratch joint

In the air tightness test, the internal expansion typeQuick connector Is a common type of connector, such as GripSealG25ASeries andG35Series.

However, if the entire insertion, testing, and extraction process is expected to achieve a lossless, insertion limit effect, the above two series cannot complete this task well.

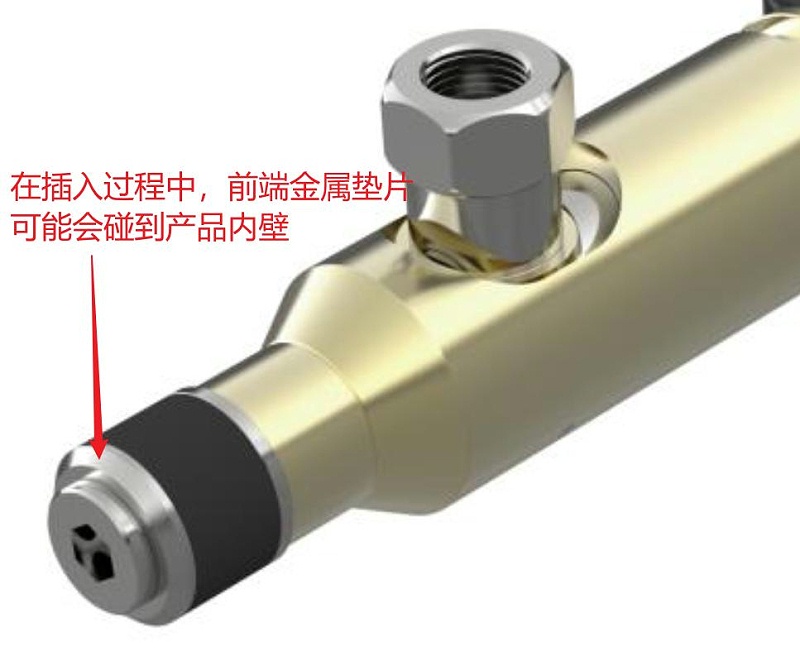

Figure 1: StandardsG25AQuick connector

To address customer pain points, GripSeal launchedG25A-PASeries, providing non-destructive testing throughout-Limit connection scheme.

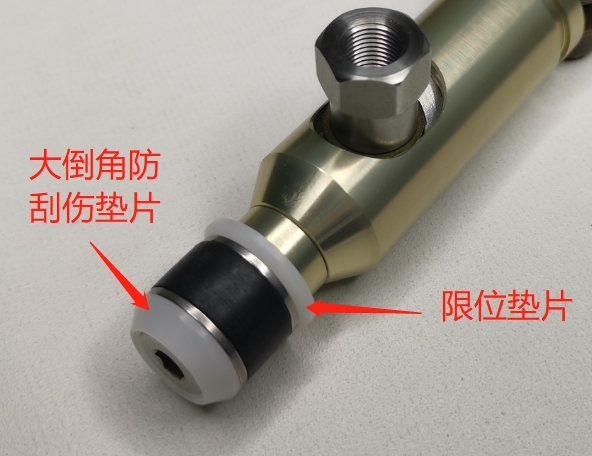

Figure 2: No damage throughout the process-Limit quick connector

G25A-PAThe series of quick connectors benefit from the addition of the chamfer of the large countersink at the front end, ensuring non-destructive contact throughout the insertion process and the existence of the limit gasket, which makes the sealing ring in the most suitable sealing position and improves the stability of the seal.

For more gas, liquid, and electrical test connection solutions, please contactGripSealLocal distributors.
