GripSeal G80LC Quick Seal Coupling: New Material Minions Assist Calipers for Airtightness Testing

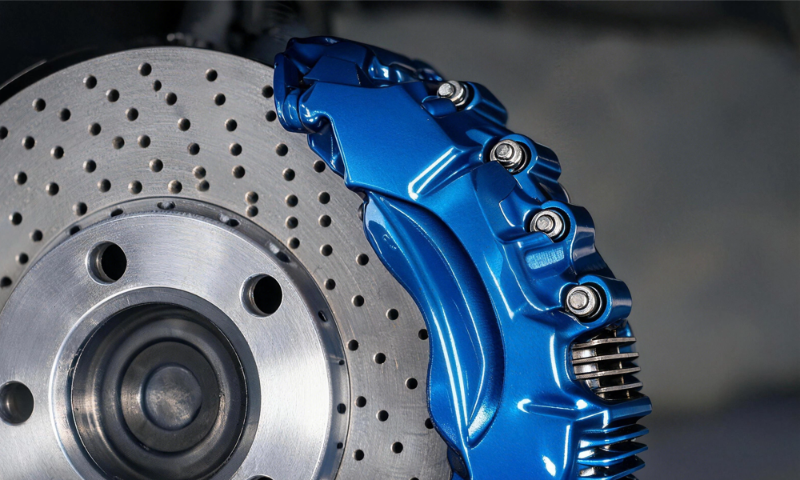

As automotive braking systems continue to evolve towards high performance and lightweight, the air tightness and high pressure test frequency and pressure level of calipers before leaving the factory continue to increase. For high-frequency production lines, the durability of sealed connectors is not only related to the continuity of testing, but also directly affects the overall control of consumables costs. Faced with this increasingly demanding application environment, GripSeal G80LOn the basis of the series, further expand the product boundaries and introduce new materialsG80LCSeries Quick Seal CouplingIt provides a more durable advanced option for high-intensity test conditions.

Minion materials are fully upgraded, and the service life is significantly extended

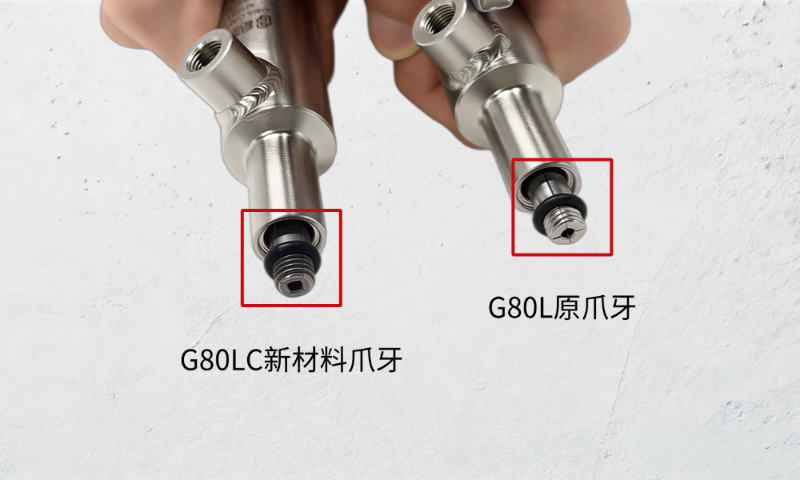

In order to better meet this demand, G80LCSeries quick connectorThe most crucial change is the breakthrough in the material of the front-end minions - the use of a new high-wear-resistant material, as shown in the picture, the new minions are gray. This material upgrade makes its hardness and wear resistance further optimized on the basis of the original model, and the service life is greatly extended. For high-frequency and high-voltage test scenarios such as calipers, stronger wear resistance can significantly reduce the frequency of connector replacement, saving enterprises the cost of consumables.

The operation process is simple and the sealing performance is stable

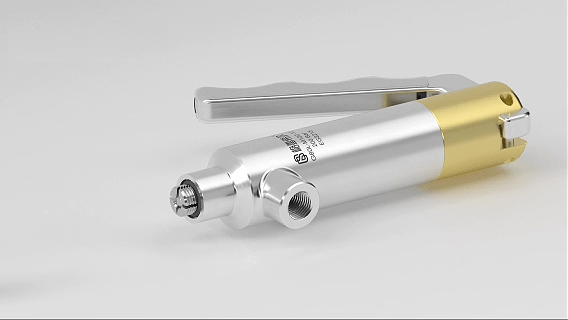

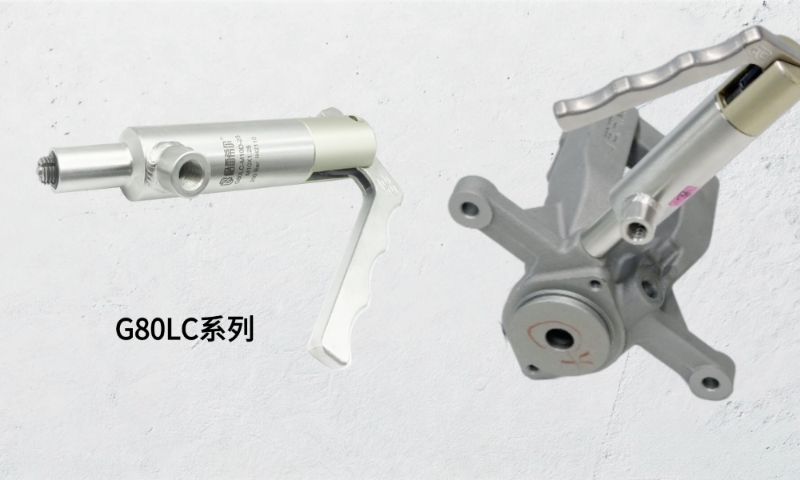

At the operational level,G80LCjointIt continues GripSeal humanized design logic and maintains a minimalist process of one-handed operation. The operator only needs to hold the handle and press lightly, and the front-end claws can shrink; after aligning the connector with the threaded hole and inserting it, release the handle, and the claws will automatically open and fit the caliper thread tightly, forming a stable grip. After the test is completed, it can be easily withdrawn by pressing the handle. The whole connection process does not require any tools, which greatly shortens the time and cost of sealing the connection.

In terms of sealing performance,G80LCQuick seal jointIt has excellent stability. It supports up to350BarThe stress testing can calmly cope with the requirements of calipers under severe working conditions such as high-pressure airtightness testing and brake fluid hydraulic testing. When the insertion angle is skewed, the joint will produce obvious frustration, reminding the operator to adjust in time, effectively avoiding repeated tests caused by poor sealing, and ensuring the absolute reliability of the test process.

Variety of driving methods, flexible adaptation to different production lines

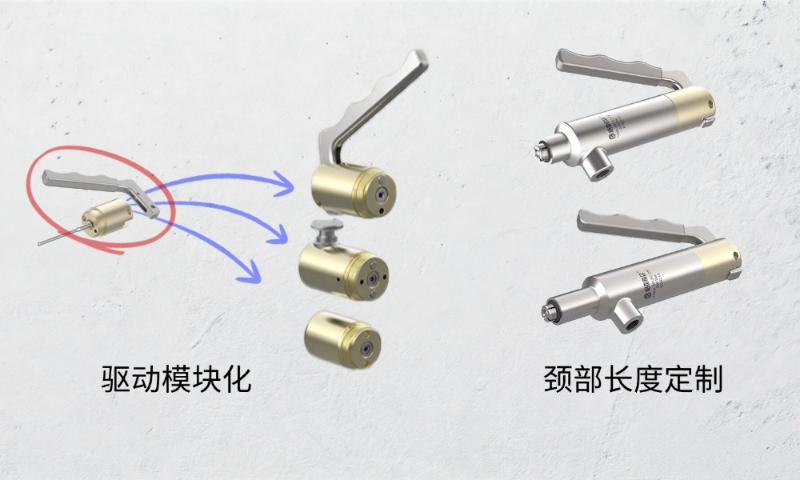

According to the differences in actual application scenarios,G80LCSeries connectorIt also provides a variety of drive options, which can be flexibly equipped with pneumatic, button valve or handle pressure rod operation, which can easily connect to semi-automatic and fully automated production lines. In addition, for some space-constrained caliper structures, the product can also provide customized services for different neck lengths to prevent interference.

Reduce costs and increase efficiency, and test production lines to empower durability

GripSeal G80LCSeries Quick Seal CouplingThrough the newly upgraded high wear-resistant minions, while ensuring the convenience of operation and sealing stability, the service life of the connector is greatly extended, and the more durable product characteristics empower the production line to help enterprises achieve cost reduction and efficiency in the high-frequency test link.
