GripSeal G25F Quick Seal Connector: New Energy Battery Pack Air Tightness Test Application

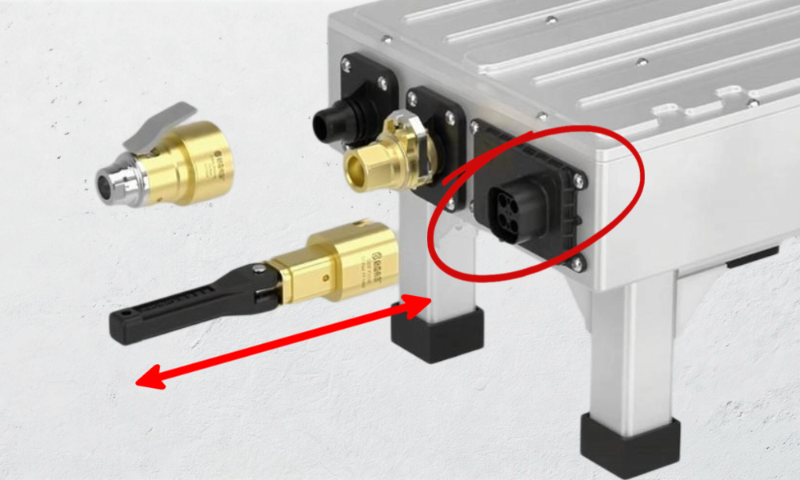

The new energy battery pack must undergo a strict air tightness test before leaving the factory. A variety of electrical connectors are integrated on the battery pack shell, including communication interfaces, high-voltage connectors, low-voltage signal terminals, etc. The geometric structure of these components varies greatly and the sealing interface is complex, which directly determines the difficulty of testing the connection. Traditional plugging methods often rely on manual plugging or thread locking, which not only takes time to operate, but also makes it difficult to ensure the sealing consistency, which is easy to become a bottleneck of production line efficiency.

In response to this engineering problem,GripSealG25FQuick seal jointWe provide specialized application-level solutions.

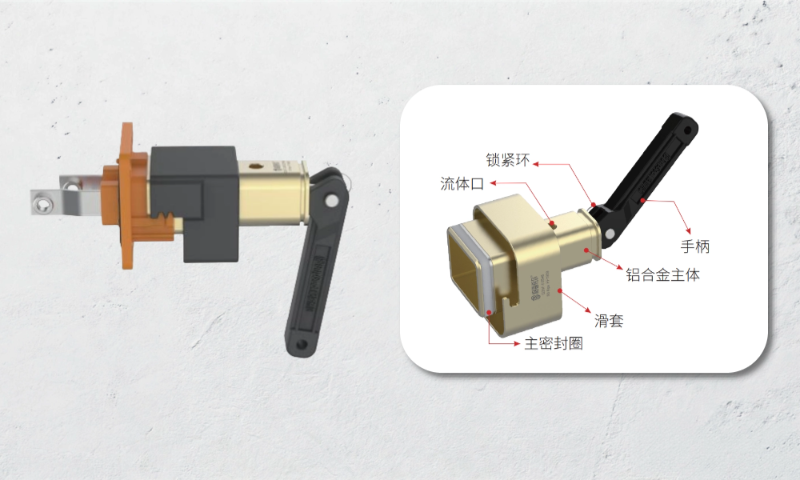

G25FQuick seal jointThe working principle of radial tension of the handle-driven sealing ring is adopted. After aligning with the inner wall of the electrical interface, pull90°The handle and sealing ring are evenly fitted to the inner wall to form a seal. The whole operation does not require any tools, and the single connection control is completed within a few seconds. The connector body adopts a short design, which effectively reduces the interference of self-weight and cantilever length on the sealing point, and can still maintain reliable contact under the condition of limited internal space of the battery pack.

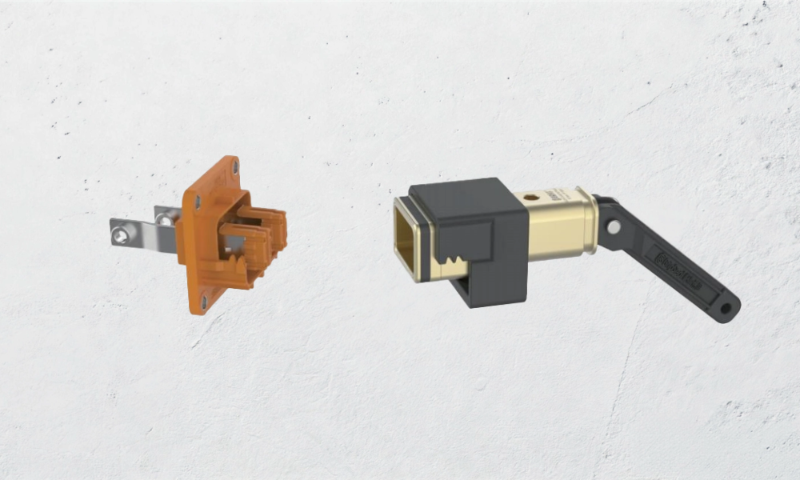

The electrical interfaces of different battery pack suppliers vary in size, shape, and pinhole arrangement, making it difficult to fully adapt standardized products.G25FQuick seal jointSupport is based on customer support3DThe drawings and interface parameters can be customized to ensure that the sealing position is accurate, the force is uniform, and the original production line test process does not need to be changed.

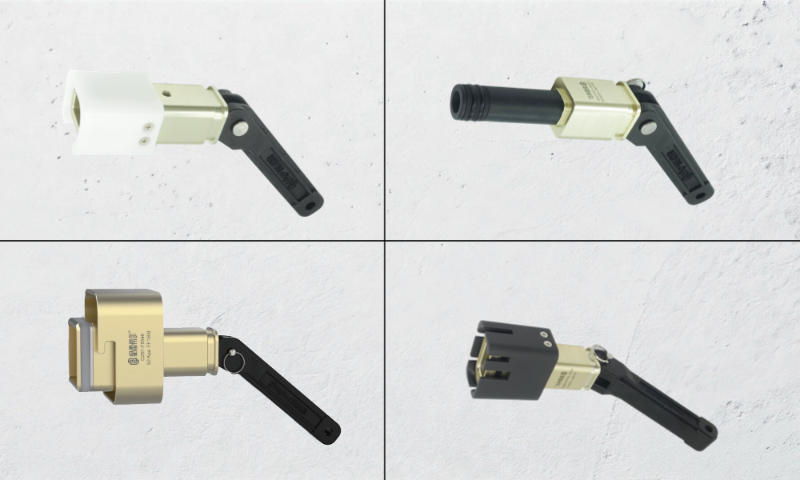

The sealing ring is the main consumable in daily use.G25FQuick seal jointAdopting independent replaceable design, no special tools are required for disassembly and assembly. Regularly check the sealing ring for deformation, hardening or damage. If any abnormality is found, it can be replaced directly, and the connector body does not need to be scrapped. For common electrical interface types such as high current pinholes, high current clips, probes, and small current clips, there are corresponding versions available.

GripSealOver the years, we have been focusing on the field of fast sealed connections, and our products cover new energy, automobile manufacturing, refrigeration appliances, instrumentation and other industries. We have complete capabilities from manual to automation, from standard to non-standard customization. Adhering to the technical concept of "one-second connection, instantaneous sealing",G25FQuick seal jointIn the application of new energy battery pack airtightness testing, the key link of interface sealing is transformed from an uncontrollable variable to a predictable and repeatable standardization step, continuously providing support for production line efficiency and test reliability.
