GripSeal Quick Seal Coupling: Power Brake Calipers for Efficient Seal Testing

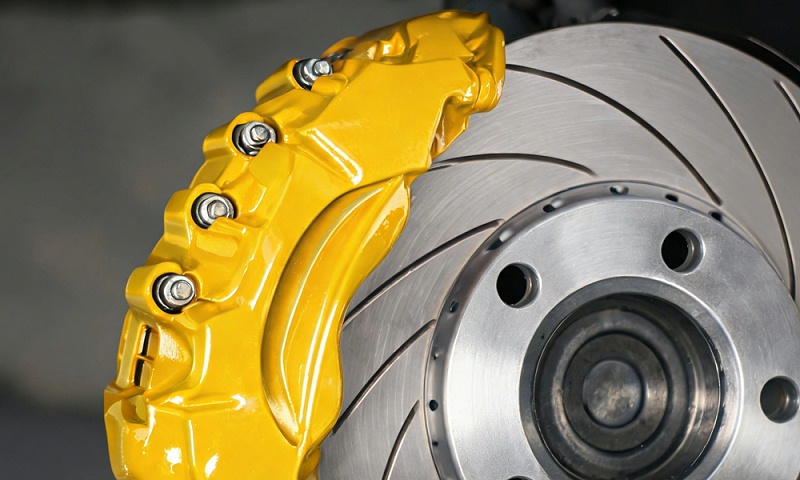

In the R & D and production testing of automotive brake systems, the performance verification of the brake caliper is the core link related to safety. During the testing process, how to quickly and stably plug and connect various threaded nozzles of the caliper is a key variable affecting the accuracy of the test data and the smoothness of the test process.

In the past, for this type of threaded interface, hand screwing nuts was a more common way. Although the tool is simple, in batch testing, manual screwing is time-consuming, and the operator is prone to hand fatigue, which affects the overall working rhythm. At the same time, the tightening torque cannot be standardized, and the sealing effect is highly dependent on operating experience. It is prone to test leaks caused by thread damage or poor sealing, which in turn leads to misjudgment and repeated testing.

In response to this industry pain point,GripSealG80Series Quick Seal CouplingIt provides a set of solutions with both efficiency and stability. The design of this series of products fully considers the fault tolerance of field operations, and its core logic is to convert "rotary locking" into "pressing and grasping".

Simplify operations and optimize work tempo

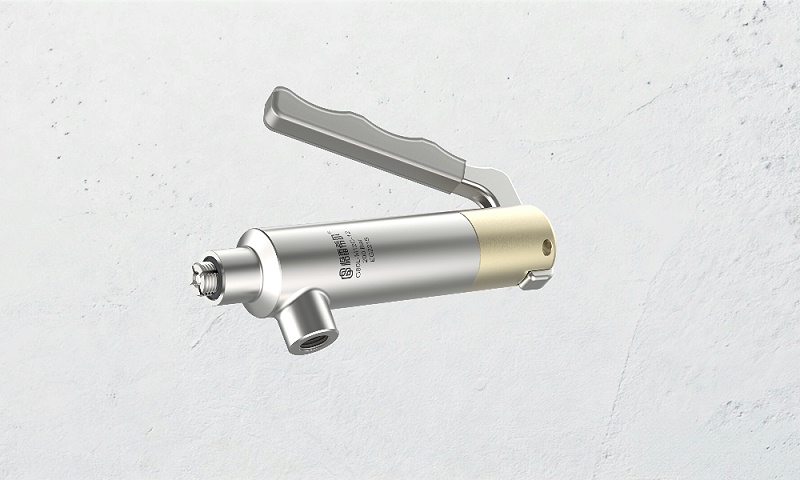

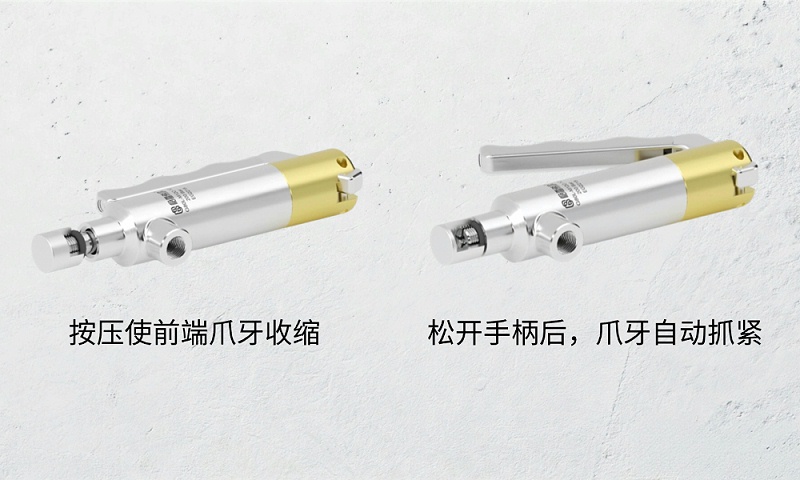

withG80LTake the series handle drive model as an example, which adopts a press-type handle design. During operation, the staff only needs to hold the handle, press to shrink the front-end minions, align with the threaded hole to be tested and insert it to the end. After releasing the handle, the minions automatically fit with the internal threads of the workpiece to form a grip, and the front-end sealing ring forms a fit seal with the end face of the workpiece under axial pressure. The whole action is connected in one second, which greatly improves the efficiency compared to the traditional screwing method. The disconnection operation after the test is completed is equally simple, and the joint can be withdrawn by pressing the handle without reverse rotation.

Stability first, reducing test interference

During testing, the stability of the sealed connection directly determines the validity of the data. G80Series sealing jointThrough the positioning of the claws and threads, combined with the end face sealing ring, the consistency and reliability of the connection are guaranteed. Even when high pressure fluid is introduced (this series can withstand the highest350BarPressure, suitable for high-pressure hydraulic test or airtightness test scenarios), the minions can also provide reliable gripping force to prevent the joint from coming out due to pressure, thus ensuring the continuity of the test process and the authenticity of data collection. In addition, its scientific tolerance design can produce a clear sense of frustration when the insertion is not in place or skewed, helping the operator to correct it immediately and kill the problem in the connection stage rather than the test stage.

Professional design and long lifespan

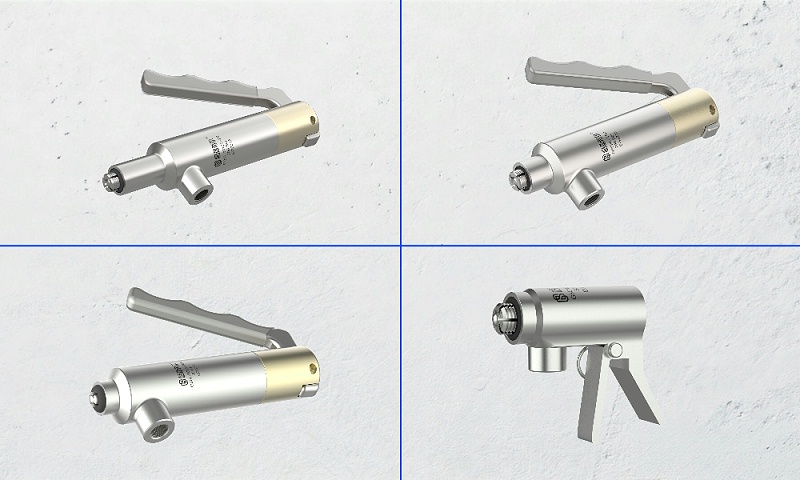

In order to adapt to the space constraints of different test benches,G80Series sealing jointStandard and long claw teeth are provided (G80H) and a variety of options such as the neck extension type, which effectively avoids the interference of surrounding parts. Structural use316Stainless steel material guarantees durability and dimensional stability under high-frequency plugging and unplugging; the end sealing ring is used as a wearing part and is designed with a standardized module, which is easy to replace and has controllable maintenance costs in the later stage.

In the pursuit of high precision and high efficiency in automotive parts testing,GripSealG80Series Quick Seal CouplingBy simplifying the operation and improving the reliability of the connection, it helps the brake caliper test process to effectively reduce the time loss and quality risk caused by sealing problems. It is a practical basic tool for optimizing the test process.
