GripSeal non-destructive fast sealing connector solution

Case name

losslessQuick Seal Connector Solution

customer demand

Industry instrument manufacturer customers, their pipeline pressure measuring instrument needs to be tested for quick sealing connection. Some of the instruments are externally threaded interfaces, and there are also flange interfaces made of aluminum alloy. There should be no scratches on the surface of the finished nozzle. In the production process, the sealing and inflation test is done. The traditional method is: the thread is tightened with a wrench, and the flange port is wrapped with a silicone hose and pressed with a clamp. The operation is cumbersome, and the coordination is inconsistent. It is also prone to leakage misjudgment. It is necessary to consider the use of a special fast sealing connector.

Program introduction

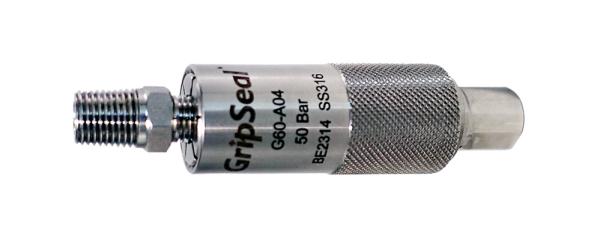

According to the actual application, we provide customers with quick-sealing connectors, and GripSeal is used for threaded interfacesG60CInstrument special quick connector; flange port is GripSealG70PNon-destructive connector, manual quick sealing connection, to meet the needs of finished product testing.

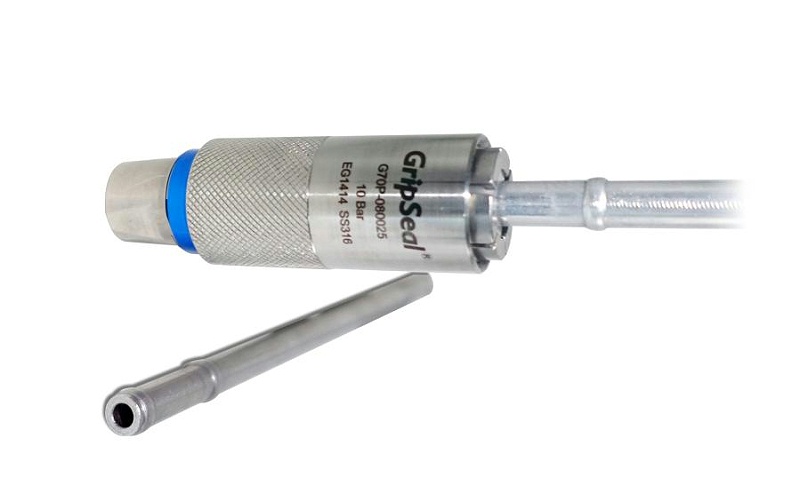

GripSealG70Special-shaped tube quick connector is an outer card type sealed connector, the main body is316Stainless steel material, compact, sturdy and durable, easy to operate, hand-held nudge to complete the sealing connection.

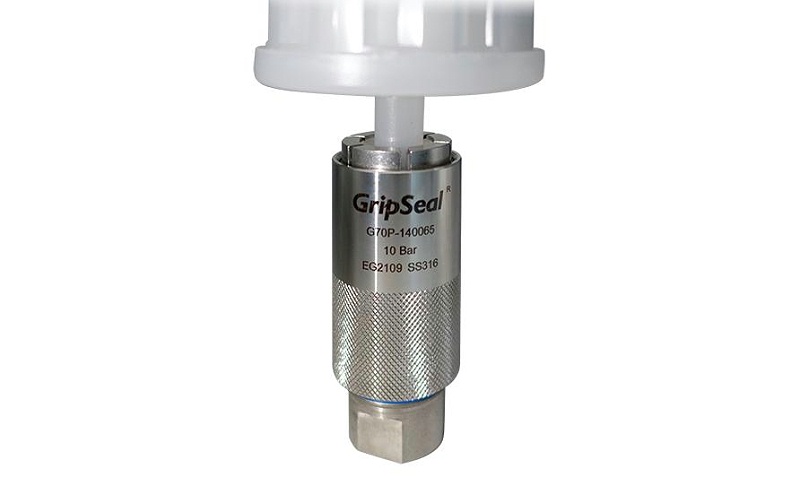

Our R & D engineers balance durability and practicality to achieveG70POn the connection contact surface with the test pipe fittings, an engineering plastic protective layer is added, which is very friendly to various aluminum alloy pipe fittings, plastic pipe fittings, etc., and the finished product interface that needs to be anti-bumping. It can achieve the effect of contact without leaving marks, and realize a connector solution that is completely damage-free during the test process.

Program advantage

Non-destructive connection, fast sealing, excellent material selection, stable pressure bearing, simple maintenance, and improved overall production testing efficiency.

Customer feedback

useGripSealQuick connectors are used in the production testing of finished instruments, which meet the connection specifications, reduce the difficulty of operation for employees, reduce misjudgments, and significantly improve production efficiency. One-second connection, instantaneous sealing, GripSeal meets the strict requirements of manufacturers for process quality control.

application development

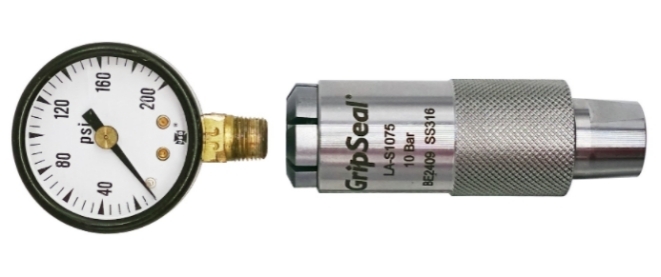

preferred brandGripSealGripSealQuick-sealing connectors can be used for airtightness testing of various instrumentation products, including pressure gauges, pressure transmitters, pressure sensors, and calibration manifolds. Gracier can provide a range of conventional standards and can provide dedicated non-destructive quick-sealing connector solutions according to customer needs.

Related products:G70、G60、G10Series Quick Seal Connectors
