Case name
Engine assembly testQuick seal joint applicationcase
customer demand

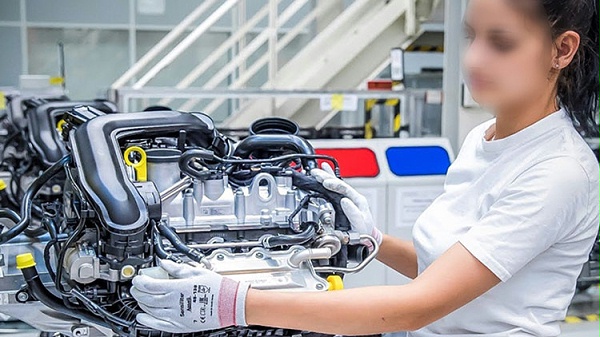

Industry engine manufacturer customers need to test the airtightness of oil passages, waterways, and fuel pipe fittings during the assembly process of the engine assembly. Airtightness is a crucial part of the production process. Manual airtightness testing is used, and there are many interfaces and pressure changes. Quick sealing joint applications are required.
Program introduction
According to the actual requirements of manual air tightness testing,GripSealProvide customers with a set of quick sealing joint solutions. Select:

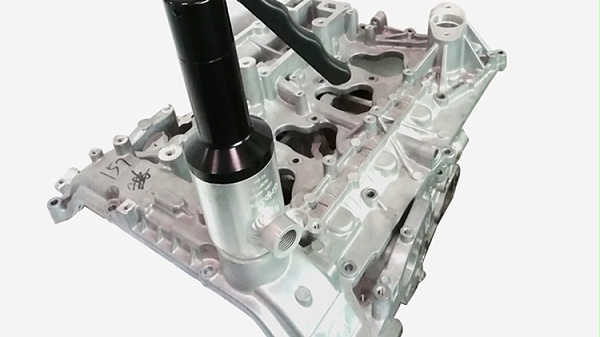

1. The test pressure is less than3Bar, useG25Internal expansion series connectors,G25It is a sealing joint for different inner diameter interfaces, with handle operation, simple operation, and a larger sealing range. It has become a high-quality solution in the field of low-voltage testing and is cost-effective.
2. The test pressure is greater than3Bar, The safety issues during testing cannot be ignored. Based on security considerations, theG35High voltage application connectors,G35The series of test joints have their own locking minions, which are pressure-assisted locking. The locking force increases with the increase of the test pressure to ensure the safety of the test.
3. When the test requires traffic, useG70Series external card type quick connector,G70The series of straight-through flow holes ensure the flow rate during testing and minimize the loss of flow. The end face adopts a small cone angle sealing ring to achieve sealing while also ensuring the sealing of the joint under a certain lateral load, ensuring the safety and stability of the test.
Program advantage
Achieve fast sealing connection, high-quality material selection, stability and durability, safety and reliability, meet the requirements of high flow, high pressure, high and low temperature, and improve testing efficiency.
Customer feedback
useGripSealQuick seal joints are used for airtight inspection of engine assembly. Can significantly reduce the operating intensity, safe and reliable design, reduce the risk of misjudgment, one-second connection, instantaneous sealing, very satisfied with GripSeal product quality and service.
application development
GripSealQuick connector can be applied to air tightness detection of various automotive parts, including engine cooling system, transmission system, pot wheel booster, fuel system, fuel pump, storage bottle, radiator, valve group, transmitter, sensor, shock absorber, exhaust system and other air tightness leak detection and stress testing, can choose the corresponding test connector.
related products
G25Series Quick Seal Coupling、G35Series Quick Seal Coupling、G70Series Quick Seal Coupling
