EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to3Bar |
| Sealing range | 10mm-34mm |
| minimum insertion depth | 1,2No. Body:15mm，3,4No. Body:25mm |
| traffic interface | G1/8Threaded hole |
| main material | aluminum alloy |
| Main sealing ring material | neoprene |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video

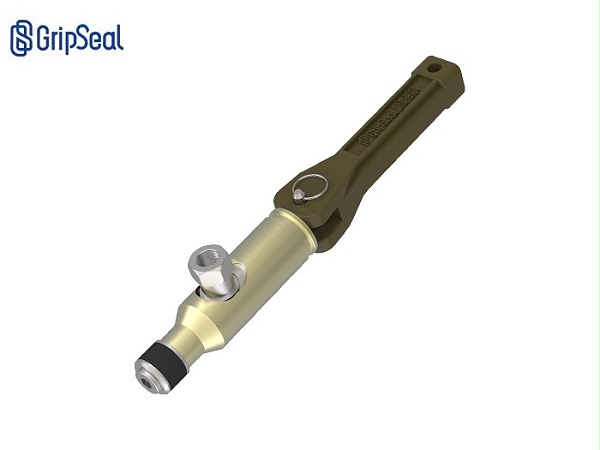

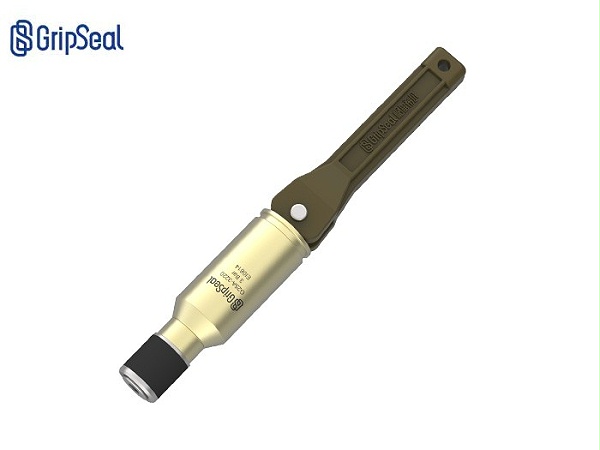

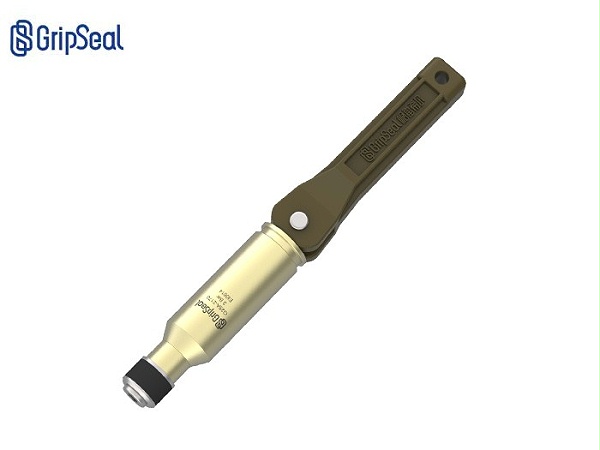

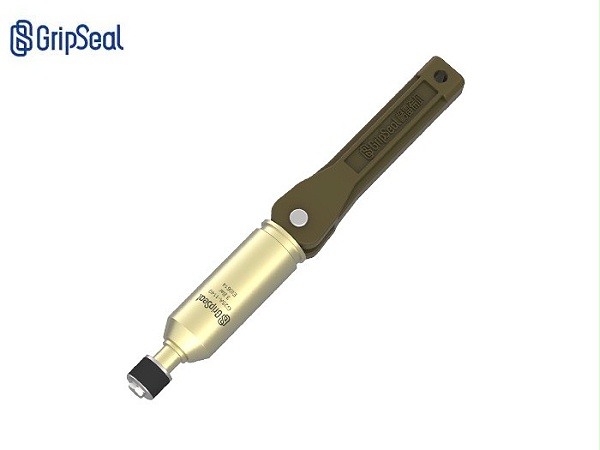

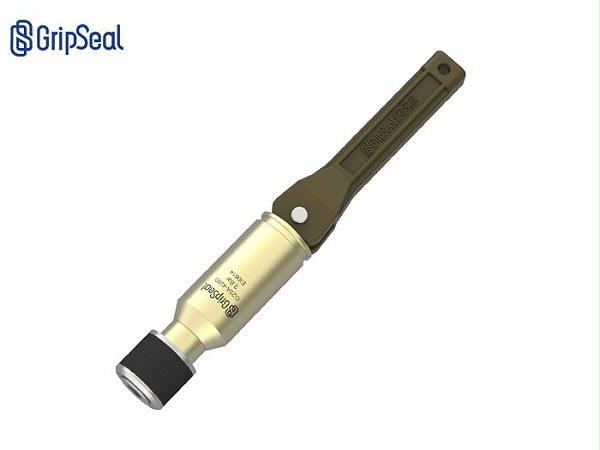

G25A Operation video of series low pressure tube inner diameter sealing connector

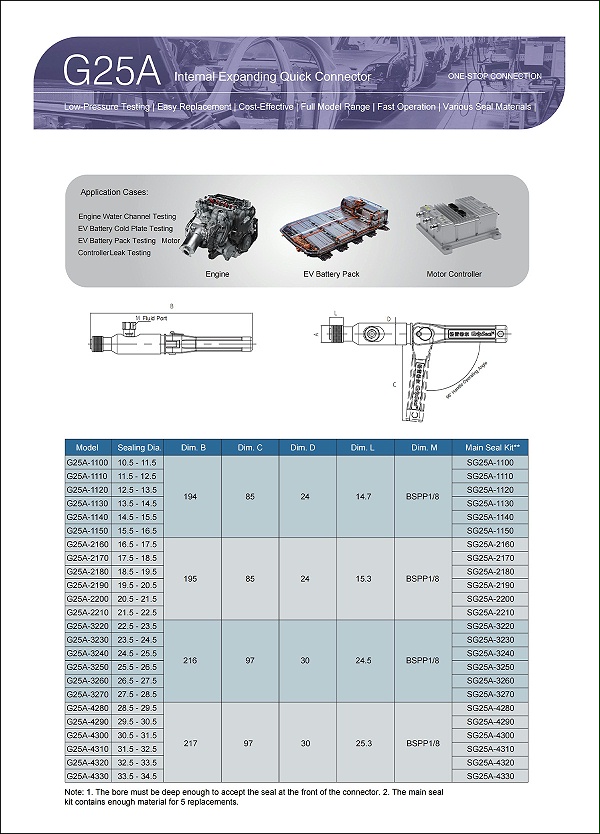

Product parameters

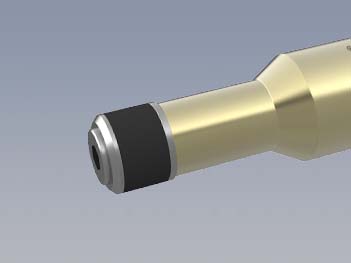

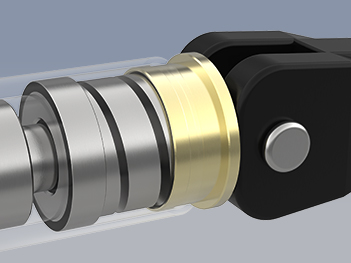

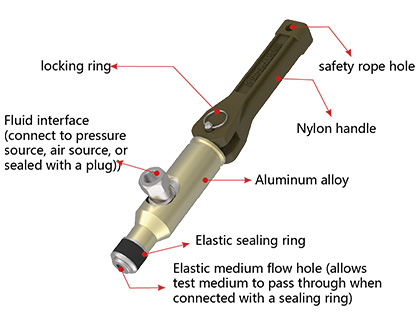

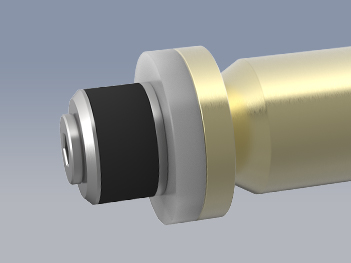

Self-adjusting spring: automatically adjusts the sealing pressure according to the aperture, prolonging the service life

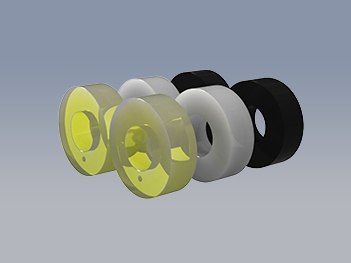

A variety of sealing materials: materials are optional to meet customer-specific needs

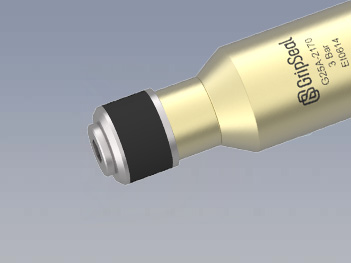

Quick replacement of sealing rings: can be replaced without special tools
Nylon handle: ergonomic design, reducing the labor intensity of the operator
Pipe thread fluid hole: in line with international standards, commonly used in China, related accessories are easy to obtain
Operation method

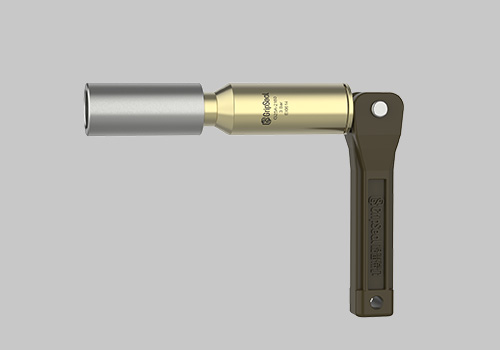

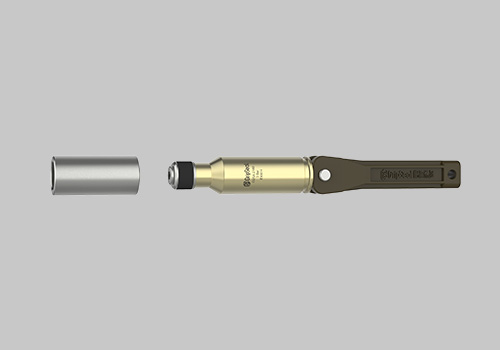

willG25Insert the corresponding inner diameter of the test product. Bend the handle to seal.
Pass test air pressure (below3bar), complete the relevant test, and then release the test air pressure. Straighten the handle and take it outG25。
